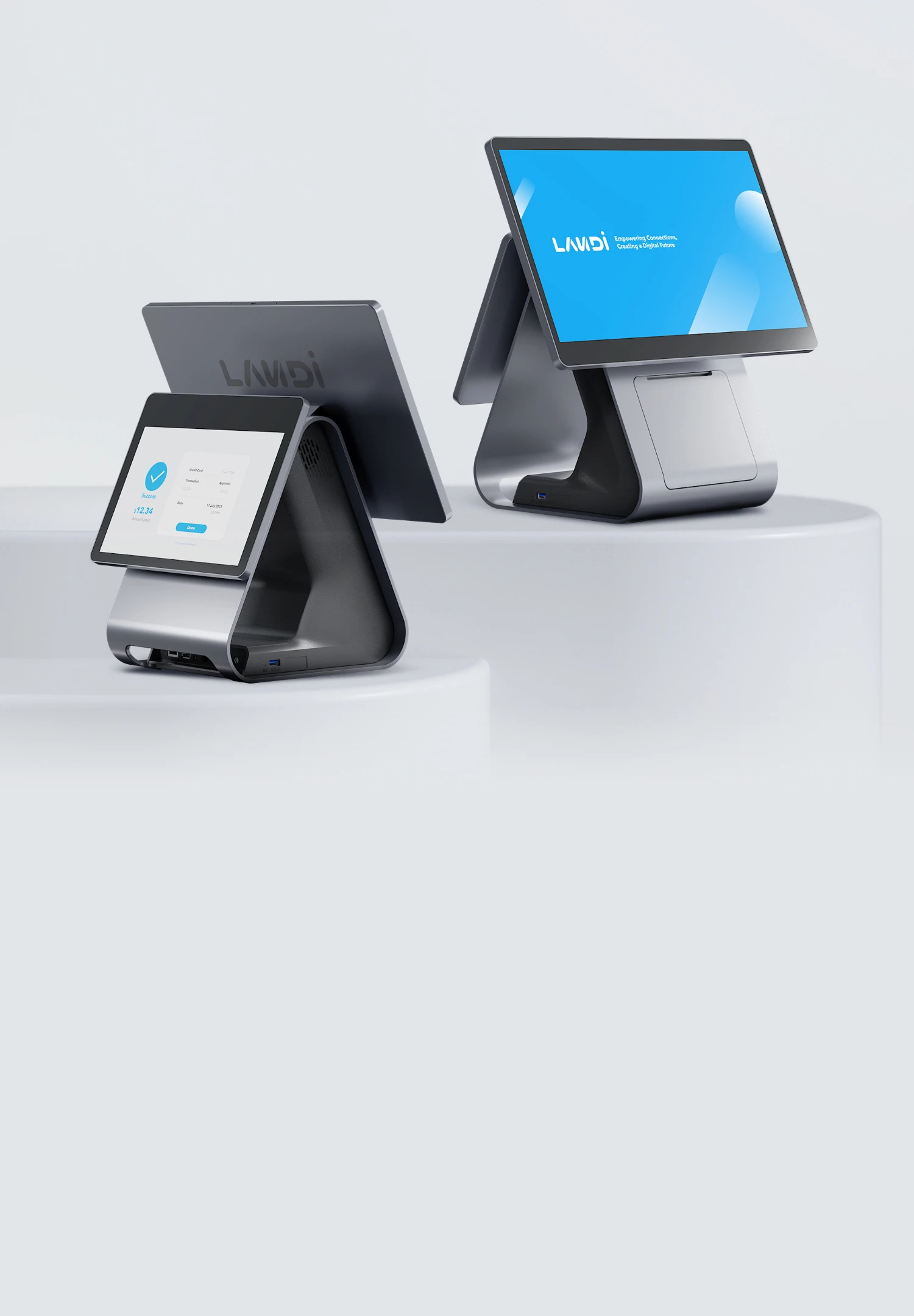

Where Value Meets Performance.

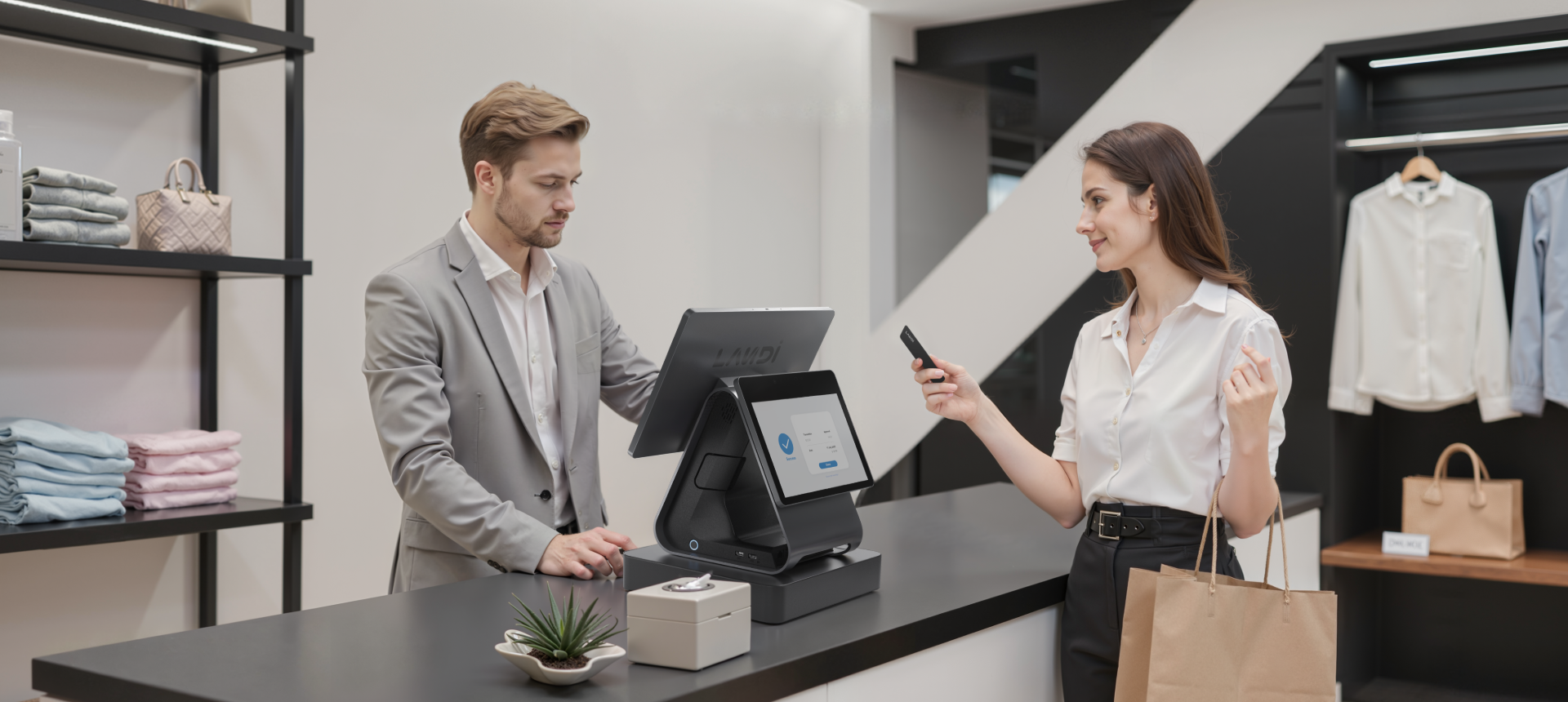

Cx20 Lite makes every checkout simple, seamless, and cost-efficient.
Optimized for Cost and
Performance
Designed with the Intel® N97 quad-core processor (up to 3.6 GHz), CX20lite strikes the sweet spot of cost efficiency and performance—delivering enterprise-grade capability while keeping investment lean and predictable.
Enterprise-Grade Windows Platform
Running on Windows 11 IoT LTSC (64-bit), CX20lite ensures long-term stability, enterprise security, and compatibility with a wide ecosystem of applications.
Window 11
Future-Proof Memory & Storage
Equipped with 8GB RAM + 256GB storage, expandable to 512GB, enabling fast data processing, secure storage, and room for growth.

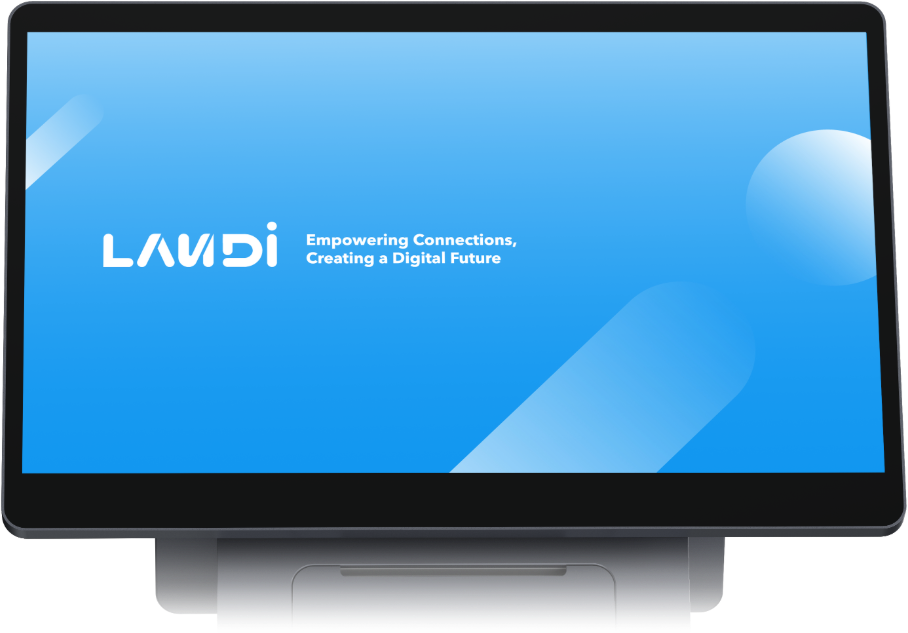

Immersive Full HD Display Options.
A 15.6” Full HD capacitive multi-touch display (1920×1080 px) delivers crisp clarity and fluid interaction.
10.1” customer-facing display

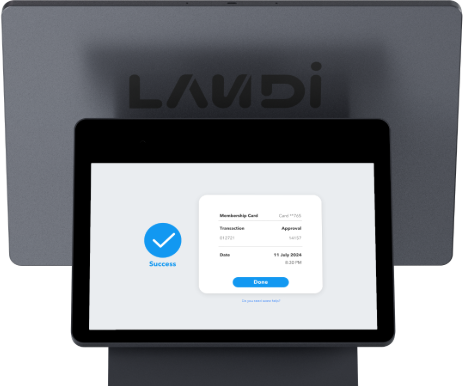

An optional 10.1” customer-facing display—available as a standard screen or as an interactive version with touch and QR camera—adds flexibility and elevates customer engagement.
Advanced Connectivity
Wi-Fi 6E, Gigabit Ethernet, and Bluetooth 5.3 ensure fast, stable, and future-ready connections, supporting seamless device integration and smooth data flow.
Integrated Tools, Ready to Work

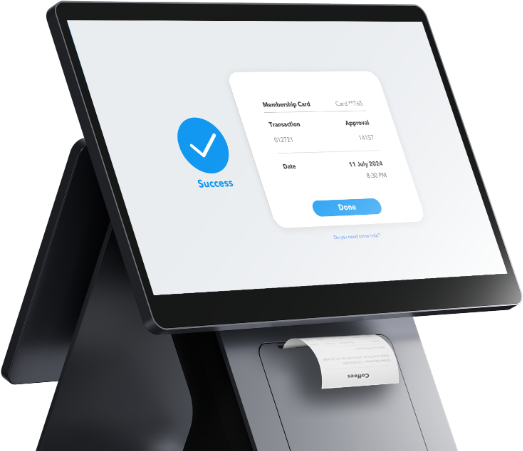

Thermal Printer
High-speed 80mm thermal printer with auto cutter (200mm/s) available on CX20lite.

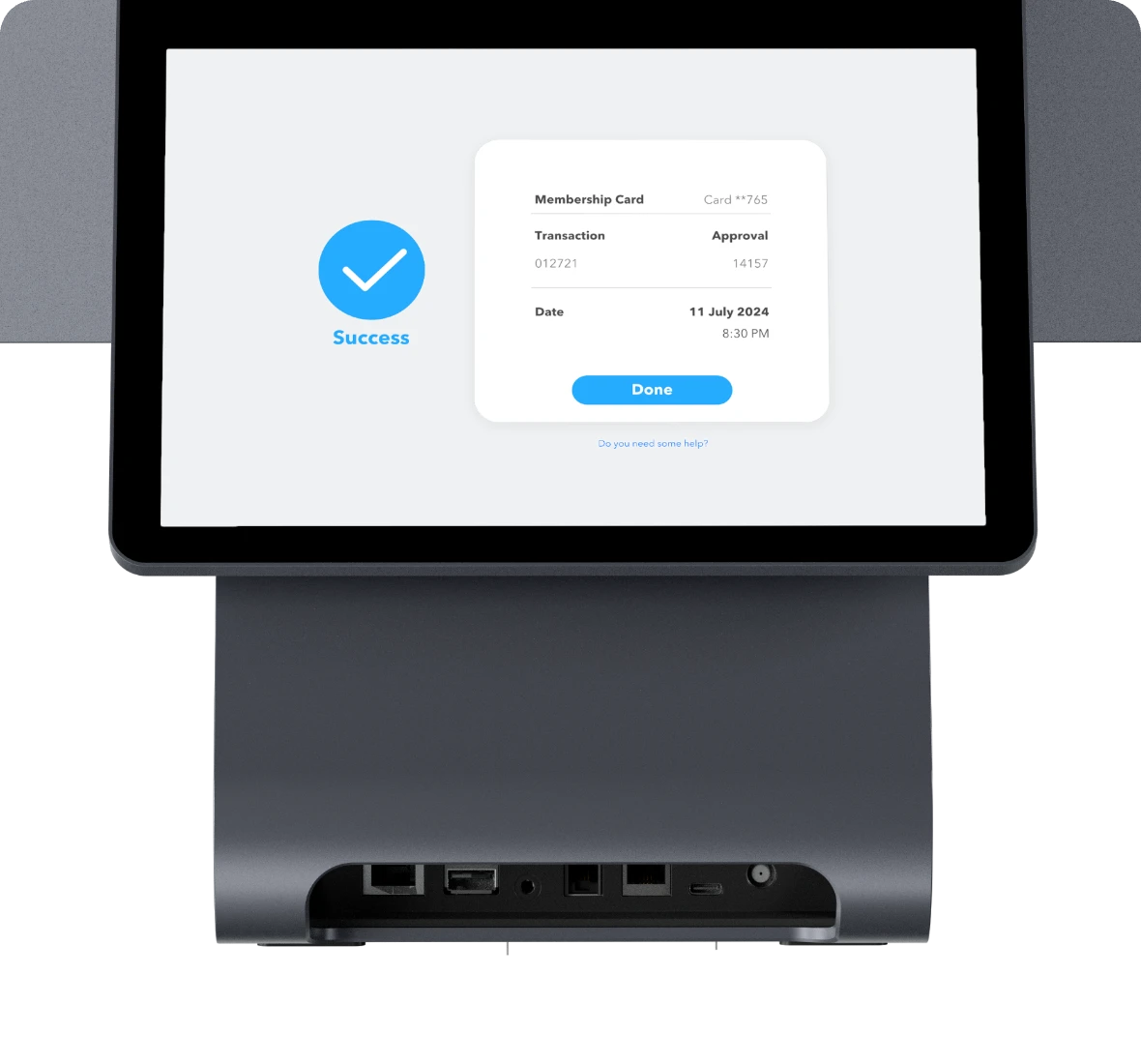

Rich Interface

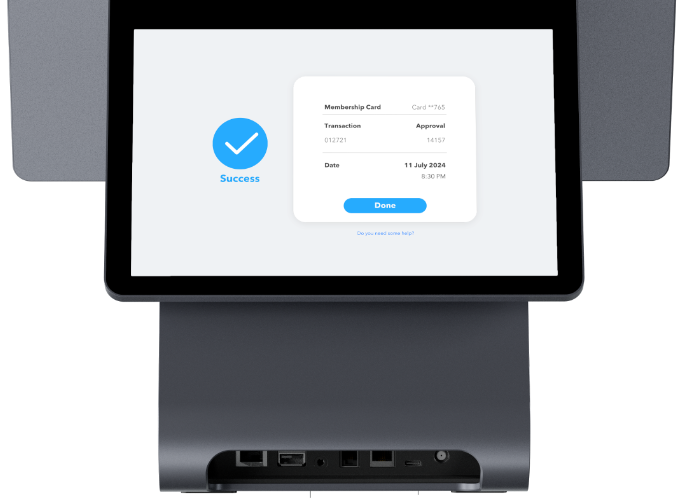

Rich I/O including USB Type-C, USB 3.0/2.0, RJ45 LAN, RJ22 serial, RJ11 cash drawer, and 3.5mm audio jack, offering broad peripheral compatibility.

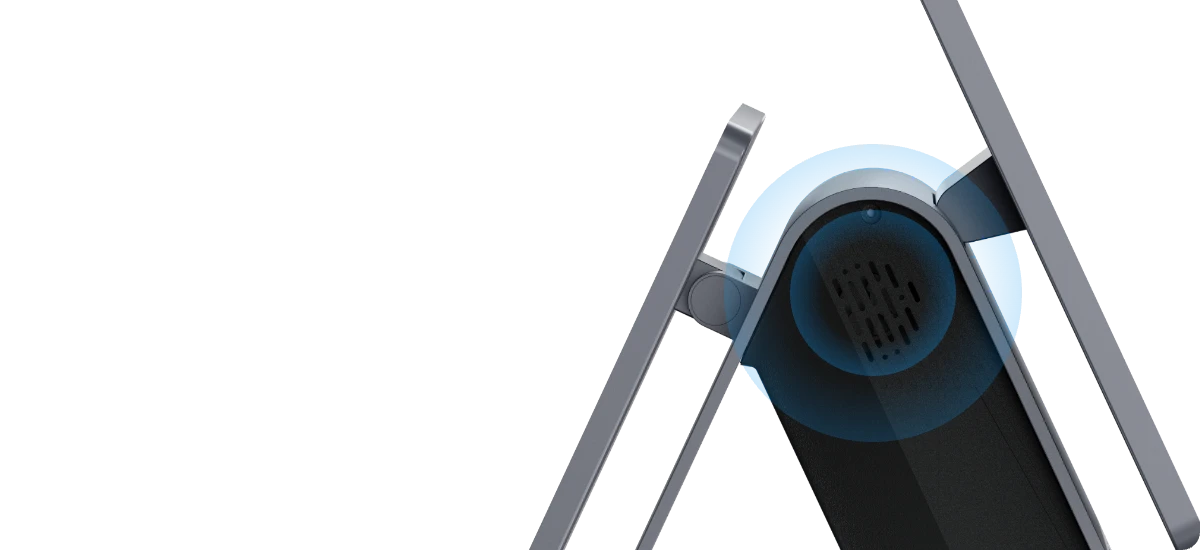

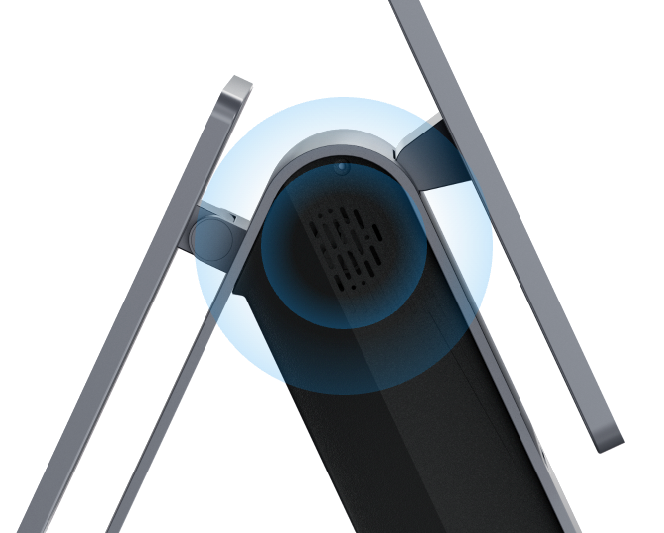

Clear Sound & Communication
Dual 5W speakers and dual microphones provide crisp audio and reliable voice capture, even in busy environments.
Accessories in a snap

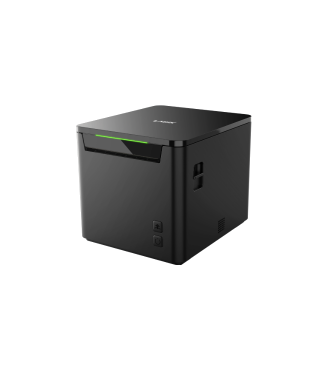

DP20 Desktop Printer
Cost-effective printer for new businesses.

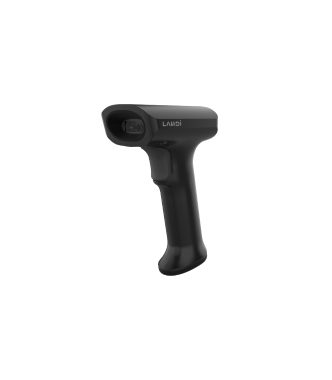

HS20 Handheld scanner
Effortless Scanning, Professional Results.

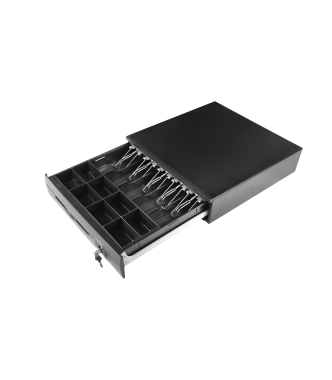

CD20 Cash Drawer
Built to last with flexibility and security

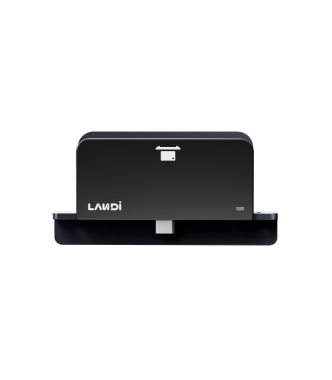

MSR reader
Engineered for Reliable Reads
Specifications
Processor
Quad core, up to 3.6 GHz (Intel N97）
OS
Windows 11 loT LTSC 64 bits
Memory
8GB RAM + 256GB FLASH
8GB RAM + 256GB FLASH
8GB RAM + 512GB FLASH (Optional)
16GB RAM + 256GB FLASH (Optional)
16GB RAM + 512GB FLASH (Optional)
Display
15.6'', 1920x1080 px, capacitive multi-touch
Optional 1 : Standard CFD attached (10.1'', 1280x800 px)
Optional 2 : Premium CFD attached (10.1"", 1280x800 px, touch, QR camera)
Printer
80mm Thermal Printer,
Diameter : 80mm,
Print speed : 200mm/s，Auto Cutter
Diameter : 80mm,
Print speed : 200mm/s，Auto Cutter
Keypad
1 Power key with indicator light (red&blue)
Audio
5W, 100dB@1m, Dual Speaker
3.5mm audio jack (CTIA&OTMP)
3.5mm audio jack (CTIA&OTMP)
Connectivity
NONE
Wi-Fi 6E : IEEE 802.11 a/b/g/n/ac//ax, 2x2 MU-MIMO,
2.4G and 5G and 6G,
ETH : 1000M
Bluetooth 5.3, support BLE
Wi-Fi 6E : IEEE 802.11 a/b/g/n/ac//ax, 2x2 MU-MIMO,
2.4G and 5G and 6G,
ETH : 1000M
Bluetooth 5.3, support BLE
Camera
Optional : 2M pixels, Camera(Only supported on the 10.1'' Premium CFD)
Connection
1*USB Type-C(DP+USB3.0)
4*USB Type-A 2.0 + 1 USB Type-A 3.0
1*Micro USB(Expansion Slot)
1*RJ22 Serial port
1*RJ45 Ethernet Port
1*RJ11 Cash Drawer Port
1*3.5mm Audio Jack, 1*Power Port
PSU
19V/4.74A
Size
360mm x 235mm x 360mm
Weight
Single Display: 4.4kg
10.1 CFD: 4.9kg
10.1 CFD: 4.9kg
Environment
0℃ to +40℃
-20℃ to +60℃
10% to 90% non-condensing
-20℃ to +60℃
10% to 90% non-condensing

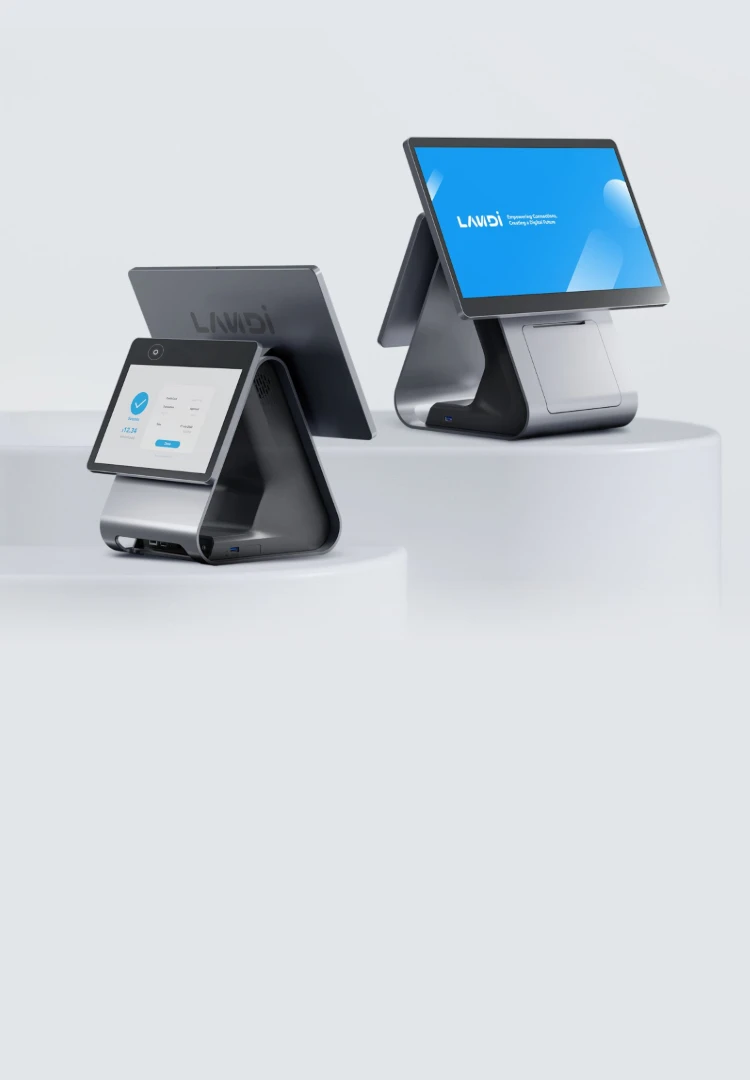

Where Value
Meets Performance.
Cx20 Lite makes every checkout simple, seamless, and cost-efficient.
Optimized for Cost and Performance
Designed with the Intel® N97 quad-core processor (up to 3.6 GHz), CX20lite strikes the sweet spot of cost efficiency and performance—delivering enterprise-grade capability while keeping investment lean and predictable.
Enterprise-Grade Windows Platform
Running on Windows 11 IoT LTSC (64-bit), CX20lite ensures long-term stability, enterprise security, and compatibility with a wide ecosystem of applications.
Windows 11
Future-Proof Memory & Storage
Equipped with 8GB RAM + 256GB storage, expandable to 512GB, enabling fast data processing, secure storage, and room for growth.
Immersive Full HD Display Options.
A 15.6” Full HD capacitive multi-touch display (1920×1080 px) delivers crisp clarity and fluid interaction.
10.1” customer-facing display
An optional 10.1” customer-facing display—available as a standard screen or as an interactive version with touch and QR camera—adds flexibility and elevates customer engagement.
Advanced Connectivity
Wi-Fi 6E, Gigabit Ethernet, and Bluetooth 5.3 ensure fast, stable, and future-ready connections, supporting seamless device integration and smooth data flow.
Integrated Tools,
Ready to Work
<
Thermal Printer
High-speed 80mm thermal printer with auto cutter (200mm/s) available on CX20lite.
Rich Interface
Rich I/O including USB Type-C, USB 3.0/2.0, RJ45 LAN, RJ22 serial, RJ11 cash drawer, and 3.5mm audio jack, offering broad peripheral compatibility.

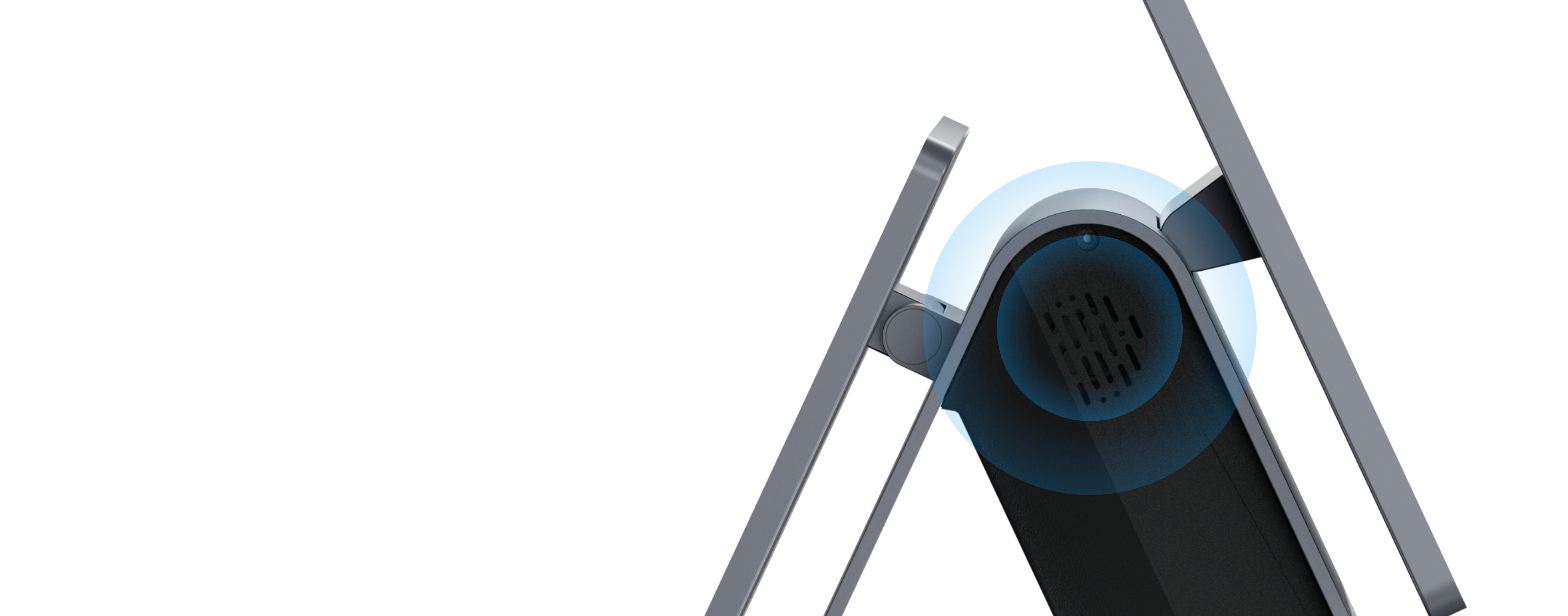

Clear Sound & Communication
Dual 5W speakers and dual microphones provide crisp audio and reliable voice capture, even in busy environments.
Accessories in a snap
DP20 Desktop Printer
Cost-effective printer for new businesses.
HS20 Handheld scanner
Effortless Scanning, Professional Results.
CD20 Cash
Drawer Built to last with flexibility and security
MSR reader
Engineered for Reliable Reads
Specifications
| Processor | Quad core, up to 3.6 GHz (Intel N97） |
| OS | Windows 11 loT LTSC 64 bits |
| Memory | 8GB RAM + 256GB FLASH |
| Display | 15.6'', 1920x1080 px, capacitive multi-touch |
| Printer | 80mm Thermal Printer,
Diameter : 80mm, Print speed : 200mm/s，Auto Cutter |
| Keypad | 1 Power key with indicator light (red&blue) |
| Audio | 5W, 100dB@1m, Dual Speaker
3.5mm audio jack (CTIA&OTMP) |
| Connectivity | NONE
Wi-Fi 6E : IEEE 802.11 a/b/g/n/ac//ax, 2x2 MU-MIMO, 2.4G and 5G and 6G, ETH : 1000M Bluetooth 5.3, support BLE |
| Camera | Optional : 2M pixels, Camera(Only supported on the 10.1'' Premium CFD) |
| Connection | 1*USB Type-C(DP+USB3.0) |
| PSU | 19V/4.74A |
| Size | 360mm x 235mm x 360mm |
| Weight | Single Display: 4.4kg
10.1 CFD: 4.9kg |
| Environment | 0℃ to +40℃
-20℃ to +60℃ 10% to 90% non-condensing |
