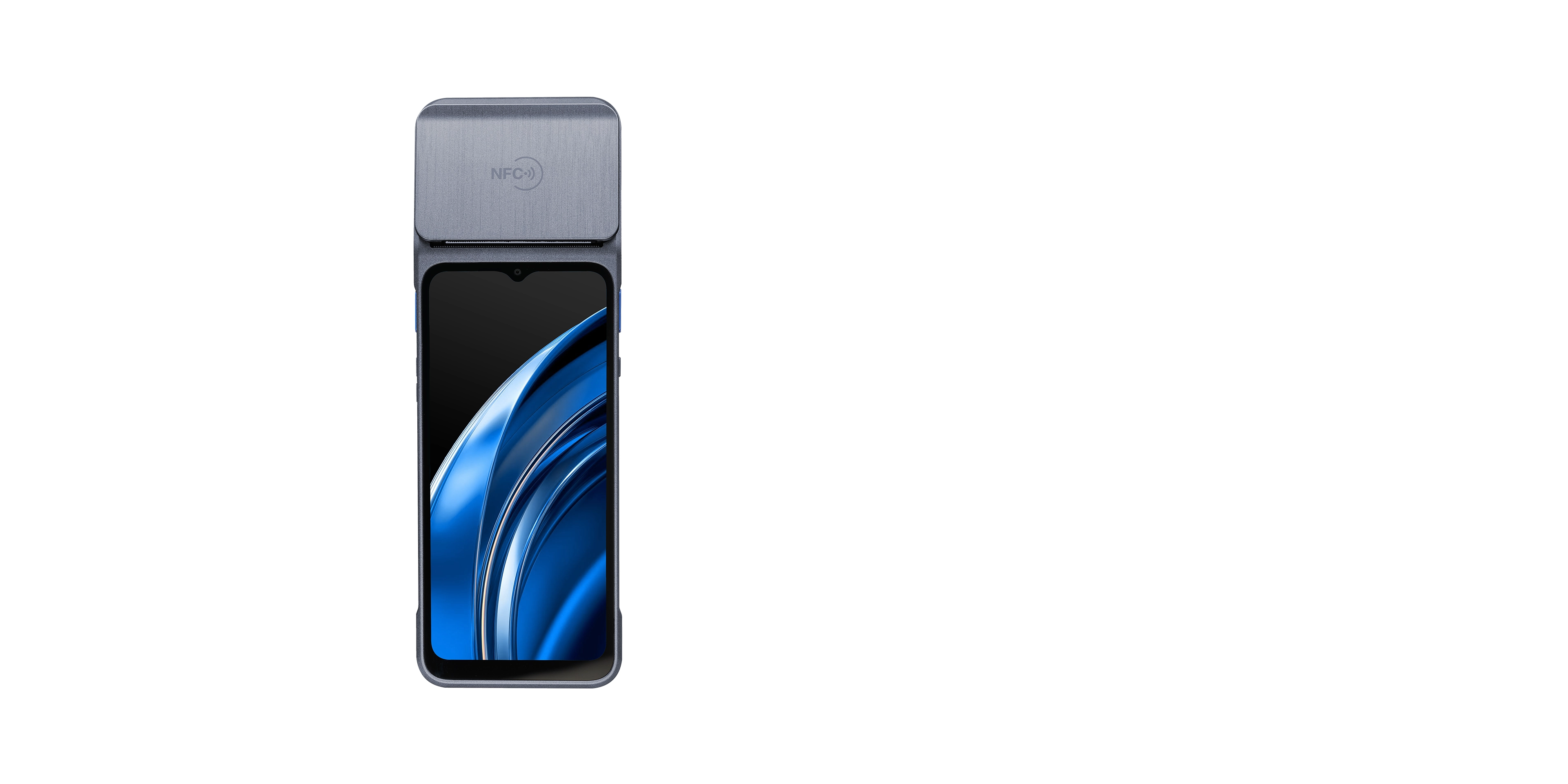

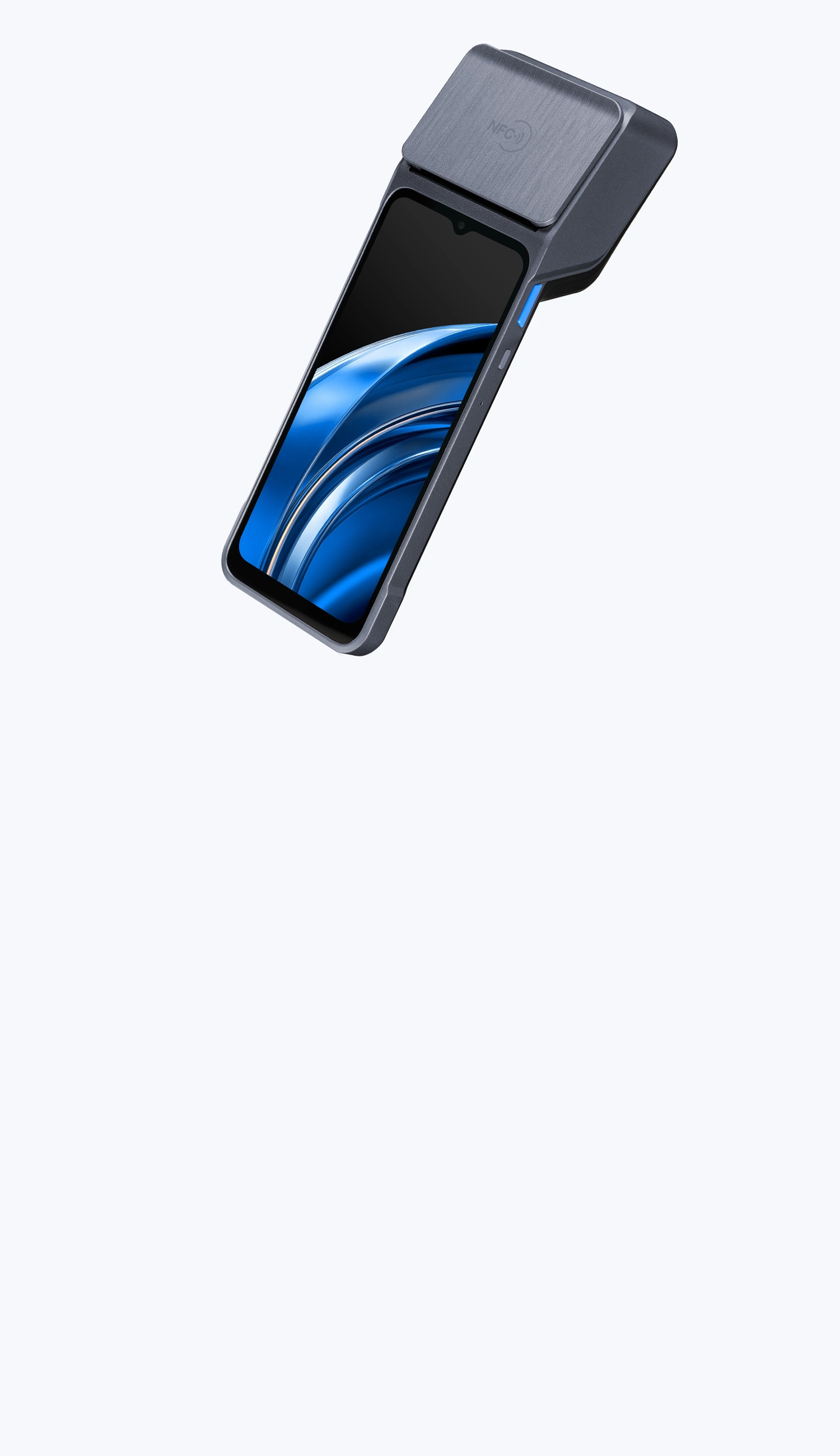

M20

Android Mobile Terminal
The all-in-one mobile solution featuring
an integrated thermal receipt printer.
Download brochure

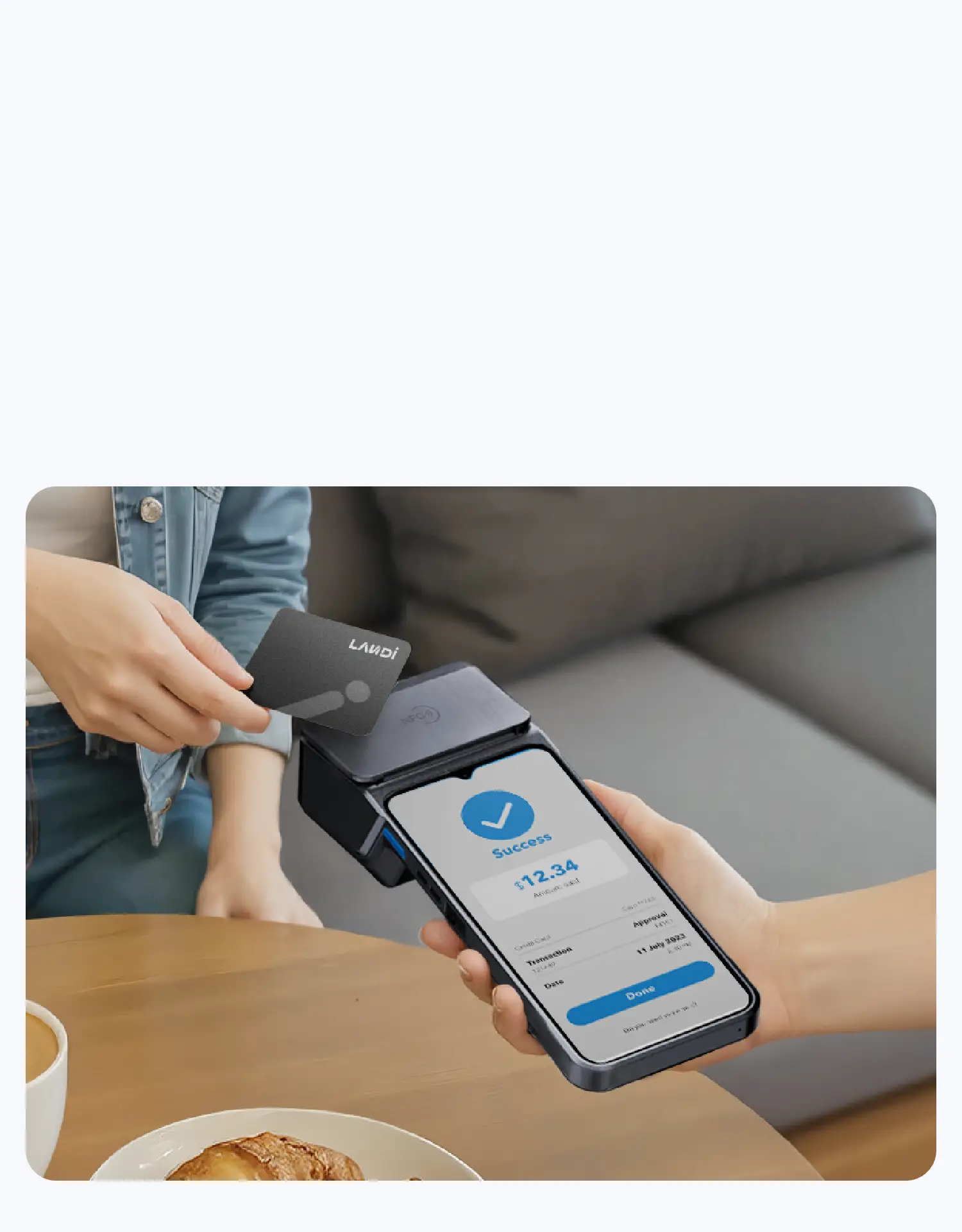

Work smarter with our all-in-one mobile terminal
This mobile terminal brings together essential features—printer, card reader, speaker, and scanner to streamline your operations and elevate your business to new heights.
Key features:

● Android 13 GMS, Qualcomm Quad-core 2.0GHz



● 6.5" HD touchscreen



● All-in-one design with printer, scanner, and NFC



● Stay connected with 4G, WiFi, and Bluetooth 5.0



● Certified for CE/CB/FCC/IC/RoHS/WEEE/GMS



Download brouchure
High performance
quad-core CPU
The M20 features a high-performance
quad-core processor, providing a fast
and seamless experience.

ARM Quad-core CPU, 2.0GHz
Powered by Android 13
SD Card 3.0 Support

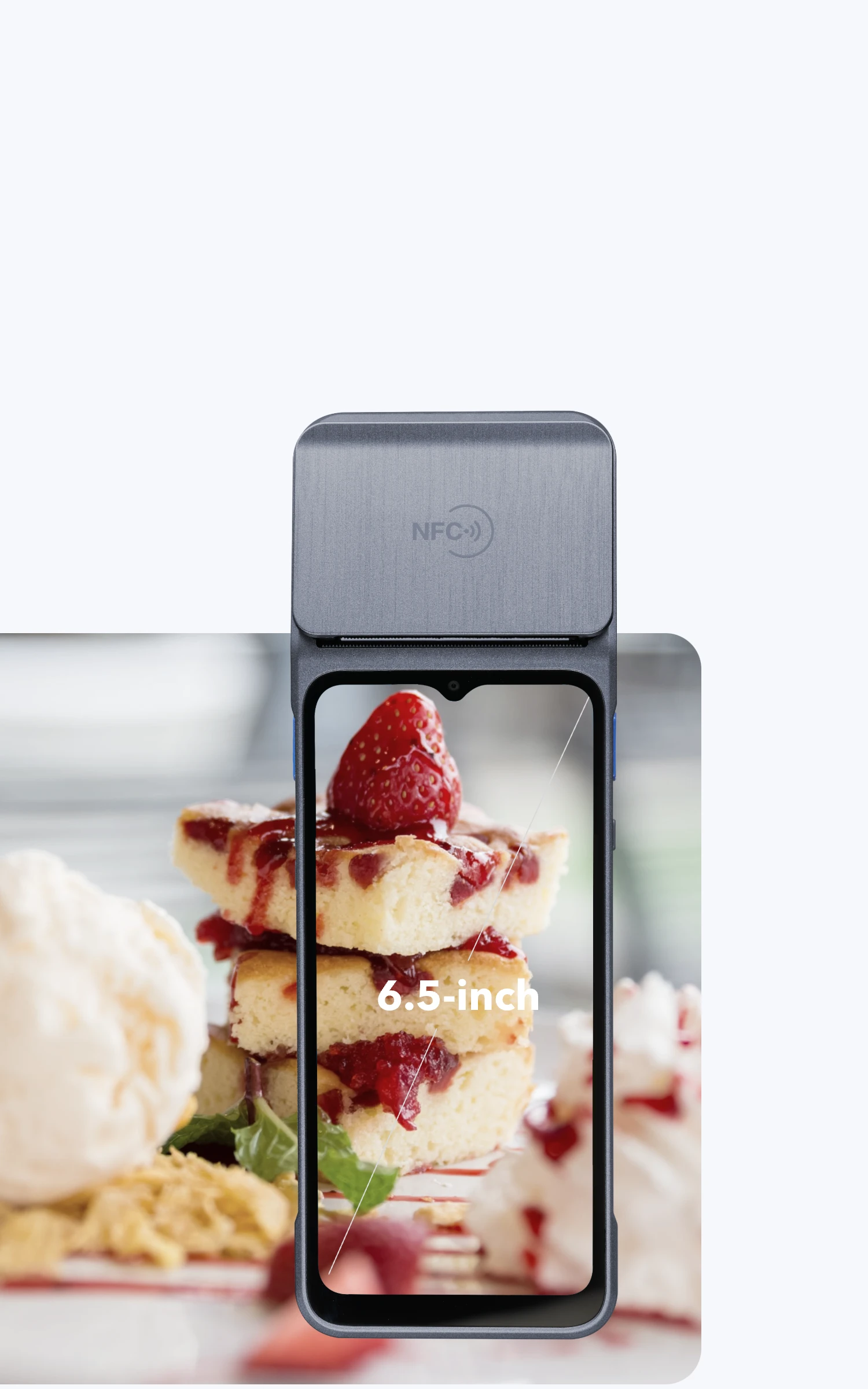

Immersive touch screen
The expansive 6.5" touch screen is designed for
single-hand operation and brings realistic images
and an immersive visual experience.

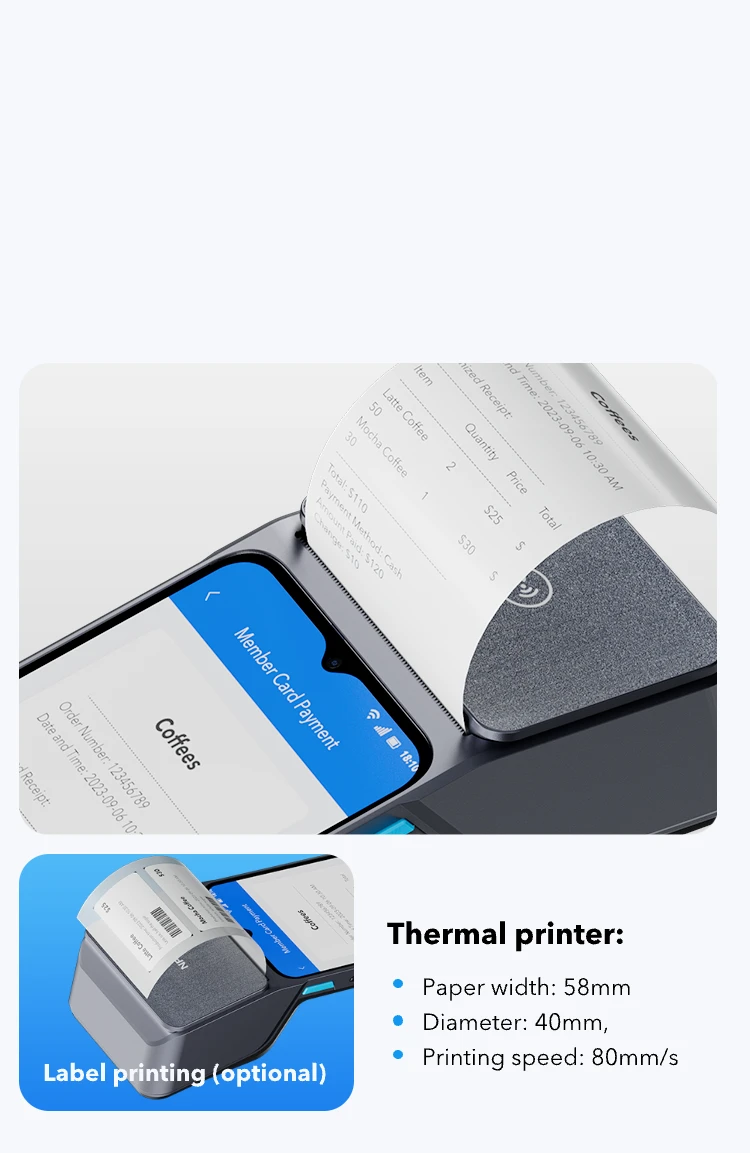

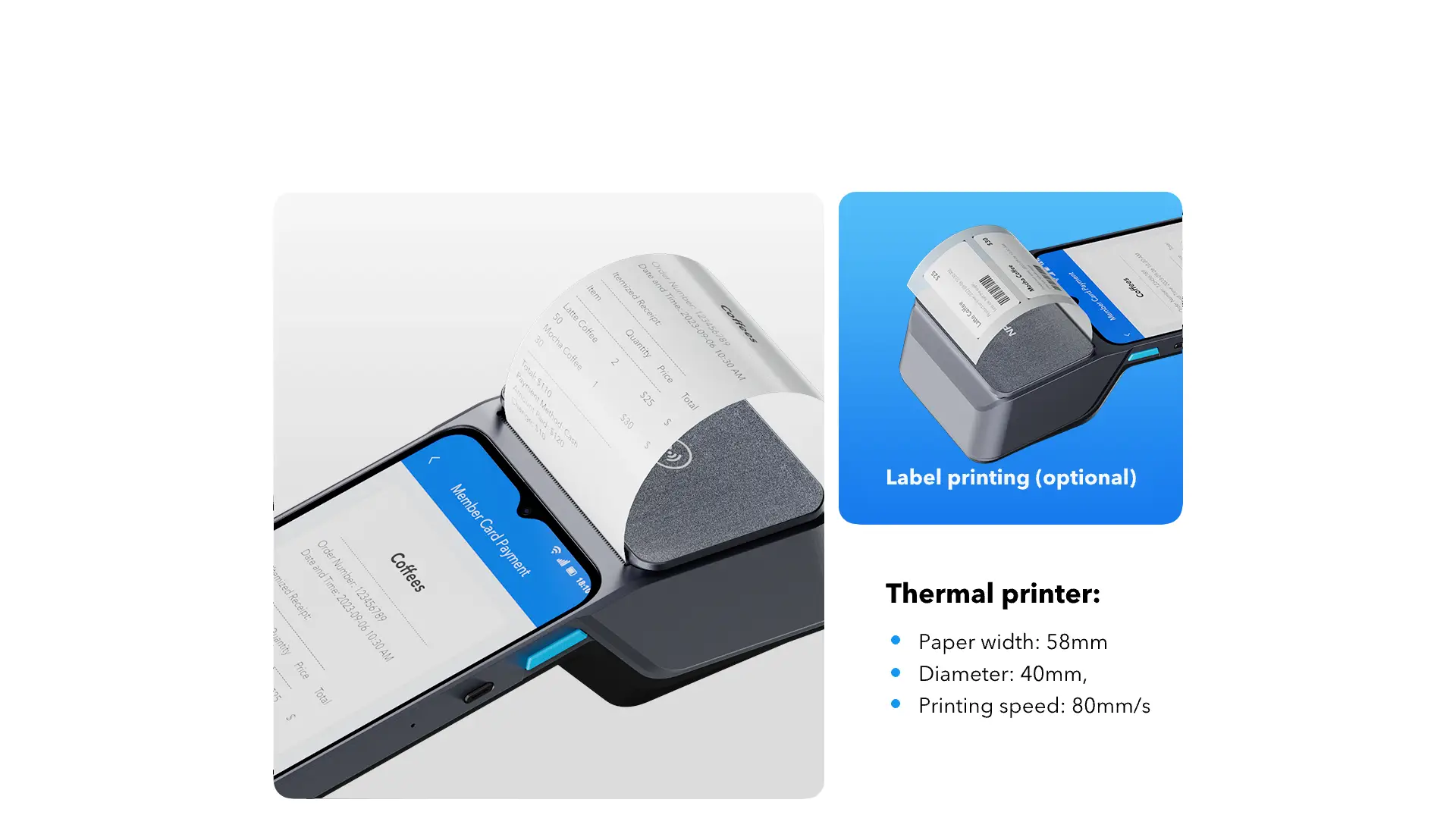

Fast printing
With super-fast built-in printer, the M20 can print receipts or labels in just seconds, making it the ideal portable payment solution.

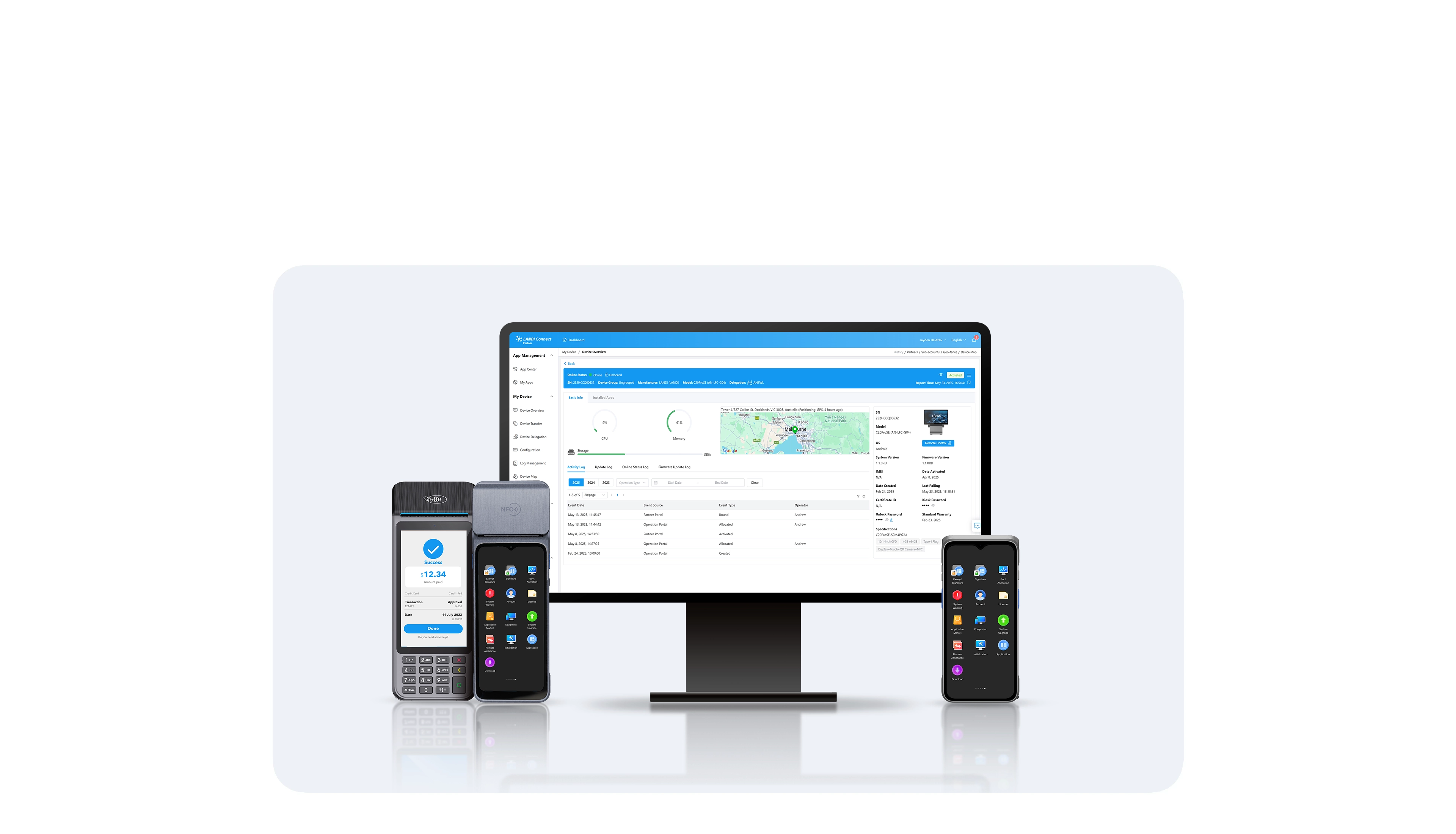

Easy deployment and operations
Transform your terminal management with our comprehensive online solution. Reduce manual intervention and enhance efficiency with LANDI Connect, which includs Terminal Managment, App store, remote assistance, and fault diagnosis functionalities, all at your fingertips.
Various accessories expand more possibilities
Charging Base
Strap

Specifications

CPU

64-bit quad-core ARM Cortex-A53, 2.0 GHz

OS

Android 13 (GMS)
(Optional) Android 13 (Non-GMS)

Memory

3GB RAM+32GB FLASH
2GB RAM + 16GB FLASH (Optional)
4GB RAM+64GB FLASH (Optional)
Micro SD Card (Up to 2TB)

Display & Touchscreen

6.517", 720×1600,
capacitive multi-touch

Printer

Thermal printer
- Paper width: 58 mm
- Roll diameter: 40 mm
- Print speed: 75-80 mm/s
- (Optional) Label printing: 30-58 mm (W) × ≥20 mm (H), 2 mm gap

Scanner

None
LANDI scan engine (Optional)
Honeywell scan engine (Optional)

Keypad

1*Power
2*Volumes
2*Scan (Optional)

Audio

1*Speaker
2*Microphone
Headset via USB Type-C port

Connectivity

WAN: 4G/3G/2G fallback
Wi-Fi: IEEE 802.11 a/b/g/n/ac, 2.4Ghz/5Ghz
Bluetooth: Bluetooth 5.0, supports BLE

Positioning

AGPS, GPS, Glonass, Beidou, Galileo

Camera

Front: 2MP with fixed focus (for barcode scanning)
Rear: 5MP with autofocus & flash

NFC

Android NFC,
ISO/IEC 14443,
ISO15693 compliant,
Supports Type A/B Mifare, FeliCa, EMVCo PCD L1 Certified

SAM/SIM slots

2*SIM + 2*SAM
1*SIM + 1*eSlM + 2*SAM (Optional)

Ports

1*USB-C port
2*POGO Pins

Sensor

G-sensor with auto-rotation
Ambient light sensor
Proximity sensor

Power Supply

5V/2A

Battery

7.7V 3500mAh / 26.95Wh li-ion, removable

Accessories

Battery charger
Charging base
Functional base
Wrist strap
Screen protector
Protective case

Weight

429g (with battery)

Environment

Operating temperature:
- Discharging: -10°C to +50°C
- Charging: 0°C to +40°C
Storage temperature:
-20℃ to +70℃
Operating humidity:
10% to 90% (Non-condensing)

Protection

1.2m drop resistance

Certification

CE, CB, FCC, IC, RoHS, WEEE, GMS

Dimensions

229 × 80 × 60 mm
Learn more
Elevate with our all-in-one mobile terminal.

The M20 combines cutting-edge technology with sleek aesthetics,empowering you to streamline operations and elevate your business to new heights.

Key features:

● Powered by Android 13



● Quad-core, 2.0GHz



● 6.517" touch screen



● 2G/3G/4G, WiFi, GPS, Bluetooth 5.0,



   and optional eSIM

Download brochure
High performance
quad-core CPU

The M20 features a high-performance

quad-core processor, providing a fast

and seamless experience.



Quad-core CPU, 2.0GHz

Powered by Android 13

SD Card 3.0 Suppor

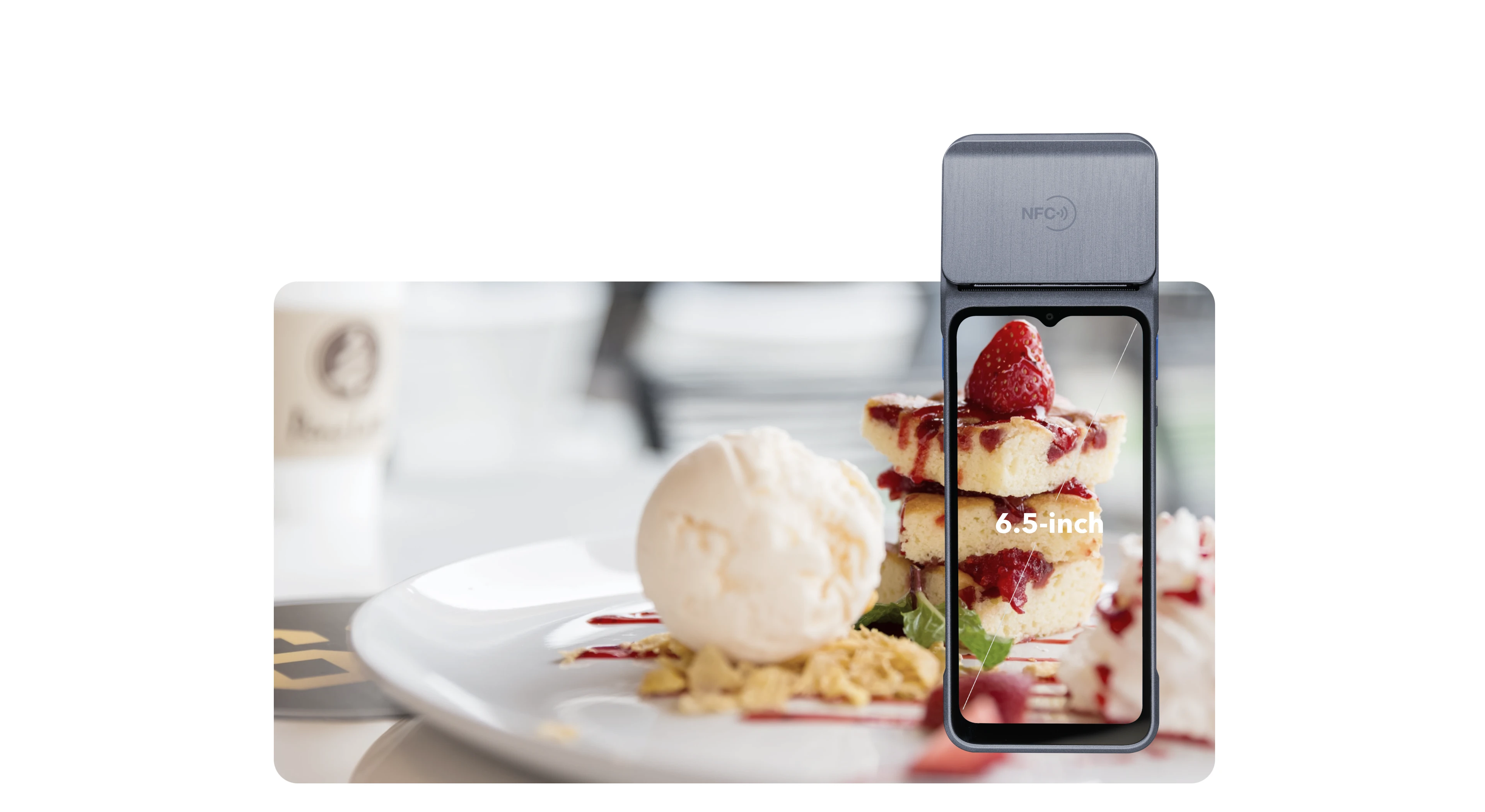

Immersive touch screen

The expansive 6.5" touch screen is designed for

single-hand operation and brings realistic images

and an immersive visual experience.



Fast printing

With super-fast built-in printer, the M20 can print receipts or labels in just seconds, making it the ideal portable payment solution.

Advanced connectivity

Process data quickly and securely on-site using a range of wireless communication methods.

Various accessories expand more possibilities
Charging Base
Strap
Specifications
CPU 64-bit quad-core ARM Cortex-A53, 2.0 GHz
OS Android 13 (GMS)
(Optional) Android 13 (Non-GMS)
Memory 3GB RAM+32GB FLASH
2GB RAM + 16GB FLASH (Optional)
4GB RAM+64GB FLASH (Optional)
Micro SD Card (Up to 2TB)
Display & Touchscreen 6.517", 720×1600,
capacitive multi-touch
Printer Thermal printer
- Paper width: 58 mm
- Roll diameter: 40 mm
- Print speed: 75-80 mm/s
- (Optional) Label printing: 30-58 mm (W) × ≥20 mm (H), 2 mm gap
Scanner None
LANDI scan engine (Optional)
Honeywell scan engine (Optional)
Keypad 1*Power
2*Volumes
2*Scan (Optional)
Audio 1*Speaker
2*Microphone
Headset via USB Type-C port
Connectivity WAN: 4G/3G/2G fallback
Wi-Fi: IEEE 802.11 a/b/g/n/ac, 2.4Ghz/5Ghz
Bluetooth: Bluetooth 5.0, supports BLE
Positioning AGPS, GPS, Glonass, Beidou, Galileo
Camera Front: 2MP with fixed focus (for barcode scanning)
Rear: 5MP with autofocus & flash
NFC Android NFC,
ISO/IEC 14443,
ISO15693 compliant,
Supports Type A/B Mifare, FeliCa, EMVCo PCD L1 Certified
SAM/SIM slots 2*SIM + 2*SAM
1*SIM + 1*eSlM + 2*SAM (Optional)
Ports 1*USB-C port
2*POGO Pins
Sensor G-sensor with auto-rotation
Ambient light sensor
Proximity sensor
Power Supply 5V/2A
Battery 7.7V 3500mAh / 26.95Wh li-ion, removable
Accessories Battery charger
Charging base
Functional base
Wrist strap
Screen protector
Protective case
Weight 429g (with battery)
Environment Operating temperature:
- Discharging: -10°C to +50°C
- Charging: 0°C to +40°C
Storage temperature:
-20℃ to +70℃
Operating humidity:
10% to 90% (Non-condensing)
Protection 1.2m drop resistance
Certification CE, CB, FCC, IC, RoHS, WEEE, GMS
Dimensions 229 × 80 × 60 mm
