With its 15.6" main screen and a high resolution of 1920×1080,
C20 Pro provides exceptional image quality that fully meets
your visual expectations in any environment.

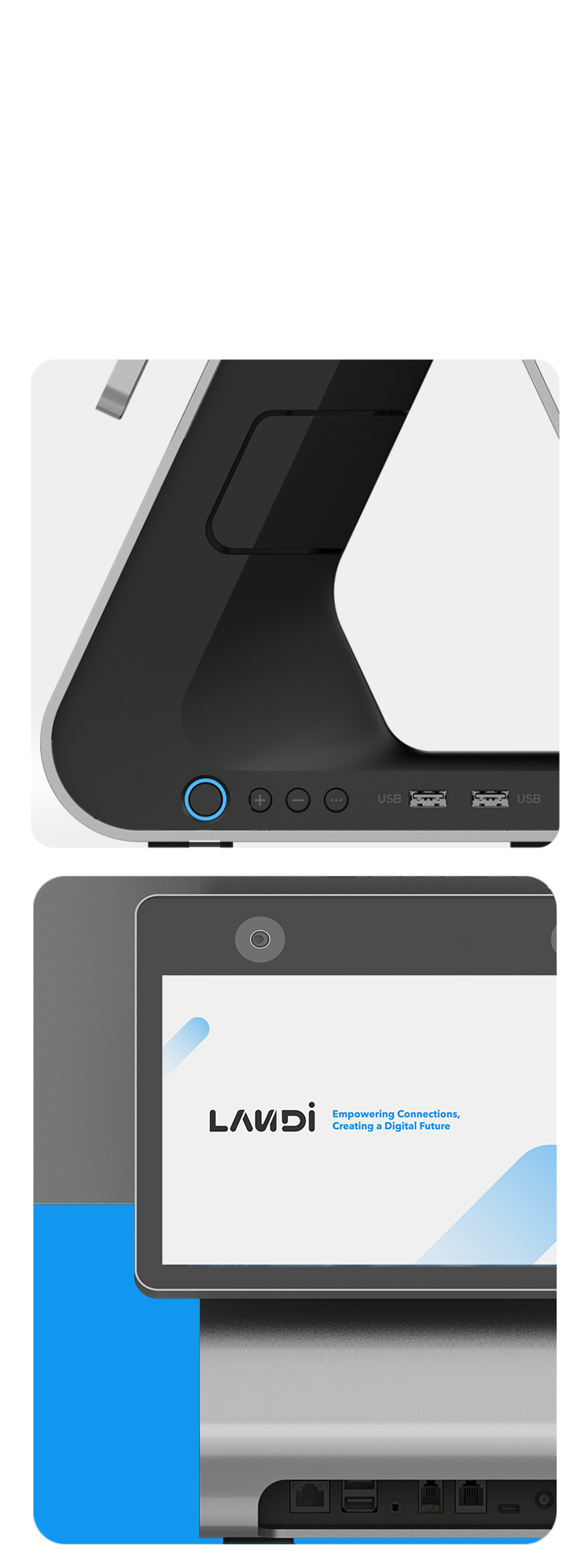

1*USB Typec-C, debug port
4*USB Type-A 2.0+1*USB Type-A 3.0,
1*RJ22 Serial port, 1*RJ45 Ethernet port,
1*RJ11 Cash drawer port,
1*3.5mm Audio port,
1*Micro SD slot, 1*Power port

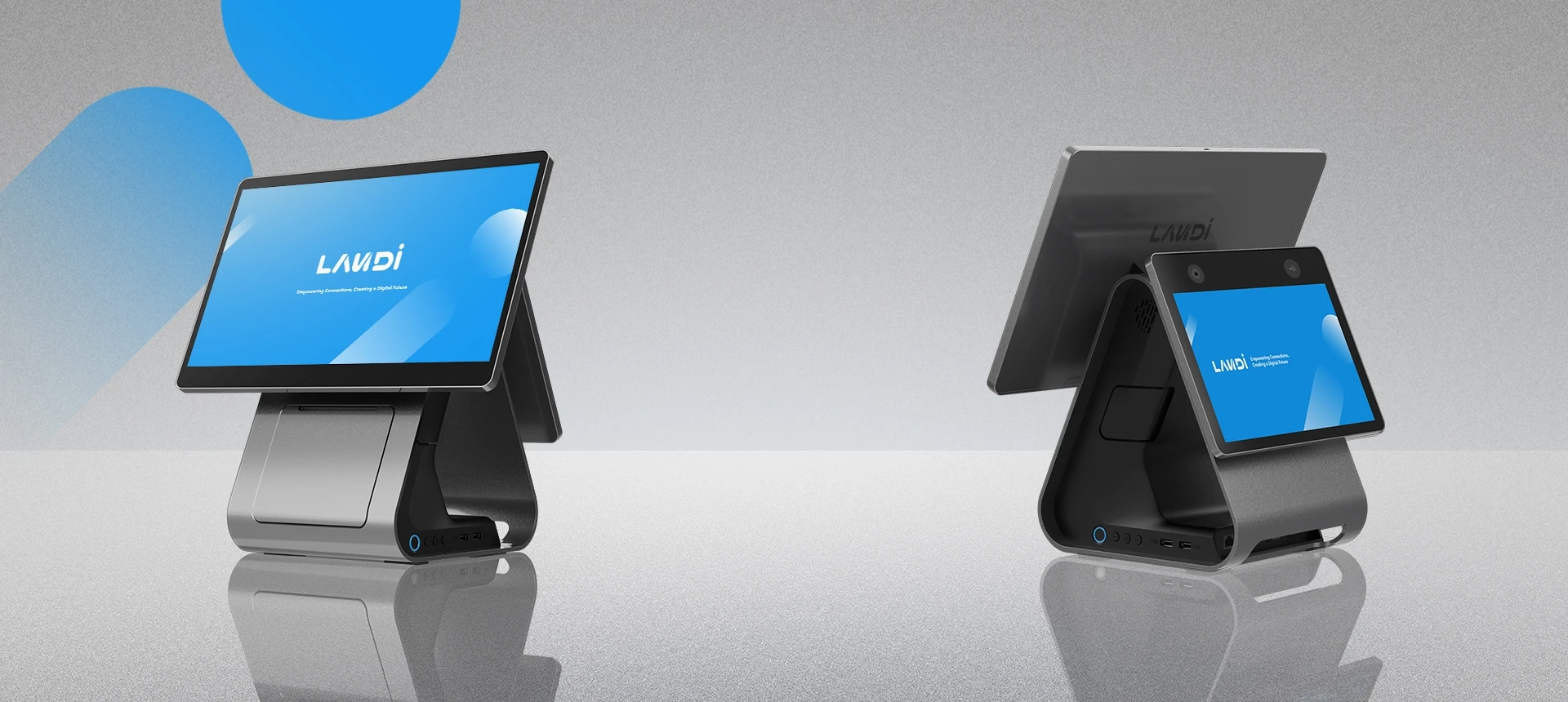

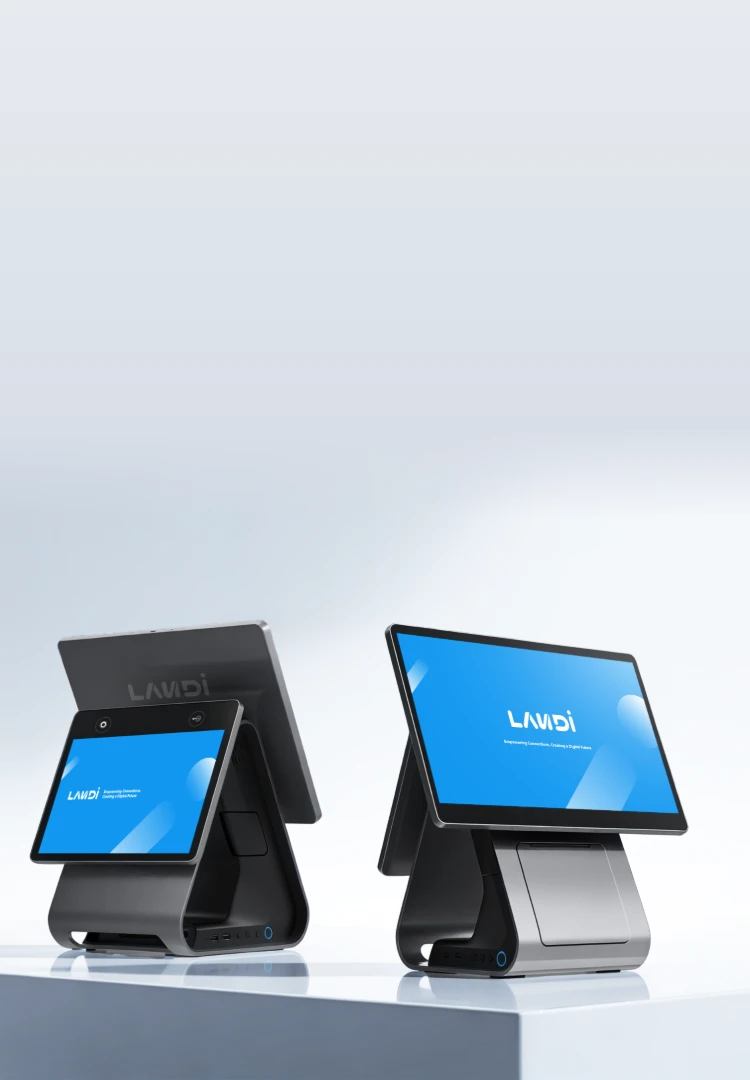

C20 Pro
ECR Terminal
Elevate user experience to new heights
with futuristic terminal.
| Processor | Qualcomm Octa-Core, up to 2.4GHz |
| OS | Android 13 |
| Memory | 4GB RAM + 64GB FLASH
8GB RAM + 128GB FLASH (Optional) MicroSD Card (Up to 2TB) |
| Main Display | 15.6'', 1920x1080, FHD
capacitive multi-touch |

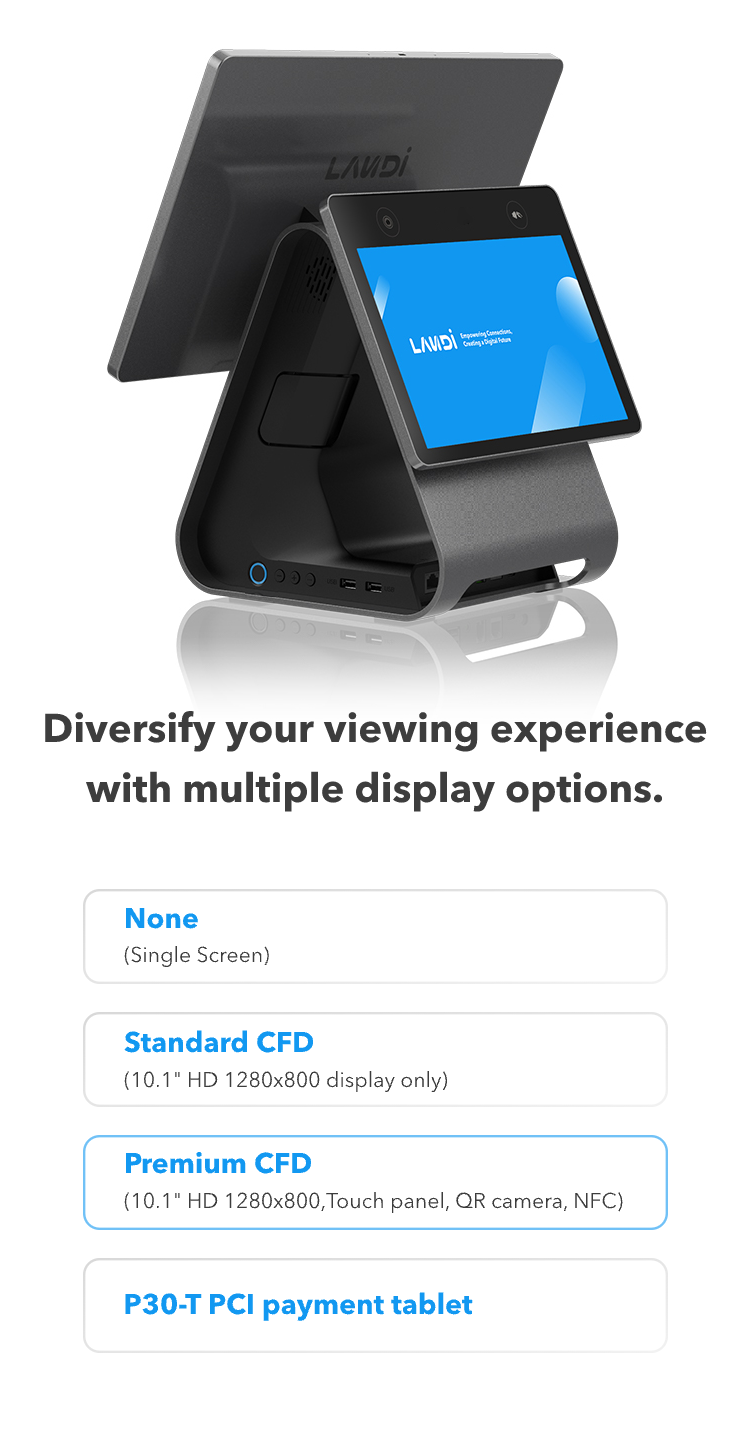

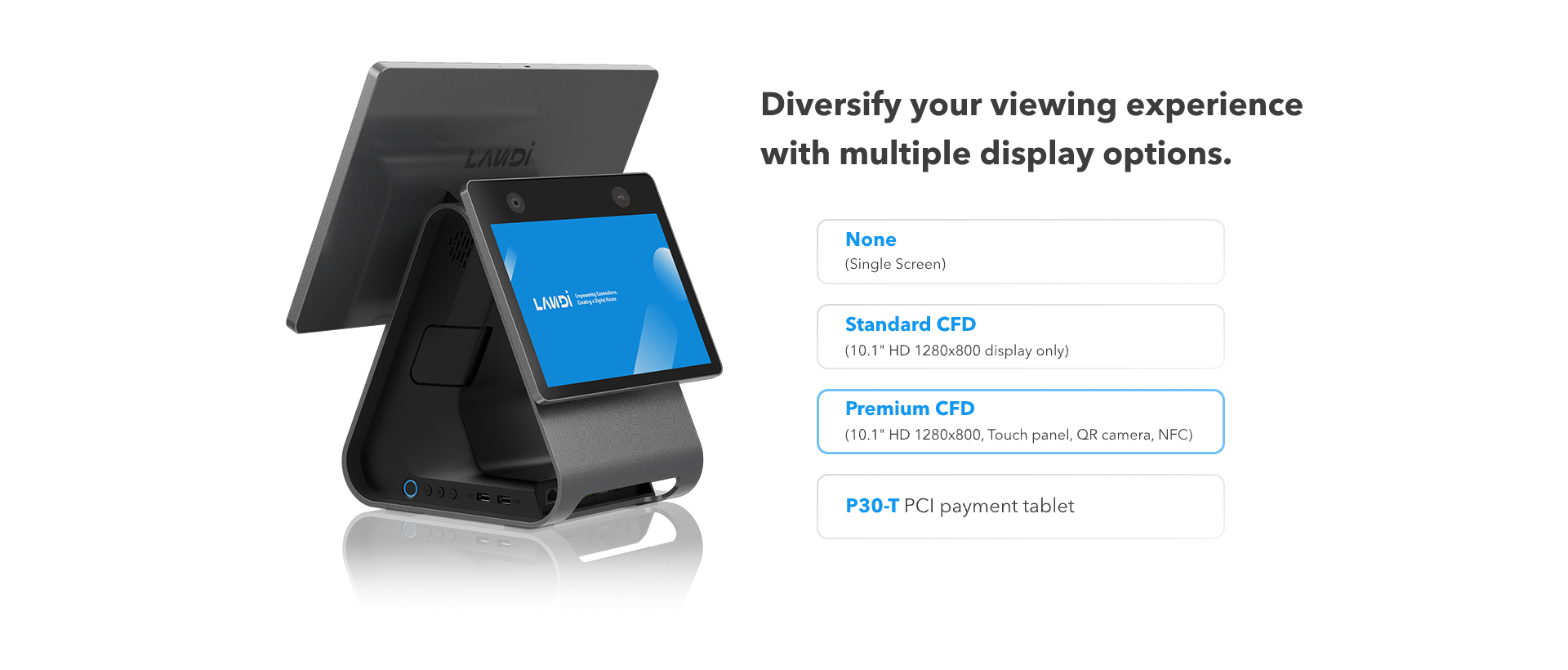

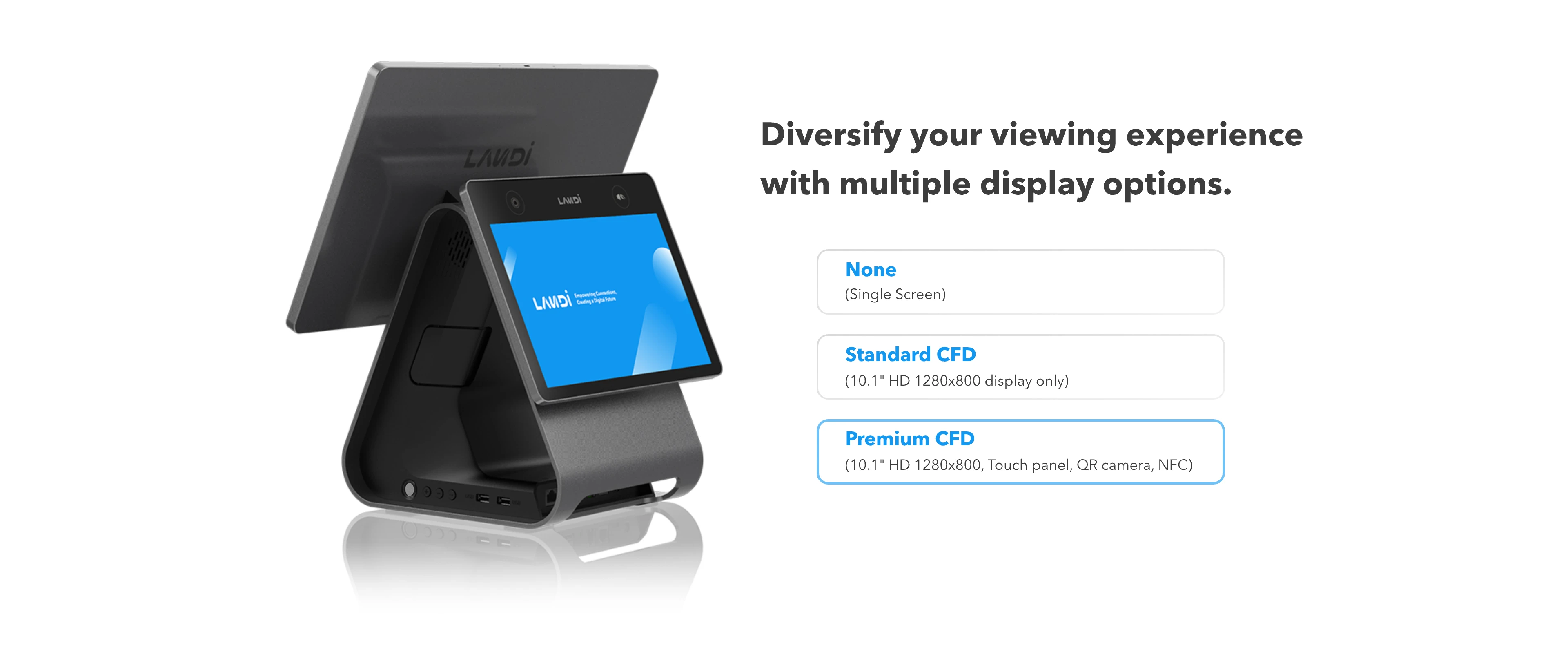

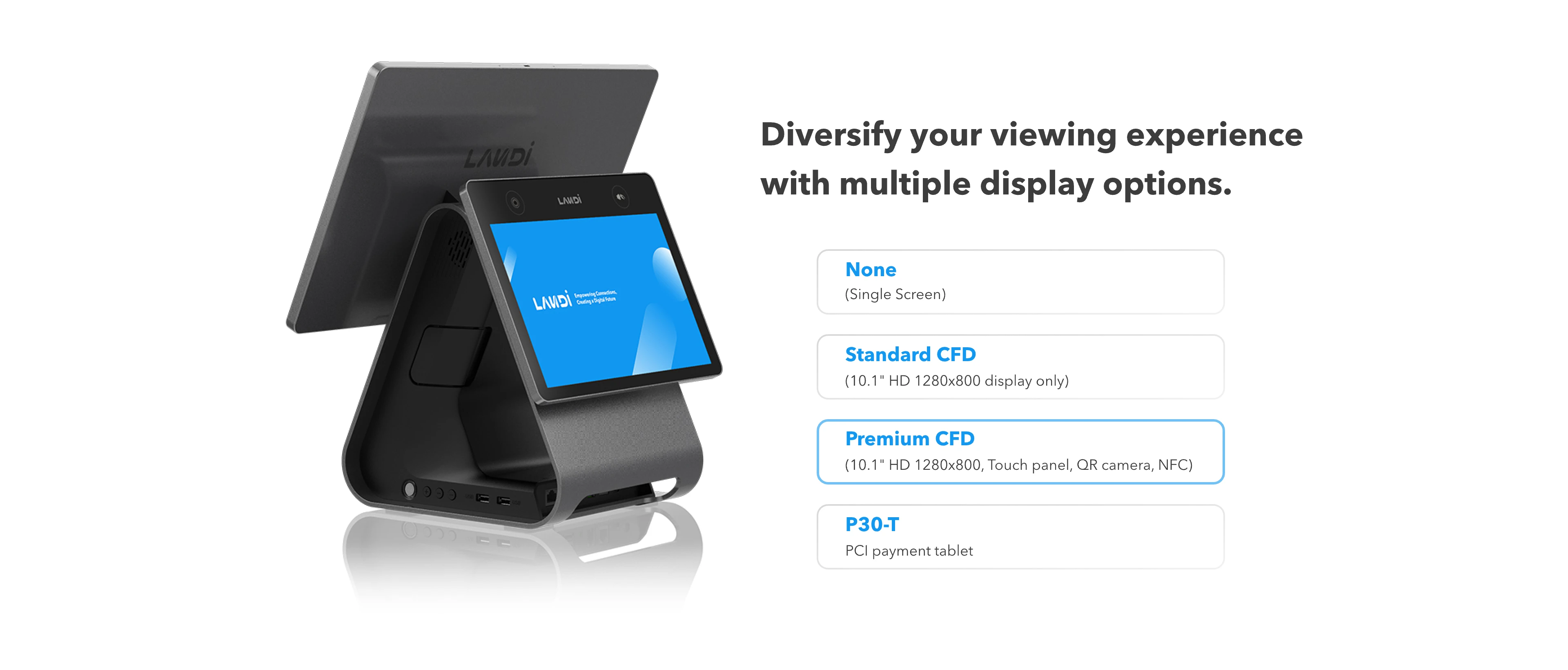

| Customer Display | 1: None
2: 10.1" Standard CFD (1280x800 display only) 3: 10.1" Premium CFD (1280x800, touch panel, QR Camera, NFC) 4: P30-T PCI payment tablet |

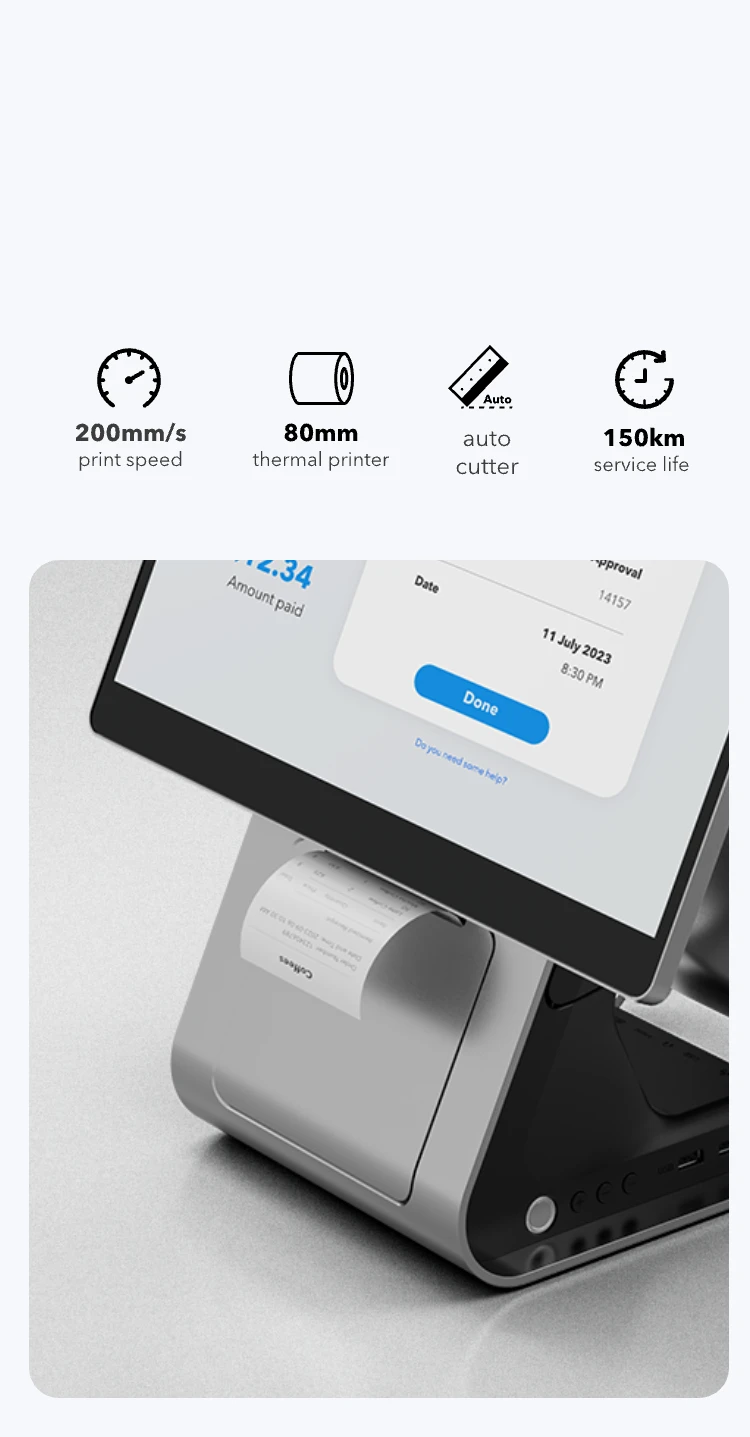

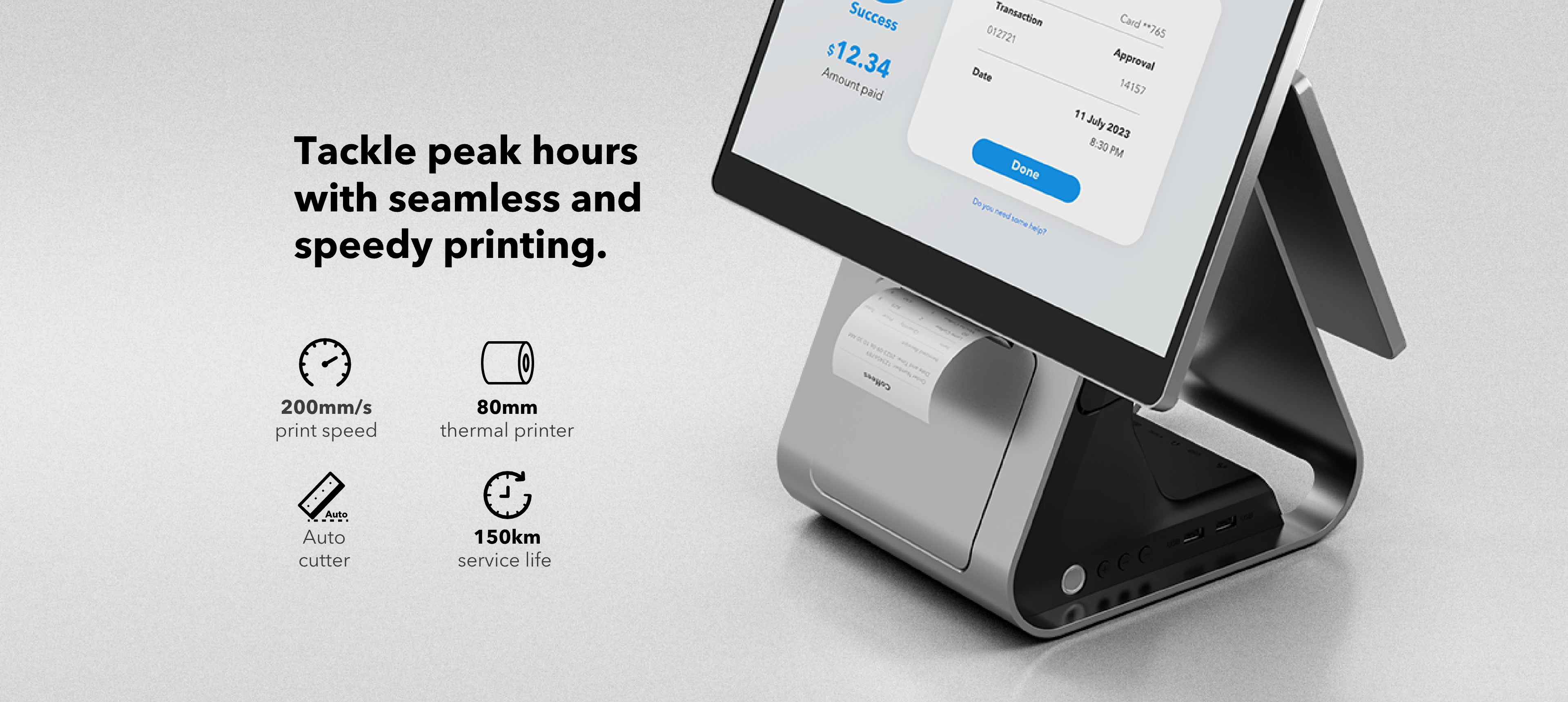

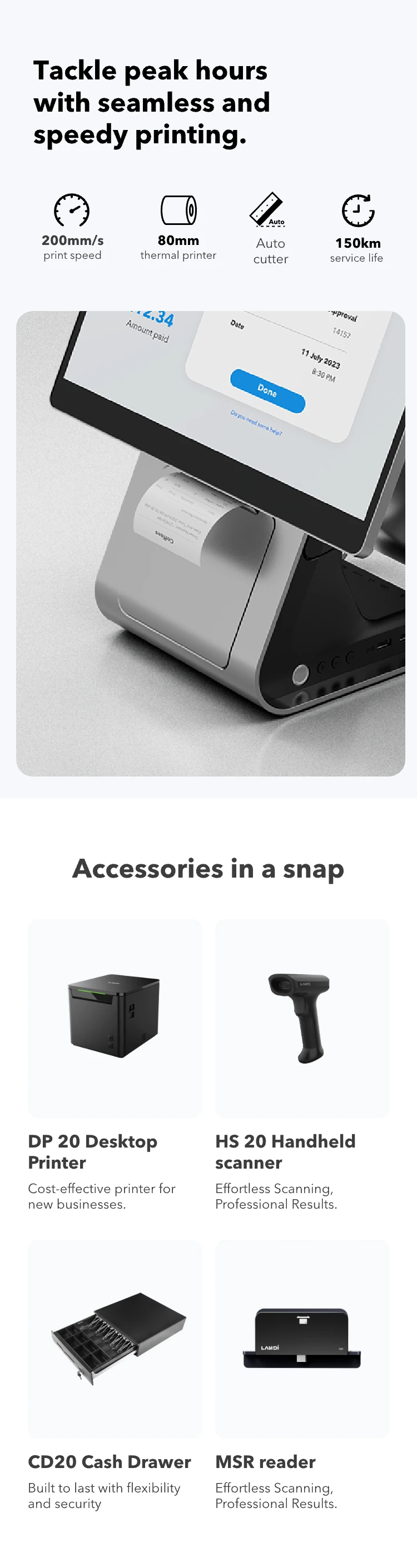

| Integrated Thermal Printer | 80mm Thermal Printer,
Diameter : 80mm, Print speed: 200mm/s， Auto Cutter |
| Buttons | 1 Power key with indicator light (Red&blue)
2 Volume keys 1 Function key |
| Audio | Speaker: 5W, 100dB@1m, Dual Speaker
Headset: 3.5mm audio jack MIC: Dual MIC |
| Connectivity | Wi-Fi: lEEE802.11 a/b/g/n/ac 2.4GHz and 5GHz
ETH: 1000M Bluetooth 5.0, support BLE Optional, 4G fallback 3G and GPRS |
| Positioning (Optional) | GPS, GLONASS, BEIDOU |
| Cameras | Optional 1 : NONE Optional 2 : 0.3M pixels, QR scan (Only supported on the 10.1'' Premium CFD) Optional 3 : Facial recognition ability camera (USB device, plug into Main display edge expansion port) |
| NFC (Optional) | Android NFC, ISO / IEC 14443、 ISO15693 compliant, support Type A / B, Mifare， Felica (Only supported on the 10.1'' Premium CFD) |
| SAM/SIM slots | 1 SIM (Optional) |
| Ports | 1*USB Typec-C, debug port |
| Environment | Operating Temperature：
0℃ to +40℃ Storage temperature： -20℃ to +60℃ Operating humidity： 10% to 90% non-condensing |
| Certification | CE, CB, FCC, IC, RoHS, WEEE |
| Power Supply | 19~20V/3.25A |
| Accessories | Screen edge expansion (Micro
USB) |
