WAN:NONE
Wi-Fi : IEEE802.11 a/b/g/n/ac 2.4GHz and 5GHz
ETH : 1000M
Bluetooth: Bluetooth 5.0，support BLE
GPS: NONE
1*USB Type-C
4*USB Type-A
1*RJ22 SerialPort
1*RJ45 Ethernet Port
1*RJ11 Cash Drawer Port
1*3.5mm Audio jack
1*Power Port

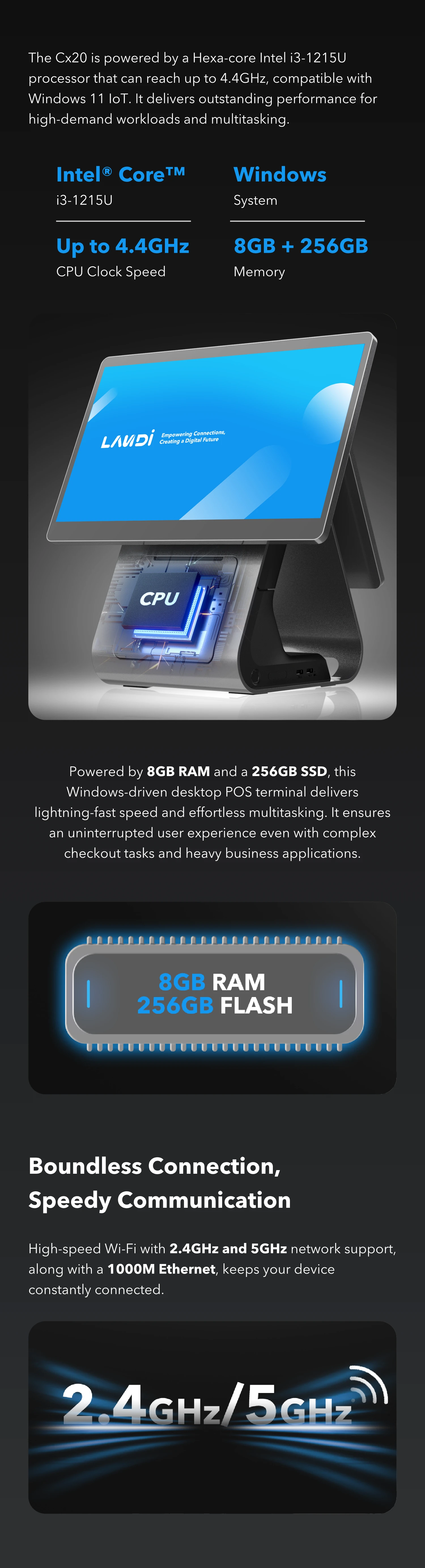

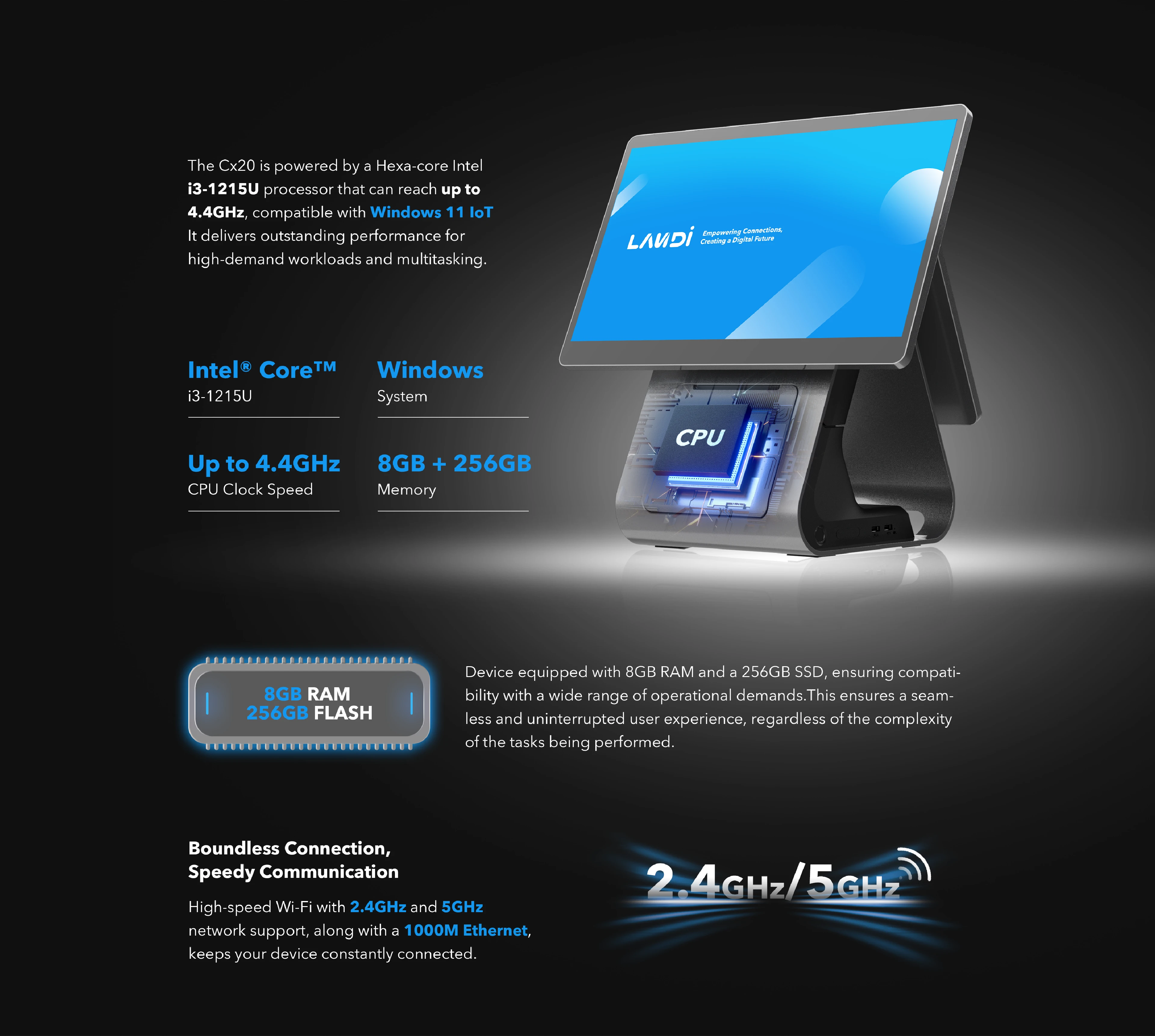

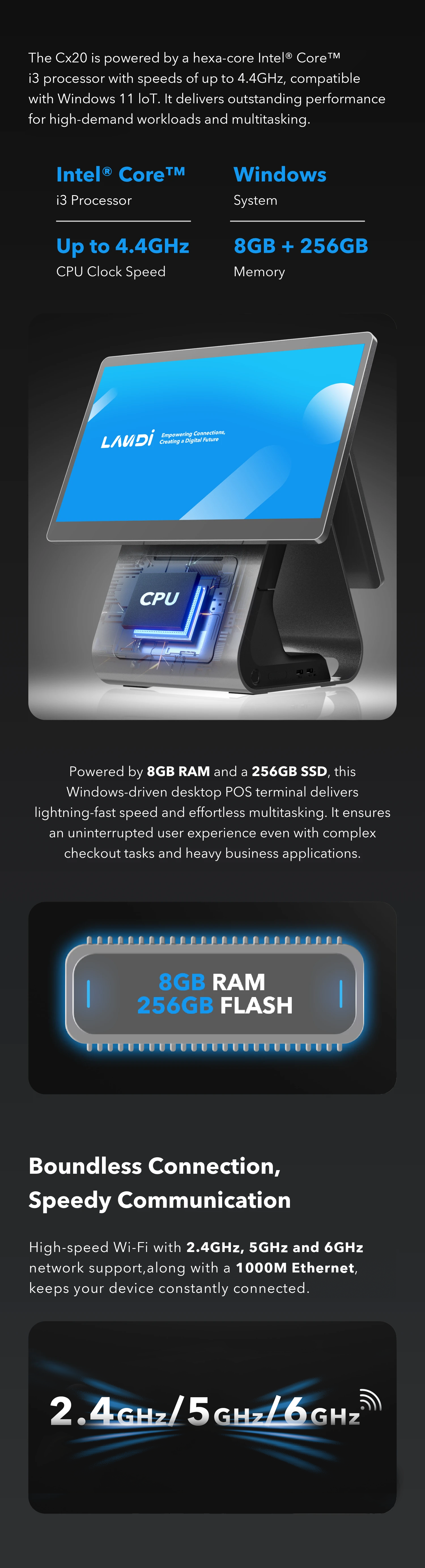

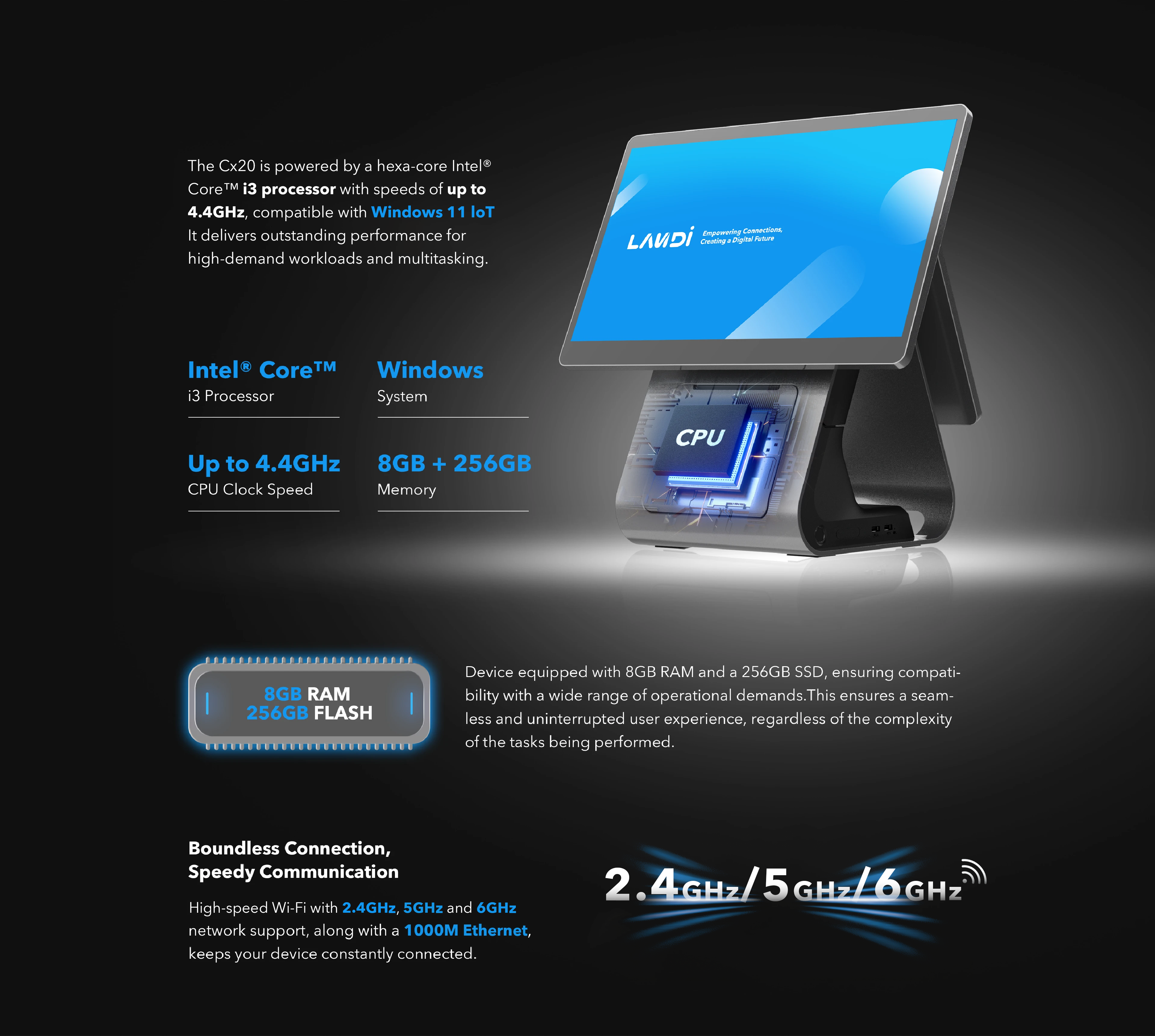

| Processor | Hexa-core, up to 4.4Ghz (Intel i3 - 1215U) |
| OS | Windows 11 IoT |
| Memory | Internal：
8GB+256GB |

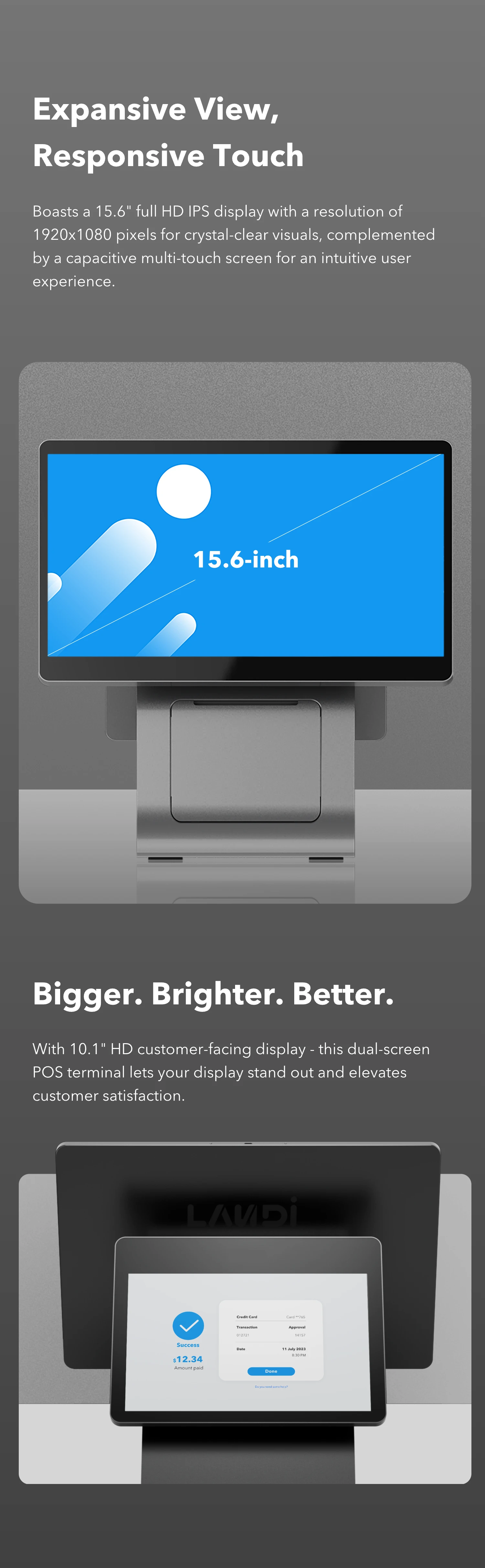

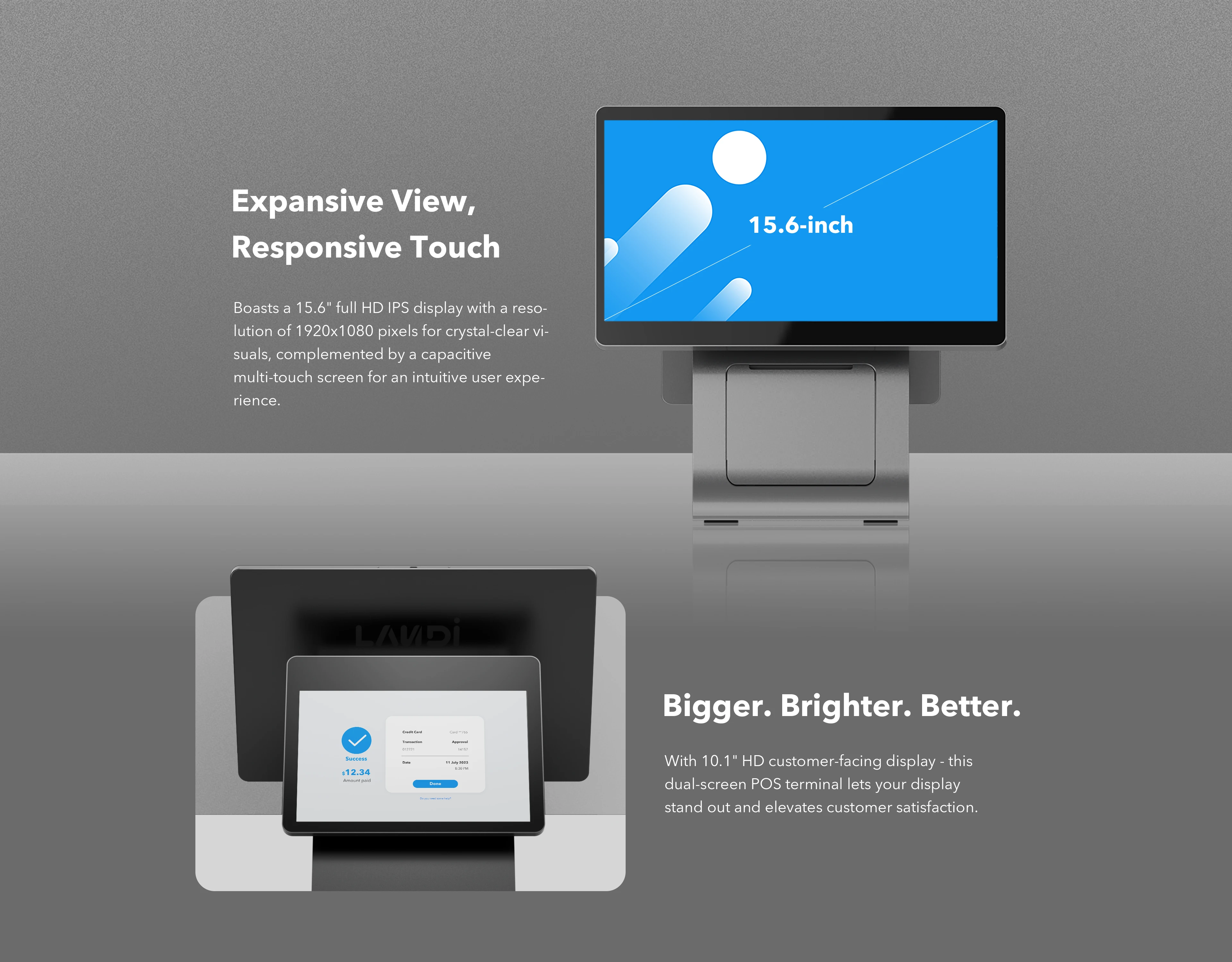

| Main display | 15.6'', IPS, FHD, 1920x1080 px
capacitive multi-touch |
| Customer display | Optional 1 : NONE
Optional 2 : 10.1'', HD, 1280x800 px |

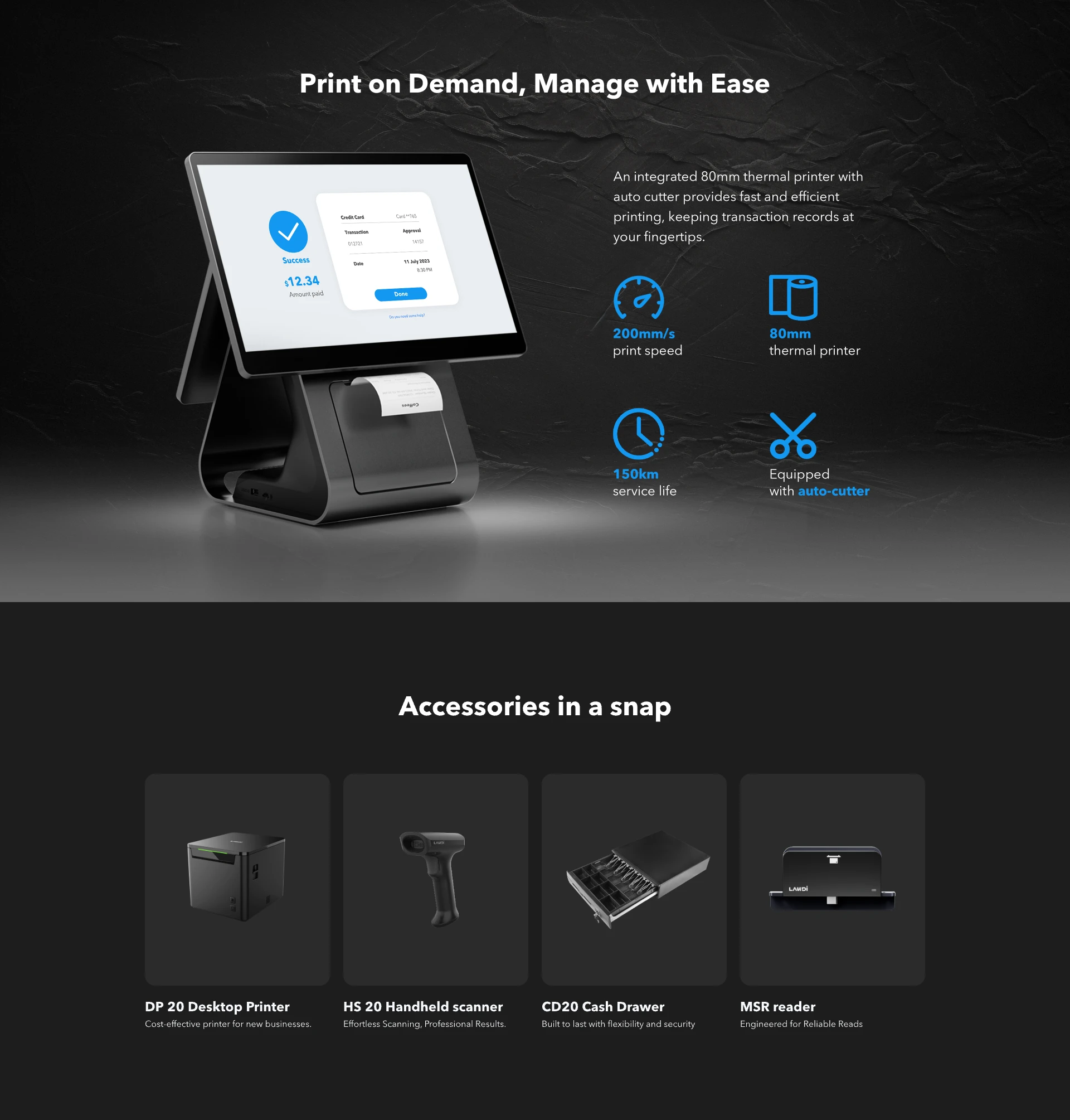

| Printer | 80mm Thermal Printer,
Diameter : 80mm, Print speed : 200mm/s，Auto Cutter |
| keypad | 1 Power key with indicator light |
| Audio | Speaker: 5W, 100dB@1m, Dual Speaker
Headset: 3.5mm audio jack |
| Connectivity | WAN:NONE |
| Ports | 1*USB Type-C |
| PSU | 19V/5A |
| Accessories | Screen edge expansion(Micro USB) |
| Environment | Operating Temperature:
0℃ to +40℃ Storage temperature: -20℃ to +60℃ Operating humidity: 10% to 90% non-condensing |
| Protection | Waterproof/Dustproof/Drop:
IP41, 1.2m drop |
| Certification | CCC, SRRC, CTA, CE |
| Size | 235mm * 360mm * 360mm |
| Accessories | Screen edge expansion (Micro
USB) |
