M20 SE

Android Mobile Terminal
Large 6.5" display and advanced scanning for high-speed workflows.
Download brochure

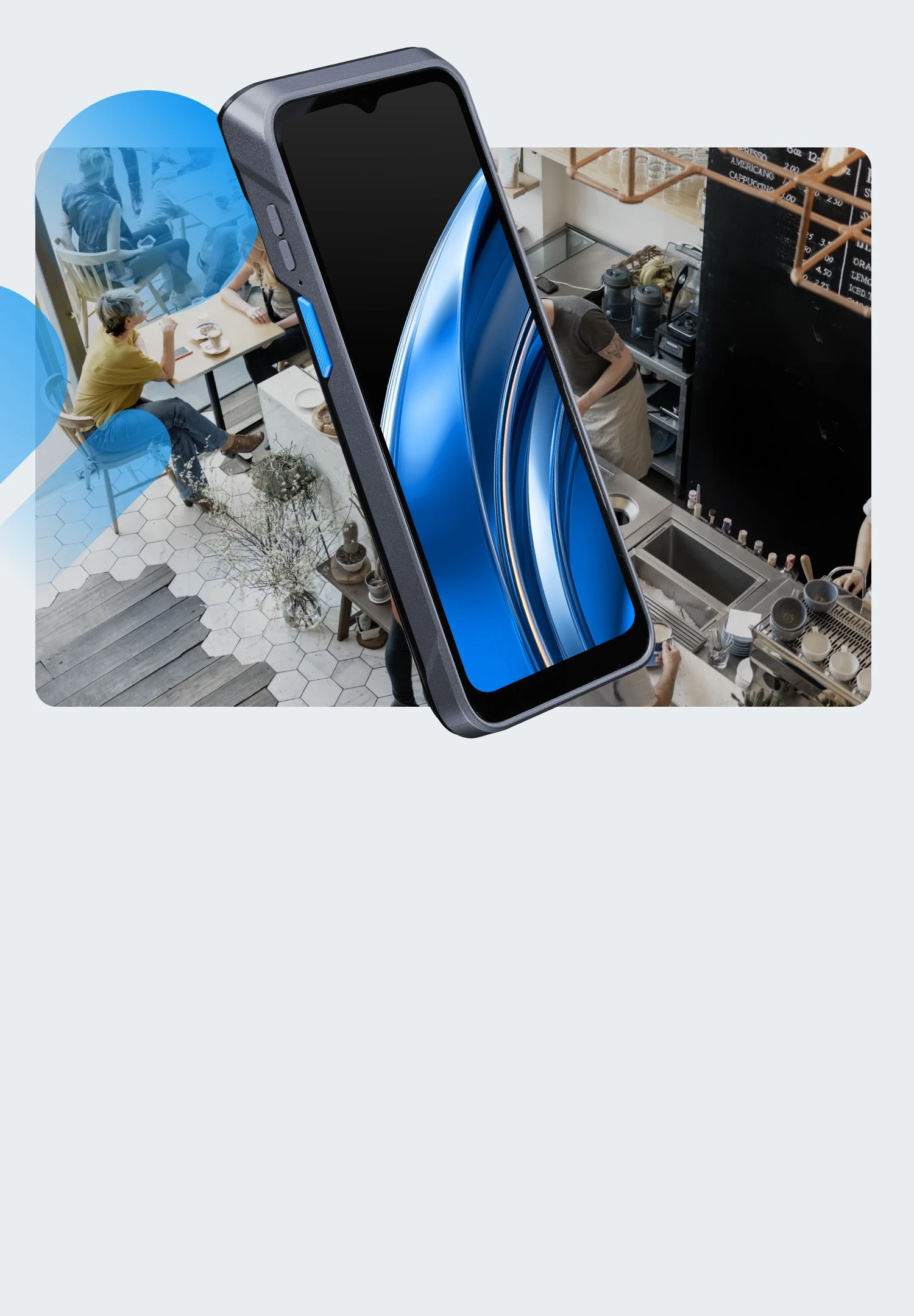

Faster Processing
& Lightweight

Equipped with an ARM Quad-core CPU and

powered by the latest Android 13, M20SE delivers

lightning-fast processing and seamless performance.



Key features:

● Powered by Android 13



● Quad-core, 2.0GHz



● 6.5" touch screen



● Certified for CE/CB/FCC/IC/RoHS/WEEE/GMS

Download brochure

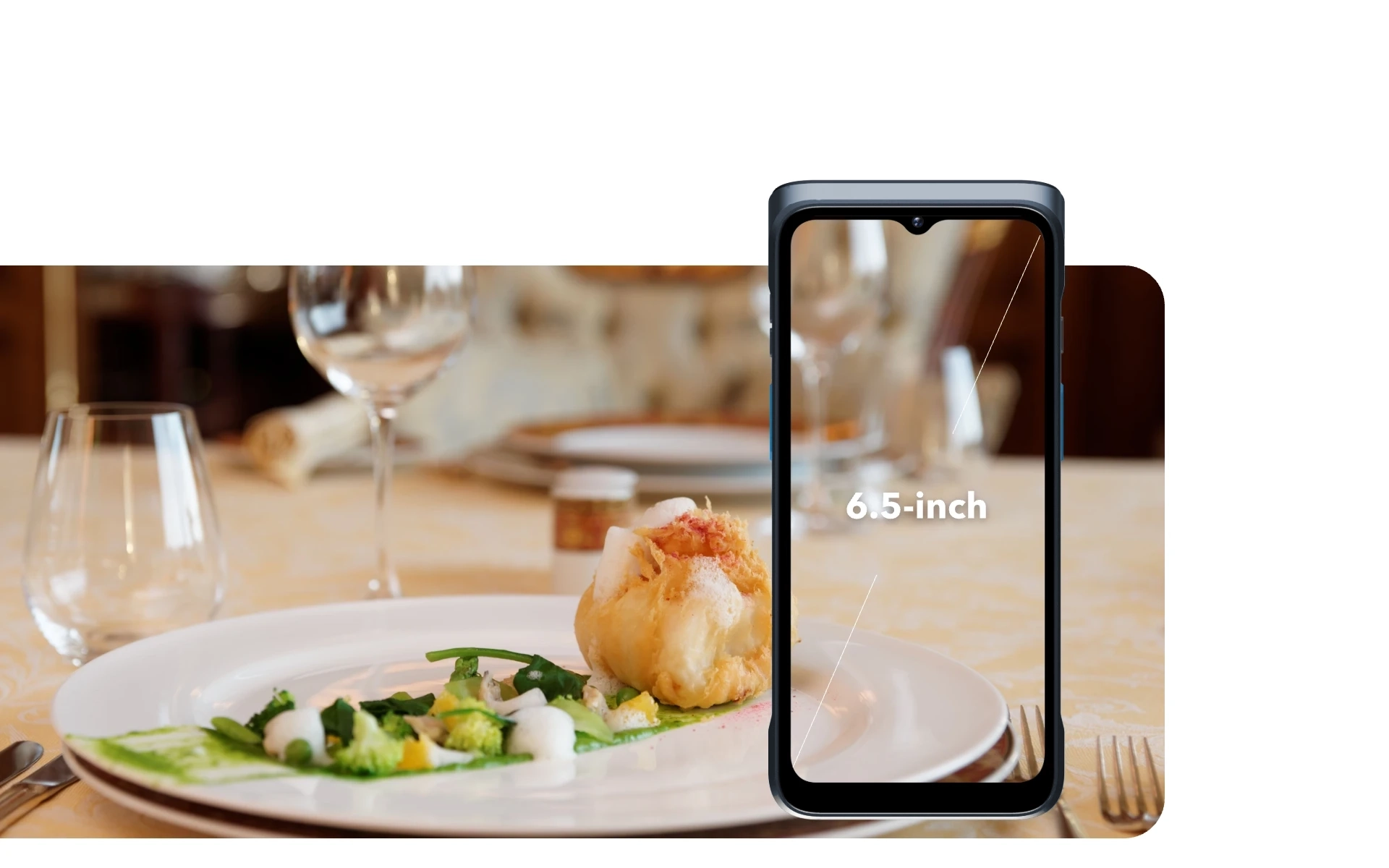

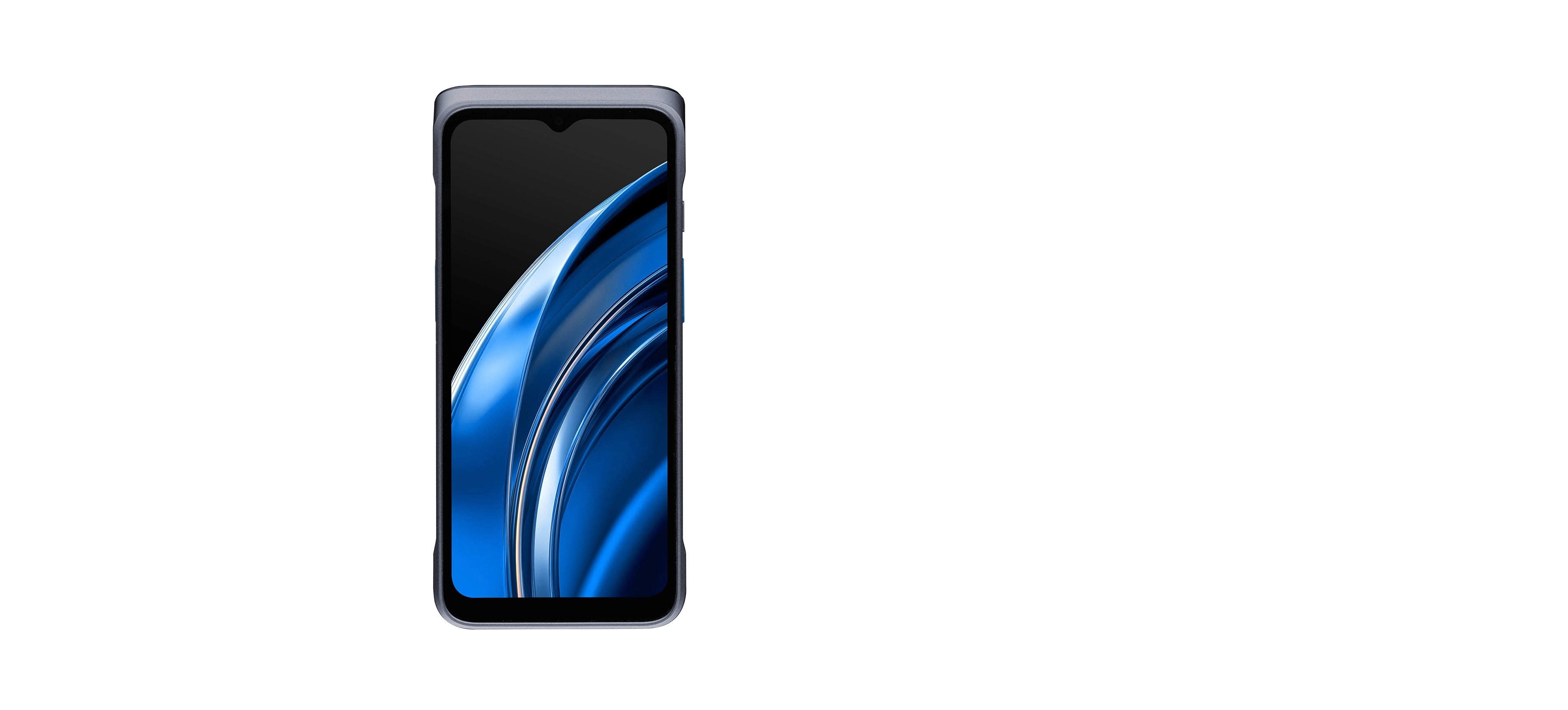

Larger Display

M20 SE boasts a generous 6.5-inch display, offering clearer visuals and accurate interaction—ideal for staff handling orders, scanning items, or accepting payments in seconds, even using just one hand.

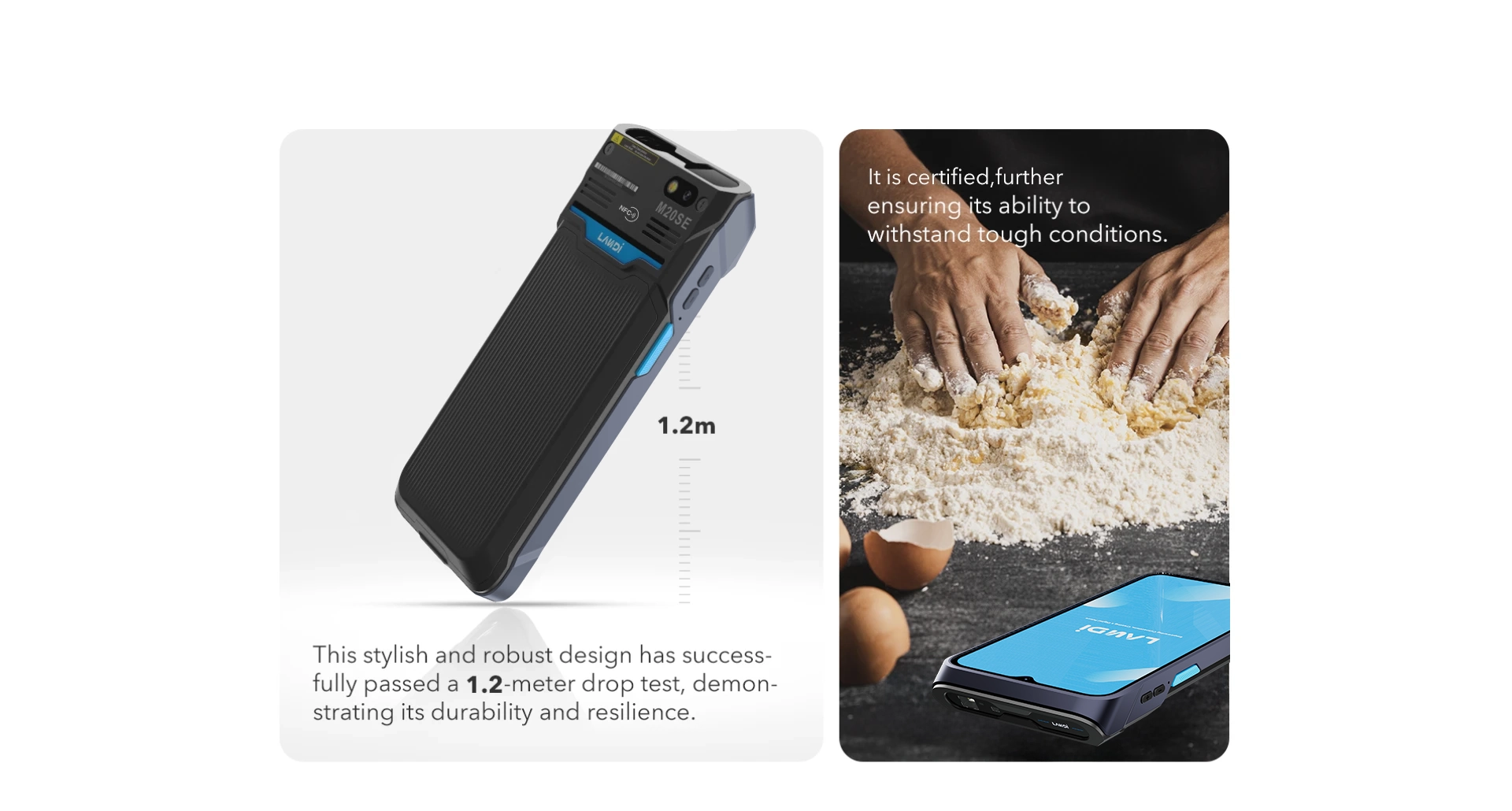

Rugged Design

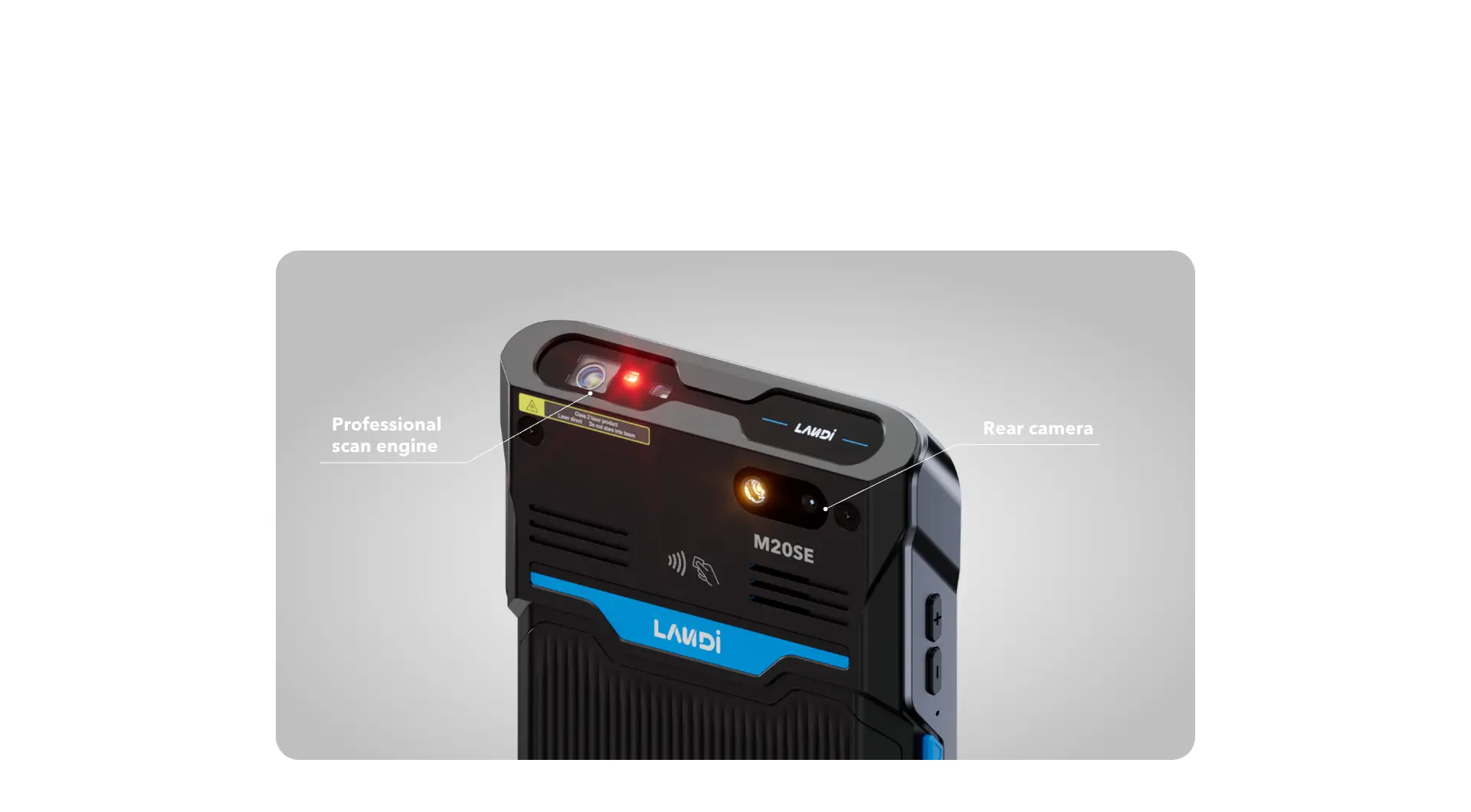

Swift Barcode Scanning

Quickly scan 1D/2D barcodes, even if they're scratched, folded, or stained.

Specifications

Processor

64-bit quad-core ARM Cortex-A53, 2.0 GHz

OS

Android 13 (GMS)
Android 13 (Non-GMS, Optional)

Memory

Internal:
3GB RAM + 32GB FLASH
2GB RAM + 16GB FLASH (Optional)
4GB RAM + 64GB FLASH (Optional)
Expansion:
MicroSD card, up to 2TB

Display

6.517", 720×1600
Capacitive multi-touch

Buttons

1 Power
2 Volume
2 Scan (Optional)

Camera

Front:
2MP with fixed focus (for barcode scanning)
Rear:
5MP with autofocus & flash

Scanner

None
LANDI scan engine (Optional)
Honeywell scan engine (Optional)

Audio

1 Speaker
2 Microphones
Headset via USB Type-C port

SIM/SAM Slots

2 SIM + 2 SAM
1 SIM + 1 eSIM + 2 SAM (Optional)

Positioning

AGPS, GPS, GLONASS
BeiDou, Galileo

Ports

1 USB Type-C port
2 POGO pins

Power

Supply: 5V/2A

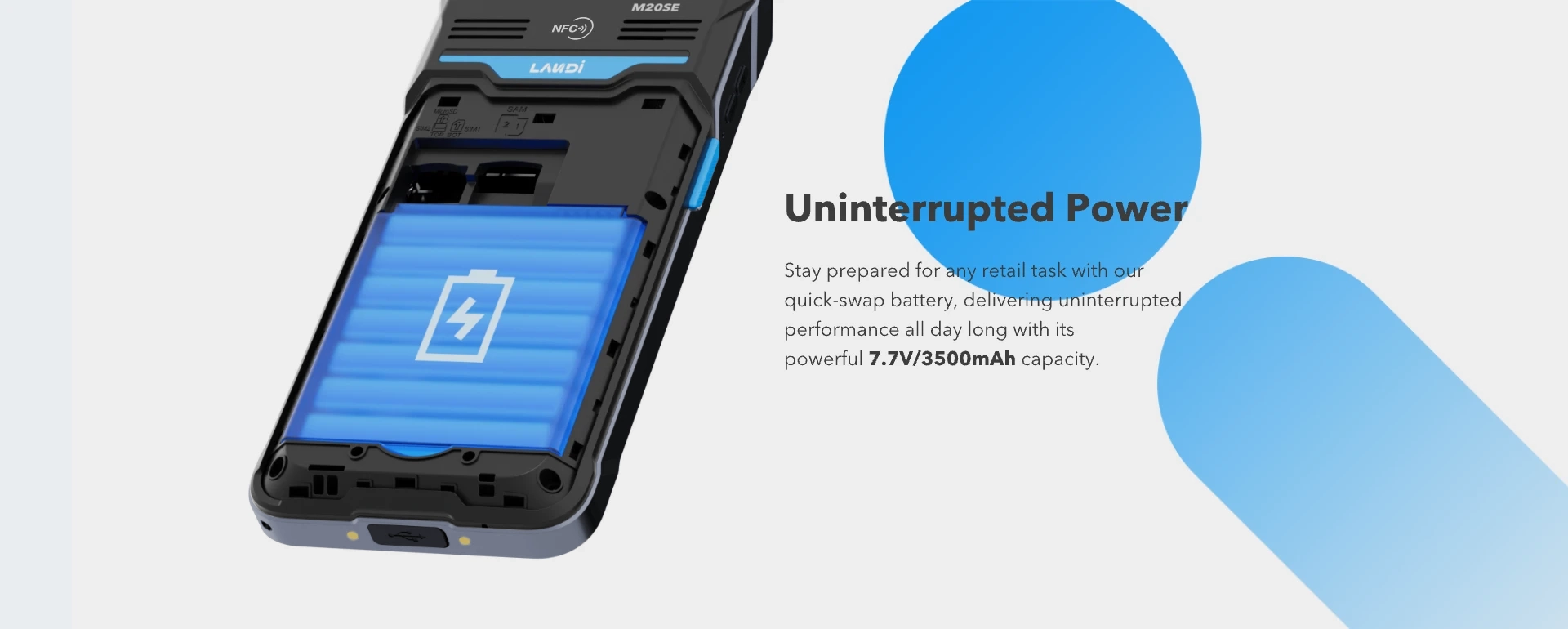

Battery:
7.7V 3500mAh / 26.95Wh li-ion, removable

NFC

Android NFC
ISO/IEC 14443
ISO15693 compliant
Supports Type A/B Mifare
FeliCa
EMVCo PCD L1 Certified

Connectivity

WAN: 4G/3G/2G fallback
Wi-Fi:
IEEE 802.11 a/b/g/n/ac, 2.4Ghz/5Ghz
Bluetooth:
Bluetooth 5.0, supports BLE

Sensor

G-sensor with auto-rotation
Ambient light sensor
Proximity sensor

Environment

Operating temperature:
Discharging: -10°C to +50°C
Charging: 0°C to +40°C
Storage temperature: -20℃ to +70℃
Operating humidity:
10% to 90% (Non-condensing)

Weight

295g (with battery)

Dimensions

172 × 70 × 19 mm
(L × W × H)

Protection

1.2m drop resistance

Certification

CE, CB, FCC, IC
RoHS, WEEE, GMS

Accessories (Sold separately)

Battery charger
Charging base
Functional base
Wrist strap
Screen protector
Protective case
Learn more
Faster Processing & Lightweight

Equipped with an ARM Quad-core CPU and

powered by the latest Android 13, M20SE delivers

lightning-fast processing and seamless performance.



Key Features:

● Powered by Android 13

● Quad-core, 2.0GHz

● 6.5" touch screen

● CE, CB, FCC, IC, RoHS, WEEE, and GMS

M20 SE datasheet

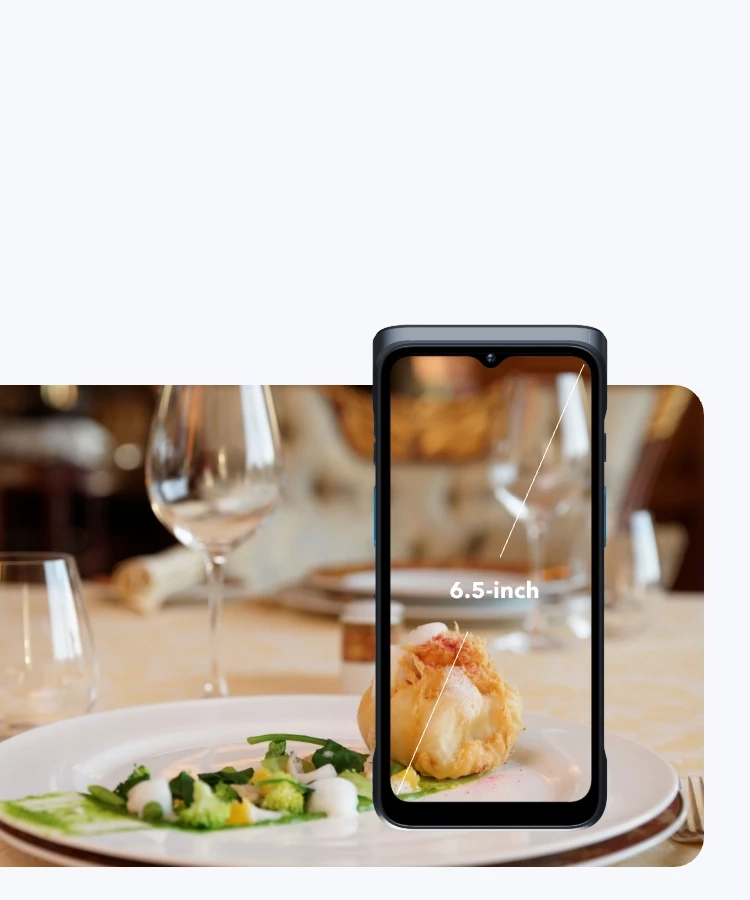

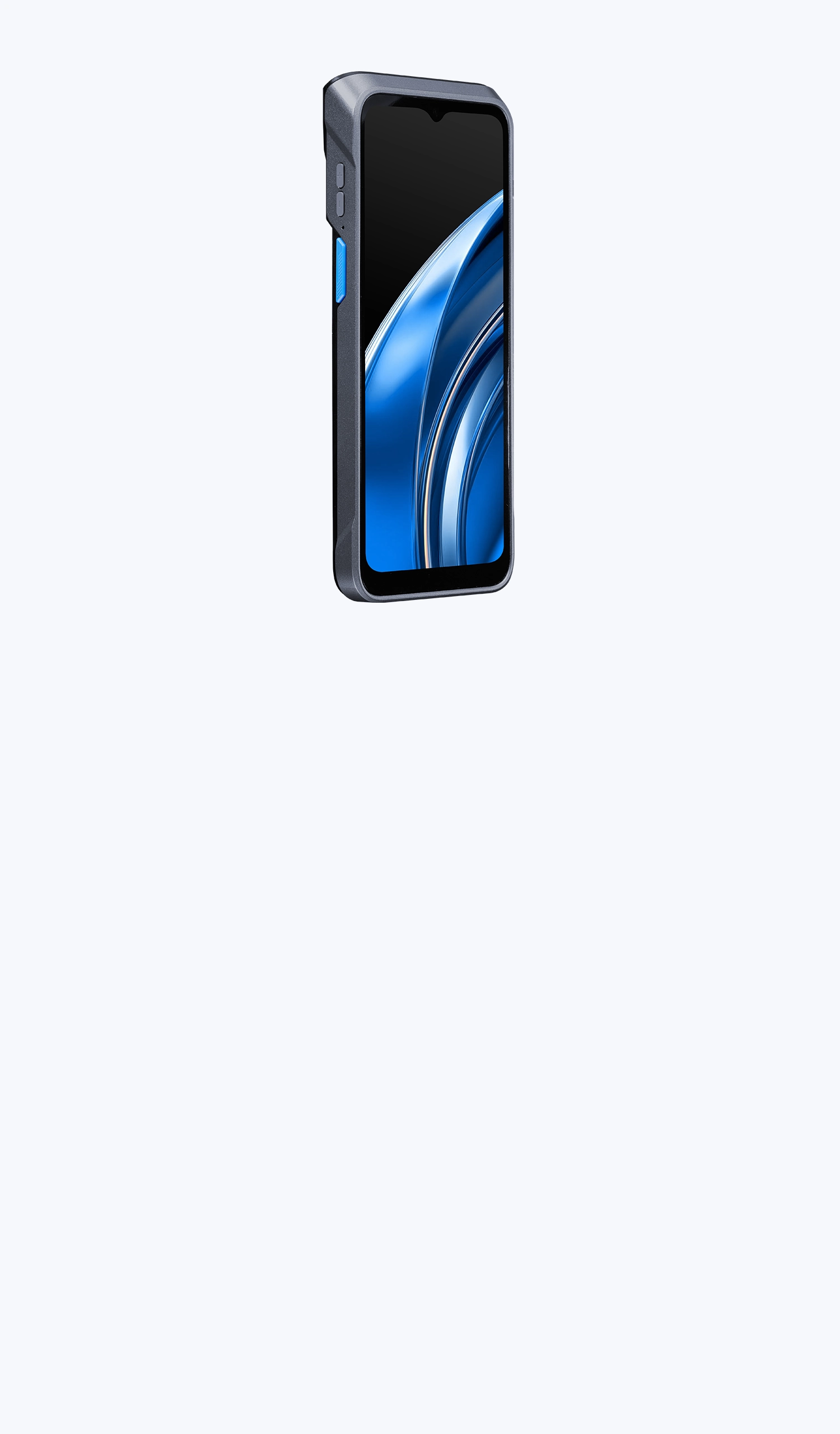

Larger Display

M20 SE boasts a generous 6.5'' display, offering clearer visuals and accurate interaction—ideal for staff handling orders, scanning items, or accepting payments in seconds, even using just one hand.

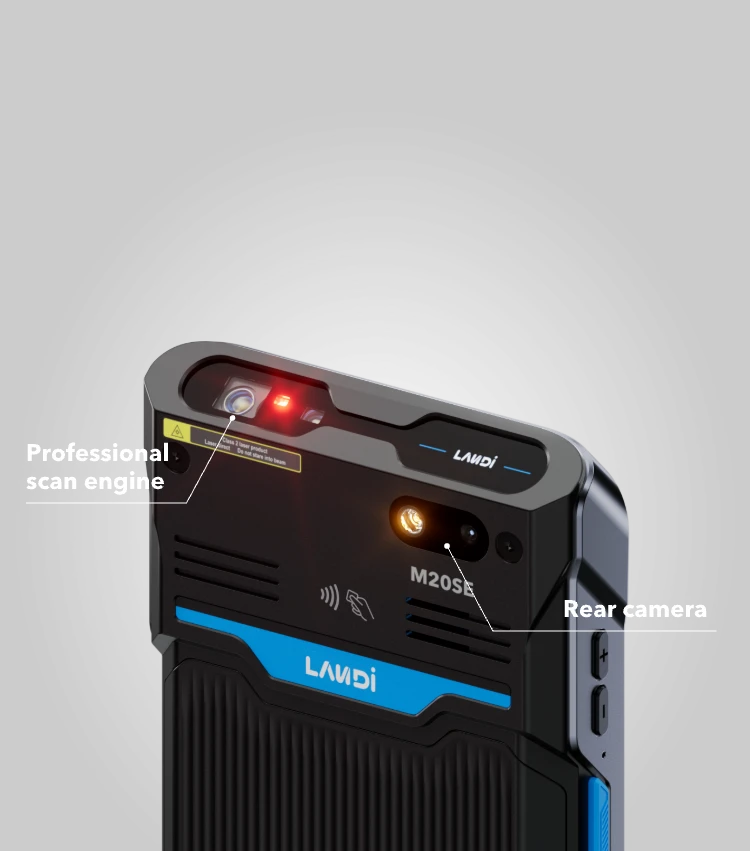

Swift Barcode Scanning

Quickly scan 1D/2D barcodes, even if they're scratched, folded, or stained.

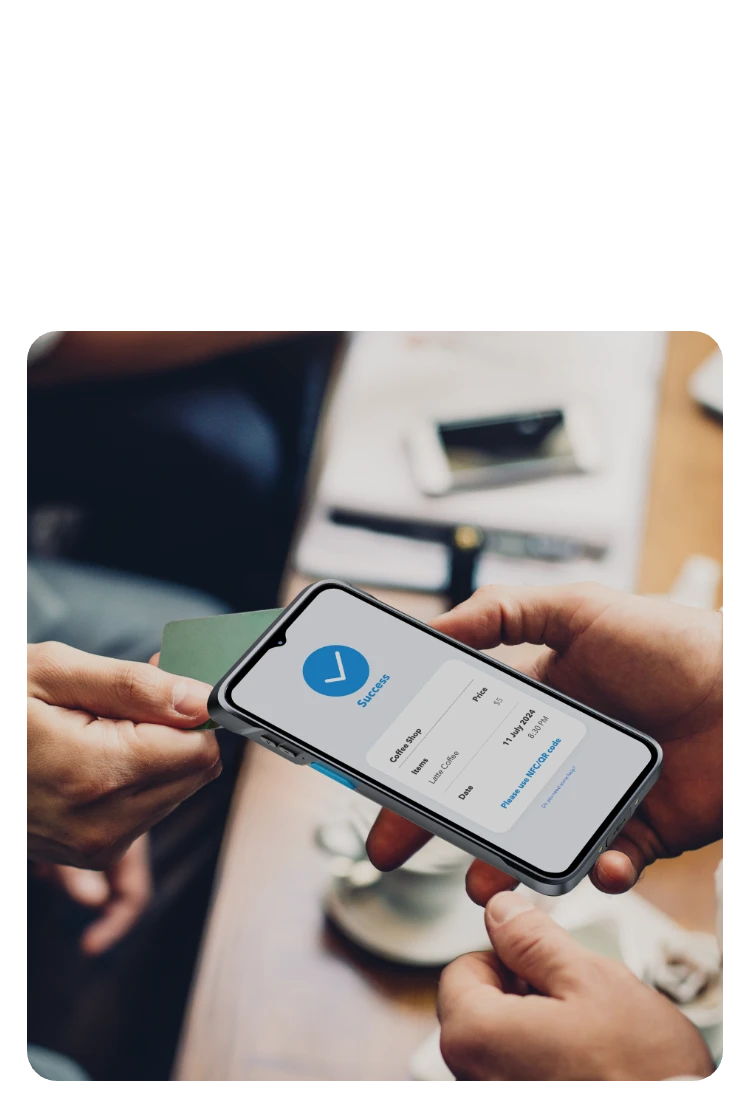

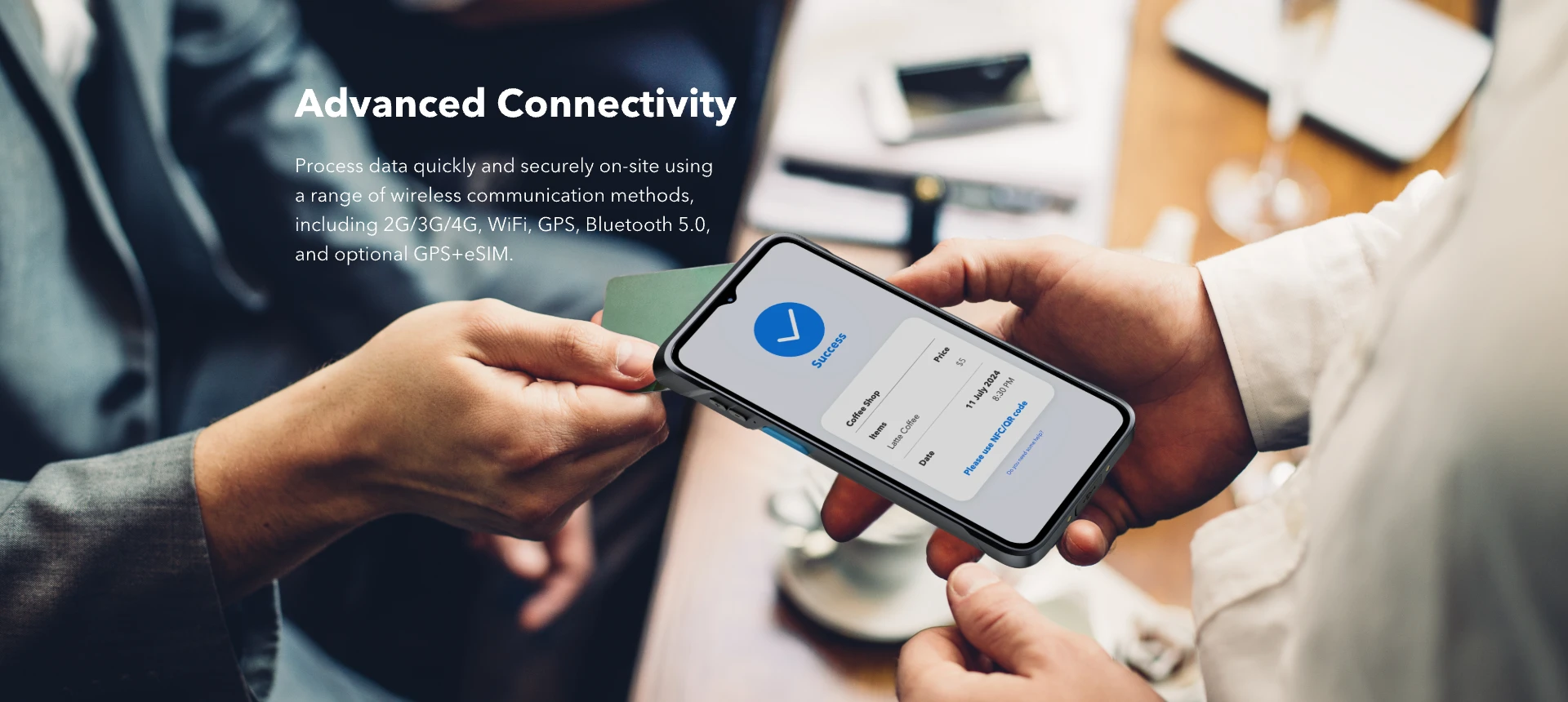

Advanced connectivity

Process data quickly and securely on-site using a range of
wireless communication methods.

Various Accessories Expand More Possibilities
Charging Base
Strap
Specifications
Processor 64-bit quad-core ARM Cortex-A53, 2.0 GHz
OS Android 13 (GMS)
Android 13 (Non-GMS, Optional)
Memory Internal:
3GB RAM + 32GB FLASH
2GB RAM + 16GB FLASH (Optional)
4GB RAM + 64GB FLASH (Optional)
Expansion:
MicroSD card, up to 2TB
Display 6.517", 720×1600
Capacitive multi-touch
Buttons 1 Power
2 Volume
2 Scan (Optional)
Camera Front:
2MP with fixed focus (for barcode scanning)
Rear:
5MP with autofocus & flash
Scanner None
LANDI scan engine (Optional)
Honeywell scan engine (Optional)
Audio 1 Speaker
2 Microphones
Headset via USB Type-C port
SIM/SAM Slots 2 SIM + 2 SAM
1 SIM + 1 eSIM + 2 SAM (Optional)
Positioning AGPS, GPS, GLONASS
BeiDou, Galileo
Ports 1 USB Type-C port
2 POGO pins
Power Supply: 5V/2A
Battery:
7.7V 3500mAh / 26.95Wh li-ion, removable
NFC Android NFC
ISO/IEC 14443
ISO15693 compliant
Supports Type A/B Mifare
FeliCa
EMVCo PCD L1 Certified
Connectivity WAN: 4G/3G/2G fallback
Wi-Fi:
IEEE 802.11 a/b/g/n/ac, 2.4Ghz/5Ghz
Bluetooth:
Bluetooth 5.0, supports BLE
Sensor G-sensor with auto-rotation
Ambient light sensor
Proximity sensor
Environment Operating temperature:
Discharging: -10°C to +50°C
Charging: 0°C to +40°C
Storage temperature: -20℃ to +70℃
Operating humidity:
10% to 90% (Non-condensing)
Weight 295g (with battery)
Dimensions 172 × 70 × 19 mm
(L × W × H)
Protection 1.2m drop resistance
Certification CE, CB, FCC, IC
RoHS, WEEE, GMS
Accessories (Sold separately) Battery charger
Charging base
Functional base
Wrist strap
Screen protector
Protective case
