C20 DS

Android Kitchen Display
Robust display for
all demanding restaurant environments.
Download brochure

Specifications

C20 DS

Processor

64-bit quad-core ARM Cortex A55, 2.0GHz

OS

Android 13
64 bits

Buttons

1 Power button
1 Auto power switch

Display

5.6’’, 1920 × 1080, 300 nits, capacitive multi-touch

Memory

Internal:
4 GB RAM + 32 GB FLASH
Expansion:
MicroSD card, up to 2TB

Audio

3W, 90db@1m, Dual speakers
Headset via 3.5mm audio jack (CTIA&OTMP)

Connectivity

Wi-Fi: IEEE 802.11a/b/g/n/ac/ax, Wi-Fi 6, 2.4Ghz/5Ghz
LAN: 1000 Mbps
Bluetooth: Bluetooth 5.0, supports BLE

NFC

Android NFC, ISO/IEC 14443, ISO15693 compliant, Supports Type A/B Mifare, FeliCa

Power

100V-240V AC, 50-60Hz input; 19V DC, 2.1A output
IEEE 802.3at POE+, auto power-on supported

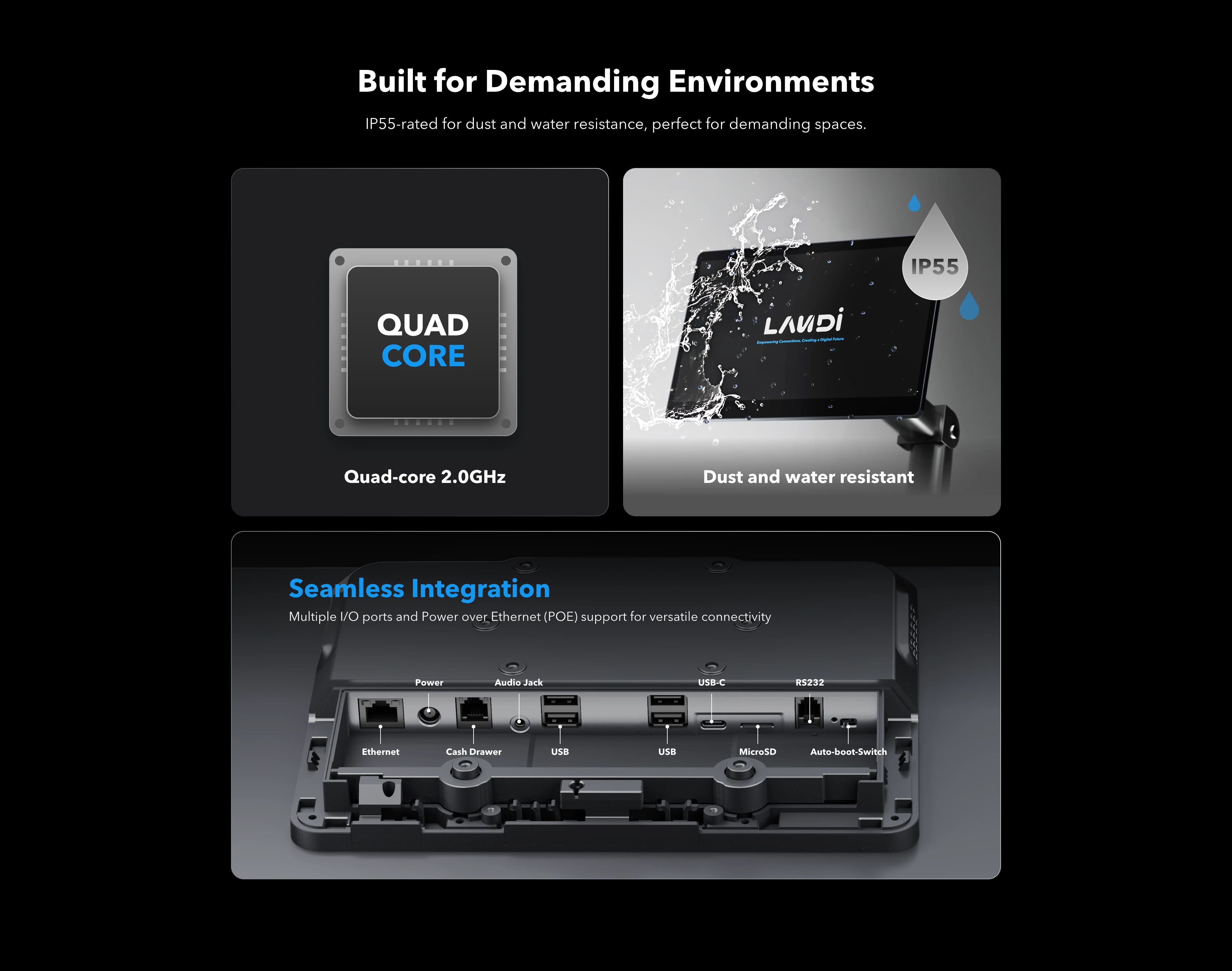

Ports

USB Type-C port * 1
Micro USB port * 1
USB Type-A 2.0 port * 4
RJ22 serial port * 1
RJ45 Ethernet port * 1
RJ11 cash drawer port * 1
3.5 mm audio jack * 1

Environment

Operating Temperature: 0°C to +40°C (32°F to 104°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Operating Humidity: 10% to 90% (Non-condensing)

Accessories (Sold separately)

C20 MSR
C20 CAM
HS20 Scanner
DP20 Printer
CD20 Cash Drawer

Dimensions (Terminal only)

378 × 249 × 37 mm

Weight (Terminal only)

1.7kg

Protection

IP55

Certifications

CE, CB, FCC, IC, RoHS, WEEE, UN 38.3, DGM, ANATEL, NOM, CRT
