Cx20 Lite

Windows Desktop POS Terminal

Performance Windows POS delivering
exceptional value for money.
Download brochure

Where Value Meets Performance.

Cx20 Lite makes every checkout simple, seamless, and cost-efficient.

Optimized for Cost and
Performance

Designed with the Intel® N97 quad-core processor (up to 3.6 GHz), Cx20 Lite strikes the sweet spot of cost efficiency and performance—delivering enterprise-grade capability while keeping investment lean and predictable.

Enterprise-Grade Windows Platform

Running on Windows 11 IoT LTSC (64-bit), Cx20 Lite ensures long-term stability, enterprise security, and compatibility with a wide ecosystem of applications.
Window 11

Future-Proof Memory & Storage

Equipped with 8GB RAM + 256GB storage, expandable to 512GB, enabling fast data processing, secure storage, and room for growth.

Immersive Full HD Display Options.

A 15.6” Full HD capacitive multi-touch display (1920×1080 px) delivers crisp clarity and fluid interaction.

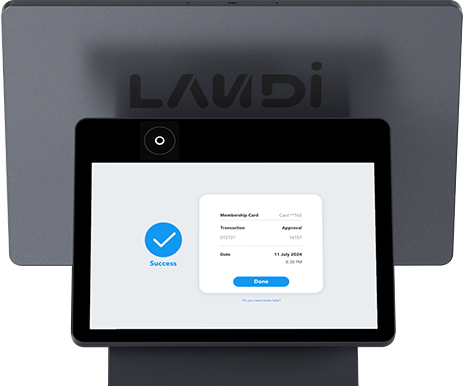

10.1” Customer-facing Display

An optional 10.1” customer-facing display—available as a standard screen or as an interactive version with touch and QR camera—adds flexibility and elevates customer engagement.

Advanced Connectivity

Wi-Fi 6E, Gigabit Ethernet, and Bluetooth 5.3 ensure fast, stable, and future-ready connections, supporting seamless device integration and smooth data flow.

Integrated Tools, Ready to Work

Thermal Printer

High-speed 80mm thermal printer with auto cutter (200mm/s) available on Cx20 Lite.

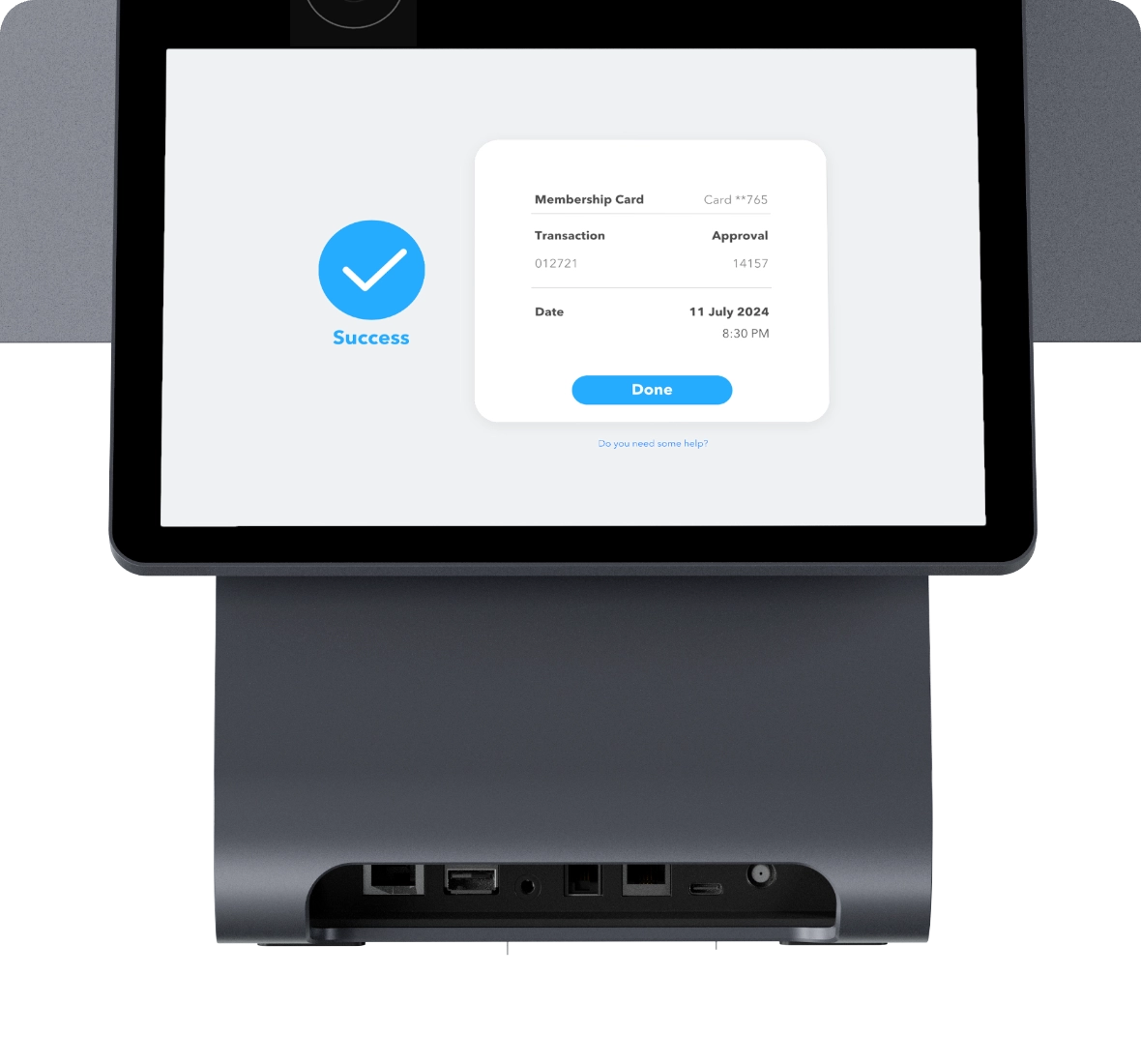

Rich Interface

Rich I/O including USB Type-C, USB 3.0/2.0, RJ45 LAN, RJ22 serial, RJ11 cash drawer, and 3.5mm audio jack, offering broad peripheral compatibility.

Clear Sound & Communication

Dual 5W speakers and dual microphones provide crisp audio and reliable voice capture, even in busy environments.

Accessories in a snap

DP20 Desktop Printer

Cost-effective printer for new businesses.

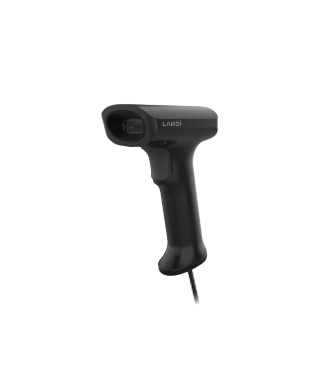

HS20 Handheld scanner

Effortless scanning, professional results.

CD20 Cash Drawer

Built to last with flexibility and security

MSR Reader

Engineered for reliable reads

Specifications

Cx20 Lite
Cx20 Lite SE

Processor

Quad core, up to 3.6 GHz

OS

Windows 11 IoT LTSC

Buttons

Power button with indicator light * 1

Main Display

15.6’’, 1920 × 1080, 300 nits, capacitive multi-touch

CFD

Option 1: None
Option 2: 10.1’’ standard CFD (1280 × 800, 350 nits)
Option 3: 10.1’’ premium CFD (1280 × 800, 350 nits, touch panel, camera)

Memory

Internal:
8GB RAM + 256GB FLASH
8GB RAM + 512GB FLASH (Optional)
16GB RAM + 256GB FLASH (Optional)
16GB RAM + 512GB FLASH (Optional)
*Available SSD capacity may differ from labeled capacity due to system calculations and backup reserves. Actual space is shown in system display.

Ports

USB Type-C port * 1
Micro USB port * 1
USB Type-A 2.0 port * 4
USB Type-A 3.0 port * 1
RJ22 serial port * 1
RJ45 Ethernet port * 1
RJ11 cash drawer port * 1
3.5 mm audio jack * 1

Connectivity

Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax, Wi-Fi 6E, 2.4Ghz/5Ghz/6Ghz, 2x2 MIMO
LAN: 1000 Mbps
Bluetooth: Bluetooth 5.3, supports BLE

Audio

5W, 100dB@1m, Dual speakers
Headset via 3.5mm audio jack (CTIA&OTMP)
Microphone * 2

Printer

Thermal printer
Paper Width: 80 mm
Roll Diameter: 80 mm
Print Speed: 250 mm/s max
Auto cutter

Camera

Front camera: 2MP, QR code scan (Optional)
*Only supported on the 10.1’’ premium CFD

Environment

Operating Temperature: 0°C to +40°C (32°F to 104°F)
Storage Temperature: -20°C to +60°C (-4°F to 140°F)
Operating Humidity: 10% to 90% (Non-condensing)

Weight (Terminal only)

4.4kg (Single display version)

Dimensions (Terminal only)

361.5 × 234 × 364 mm (Single display version)

Power

100V-240V AC, 50-60Hz input; 19-20V DC, 4.74A output

Certification

Regulatory: CE, CB, FCC, IC, RoHS, WEEE, UN 38.3, DGM

Accessories (Sold separately)

C20 MSR
C20 CAM
HS20 Scanner
DP20 Printer
CD20 Cash Drawer

Processor

Quad core, up to 3.6 GHz

OS

Windows 11 IoT LTSC

Buttons

1 Power button with indicator light

Main Display

15.6’’, 1920 × 1080, 300 nits, capacitive multi-touch

CFD

Option 1: None
Option 2: 10.1’’ standard CFD (1280 × 800, 350 nits)
Option 3: 10.1’’ premium CFD (1280 × 800, 350 nits, touch panel, camera)

Memory

Internal:
8GB RAM + 256GB FLASH
8GB RAM + 512GB FLASH (Optional)
16GB RAM + 256GB FLASH (Optional)
16GB RAM + 512GB FLASH (Optional)
*Available SSD capacity may differ from labeled capacity due to system calculations and backup reserves. Actual space is shown in system display.

Ports

USB Type-C port * 1
Micro USB port * 1
USB Type-A 2.0 port * 4
USB Type-A 3.0 port * 1
RJ22 serial port * 1
RJ45 Ethernet port * 1
RJ11 cash drawer port * 1
3.5 mm audio jack * 1

Connectivity

Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax, Wi-Fi 6E, 2.4Ghz/5Ghz/6Ghz, 2x2 MIMO
LAN: 1000 Mbps
Bluetooth: Bluetooth 5.3, supports BLE

Audio

5W, 100dB@1m, Dual speakers
Headset via 3.5mm audio jack (CTIA&OTMP)
Microphone * 2

Camera

Front camera: 2MP, QR code scan (Optional)
*Only supported on the 10.1’’ premium CFD

Dimensions (Terminal only)

361.5 × 234 × 364 mm (Single display version)

Weight (Terminal only)

3.9kg (Single display version)

Environment

Operating Temperature: 0°C to +40°C (32°F to 104°F)
Storage Temperature: -20°C to +60°C (-4°F to 140°F)
Operating Humidity: 10% to 90% (Non-condensing)

Power

100V-240V AC, 50-60Hz input; 19V DC, 3.42A output

Certifications

Regulatory: CE, CB, FCC, IC, RoHS, WEEE, UN 38.3, DGM

Accessories (Sold separately)

C20 MSR
C20 CAM
HS20 Scanner
DP20 Printer
CD20 Cash Drawer
Learn more

Where Value Meets
Performance.

Cx20 Lite makes every checkout simple, seamless, and cost-efficient.

Optimized for Cost and
Performance

Designed with the Intel® N97 quad-core processor (up to 3.6 GHz), Cx20 Lite strikes the sweet spot of cost efficiency and performance—delivering enterprise-grade capability while keeping investment lean and predictable.

Enterprise-Grade Windows Platform

Running on Windows 11 IoT LTSC (64-bit), Cx20 Lite ensures long-term stability, enterprise security, and compatibility with a wide ecosystem of applications.
Windows 11

Future-Proof Memory & Storage

Equipped with 8GB RAM + 256GB storage, expandable to 512GB, enabling fast data processing, secure storage, and room for growth.

Immersive Full HD Display Options.

A 15.6” Full HD capacitive multi-touch display (1920×1080 px) delivers crisp clarity and fluid interaction.

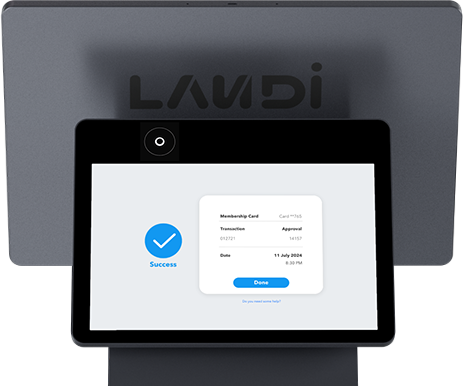

10.1” customer-facing display

An optional 10.1” customer-facing display—available as a standard screen or as an interactive version with touch and QR camera—adds flexibility and elevates customer engagement.

Advanced Connectivity

Wi-Fi 6E, Gigabit Ethernet, and Bluetooth 5.3 ensure fast, stable, and future-ready connections, supporting seamless device integration and smooth data flow.

Integrated Tools, Ready to Work

<

Thermal Printer

High-speed 80mm thermal printer with auto cutter (200mm/s) available on Cx20 Lite.

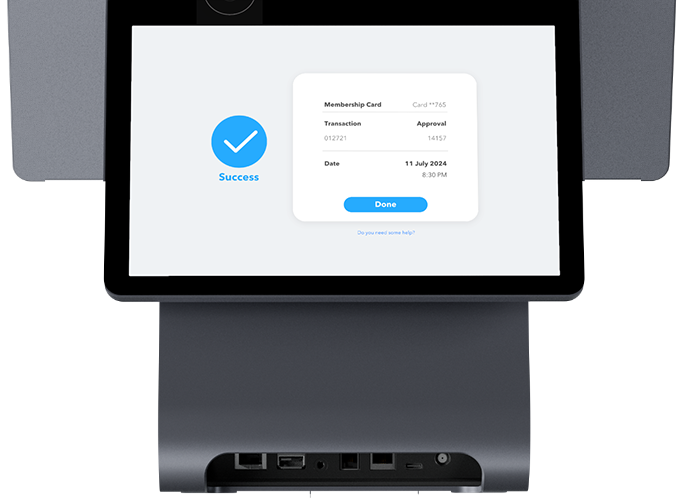

Rich Interface

Rich I/O including USB Type-C, USB 3.0/2.0, RJ45 LAN, RJ22 serial, RJ11 cash drawer, and 3.5mm audio jack, offering broad peripheral compatibility.

Clear Sound & Communication

Dual 5W speakers and dual microphones provide crisp audio and reliable voice capture, even in busy environments.

Accessories in a snap

DP20 Desktop Printer

Cost-effective printer for new businesses.

HS20 Handheld scanner

Effortless scanning, professional results.

CD20 Cash Drawer

Drawer built to last with flexibility and security

MSR reader

Engineered for reliable reads
Specifications
Cx20 Lite
Cx20 Lite SE
Processor Quad core, up to 3.6 GHz
OS Windows 11 IoT LTSC
Buttons Power button with indicator light * 1
Main Display 15.6’’, 1920 × 1080, 300 nits, capacitive multi-touch
CFD Option 1: None
Option 2: 10.1’’ standard CFD (1280 × 800, 350 nits)
Option 3: 10.1’’ premium CFD (1280 × 800, 350 nits, touch panel, camera)
Memory Internal:
8GB RAM + 256GB FLASH
8GB RAM + 512GB FLASH (Optional)
16GB RAM + 256GB FLASH (Optional)
16GB RAM + 512GB FLASH (Optional)
*Available SSD capacity may differ from labeled capacity due to system calculations and backup reserves. Actual space is shown in system display.
Ports USB Type-C port * 1
Micro USB port * 1
USB Type-A 2.0 port * 4
USB Type-A 3.0 port * 1
RJ22 serial port * 1
RJ45 Ethernet port * 1
RJ11 cash drawer port * 1
3.5 mm audio jack * 1
Connectivity Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax, Wi-Fi 6E, 2.4Ghz/5Ghz/6Ghz, 2x2 MIMO
LAN: 1000 Mbps
Bluetooth: Bluetooth 5.3, supports BLE
Audio 5W, 100dB@1m, Dual speakers
Headset via 3.5mm audio jack (CTIA&OTMP)
Microphone * 2
Printer Thermal printer
Paper Width: 80 mm
Roll Diameter: 80 mm
Print Speed: 250 mm/s max
Auto cutter
Camera Front camera: 2MP, QR code scan (Optional)
*Only supported on the 10.1’’ premium CFD
Environment Operating Temperature: 0°C to +40°C (32°F to 104°F)
Storage Temperature: -20°C to +60°C (-4°F to 140°F)
Operating Humidity: 10% to 90% (Non-condensing)
Weight (Terminal only) 4.4kg (Single display version)
Dimensions (Terminal only) 361.5 × 234 × 364 mm (Single display version)
Power 100V-240V AC, 50-60Hz input; 19-20V DC, 4.74A output
Certification Regulatory: CE, CB, FCC, IC, RoHS, WEEE, UN 38.3, DGM
Accessories (Sold separately) C20 MSR
C20 CAM
HS20 Scanner
DP20 Printer
CD20 Cash Drawer
