Specifications
M10 SE
Processor
64-bit quad-core ARM Cortex-A53, 2.0 GHz
OS
Android 14 (GMS)
Android 13 (Non-GMS)(Optional)
Android 13 (Non-GMS)(Optional)
Memory
Internal:
3GB RAM + 32GB FLASH
Expansion:
MicroSD card, up to 2TB
3GB RAM + 32GB FLASH
Expansion:
MicroSD card, up to 2TB
Display
4.96", 480×854
Capacitive multi-touch
Capacitive multi-touch
Buttons
1 Power
2 Scans (Optional)
2 Scans (Optional)
Camera
Front:
0.3MP with fixed focus (for barcode scanning)
Rear:
5MP with autofocus & flash
0.3MP with fixed focus (for barcode scanning)
Rear:
5MP with autofocus & flash
SIM/SAM Slots
2 SIM
1 SIM+1 eSIM (Optional）
1 SIM+1 eSIM (Optional）
Audio
1 Speaker
2 Microphones
Headset via USB Type-C port
2 Microphones
Headset via USB Type-C port
Connectivity
WAN: 4G/3G/2G fallback
Wi-Fi:
IEEE 802.11 a/b/g/n/ac, 2.4Ghz/5Ghz
Bluetooth:
Bluetooth 5.0, supports BLE
Wi-Fi:
IEEE 802.11 a/b/g/n/ac, 2.4Ghz/5Ghz
Bluetooth:
Bluetooth 5.0, supports BLE
NFC
Android NFC
ISO/IEC 14443
ISO15693 compliant
Supports Type A/B Mifare
FeliCa
EMVCo PCD L1 Certified
ISO/IEC 14443
ISO15693 compliant
Supports Type A/B Mifare
FeliCa
EMVCo PCD L1 Certified
Power
Supply: 5V/2A
Battery:
3.7V 3000mAh / 11.10Wh li-ion, removable
Battery:
3.7V 3000mAh / 11.10Wh li-ion, removable
Environment
Operating Temperature:
Discharging: -10°C to +50°C
Charging: 0°C to +40°C
Storage Temperature: -20°C to +70°C
Operating Humidity:
10% to 90% (Non-condensing)
Discharging: -10°C to +50°C
Charging: 0°C to +40°C
Storage Temperature: -20°C to +70°C
Operating Humidity:
10% to 90% (Non-condensing)
Positioning
AGPS, GPS, GLONASS
BeiDou, Galileo
BeiDou, Galileo
Scanner
None
LANDI scan engine (Optional)
LANDI scan engine (Optional)
Dimensions
154 × 76 × 16 mm
(L × W × H)
(L × W × H)
Weight
245g (With battery)
Ports
1 USB Type-C port
2 POGO pins
2 POGO pins
Protection
IP65
1.2m drop resistance
1.2m drop resistance
Certifications
CE, CB, FCC, IC
RoHS, WEEE, GMS
RoHS, WEEE, GMS
Accessories (Sold separately)

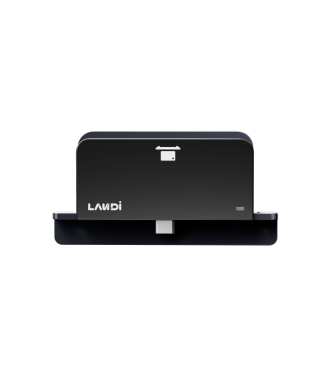

Charging base
Wrist strap
Screen protector
Protective case
Wrist strap
Screen protector
Protective case
M10 SE
Mobile Terminal
Pocketable Android device with front-facing
NFC reader and IP65 durability.
Download brochure
NFC reader and IP65 durability.
Specifications
| Processor | 64-bit quad-core ARM Cortex-A53, 2.0 GHz |
| OS | Android 14 (GMS)
Android 13 (Non-GMS)(Optional) |
| Memory | Internal:
3GB RAM + 32GB FLASH Expansion: MicroSD card, up to 2TB |
| Display | 4.96", 480×854
Capacitive multi-touch |
| Buttons | 1 Power
2 Scans (Optional) |
| Camera | Front:
0.3MP with fixed focus (for barcode scanning) Rear: 5MP with autofocus & flash |
| SIM/SAM Slots | 2 SIM
1 SIM+1 eSIM (Optional） |
| Audio | 1 Speaker
2 Microphones Headset via USB Type-C port |
| Connectivity | WAN: 4G/3G/2G fallback
Wi-Fi: IEEE 802.11 a/b/g/n/ac, 2.4Ghz/5Ghz Bluetooth: Bluetooth 5.0, supports BLE |
| NFC | Android NFC
ISO/IEC 14443 ISO15693 compliant Supports Type A/B Mifare FeliCa EMVCo PCD L1 Certified |
| Power | Supply: 5V/2A
Battery: 3.7V 3000mAh / 11.10Wh li-ion, removable |
| Environment | Operating Temperature:
Discharging: -10°C to +50°C Charging: 0°C to +40°C Storage Temperature: -20°C to +70°C Operating Humidity: 10% to 90% (Non-condensing) |
| Positioning | AGPS, GPS, GLONASS
BeiDou, Galileo |
| Scanner | None
LANDI scan engine (Optional) |
| Dimensions | 154 × 76 × 16 mm
(L × W × H) |
| Weight | 245g (With battery) |
| Ports | 1 USB Type-C port
2 POGO pins |
| Protection | IP65
1.2m drop resistance |
| Certifications | CE, CB, FCC, IC
RoHS, WEEE, GMS |
| Accessories (Sold separately) | Charging base
Wrist strap Screen protector Protective case |
