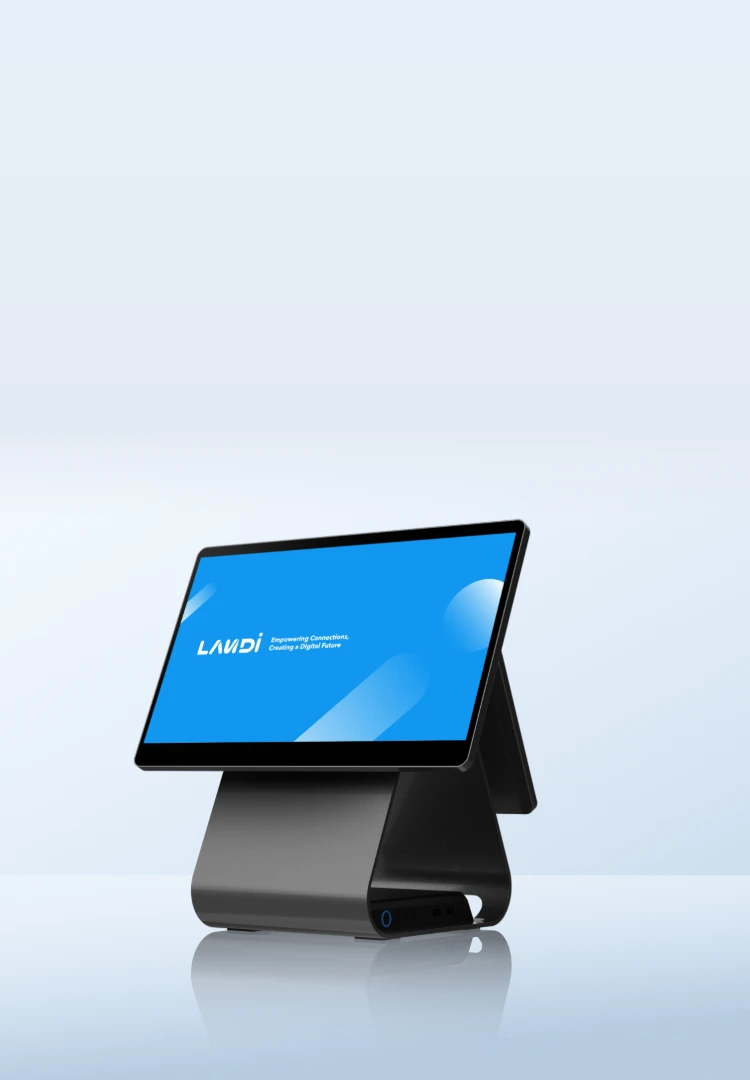

Unleash your terminal's potential
with unshakeable support
Unshakeable
support

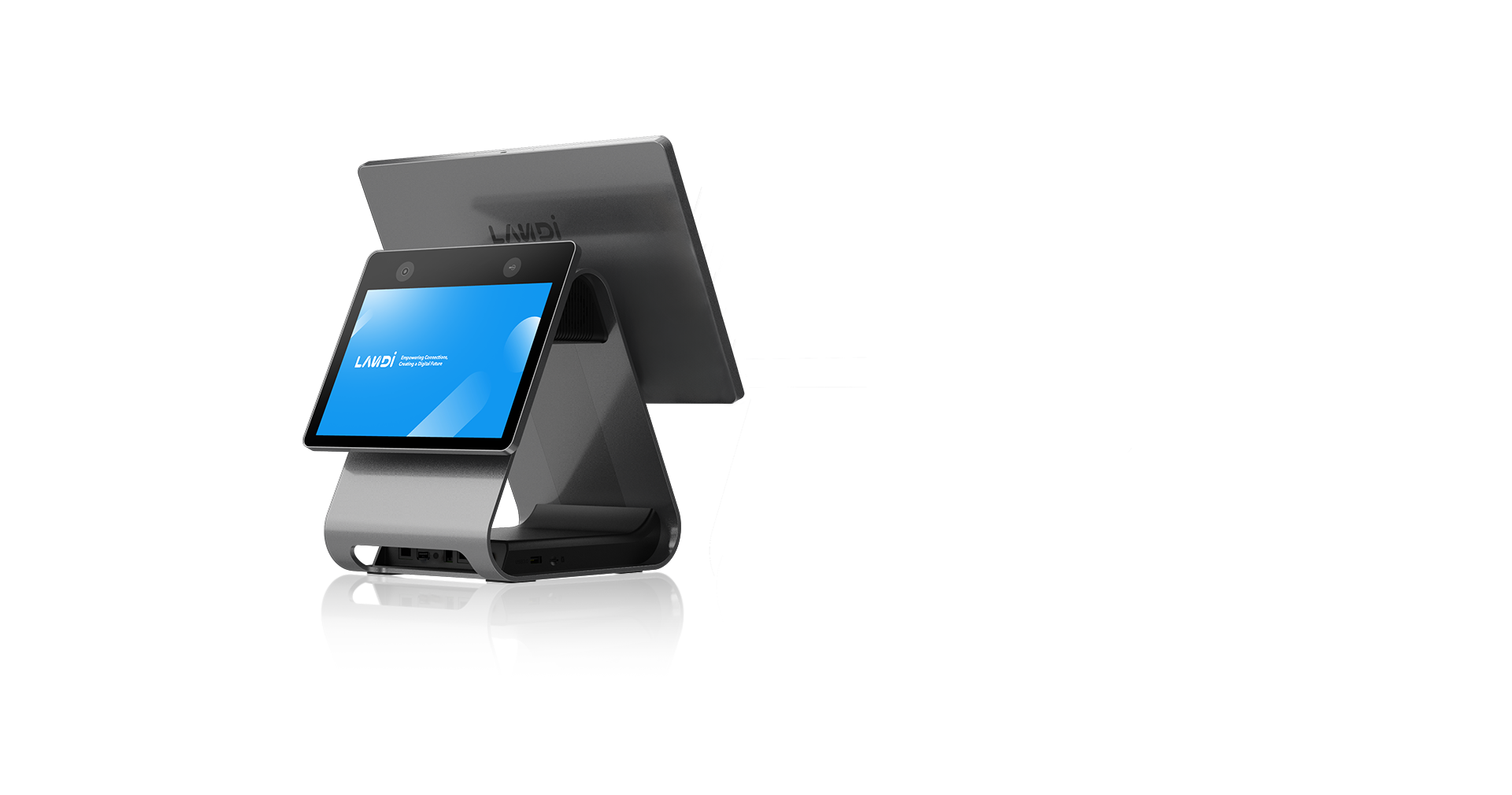

elevate your device with our
innovative triangle stand design

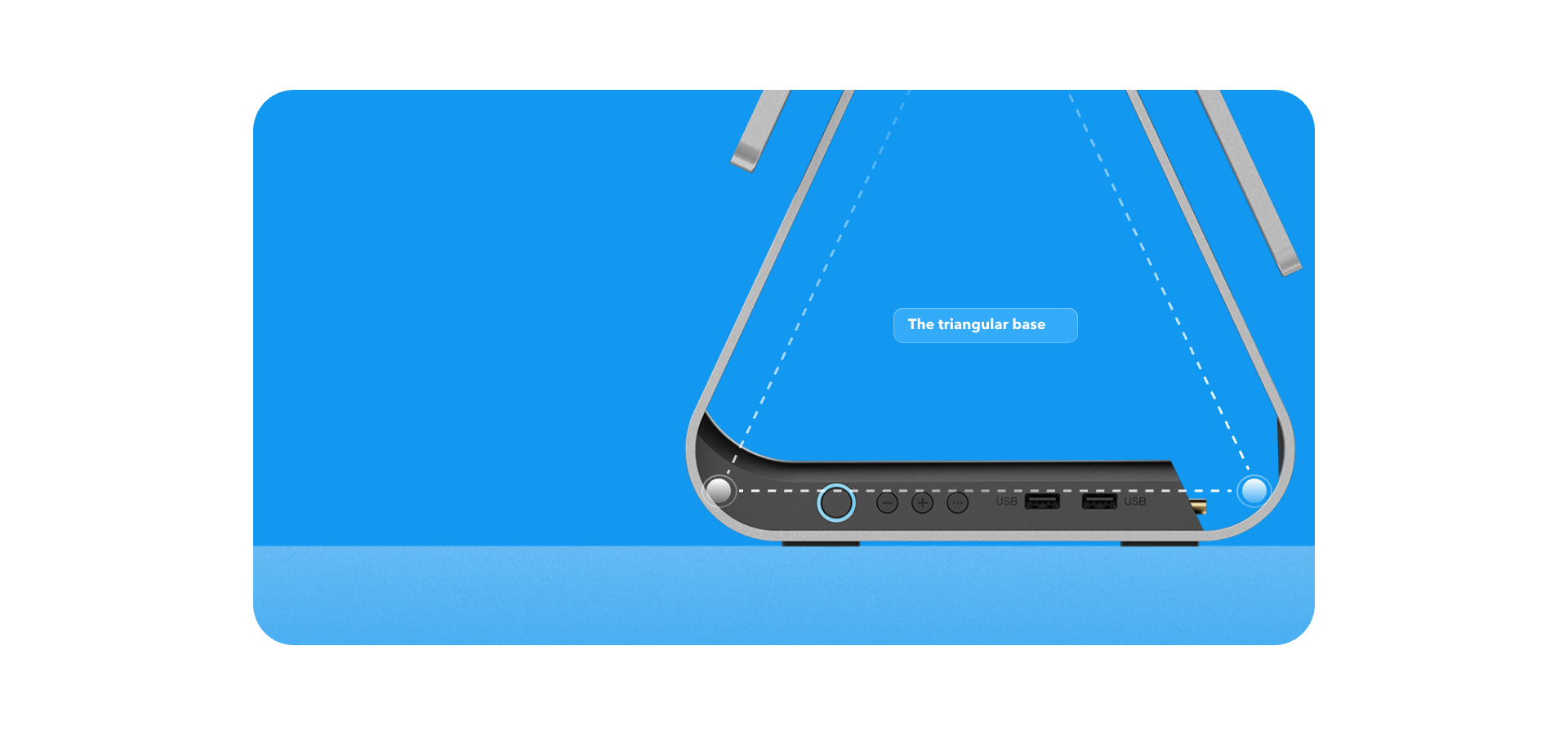

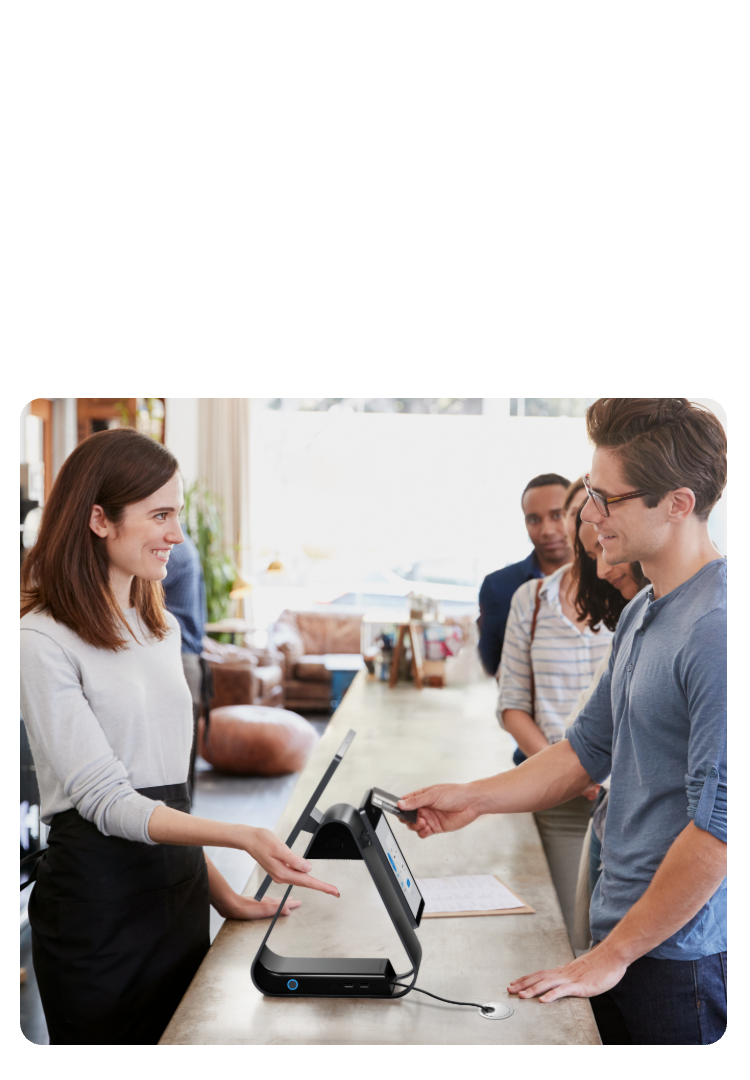

The triangular base offers a steady
and well-balanced foundation,
ensuring stability during transactions.
Key Features:
● Powered by Android 13
● Quad-Core, 2.0GHz
● Main display 15.6" FHD

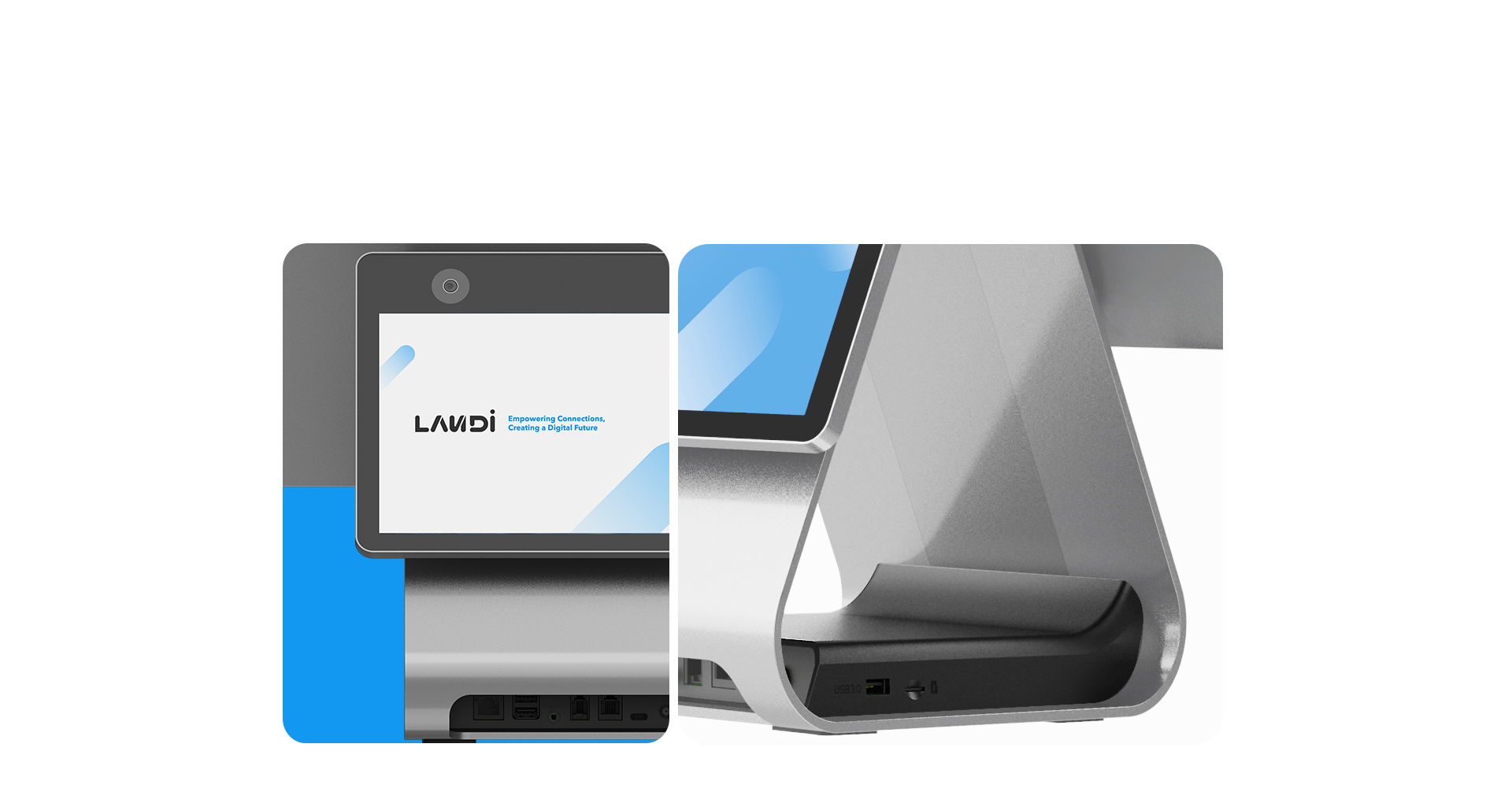

● Customer display
1: NONE (Single Screen)
2: Standard CFD (10.1"HD 1280x800 display only)
3: Premium CFD (10.1"HD 1280x800,touch,QR camera,NFC)
Spacious touchscreen interface
Enjoy a spacious and responsive touchscreen interface,
providing ample room for easy navigation and enhanced user interaction.

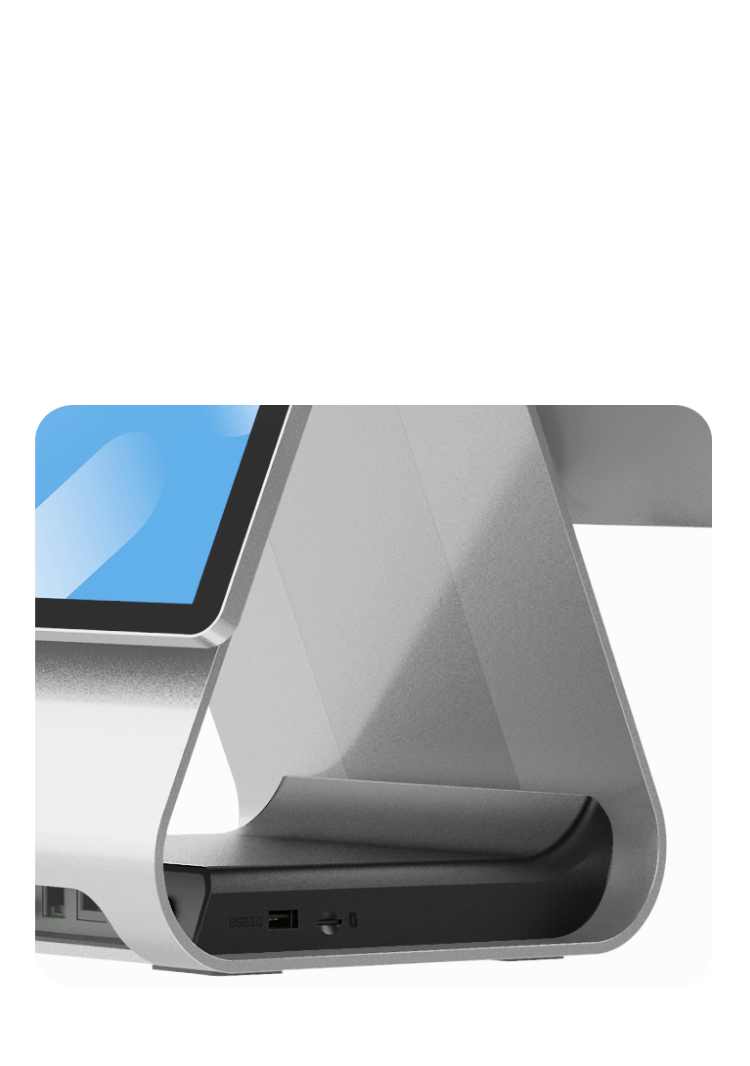

Intuitive cable management
Incorporate intuitive cable management with in the triangular design,
keeping cables organized and out of sight for a clean and professional look.

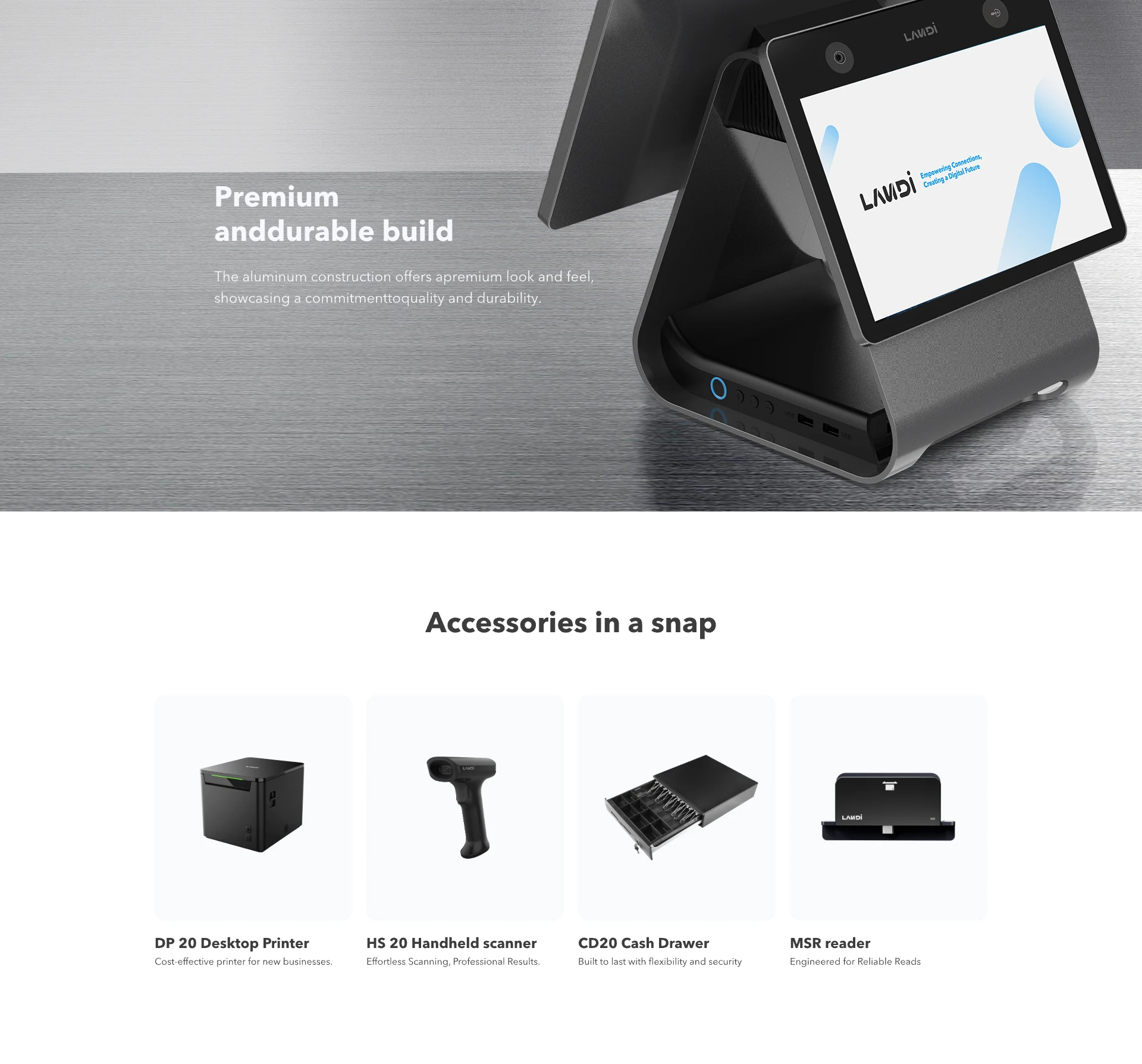

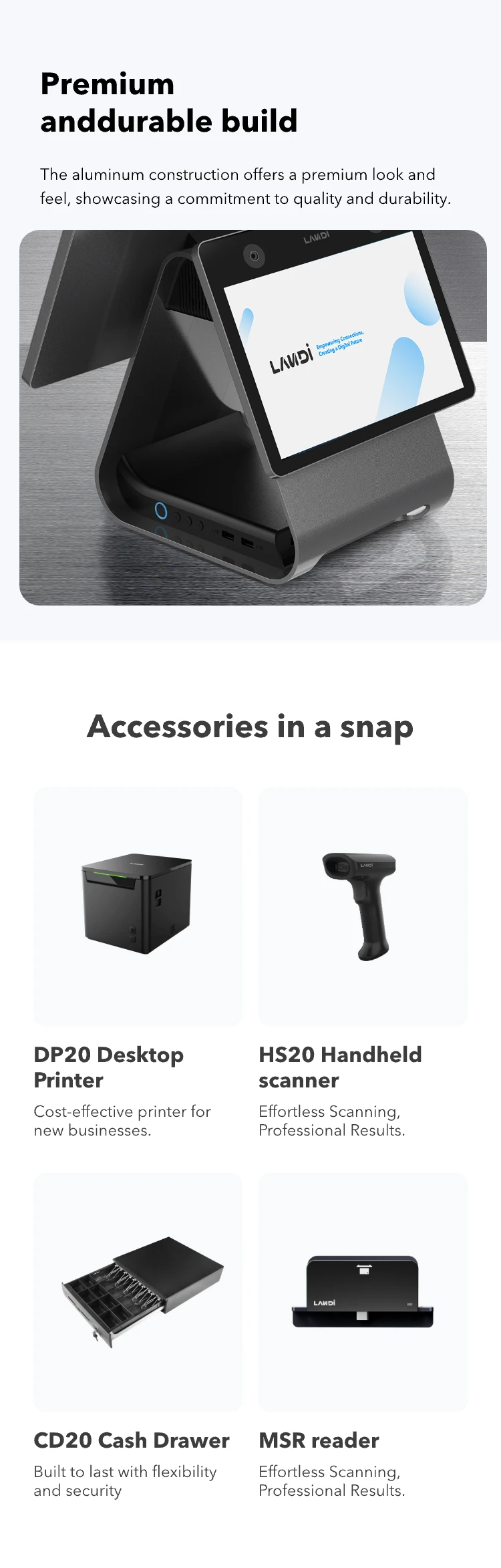

Premium
and durable build
The aluminum construction offers apremium look and feel,
showcasing a commitmenttoquality and durability.
Specifications
Processor
Quad-Core, 2.0GHz
OS
Android 13
Memory
4GB RAM + 32GB FLASH
Main display
15.6'', 1920x1080 HD, FHD
capacitive multi-touch
capacitive multi-touch
Customer display
1: None
2: 10.1" Standard CFD (1280x800 display only)
3: 10.1" Premium CFD (1280x800, Touch panel, QR Camera, NFC)
2: 10.1" Standard CFD (1280x800 display only)
3: 10.1" Premium CFD (1280x800, Touch panel, QR Camera, NFC)
Keypad
1 Power key with indicator light (red&blue) & 2 volumes keys
Speaker
5W,
100dB@1m,
Dual Speaker
100dB@1m,
Dual Speaker
Headset
3.5mm audio jack（CTIA&OTMP)
MIC
Dual Microphone
Connectivity
1000M,
IEEE802.11 a/b/g/n/ac 2.4GHz and 5GHz
Wi-Fi6(optional)
Bluetooth 5.0，support BLE
IEEE802.11 a/b/g/n/ac 2.4GHz and 5GHz
Wi-Fi6(optional)
Bluetooth 5.0，support BLE
Camera
Optional 1 : NONE
Optional 2 : 0.3M pixels, QR scan (Only supported on the 10.1'' Premium CFD)
Optional 3 : Facial recognition ability camera (USB device, plug into Main display edge expansion port)
Optional 2 : 0.3M pixels, QR scan (Only supported on the 10.1'' Premium CFD)
Optional 3 : Facial recognition ability camera (USB device, plug into Main display edge expansion port)
NFC (Optional)
Android NFC,
ISO / IEC 14443、ISO15693 compliant,
support Type A / B, Mifare，Felica（Only supported on the 10.1'' Premium CFD）
ISO / IEC 14443、ISO15693 compliant,
support Type A / B, Mifare，Felica（Only supported on the 10.1'' Premium CFD）
Ports
1*USB Type-C debug port, 1*Power port,
4*USB Type-A 2.0, 1*USB Type-A 3.0
1*RJ22 Serial Port, 1*MicroSD slot
1*RJ45 Ethernet port
1*RJ11 Cash drawer port
1*3.5mm Audio jack
4*USB Type-A 2.0, 1*USB Type-A 3.0
1*RJ22 Serial Port, 1*MicroSD slot
1*RJ45 Ethernet port
1*RJ11 Cash drawer port
1*3.5mm Audio jack

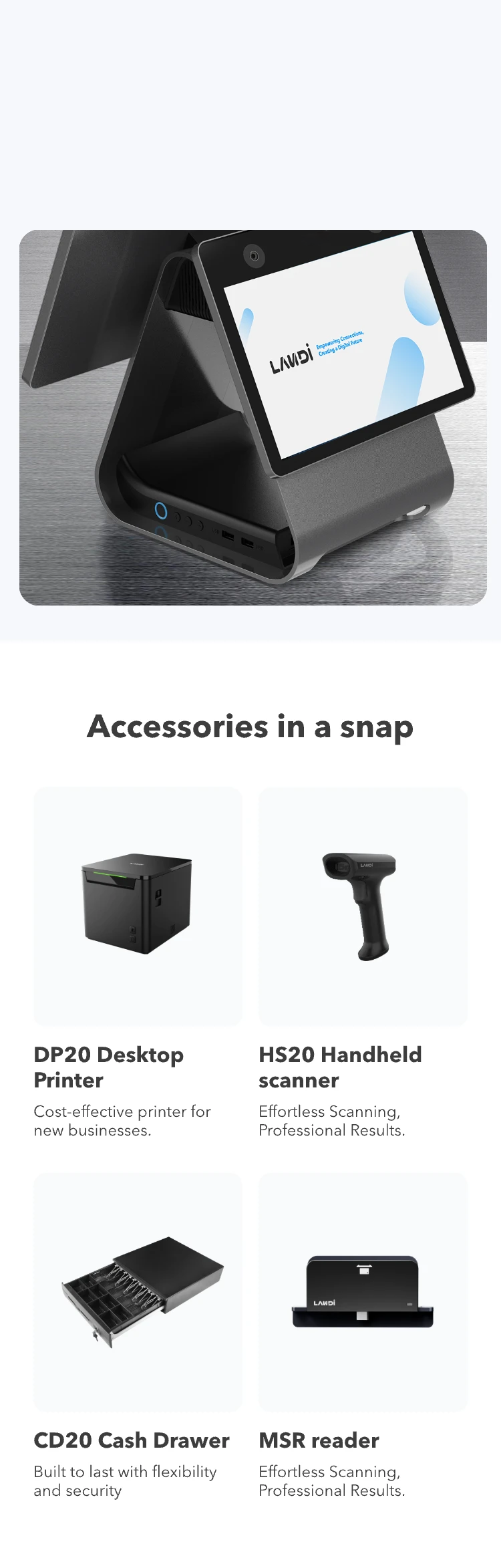

Accessories
Screen edge expansion (Micro USB)
Environment
Operating temperature：0℃ to +40℃
Storage temperature：-20℃ to +60℃
Operating humidity：10% to 90% non-condensing
Storage temperature：-20℃ to +60℃
Operating humidity：10% to 90% non-condensing
Protection
IP41，
1.5m drop
1.5m drop
PSU
19V/3.42A
Certification
CE, CB, FCC, IC, WEEE, RoHS

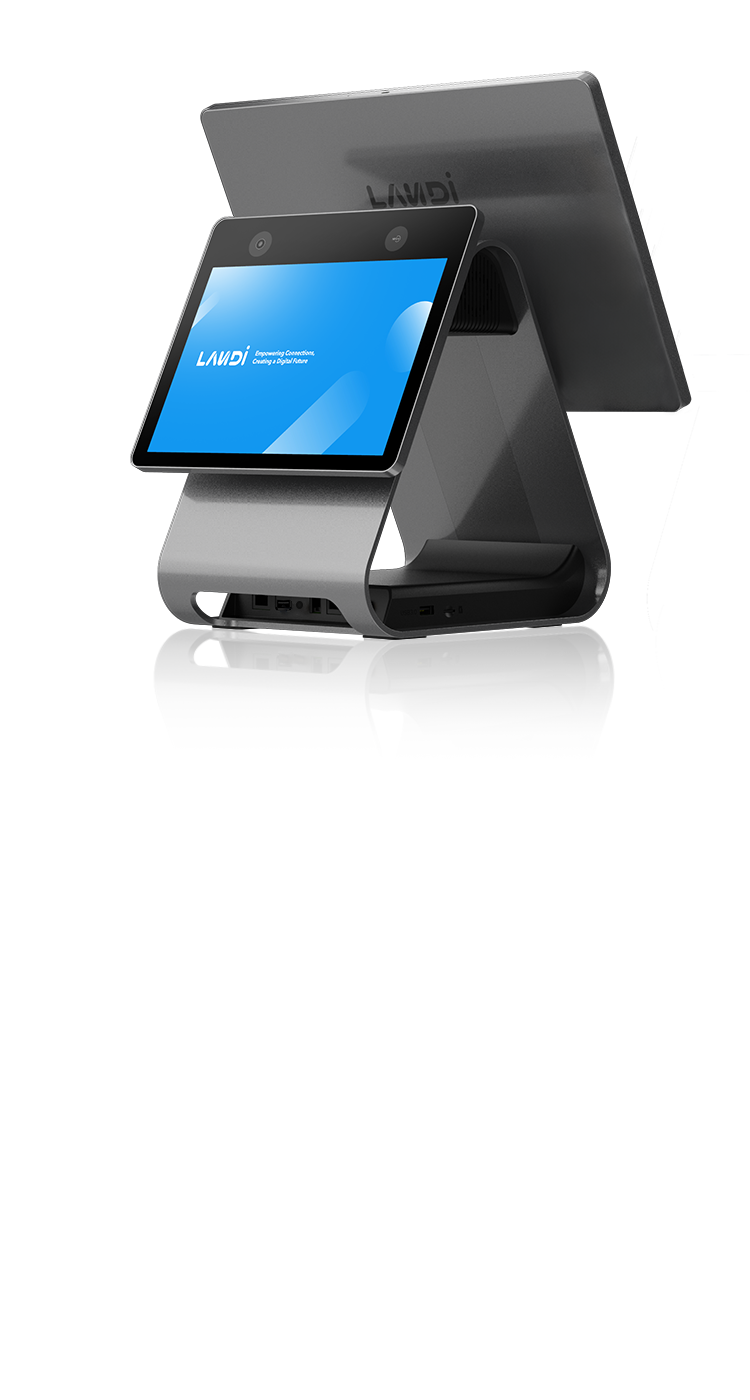

Unshakeable support.
Elevate your device with our
innovative triangle stand design

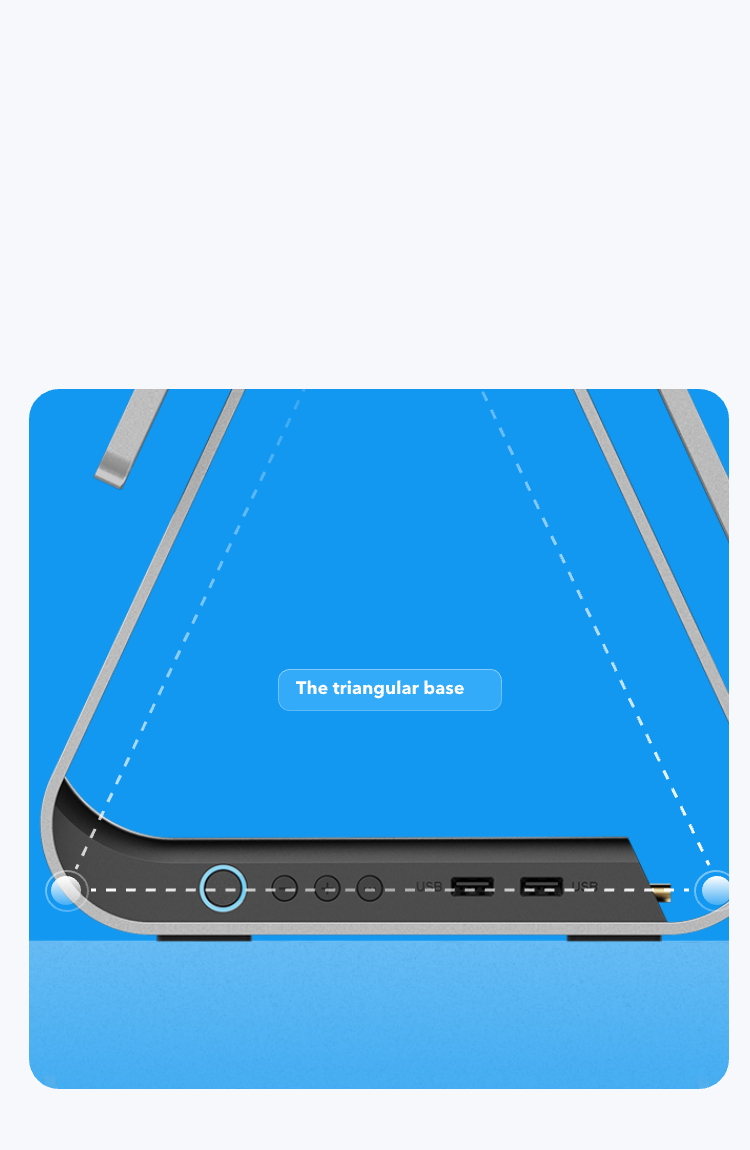

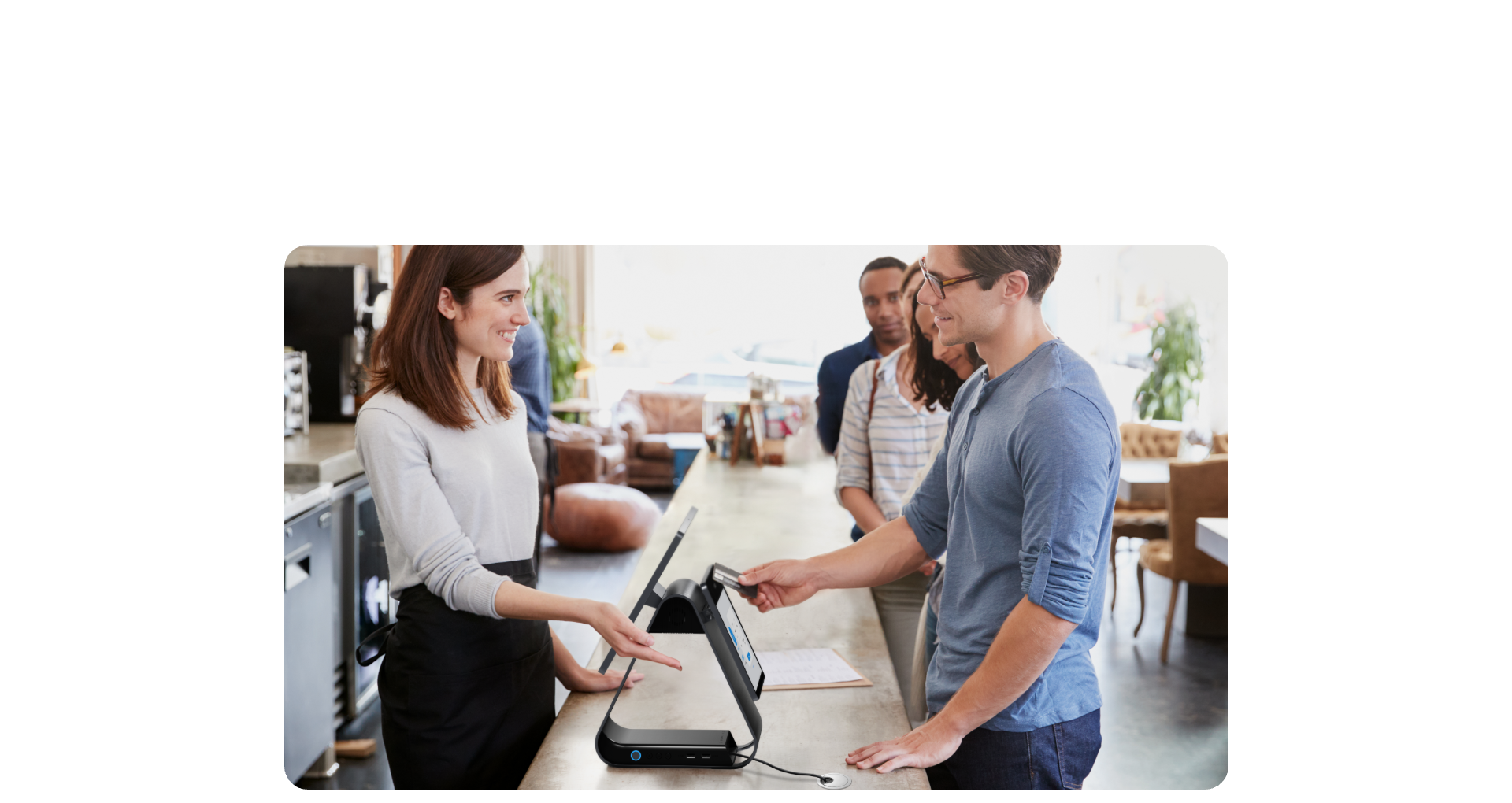

The triangular base offers a steady
and well-balanced foundation,
ensuring stability during transactions.
Key Features
● Powered by Android 13
● Quad-Core, 2.0GHz
● Main display 15.6" FHD
● Customer display
1: NONE (Single Screen)
2: Standard CFD (10.1"HD 1280x800 display only)
3: Premium CFD (10.1"HD 1280x800,touch,QR camera,NFC)
Spacious touchscreen interface.
Enjoy a spacious and responsive touchscreen interface,providing ample room for easy navigation and enhanced user interaction.
Intuitive cable management.
Incorporate intuitive cable management with in the triangular design,keeping cables organized and out of sight for a clean and professional look.

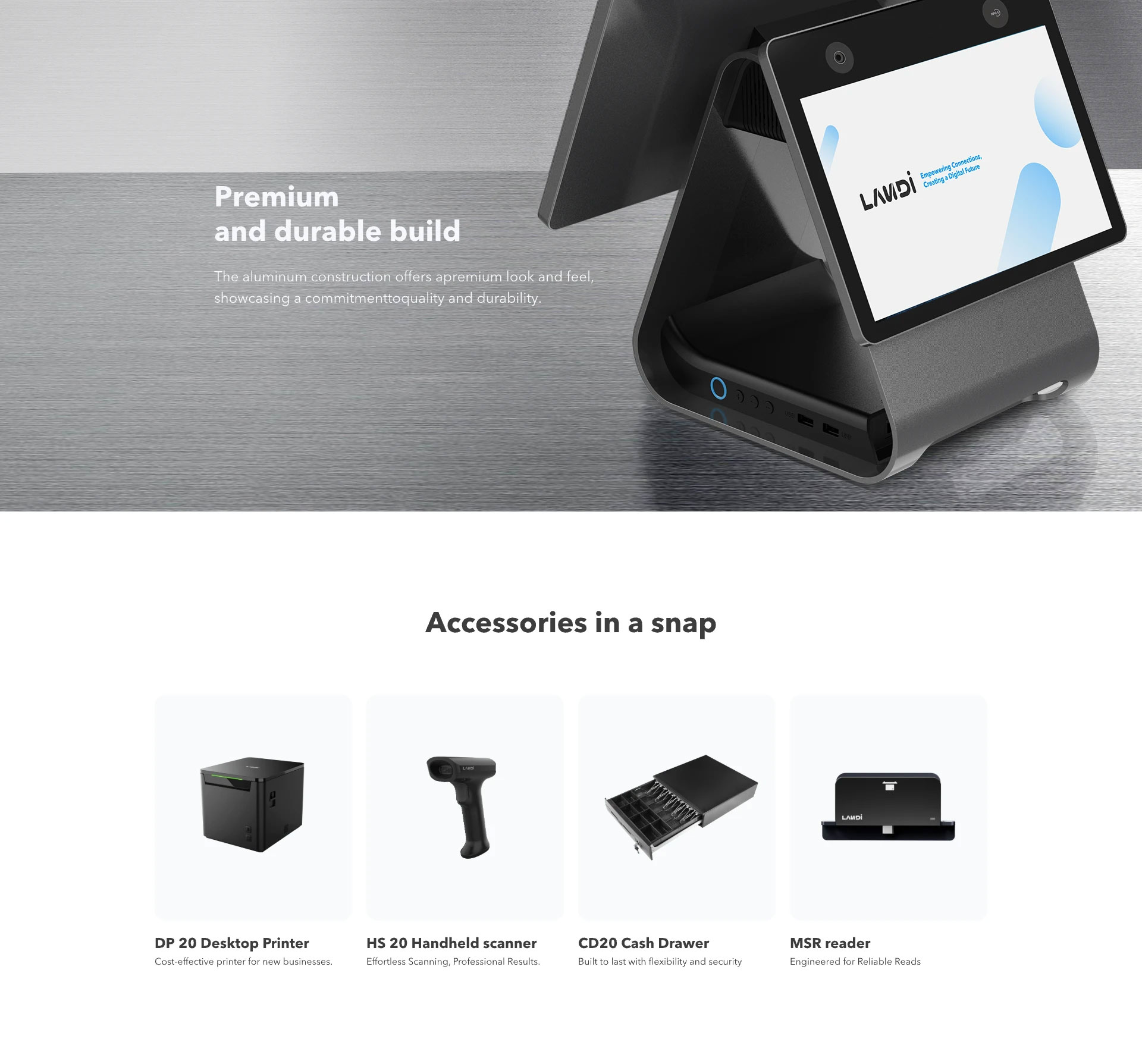

Premium and
durable build
durable build
The aluminum construction offers apremium look and feel,showcasing a commitmenttoquality and durability.
Specifications
| Processor | Quad-Core, 2.0GHz |
| OS | Android 13 |
| Memory | 4GB RAM + 32GB FLASH |
| Main display | 15.6'', 1920x1080 HD, FHD
capacitive multi-touch |
| Customer display | 1: None
2: 10.1" Standard CFD (1280x800 display only) 3: 10.1" Premium CFD (1280x800, Touch panel, QR Camera, NFC) |
| Keypad | 1 Power key with indicator light (red&blue) & 2 volumes keys |
| Speaker | 5W,
100dB@1m, Dual Speaker |
| Headset | 3.5mm audio jack（CTIA&OTMP) |
| MIC | Dual Microphone |
| Connectivity | 1000M,
IEEE802.11 a/b/g/n/ac 2.4GHz and 5GHz Wi-Fi6(optional) Bluetooth 5.0，support BLE |
| Camera | Optional 1 : NONE Optional 2 : 0.3M pixels, QR scan (Only supported on the 10.1'' Premium CFD) Optional 3 : Facial recognition ability camera (USB device, plug into Main display edge expansion port) |
| NFC (Optional) | Android NFC,
ISO / IEC 14443、ISO15693 compliant, support Type A / B, Mifare，Felica（Only supported on the 10.1'' Premium CFD） |
| Ports | 1*USB Type-C debug port, 1*Power port, 4*USB Type-A 2.0, 1*USB Type-A 3.0 1*RJ22 Serial Port, 1*MicroSD slot 1*RJ45 Ethernet port 1*RJ11 Cash drawer port 1*3.5mm Audio jack |
| Accessories | Screen edge expansion (Micro USB) |
| Environment | Operating temperature：0℃ to +40℃
Storage temperature：-20℃ to +60℃ Operating humidity：10% to 90% non-condensing |
| Protection | IP41，
1.5m drop |
| PSU | 19V/3.42A |
| Certification | CE, CB, FCC, IC, WEEE, RoHS |
