Cx20
Windows Desktop POS Terminal
Feature-rich Windows platform for advanced efficiency.
Download brochure
Specifications
Cx20
Cx20 SE

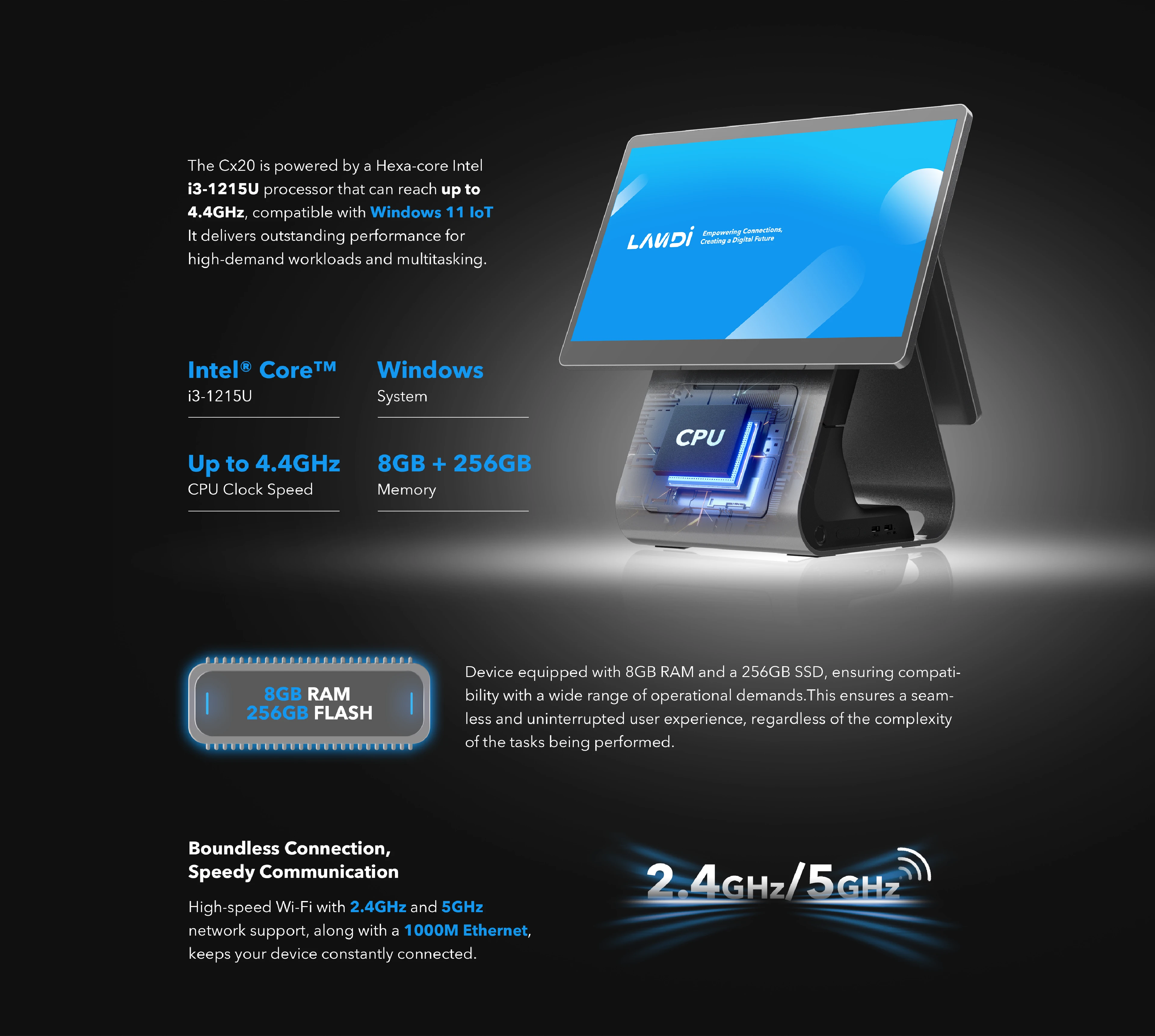

Processor
Hexa core, up to 4.4Ghz
OS
Windows 11 IoT LTSC
Buttons
Power button with indicator light * 1

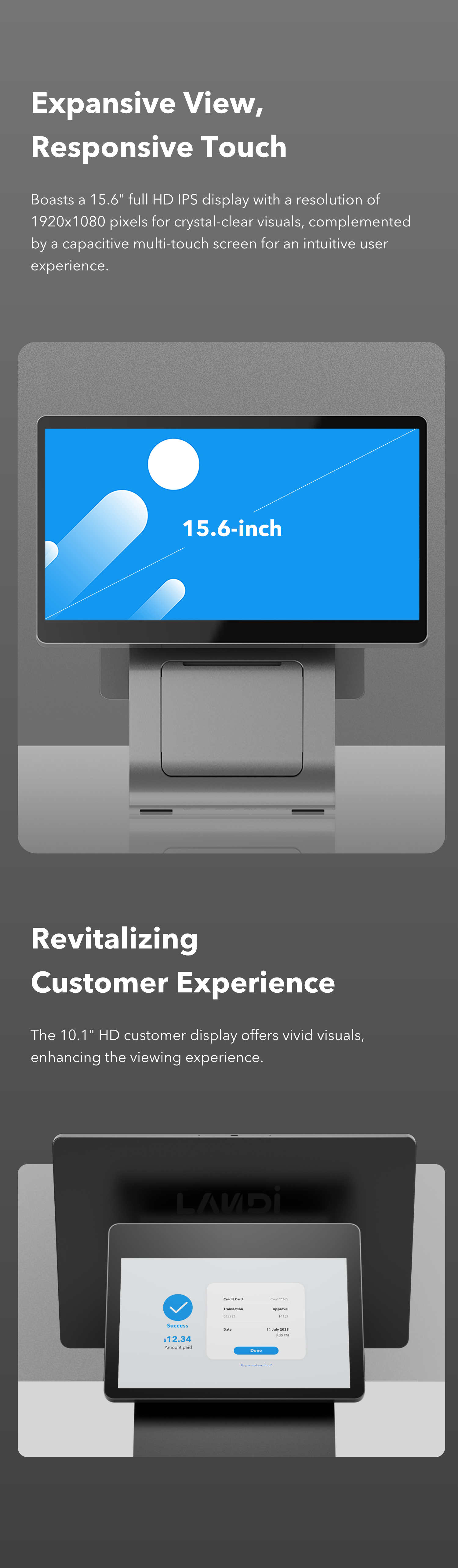

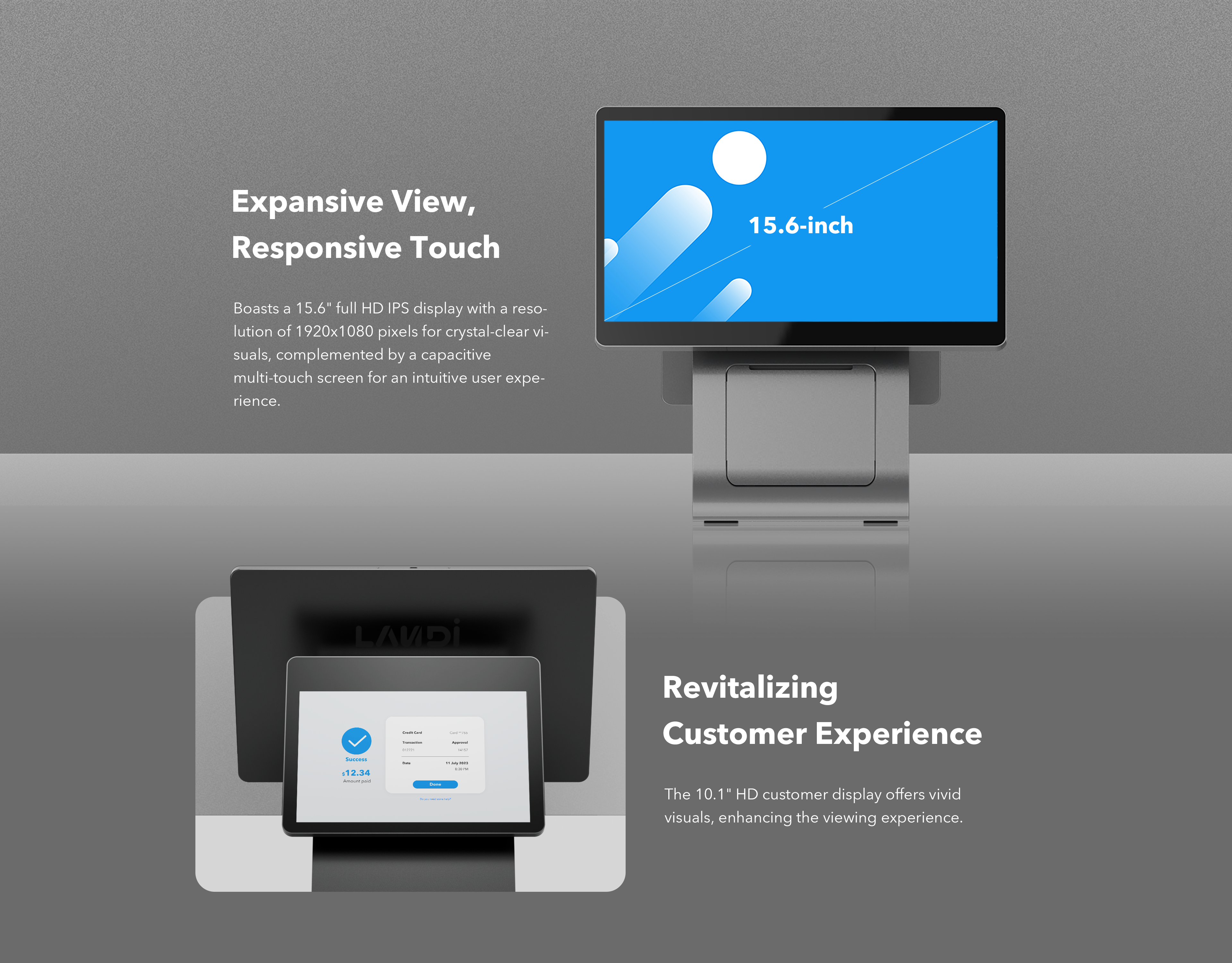

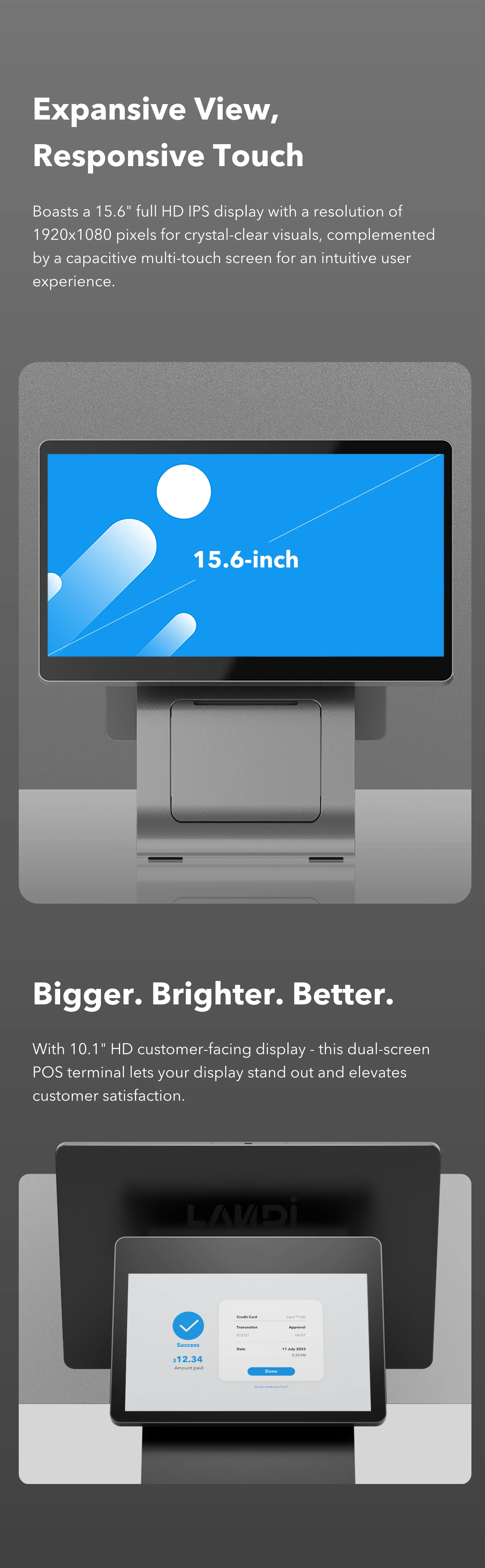

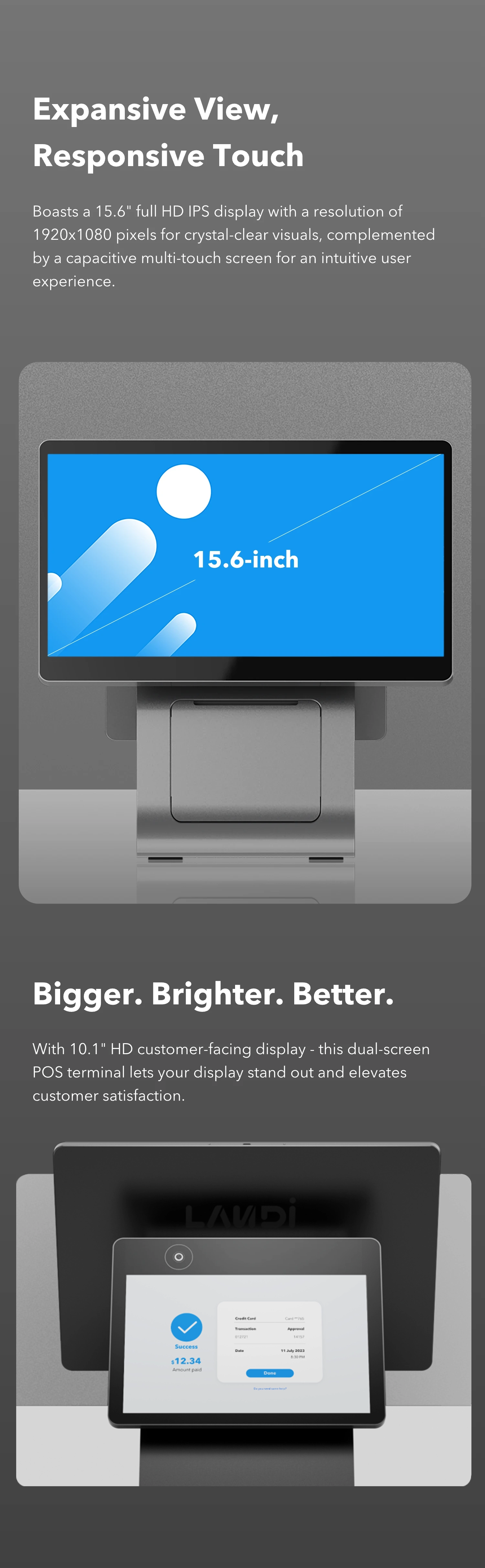

Main Display
15.6’’, 1920 × 1080, 300 nits, capacitive multi-touch
CFD
Option 1: None
Option 2: 10.1’’ standard CFD (1280 × 800, 350 nits)
Option 3: 10.1’’ premium CFD (1280 × 800, 350 nits, touch panel, camera)
Option 4: 15.6’’ standard CFD (1920 × 1080, 300 nits, micro USB HOST)
Option 5: 15.6’’ premium CFD (1920 × 1080, 300 nits, touch panel, micro USB HOST)
Option 2: 10.1’’ standard CFD (1280 × 800, 350 nits)
Option 3: 10.1’’ premium CFD (1280 × 800, 350 nits, touch panel, camera)
Option 4: 15.6’’ standard CFD (1920 × 1080, 300 nits, micro USB HOST)
Option 5: 15.6’’ premium CFD (1920 × 1080, 300 nits, touch panel, micro USB HOST)
Memory
Internal:
8GB RAM + 256GB FLASH
8GB RAM + 512GB FLASH (Optional)
16GB RAM + 256GB FLASH (Optional)
16GB RAM + 512GB FLASH (Optional)
*Available SSD capacity may differ from labeled capacity due to system calculations and backup reserves. Actual space is shown in system display.
8GB RAM + 256GB FLASH
8GB RAM + 512GB FLASH (Optional)
16GB RAM + 256GB FLASH (Optional)
16GB RAM + 512GB FLASH (Optional)
*Available SSD capacity may differ from labeled capacity due to system calculations and backup reserves. Actual space is shown in system display.
Ports
USB Type-C port * 1
Micro USB port * 1
USB Type-A 2.0 port * 4
USB Type-A 3.0 port * 1
RJ22 serial port * 1
RJ45 Ethernet port * 1
RJ11 cash drawer port * 1
3.5 mm audio jack * 1
Micro USB port * 1
USB Type-A 2.0 port * 4
USB Type-A 3.0 port * 1
RJ22 serial port * 1
RJ45 Ethernet port * 1
RJ11 cash drawer port * 1
3.5 mm audio jack * 1
Connectivity
Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax, Wi-Fi 6E, 2.4Ghz/5Ghz/6Ghz, 2x2 MIMO
LAN: 1000 Mbps
Bluetooth: Bluetooth 5.3, supports BLE
LAN: 1000 Mbps
Bluetooth: Bluetooth 5.3, supports BLE
Audio
5W, 100dB@1m, Dual speakers
Headset via 3.5mm audio jack (CTIA&OTMP)
Microphone * 2
Headset via 3.5mm audio jack (CTIA&OTMP)
Microphone * 2

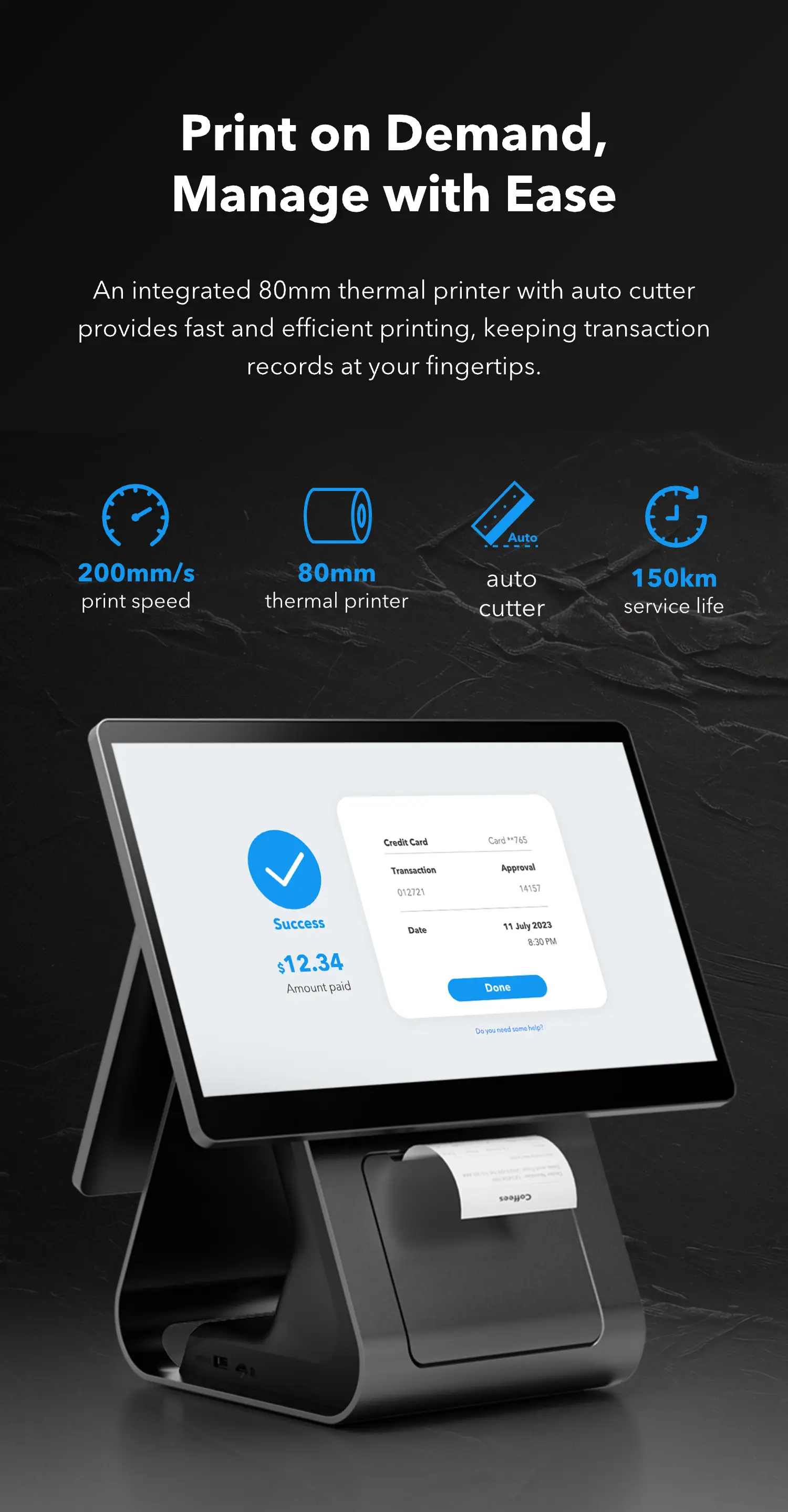

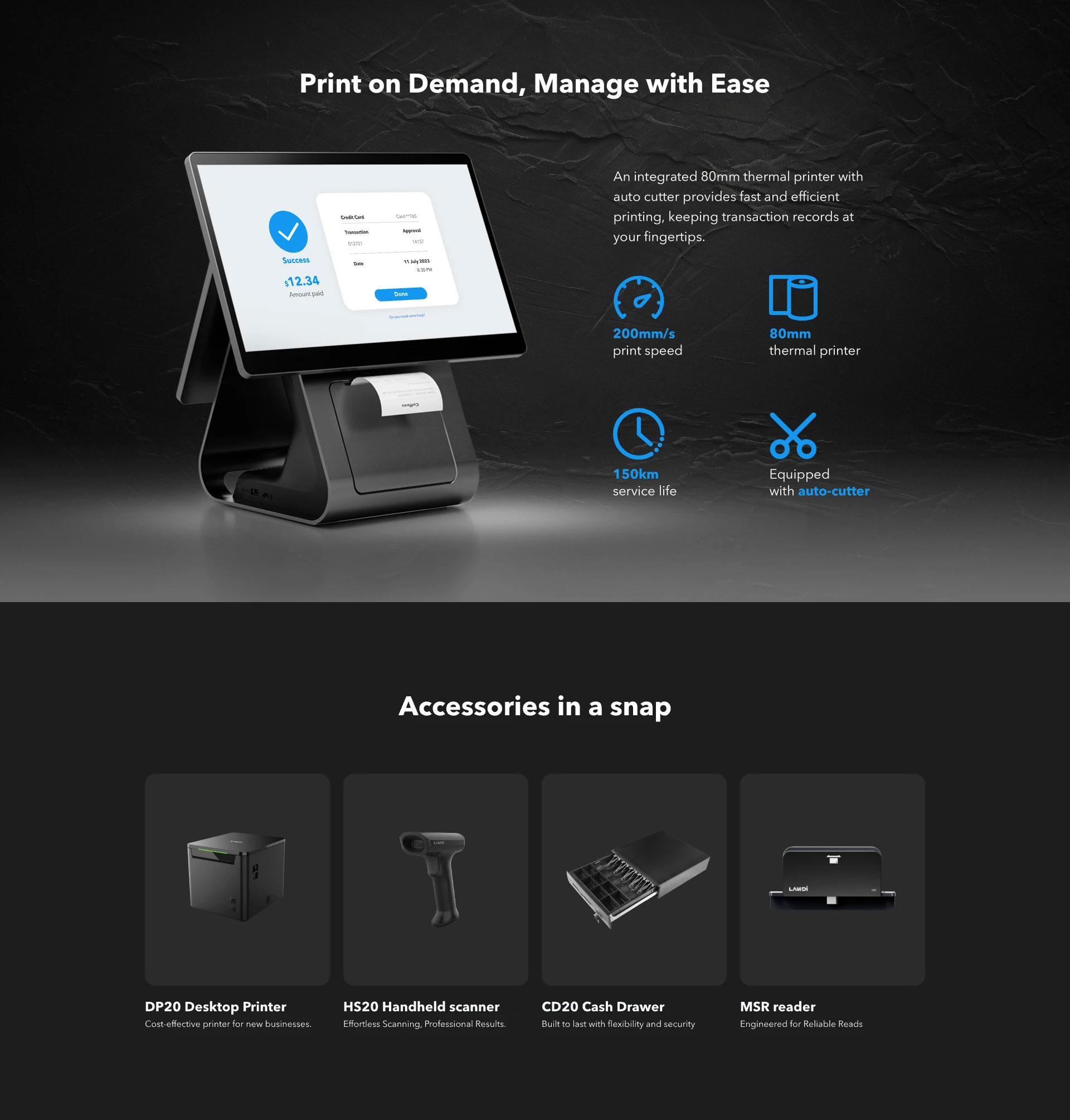

Printer
Thermal printer
Paper Width: 80 mm
Roll Diameter: 80 mm
Print Speed: 250 mm/s max
Auto cutter
Paper Width: 80 mm
Roll Diameter: 80 mm
Print Speed: 250 mm/s max
Auto cutter
Camera
Front camera: 2MP, QR code scan (Optional)
*Only supported on the 10.1’’ premium CFD
*Only supported on the 10.1’’ premium CFD
Environment
Operating Temperature: 0°C to +40°C (32°F to 104°F)
Storage Temperature: -20°C to +60°C (-4°F to 140°F)
Operating Humidity: 10% to 90% (Non-condensing)
Storage Temperature: -20°C to +60°C (-4°F to 140°F)
Operating Humidity: 10% to 90% (Non-condensing)
Weight (Terminal only)
4.4kg (Single display version)
Dimensions (Terminal only)
361.5 × 234 × 364 mm (Single display version)
Power
100V-240V AC, 50-60Hz input; 19-20V DC, 4.74A output
Certifications
Regulatory: CE, CB, FCC, IC, RoHS, WEEE, UN 38.3, DGM, ANATEL

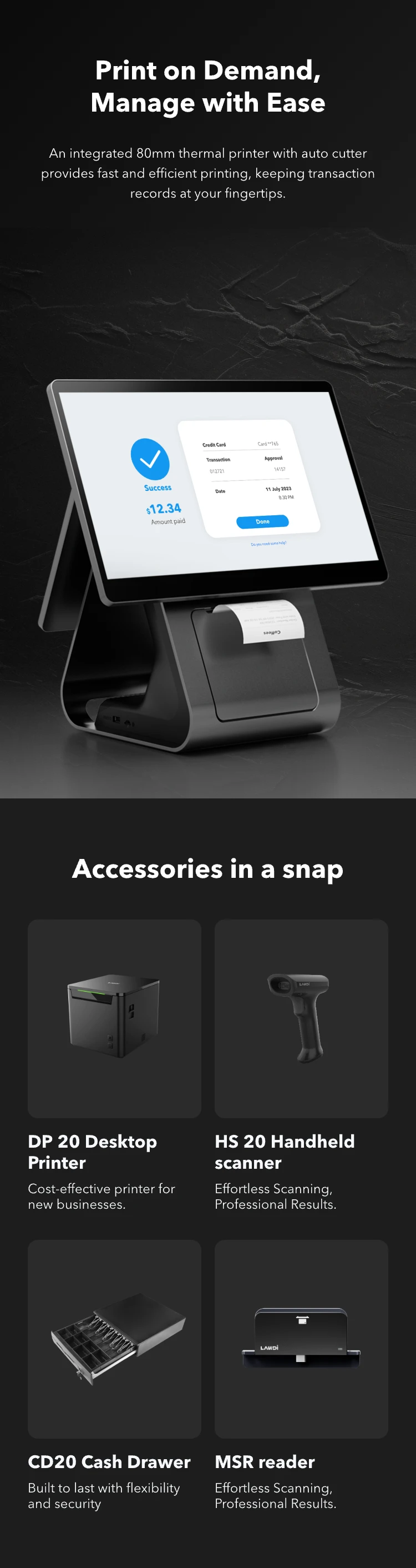

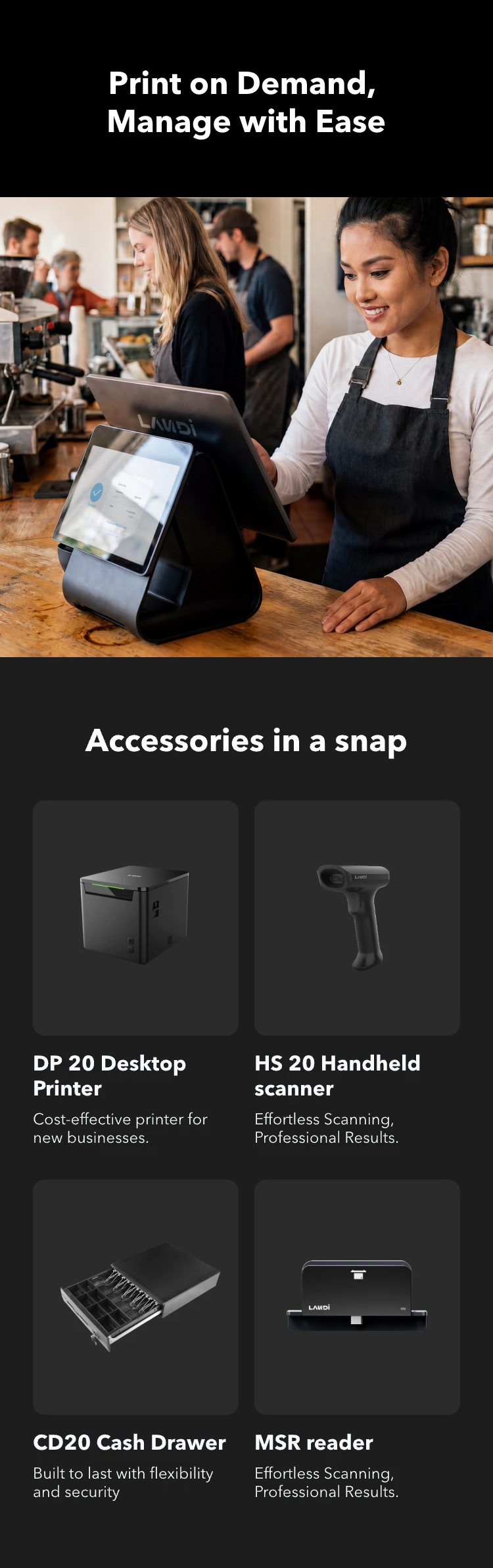

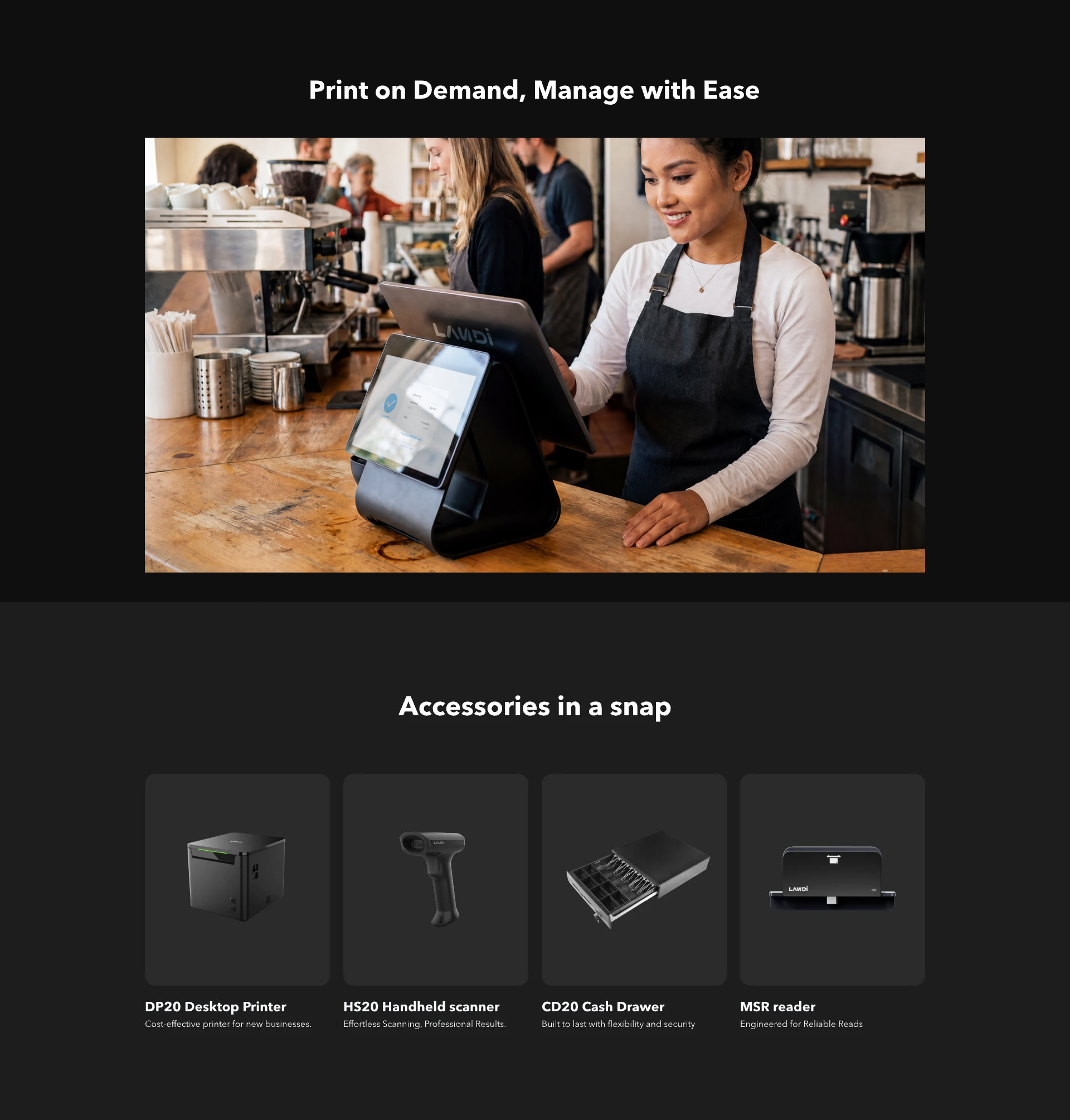

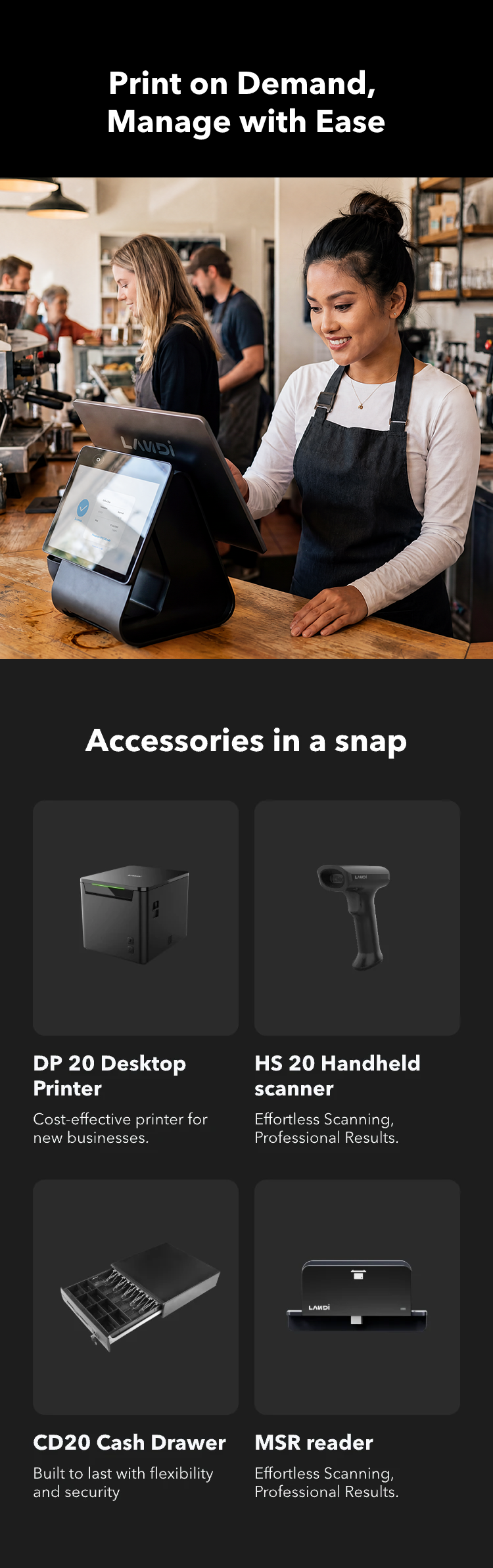

Accessories (Sold separately)
C20 MSR
C20 CAM
HS20 Scanner
DP20 Printer
CD20 Cash Drawer
C20 CAM
HS20 Scanner
DP20 Printer
CD20 Cash Drawer
Processor
Hexa-core Intel i3, up to 4.4GHz
OS
Windows 11 IoT LTSC
Buttons
Power button with indicator light * 1
Main Display
15.6’’, 1920 × 1080, 300 nits, capacitive multi-touch
CFD
Option 1: None
Option 2: 10.1’’ standard CFD (1280 × 800, 350 nits)
Option 3: 10.1’’ premium CFD (1280 × 800, 350 nits, touch panel, camera)
Option 4: 15.6’’ standard CFD (1920 × 1080, 300 nits, micro USB HOST)
Option 5: 15.6’’ premium CFD (1920 × 1080, 300 nits, touch panel, micro USB HOST)
Option 2: 10.1’’ standard CFD (1280 × 800, 350 nits)
Option 3: 10.1’’ premium CFD (1280 × 800, 350 nits, touch panel, camera)
Option 4: 15.6’’ standard CFD (1920 × 1080, 300 nits, micro USB HOST)
Option 5: 15.6’’ premium CFD (1920 × 1080, 300 nits, touch panel, micro USB HOST)
Memory
Internal:
8GB RAM + 256GB FLASH
8GB RAM + 512GB FLASH (Optional)
16GB RAM + 256GB FLASH (Optional)
16GB RAM + 512GB FLASH (Optional)
*Available SSD capacity may differ from labeled capacity due to system calculations and backup reserves. Actual space is shown in system display.
8GB RAM + 256GB FLASH
8GB RAM + 512GB FLASH (Optional)
16GB RAM + 256GB FLASH (Optional)
16GB RAM + 512GB FLASH (Optional)
*Available SSD capacity may differ from labeled capacity due to system calculations and backup reserves. Actual space is shown in system display.
Connectivity
Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax, Wi-Fi 6E, 2.4Ghz/5Ghz/6Ghz, 2x2 MIMO
LAN: 1000 Mbps
Bluetooth: Bluetooth 5.3, supports BLE
LAN: 1000 Mbps
Bluetooth: Bluetooth 5.3, supports BLE
Ports
USB Type-C port * 1
Micro USB port * 1
USB Type-A 2.0 port * 4
USB Type-A 3.0 port * 1
RJ22 serial port * 1
RJ45 Ethernet port * 1
RJ11 cash drawer port * 1
3.5 mm audio jack * 1
Micro USB port * 1
USB Type-A 2.0 port * 4
USB Type-A 3.0 port * 1
RJ22 serial port * 1
RJ45 Ethernet port * 1
RJ11 cash drawer port * 1
3.5 mm audio jack * 1
Audio
5W, 100dB@1m, Dual speakers
Headset via 3.5mm audio jack (CTIA&OTMP)
Microphone * 2
Headset via 3.5mm audio jack (CTIA&OTMP)
Microphone * 2
Camera
Front camera: 2MP, QR code scan (Optional)
*Only supported on the 10.1’’ premium CFD
*Only supported on the 10.1’’ premium CFD
Environment
Operating Temperature: 0°C to +40°C (32°F to 104°F)
Storage Temperature: -20°C to +60°C (-4°F to 140°F)
Operating Humidity: 10% to 90% (Non-condensing)
Storage Temperature: -20°C to +60°C (-4°F to 140°F)
Operating Humidity: 10% to 90% (Non-condensing)
Accessories (Sold separately)
C20 MSR
C20 CAM
HS20 Scanner
DP20 Printer
CD20 Cash Drawer
C20 CAM
HS20 Scanner
DP20 Printer
CD20 Cash Drawer
Dimensions (Terminal only)
361.5 × 234 × 364 mm (Single display version)
Weight (Terminal only)
3.9kg (Single display version)
Power
100V-240V AC, 50-60Hz input; 19V DC, 3.42A output
Certifications
Regulatory: CE, CB, FCC, IC, RoHS, WEEE, UN 38.3, DGM, ANATEL
Cx20
Window Desktop POS Terminal
Feature-rich Windows platform for advanced efficiency.
Download brochure
Specifications
| Processor | Hexa core, up to 4.4Ghz |
| OS | Windows 11 IoT LTSC |
| Buttons | Power button with indicator light * 1 |
| Main Display | 15.6’’, 1920 × 1080, 300 nits, capacitive multi-touch |
| CFD | Option 1: None
Option 2: 10.1’’ standard CFD (1280 × 800, 350 nits) Option 3: 10.1’’ premium CFD (1280 × 800, 350 nits, touch panel, camera) Option 4: 15.6’’ standard CFD (1920 × 1080, 300 nits, micro USB HOST) Option 5: 15.6’’ premium CFD (1920 × 1080, 300 nits, touch panel, micro USB HOST) |
| Memory | Internal:
8GB RAM + 256GB FLASH 8GB RAM + 512GB FLASH (Optional) 16GB RAM + 256GB FLASH (Optional) 16GB RAM + 512GB FLASH (Optional) *Available SSD capacity may differ from labeled capacity due to system calculations and backup reserves. Actual space is shown in system display. |
| Ports | USB Type-C port * 1
Micro USB port * 1 USB Type-A 2.0 port * 4 USB Type-A 3.0 port * 1 RJ22 serial port * 1 RJ45 Ethernet port * 1 RJ11 cash drawer port * 1 3.5 mm audio jack * 1 |
| Connectivity | Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax, Wi-Fi 6E, 2.4Ghz/5Ghz/6Ghz, 2x2 MIMO
LAN: 1000 Mbps Bluetooth: Bluetooth 5.3, supports BLE |
| Audio | 5W, 100dB@1m, Dual speakers
Headset via 3.5mm audio jack (CTIA&OTMP) Microphone * 2 |
| Printer | Thermal printer
Paper Width: 80 mm Roll Diameter: 80 mm Print Speed: 250 mm/s max Auto cutter |
| Camera | Front camera: 2MP, QR code scan (Optional)
*Only supported on the 10.1’’ premium CFD |
| Environment | Operating Temperature: 0°C to +40°C (32°F to 104°F)
Storage Temperature: -20°C to +60°C (-4°F to 140°F) Operating Humidity: 10% to 90% (Non-condensing) |
| Weight (Terminal only) | 4.4kg (Single display version) |
| Dimensions (Terminal only) | 361.5 × 234 × 364 mm (Single display version) |
| Power | 100V-240V AC, 50-60Hz input; 19-20V DC, 4.74A output |
| Certifications | Regulatory: CE, CB, FCC, IC, RoHS, WEEE, UN 38.3, DGM, ANATEL |
| Accessories (Sold separately) | C20 MSR
C20 CAM HS20 Scanner DP20 Printer CD20 Cash Drawer |
