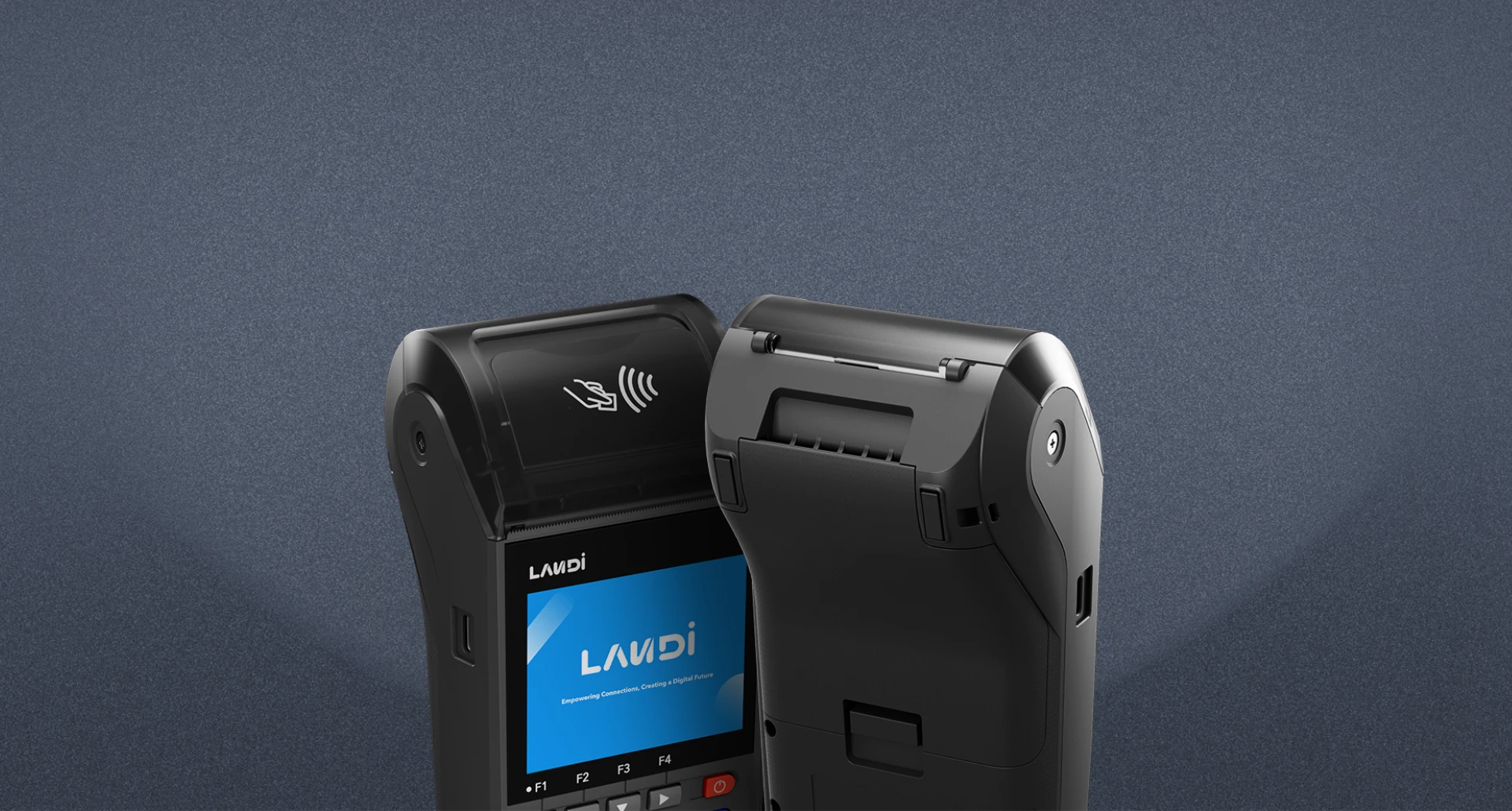

L20

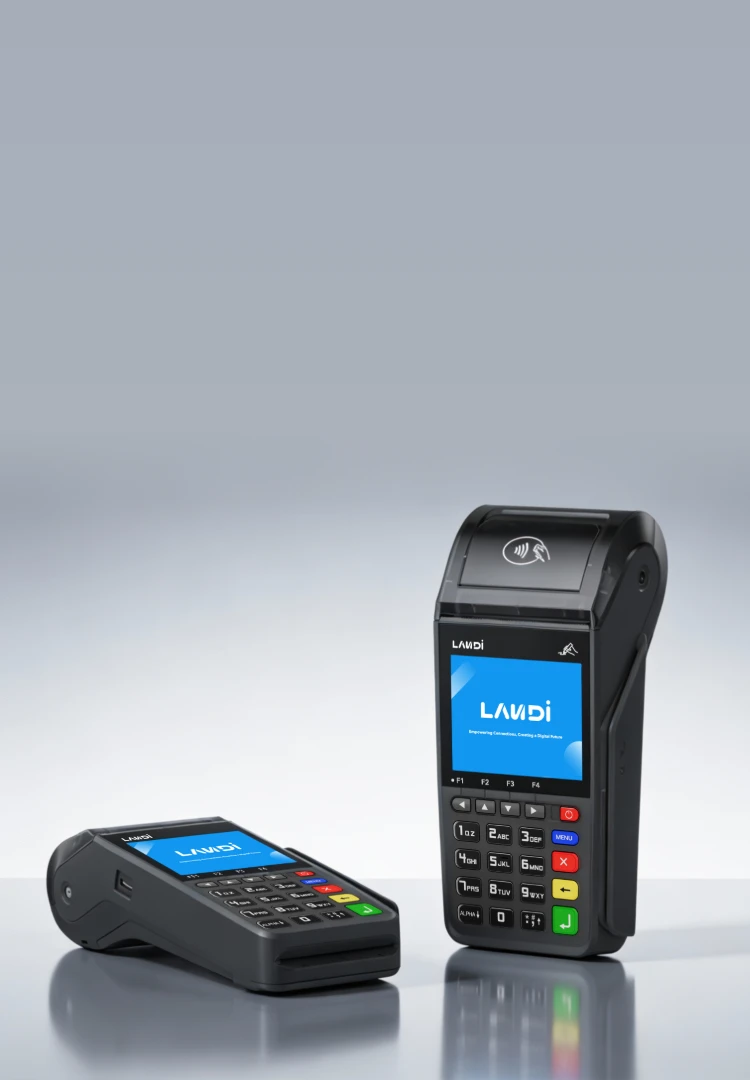

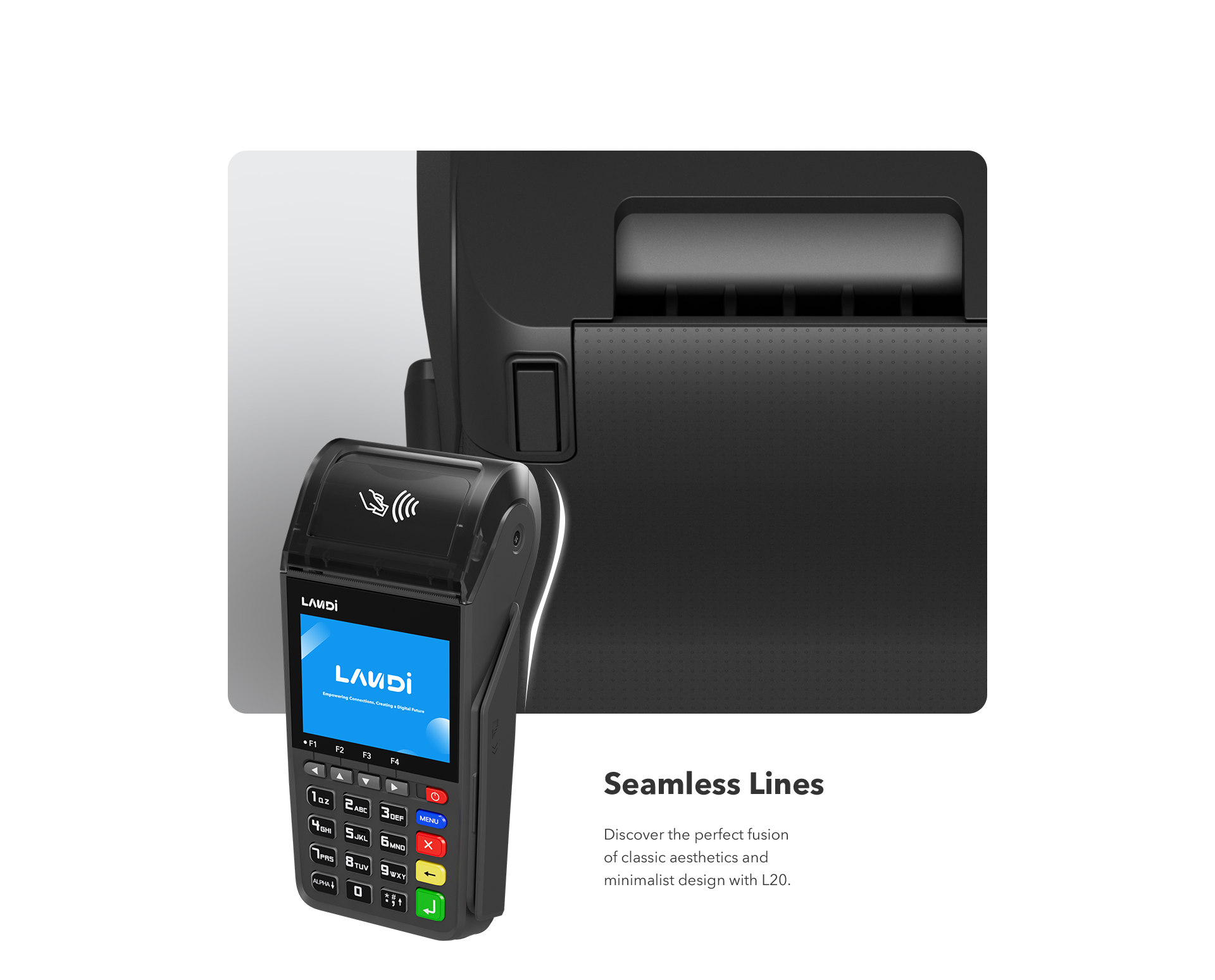

Linux Payment Terminal
The classic Linux product for established legacy use cases.
Download brochure

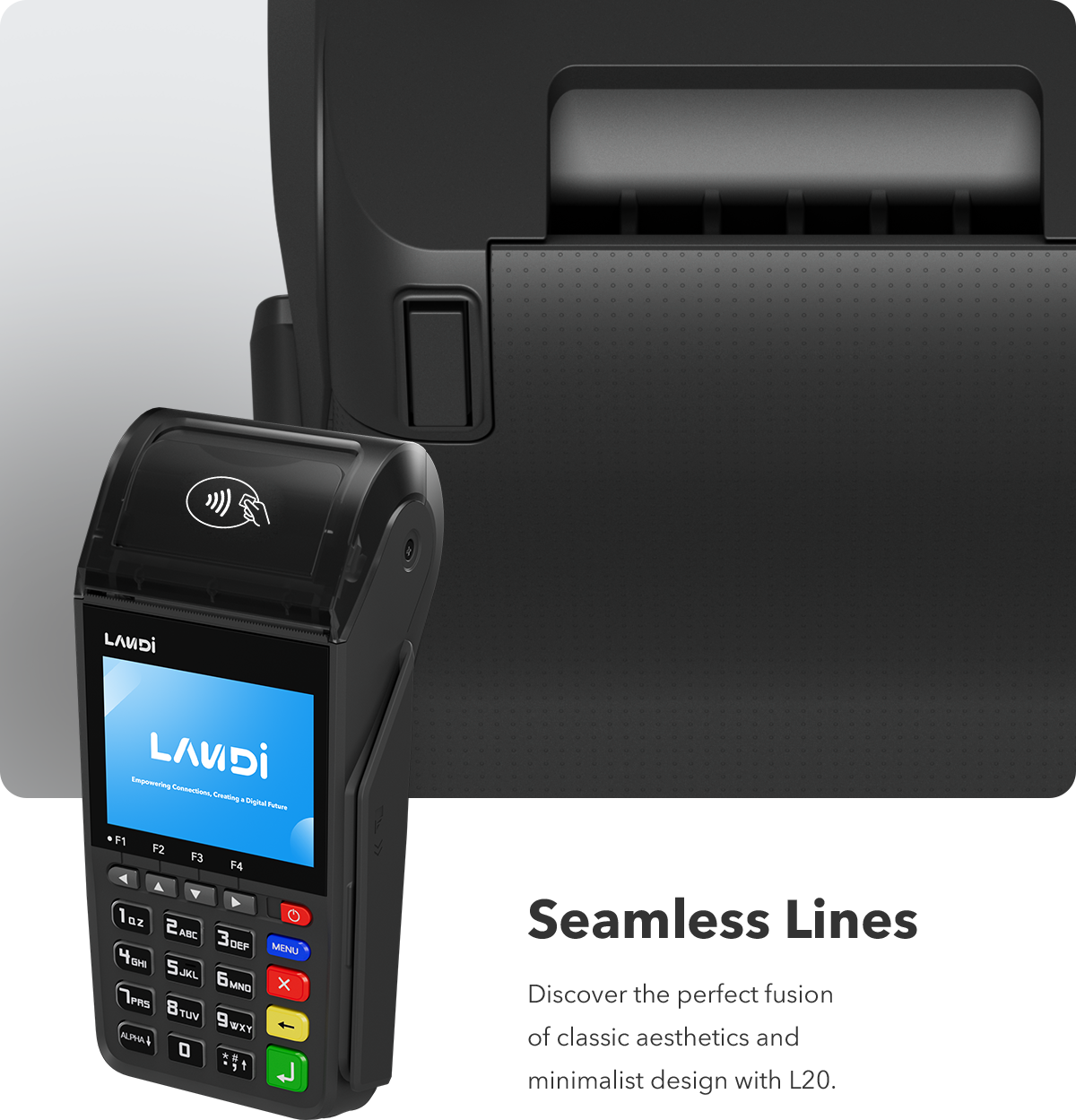

Versatile, secure and efficient
Even during the busiest hours,
L20 operates as a reliable countertop or indoor portable payment terminal,
delivering peak performance. It ensures secure and fast payment processing,
offering both merchants and customers a secure and efficient payment experience.
Key features:

● Powered by Linux
● Cortex A7 CPU
● 2.8" color screen
● Ethernet + Dial + Optional:
    2G/3G/4G, WiFi, Bluetooth

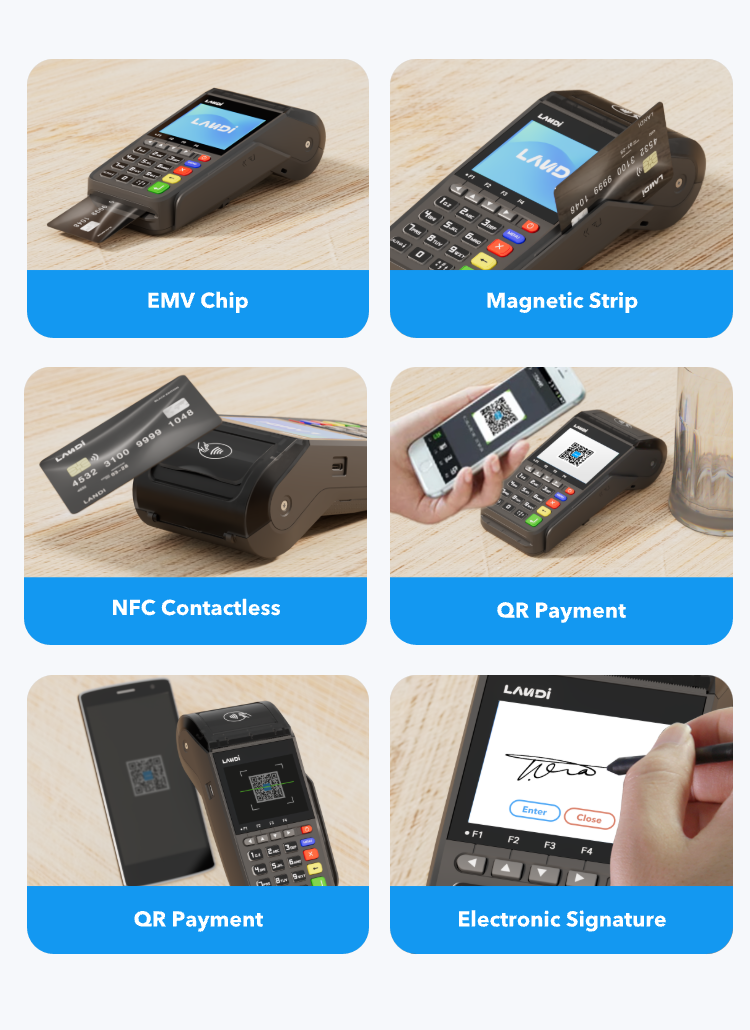

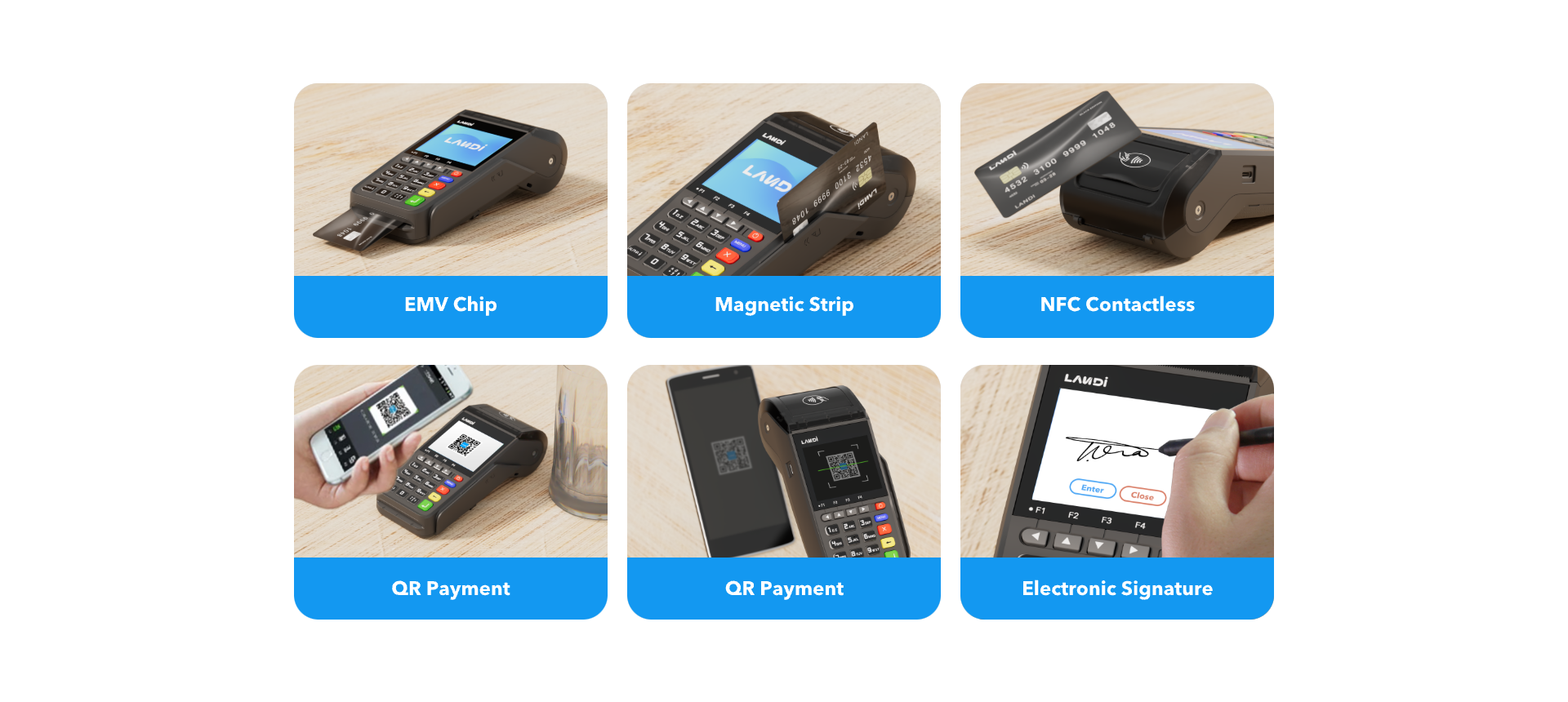

● Contactless, Chip & PIN, Magnetic stripe
● Physical Keyboard
● Built-in high-speed thermal printer
● PCI PTS 6.x, EMV 3.0

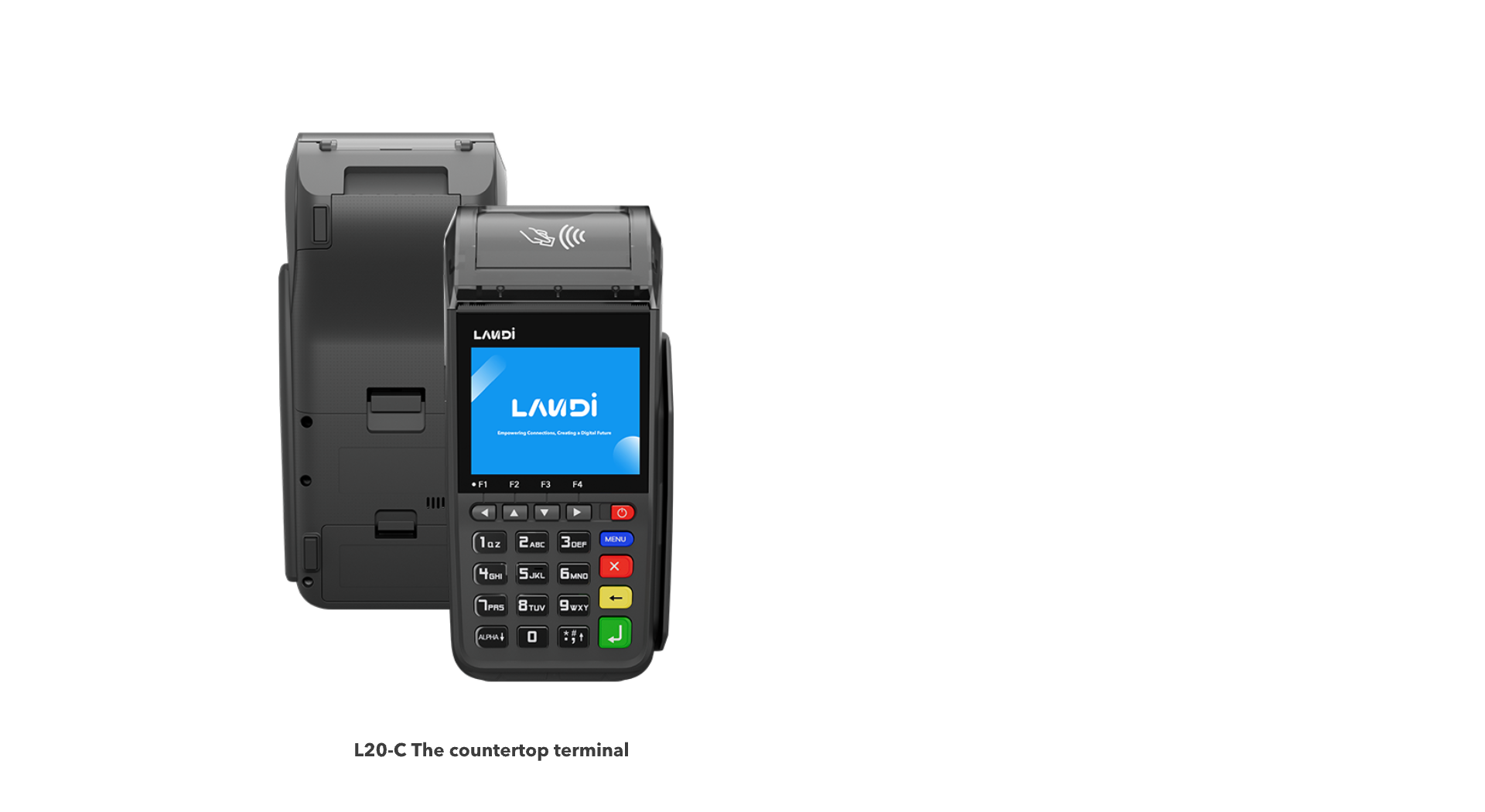

L20-C Brochure
Key features:

● Powered by Linux
● Cortex A7 CPU
● 2.8" TFT color screen
● 2G/3G/4G+WiFi+Optional:
    Bluetooth+GPS+GLONASS
● Contactless, Chip & PIN, Magnetic stripe
● Physical Keyboard
● Built-in high-speed thermal printer
● PCI PTS 6, EMV 3

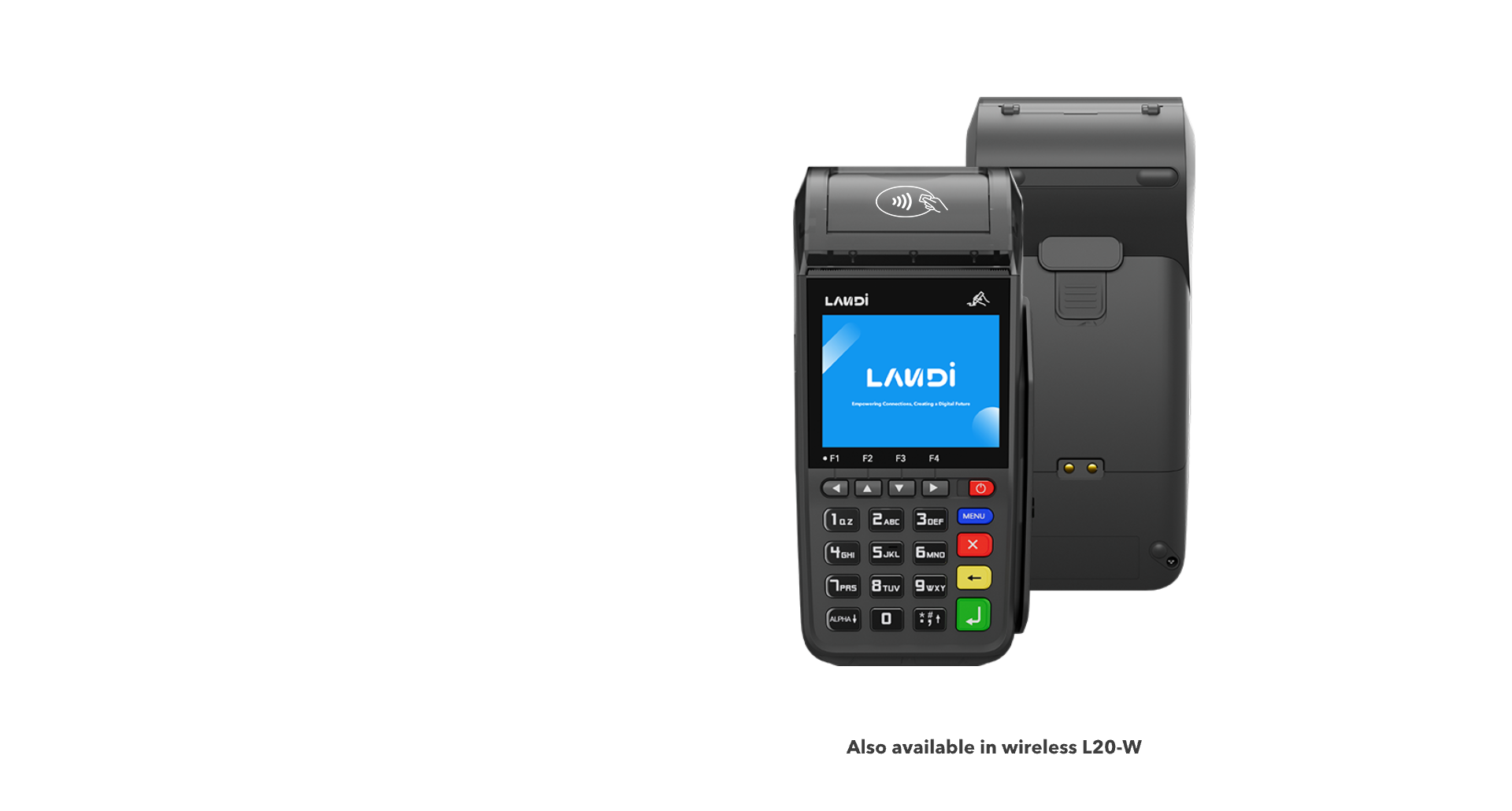

L20-W Brochure
Ergonomic and portable
Elevate your payment experience with enhanced grip and comfort.

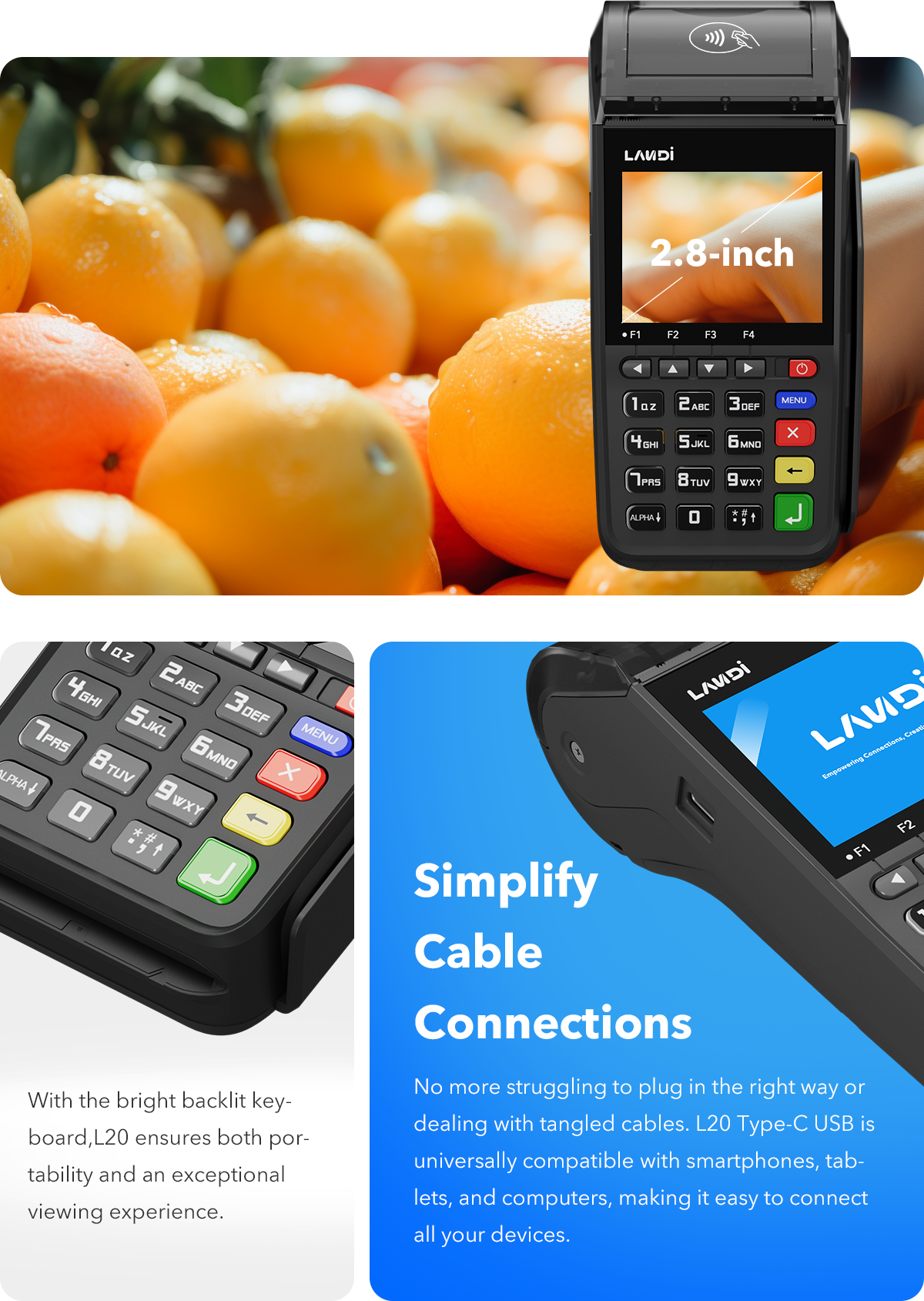

Enriching the viewing experience
with enhanced clarity
Immerse yourself in animations and vibrant image displays, all on a screen that guarantees
smooth operation and maximum display quality.
Compliant with top-level
security

Specifications

L20-C
L20-W

Processor

Cortex A7

Memory (MB)

256 + 256
512 + 512 (Optional)

SD Card

Up to 32GB

Display

3.5" 320 x 480

Mag Card

ISO7816, 1, 2, 3

IC Card

EMV L1, 2

Contactless

EMV L1

SIM & SAM

2 SAM
3 SAM (Optional)
2 Nano SIM + 2 SAM (Optional)

Printer (mm)

Thermal 40*57

Wire Comm.

Modem
Ethernet 10/100

Wireless Comm. (Optional)

4G, 3G, 2G EU
BT
Wi-Fi 2.4G
Wi-Fi 2.4G + 5G

Interface

Serial port
USB-A host
USB-C
Network RJ45

Audio

Buzzer only
Speaker only (Optional)

Power Adapter

9.0V/2.5A

Accessories

Network extension cable

Processor

Cortex A7

Memory (MB)

256 + 256
512 + 512 (Optional)

SD Card

Up to 32GB

Display

2.8" 320 x 240

Mag Card

ISO7816, 1, 2, 3

IC Card

EMV L1, 2

SIM & SAM

1 Nano SIM + 1 SIM + 2SAM
1 Nano SIM + 3 SAM (Optional)
1 Nano SAM + 2 SAM (Optional)

Contactless

EMV L1

Printer (mm)

Thermal 40*57

Wireless Comm.

4G, 3G, 2G EU
Wi-Fi 2.4G
BT (Optional)
Wi-Fi 2.4G+5G (Optional)
GPS (Optional)

Interface

USB-C

Scan

1D/2D code

Battery

7.2V/2600mAh
7.2V/3350mAh (Optional)

Power Adapter

5.0V/2A USB-C

Accessories

USB cable
Charging base (Optional)
Communication base (Optional)
Learn more

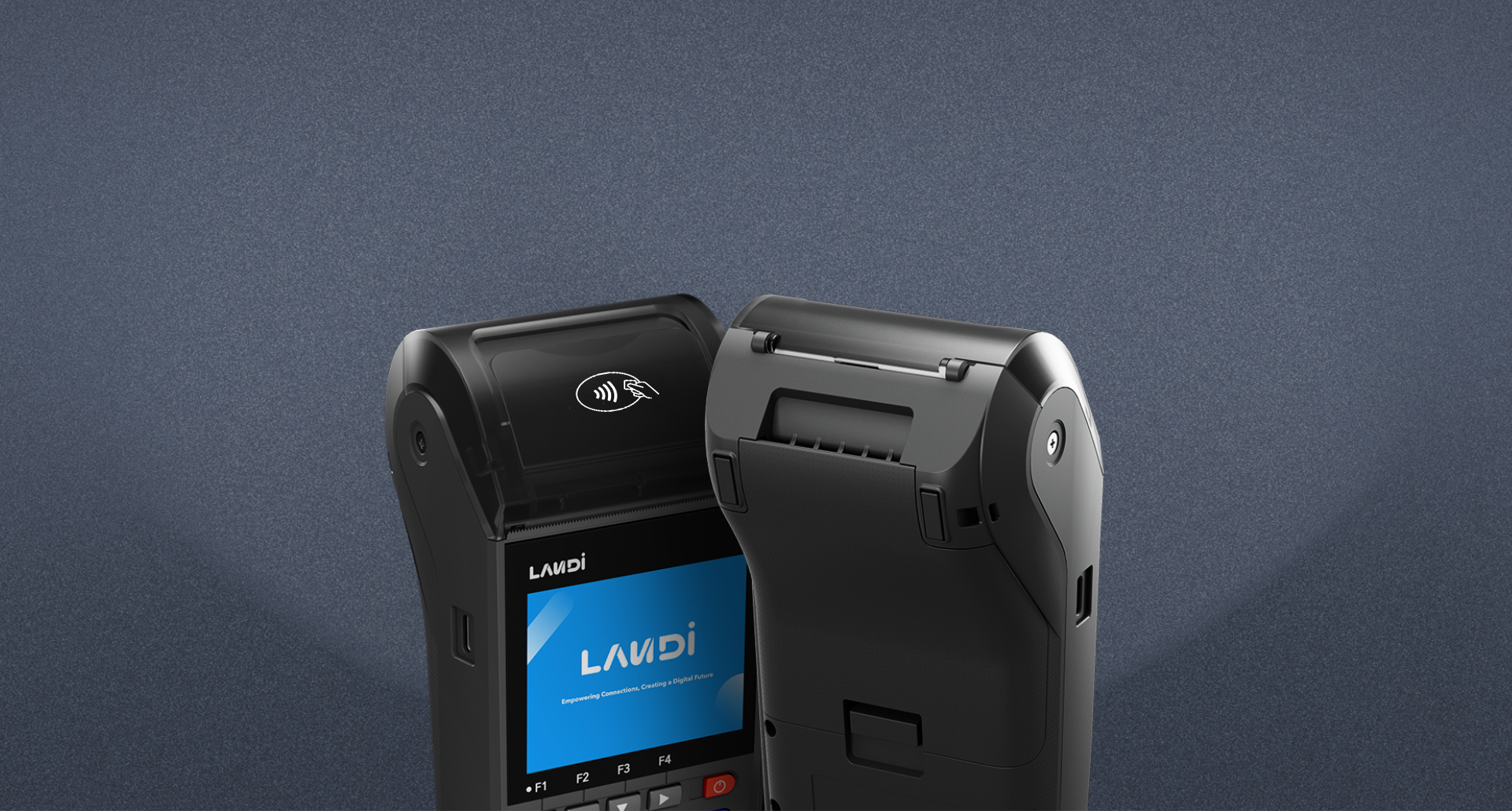

Versatile, secure and efficient.

Even during the busiest hours,

L20 operates as a reliable countertop or indoor portable payment terminal,

delivering peak performance. It ensures secure and fast payment processing,

offering both merchants and customers a secure and efficient payment experience.

   Key features

● Powered by Linux



● Cortex A7 CPU



● 2.8" color screen



● Ethernet + Dial + Optional:

    2G/3G/4G, WiFi, Bluetooth



● Contactless, Chip & PIN, Magnetic stripe



● Physical Keyboard



● Built-in high-speed thermal printer



● PCI PTS 6.x, EMV 3.0

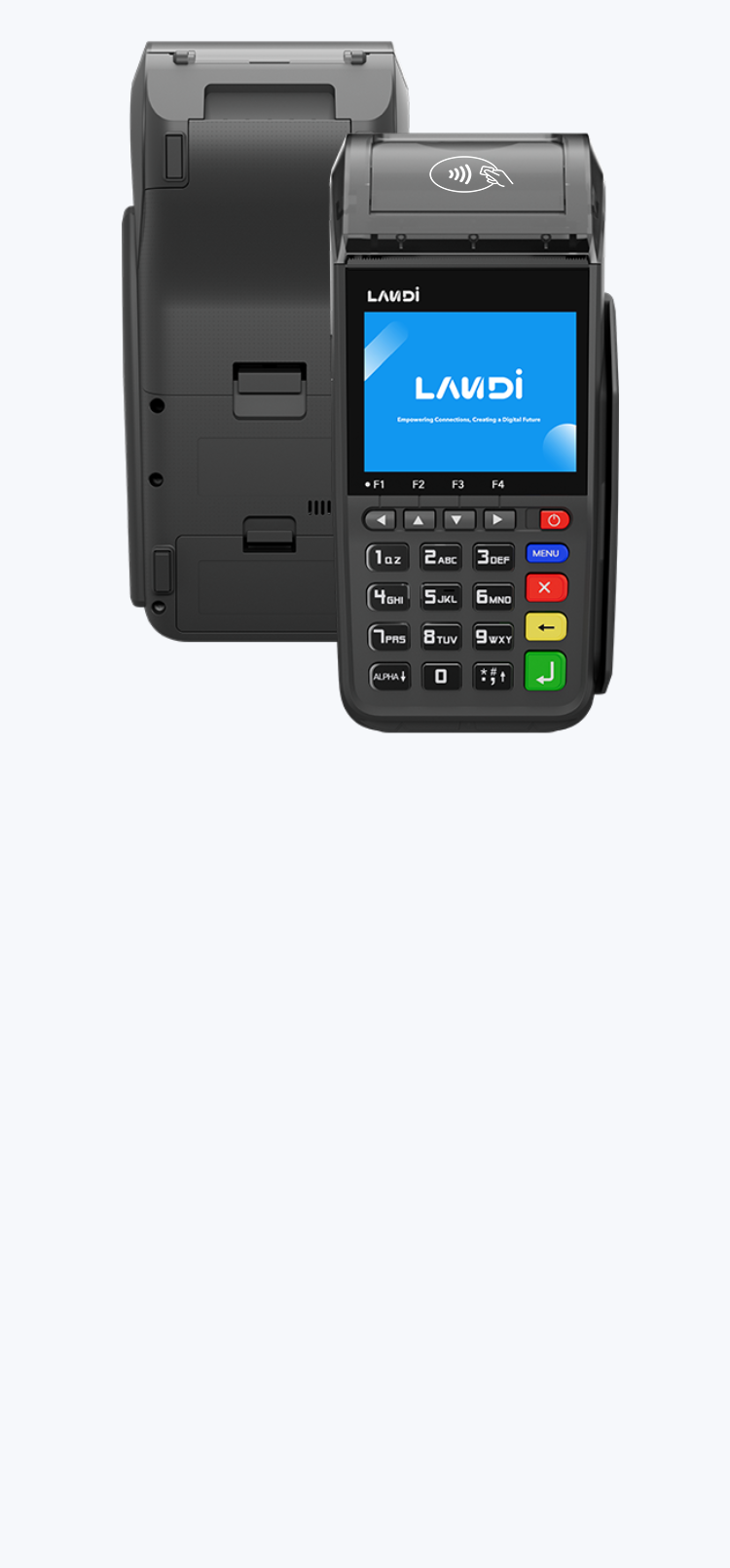

L20-C brochure
   Key features

● Powered by Linux



● Cortex A7 CPU



● 2.8" color screen



● 2G/3G/4G+WiFi+Optional:

    Bluetooth+GPS+GLONASS



● Contactless, Chip & PIN, Magnetic stripe



● Physical Keyboard



● Built-in high-speed thermal printer



● PCI PTS 6.x, EMV 3.0

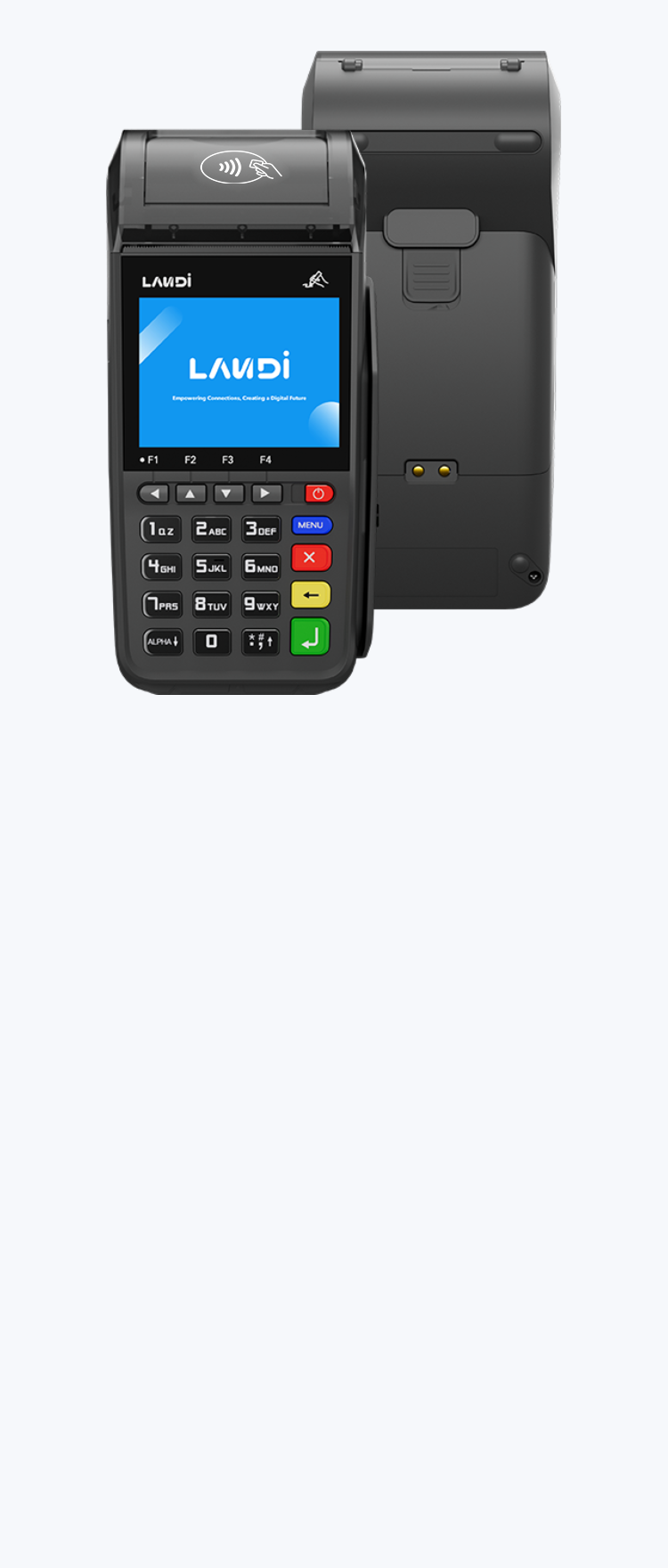

L20-W brochure
Ergonomic and portable

Elevate your payment experience with enhanced grip and comfort.

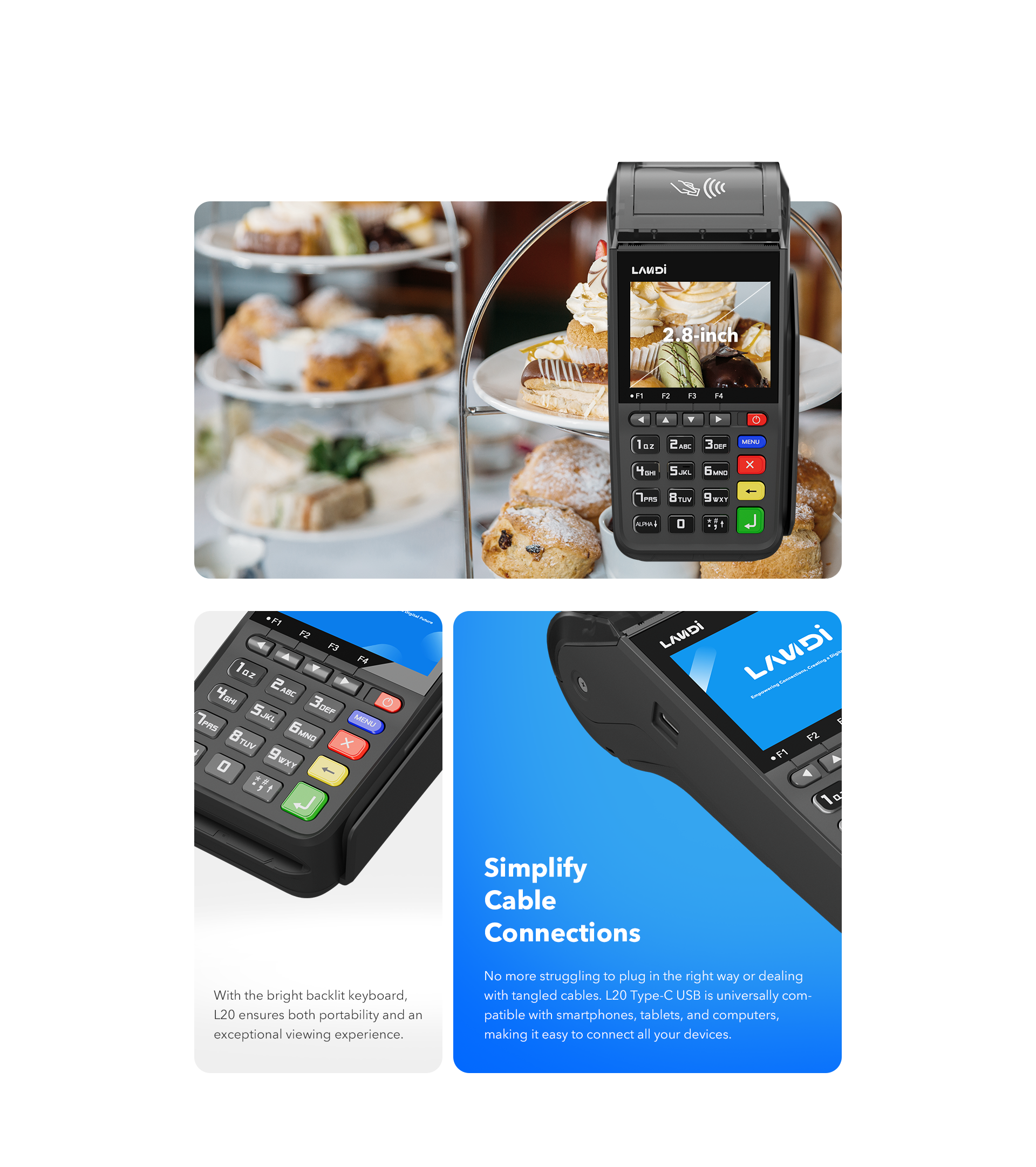

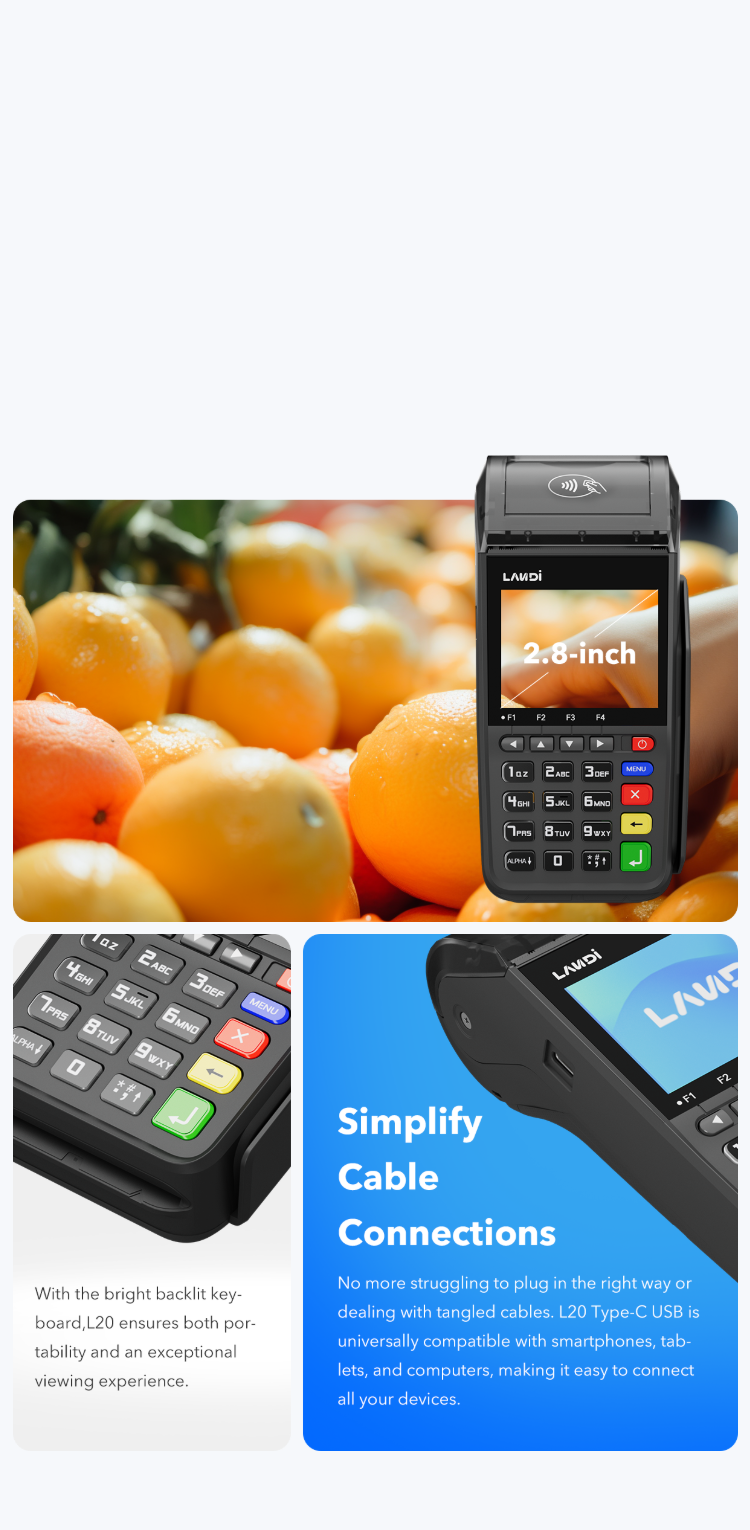

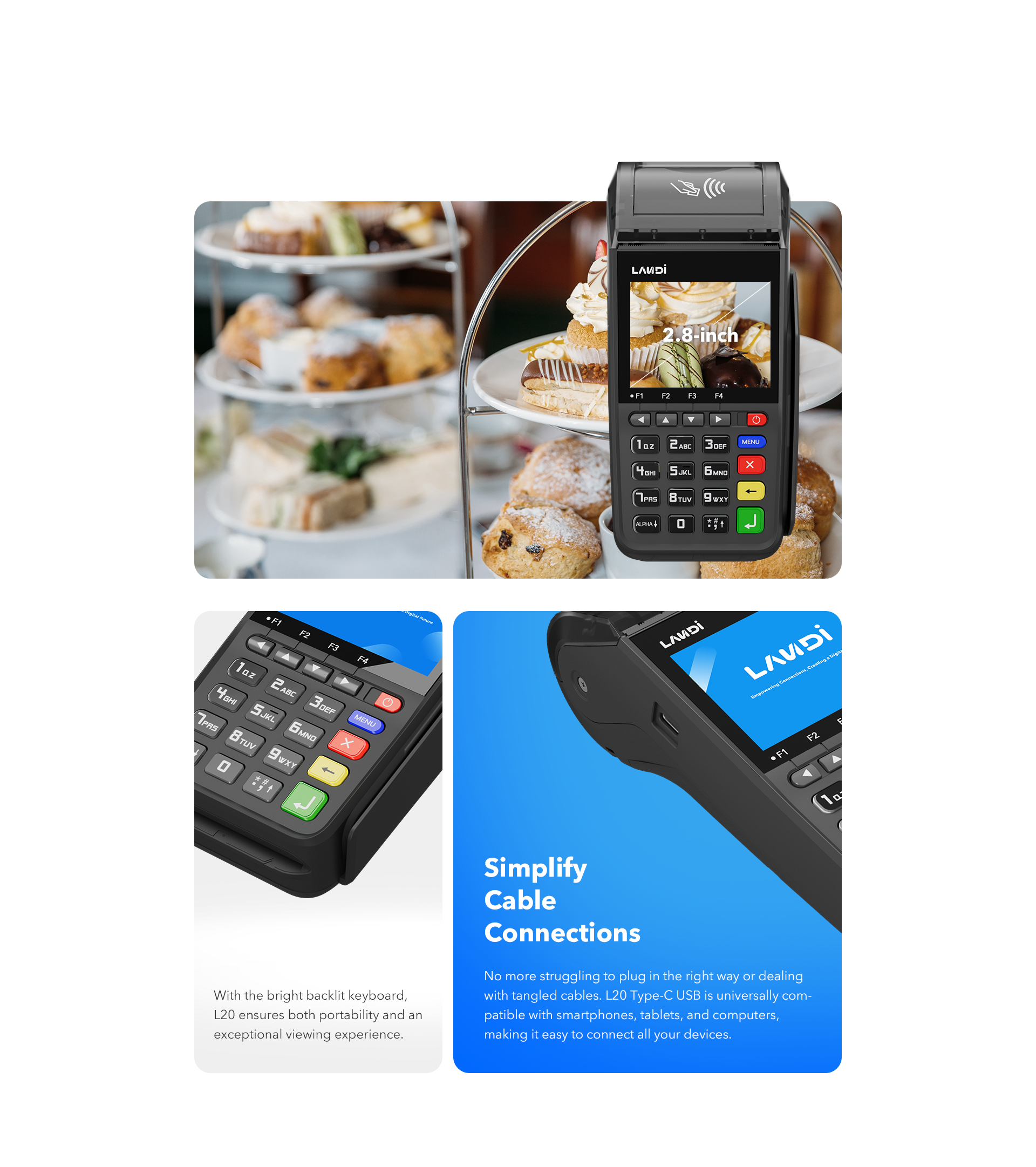

Simplify Cable Connections.

No more struggling to plug in the right way or dealing with tangled cables. L20 Type-C USB is universally compatible with smartphones, tablets, and computers, making it easy to connect all your devices.

Compliant with the
highest payment
standards
Specifications
L20-C
L20-W
Processor Cortex A7
Memory (MB) 256 + 256
512 + 512 (Optional)
SD Card Up to 32GB
Display 3.5" 320 x 480
Mag Card ISO7816, 1, 2, 3
IC Card EMV L1, 2
Contactless EMV L1
SIM & SAM 2 SAM
3 SAM (Optional)
2 Nano SIM + 2 SAM (Optional)
Printer (mm) Thermal 40*57
Wire Comm. Modem
Ethernet 10/100
Wireless Comm. (Optional) 4G, 3G, 2G EU
BT
Wi-Fi 2.4G
Wi-Fi 2.4G + 5G
Interface Serial port
USB-A host
USB-C
Network RJ45
Audio Buzzer only
Speaker only (Optional)
Power Adapter 9.0V/2.5A
Accessories Network extension cable
