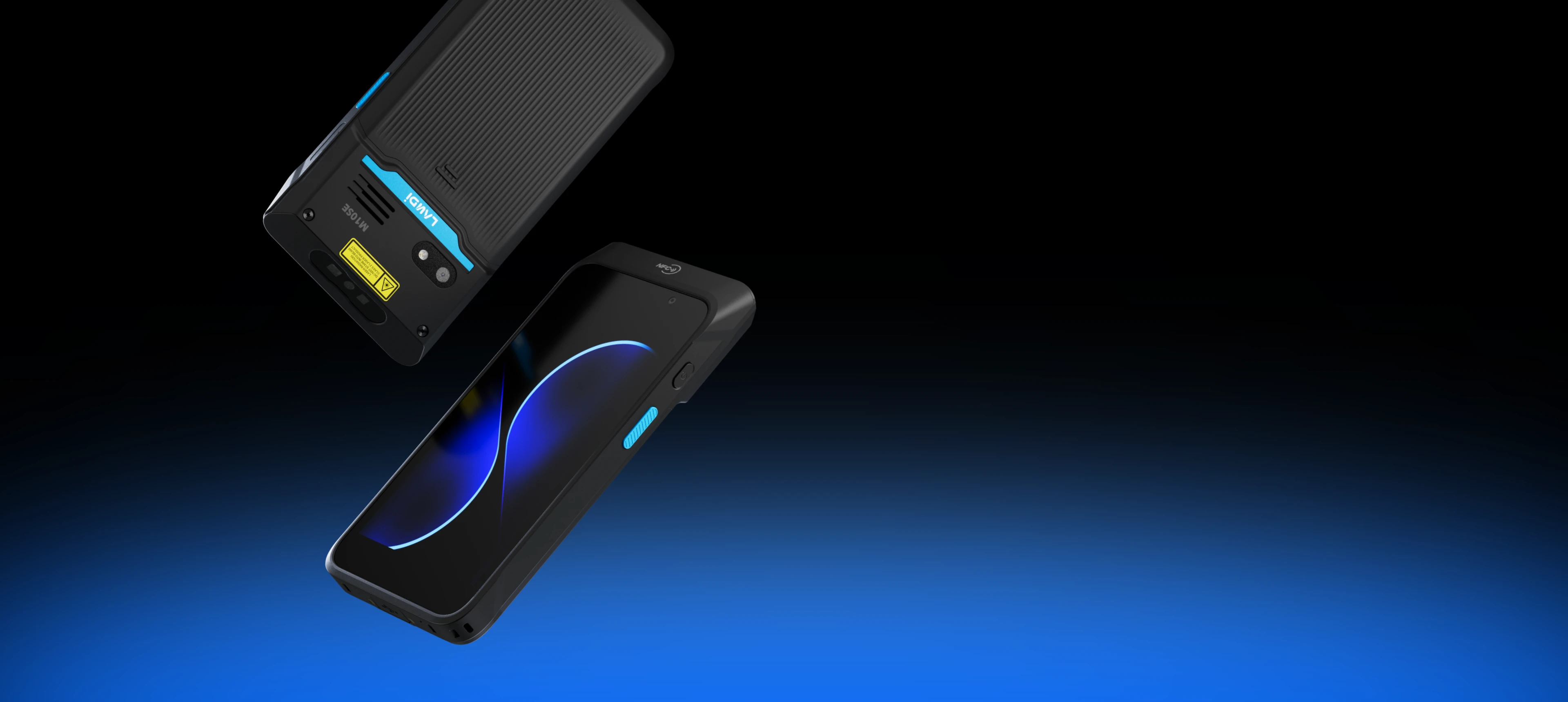

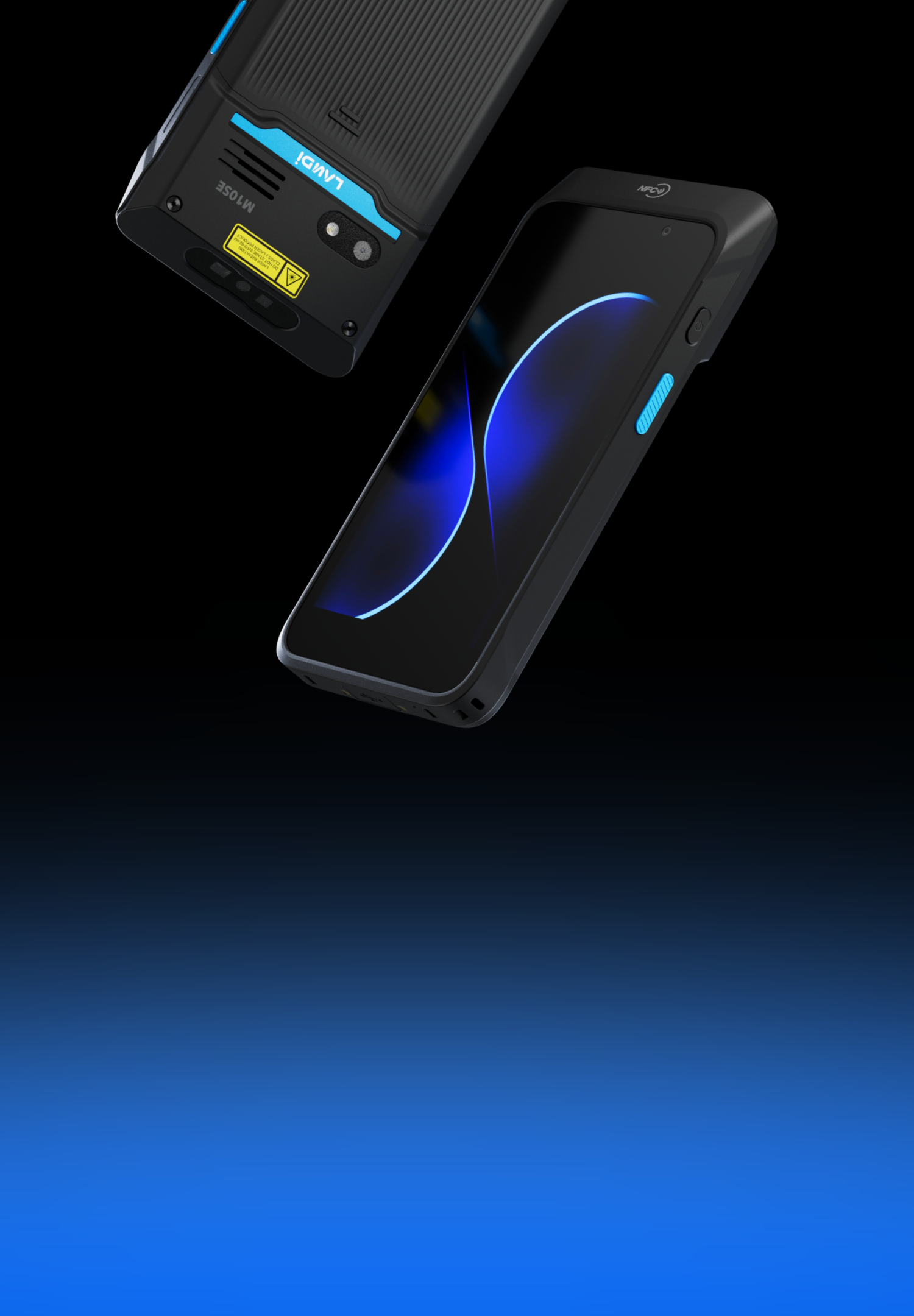

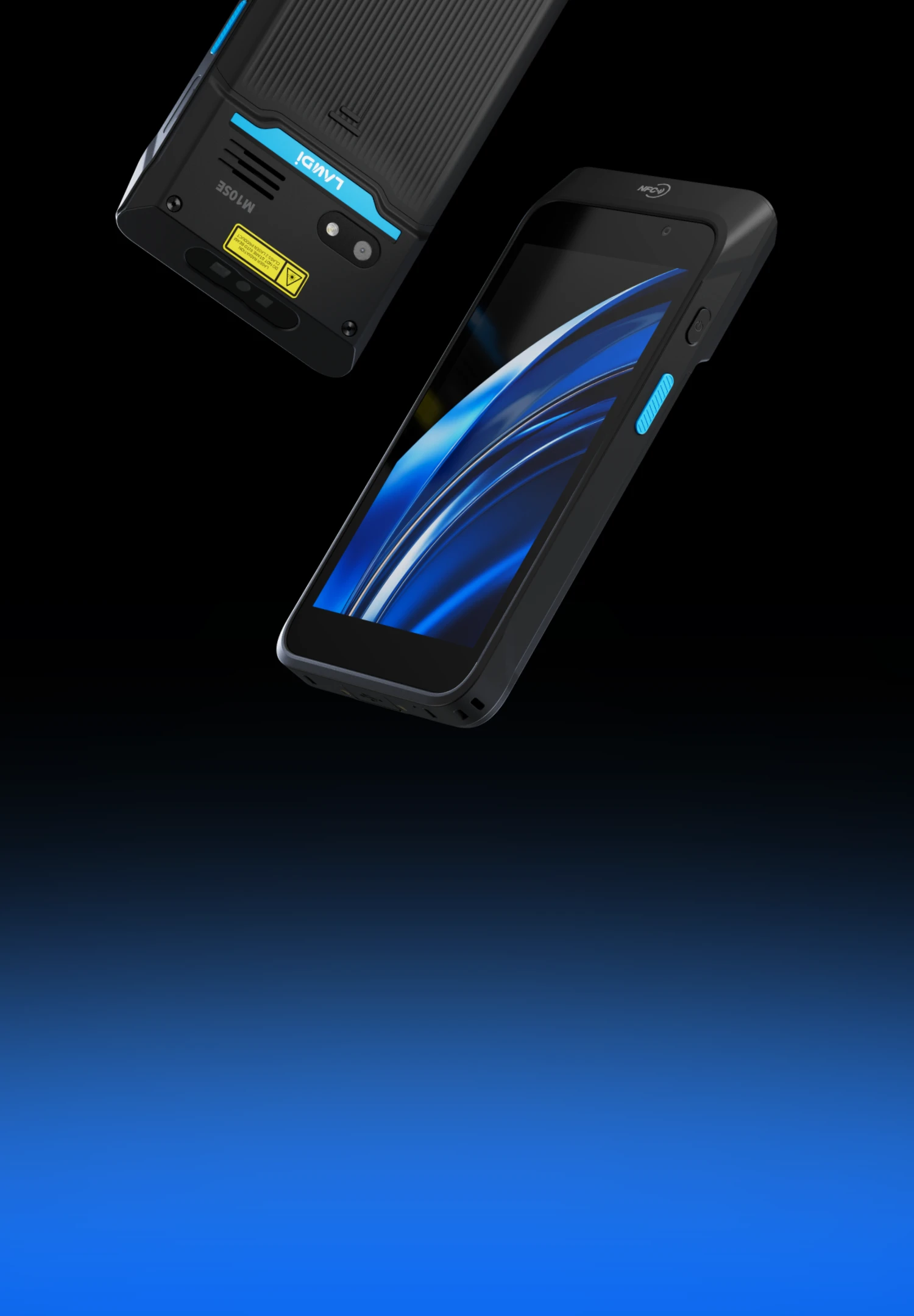

M10 SE
Mobile Terminal
Business terminal with front NFC,
powered by Android 13, and optional laser scanner
M10 SE datasheet
powered by Android 13, and optional laser scanner
Customer-Friendly NFC Design
Equipped with front NFC for smooth, customer-facing contactless
transactions—perfect for retail and transportation scenarios.
5MP Rear Camera
for Fast QR Scanning
Quickly scan QR codes for payment, logistics, and
inventory management with a 5MP rear camera.
Business-Ready Performance

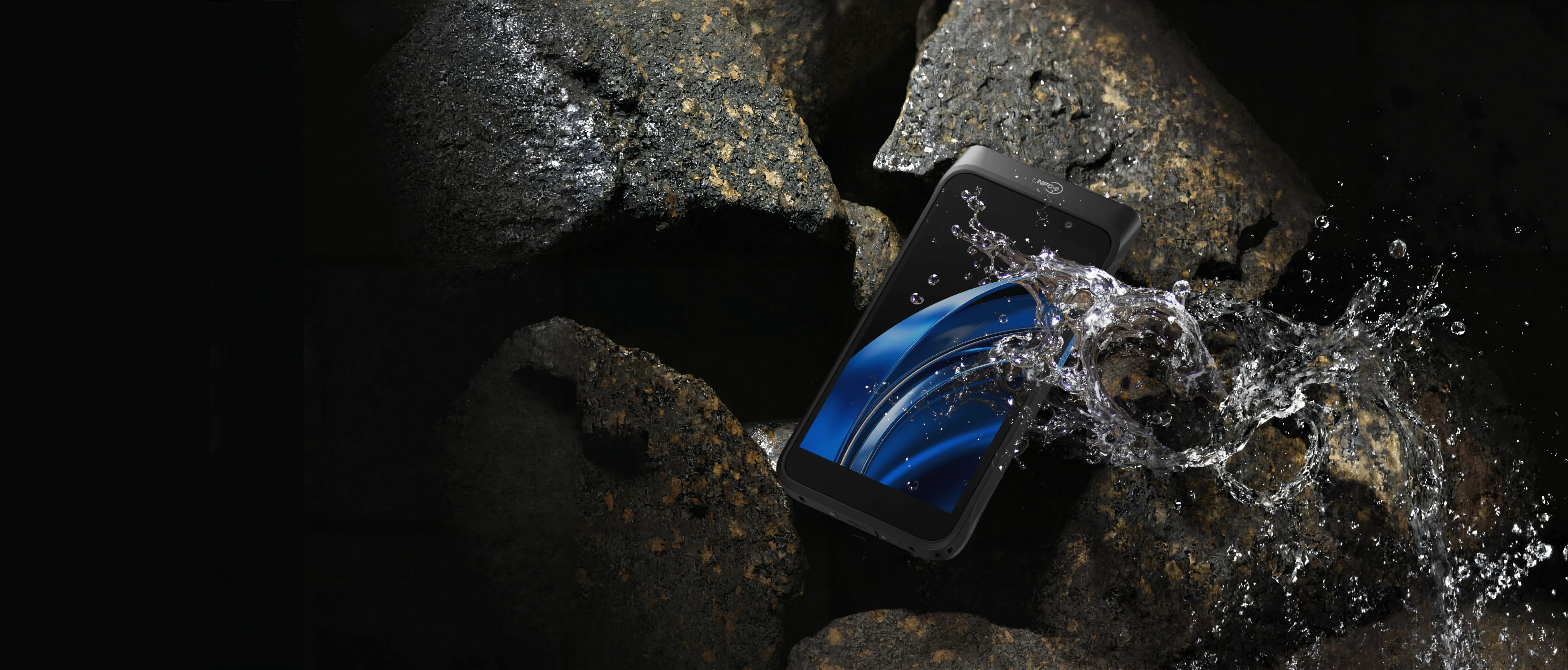

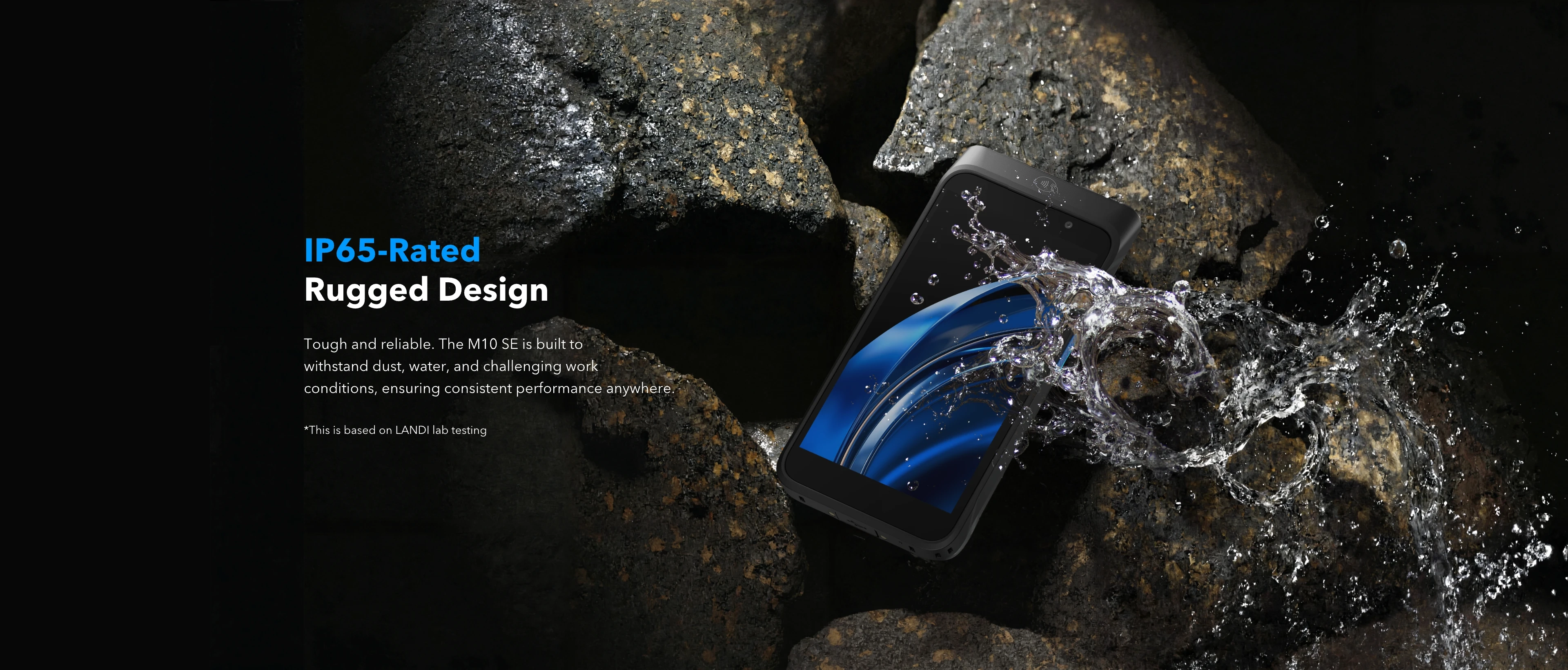

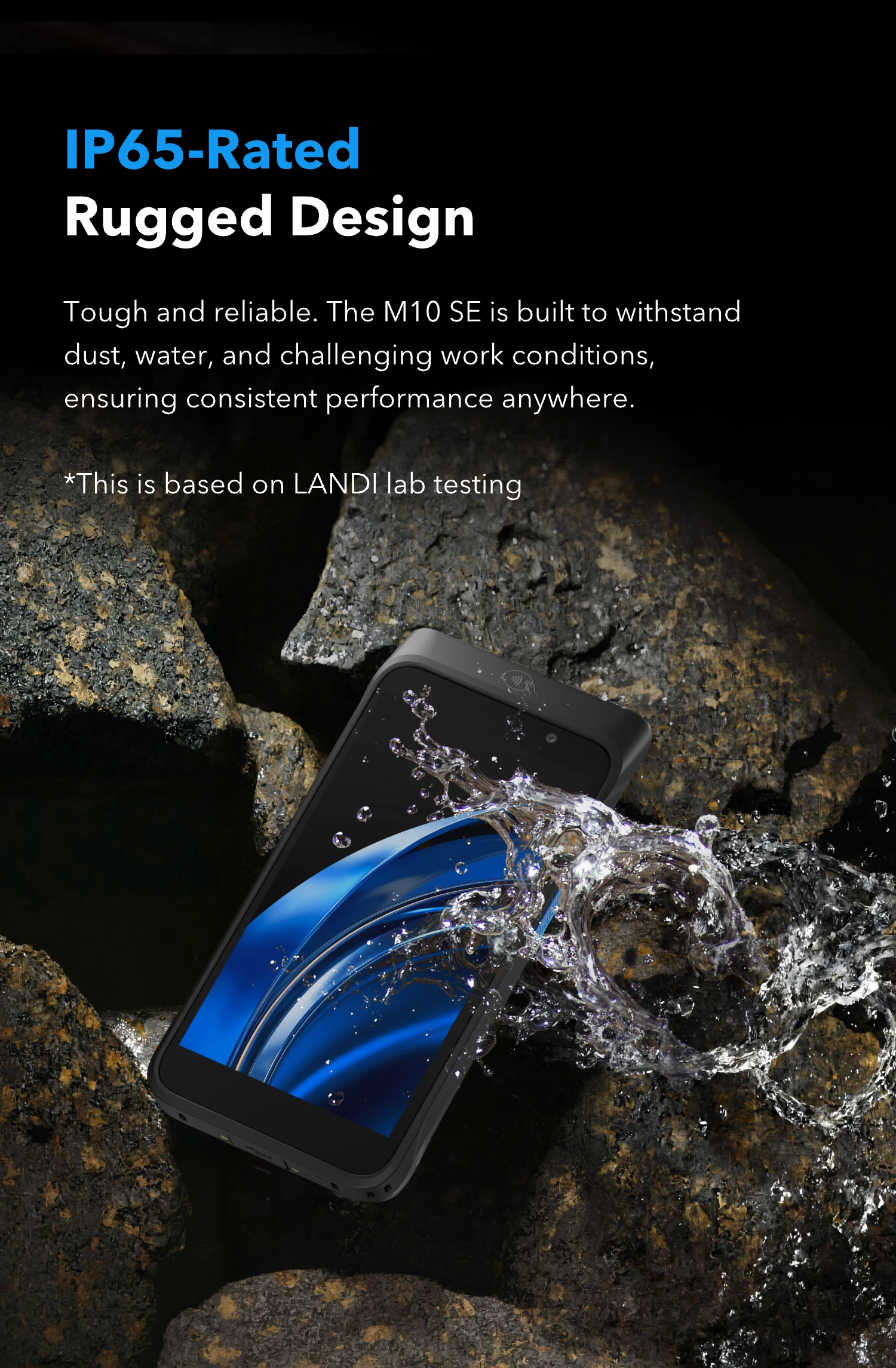

IP65-Rated
Rugged Design
Tough and reliable. The M10SE is built to
withstand dust, water, and challenging work
conditions, ensuring consistent performance anywhere.
*This is based on LANDI lab testing

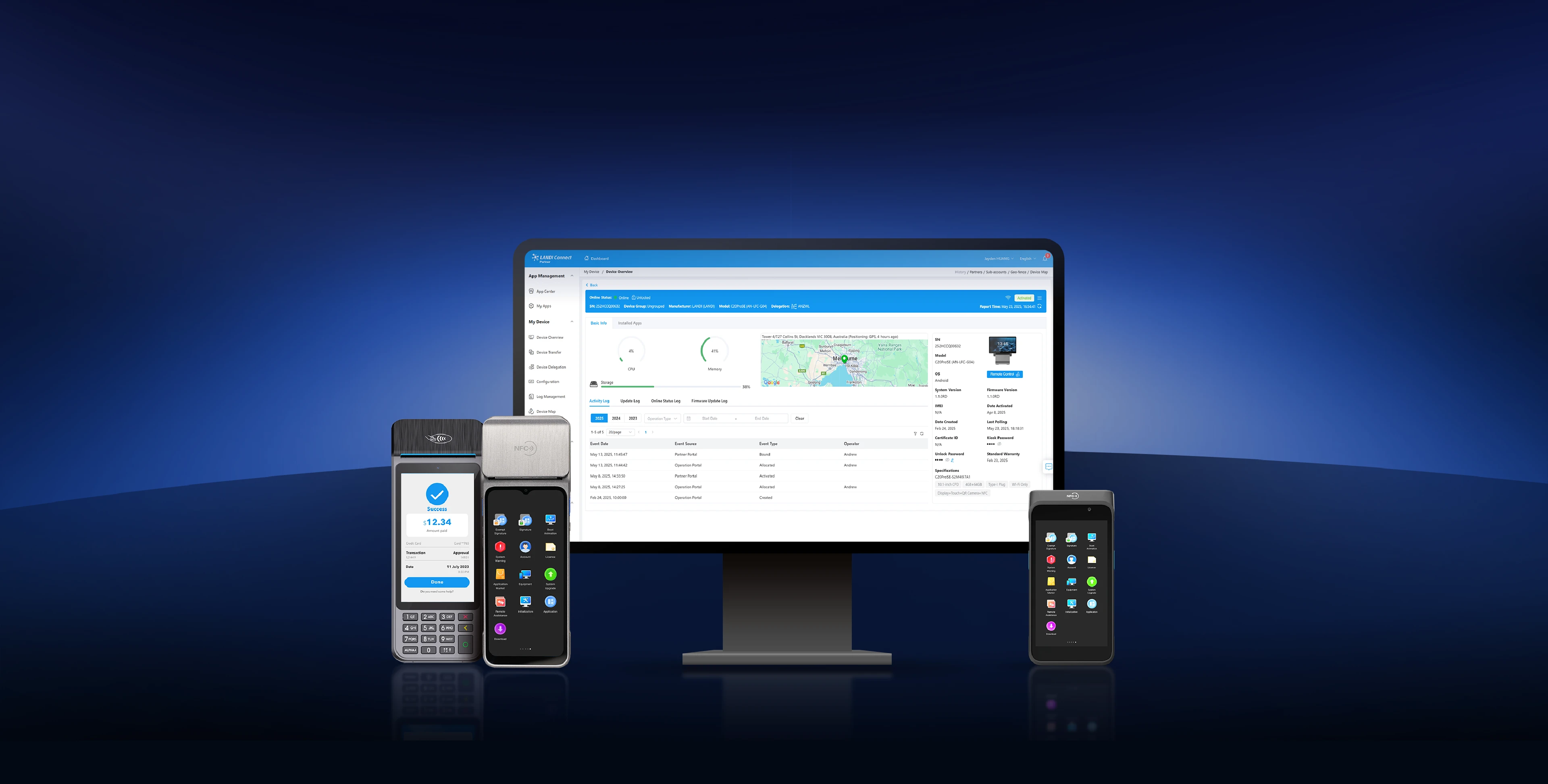

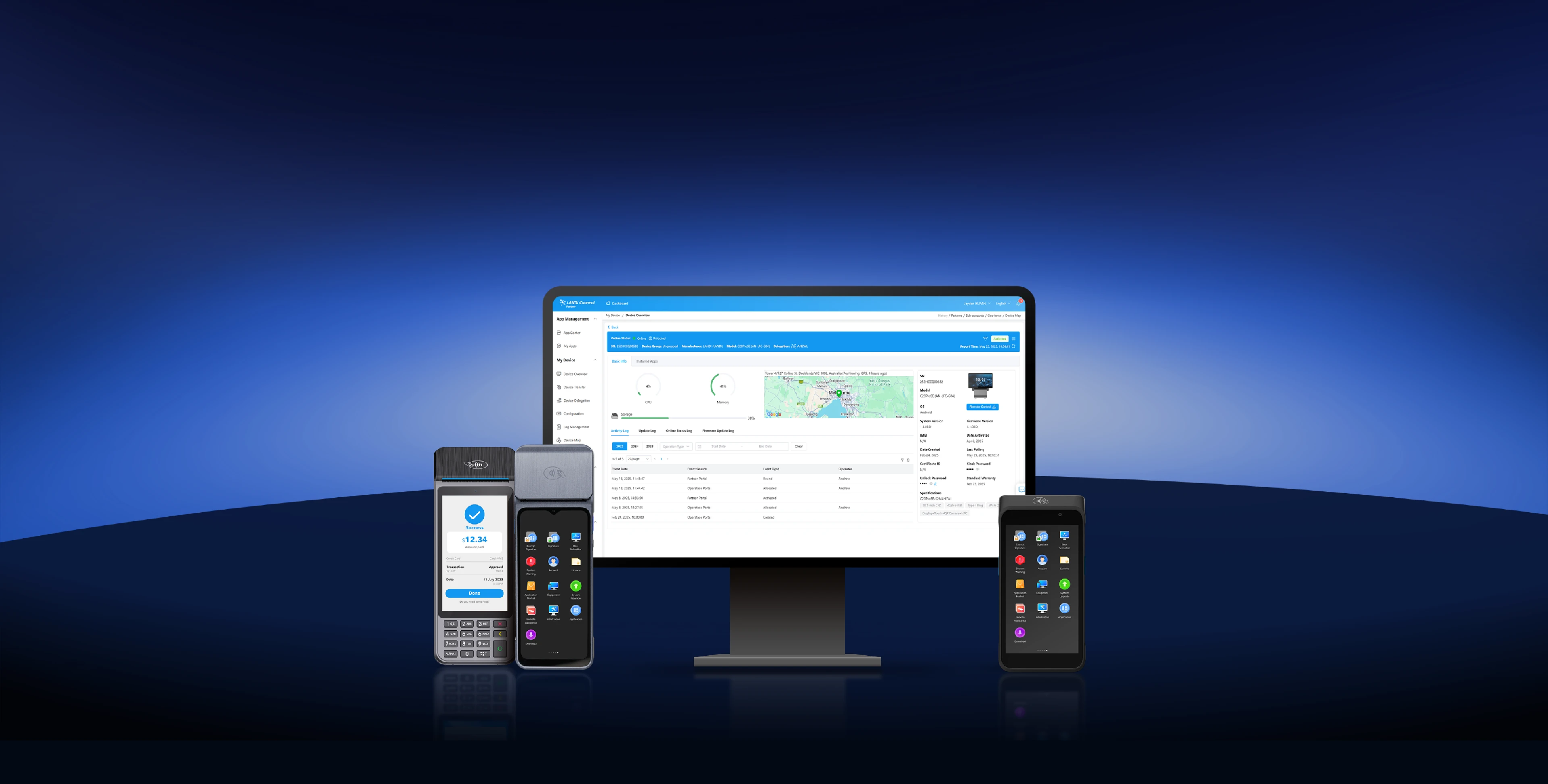

LANDI Connect for Seamless Device Management
Effortlessly manage, track, and update your devices with LANDI Connect — your all-in-one
platform for asset management and real-time operational control.
platform for asset management and real-time operational control.
Specifications
Processor
Quad-core 2.0GHz
OS
Android 13
Memory
2GB+16GB
Micro SD Card (Up to 2TB)
Micro SD Card (Up to 2TB)
Display
5", 480×854
Capacitive multi-touch
Capacitive multi-touch
Scanner
· Optional 1 : NONE
· Optional 2 : LANDI Scanner module
· Optional 2 : LANDI Scanner module
Buttons
1 Power key (Right Side)
2 scan code keys are located on each side
2 scan code keys are located on each side
Audio
Speaker: 2W 95dB@0.1m
MIC: Single-MIC
Headset: USB Type-C
MIC: Single-MIC
Headset: USB Type-C
Connectivity
Cellular: 4G fallback 3G and GPRS, Global band
Wi-Fi: IEEE 802.11 a/b/g/n/ac 2.4G and 5G
Bluetooth: Bluetooth 5.0,support BLE
Wi-Fi: IEEE 802.11 a/b/g/n/ac 2.4G and 5G
Bluetooth: Bluetooth 5.0,support BLE
Protection
IP65
1.2m drop tested
*Data from LANDI lab
1.2m drop tested
*Data from LANDI lab
Certification
CE, CB, FCC, IC, RoHS, WEEE
Positioning
AGPS, GPS, Glonass, Beidou, Galileo
Camera
Front camera: 0.3M pixels
fixed focus camera
Rear camera: 5M pixels, autofocus and
flashlight
fixed focus camera
Rear camera: 5M pixels, autofocus and
flashlight
NFC
Android NFC, ISO / IEC 14443,
MIFARE, support Type A/B
MIFARE, support Type A/B
SIM
2*SIM
Connection
1 USB-Type C 2.0
2 Pin POGO
2 Pin POGO
Battery
Main Battery: 3.7V/3000mAh, Removable
Power Supply
5V / 2A
Accessories (Optional)
· 1+1 Charging Dock
· Wrist Strap
· Screen Protector
· Protective Casing
· Wrist Strap
· Screen Protector
· Protective Casing
Environment
Operating temperature: -10℃ to +50℃
Storage temperature: -20℃ to +55℃
Operating humidity: 10% to 90% non-condensing
Storage temperature: -20℃ to +55℃
Operating humidity: 10% to 90% non-condensing
M10 SE
Mobile Terminal
Business terminal with front NFC,
Android 13, and optional laser scanner
M10 SE datasheet
Android 13, and optional laser scanner
Specifications
| Processor | Quad-core 2.0GHz |
| OS | Android 13 |
| Memory | 2GB+16GB
Micro SD Card (Up to 2TB) |
| Display | 5", 480×854
Capacitive multi-touch |
| Scanner | · Optional 1 : NONE
· Optional 2 : LANDI Scanner module |
| Buttons | 1 Power key (Right Side)
2 scan code keys are located on each side |
| Audio | Speaker: 2W 95dB@0.1m
MIC: Single-MIC Headset: USB Type-C |
| Connectivity | Cellular: 4G fallback 3G and GPRS, Global band
Wi-Fi: IEEE 802.11 a/b/g/n/ac 2.4G and 5G Bluetooth: Bluetooth 5.0,support BLE |
| Protection | IP65
1.2m drop tested *Data from LANDI lab |
| Certification | CE, CB, FCC, IC, RoHS, WEEE |
| Positioning | AGPS, GPS, Glonass, Beidou, Galileo |
| Camera | Front camera: 0.3M pixels
fixed focus camera Rear camera: 5M pixels, autofocus and flashlight |
| NFC | Android NFC, ISO / IEC 14443,
MIFARE, support Type A/B |
| SIM | 2*SIM |
| Connection | 1 USB-Type C 2.0
2 Pin POGO |
| Battery | Main Battery: 3.7V/3000mAh, Removable |
| Power Supply | 5V / 2A |
| Accessories (Optional) | · 1+1 Charging Dock
· Wrist Strap · Screen Protector · Protective Casing |
| Environment | Operating temperature: -10℃ to +50℃
Storage temperature: -20℃ to +55℃ Operating humidity: 10% to 90% non-condensing |
