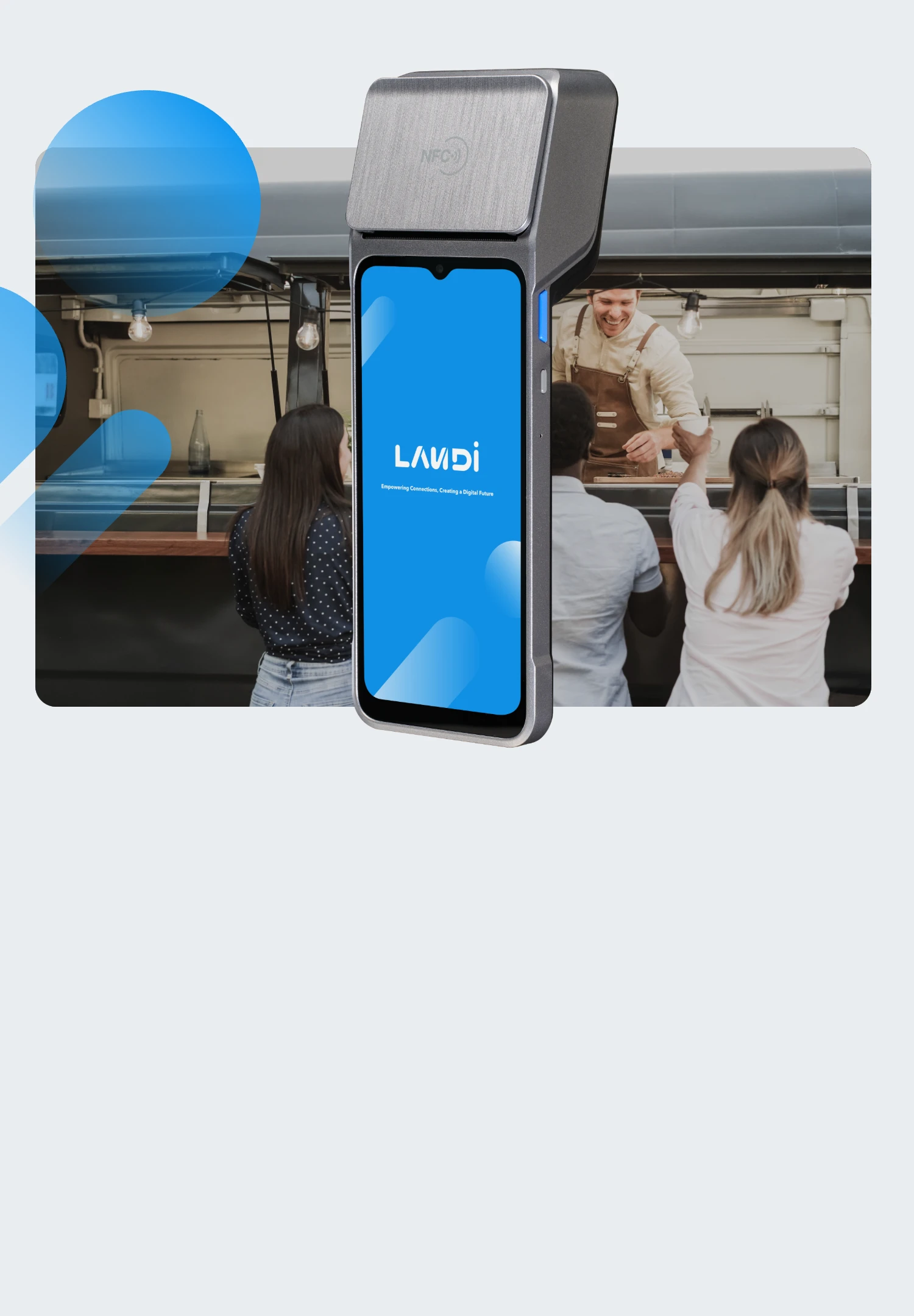

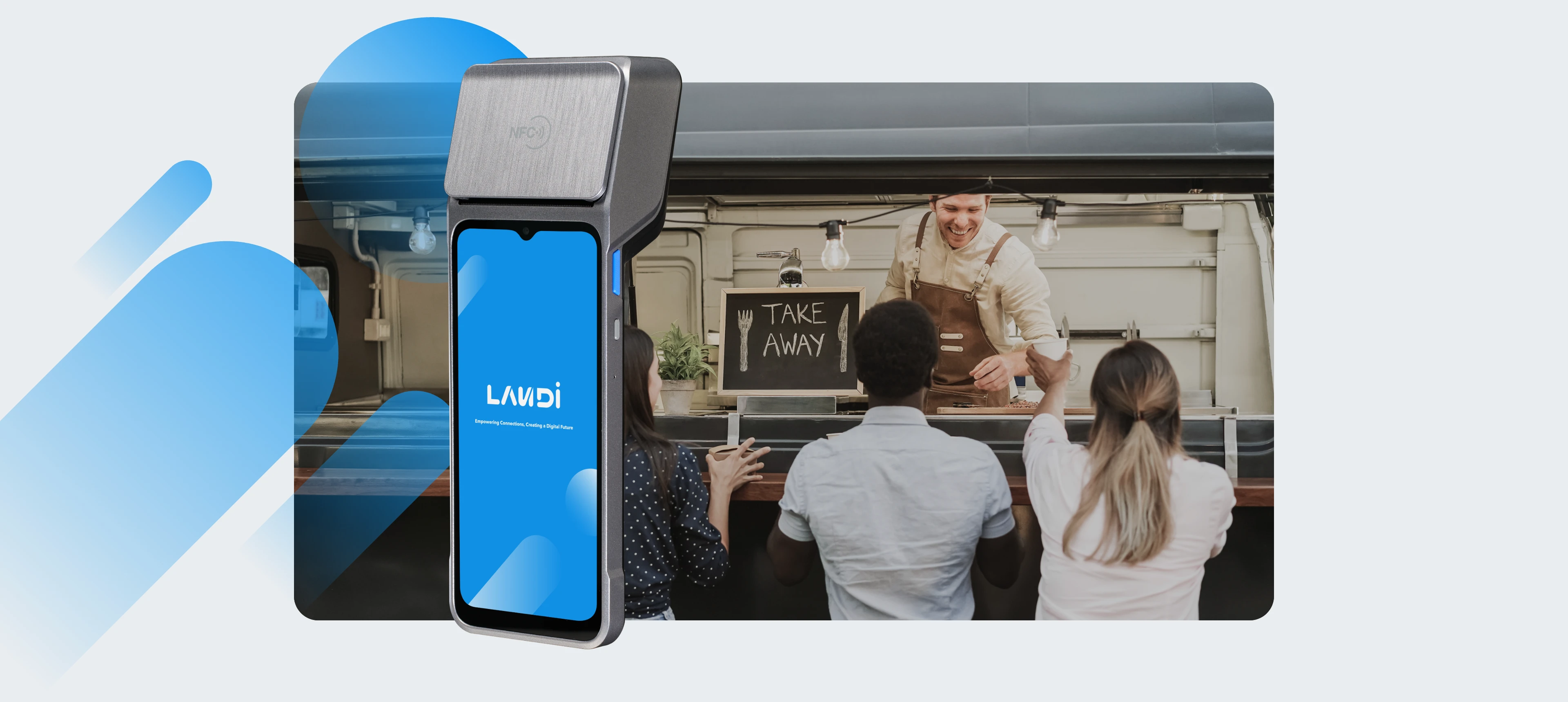

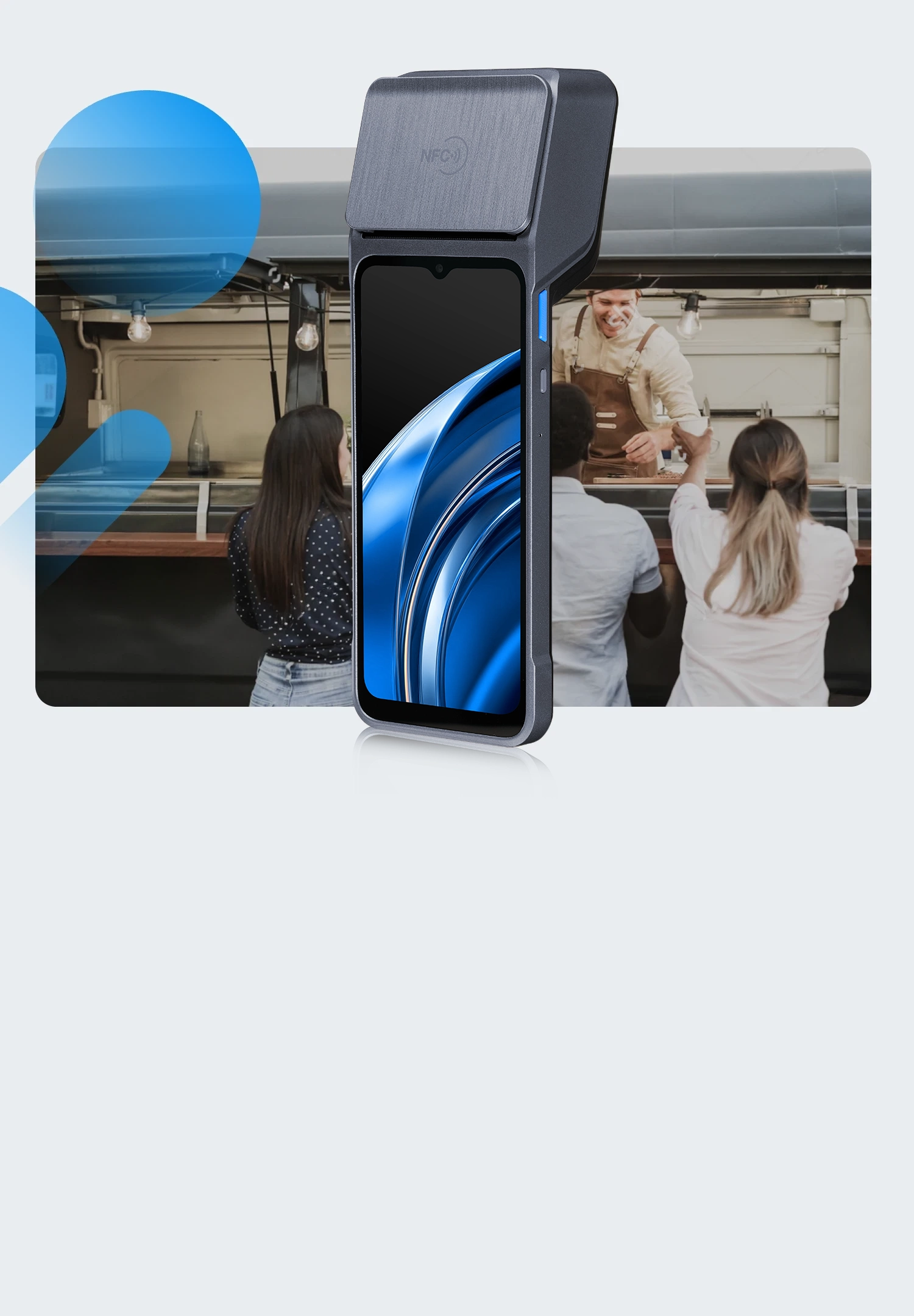

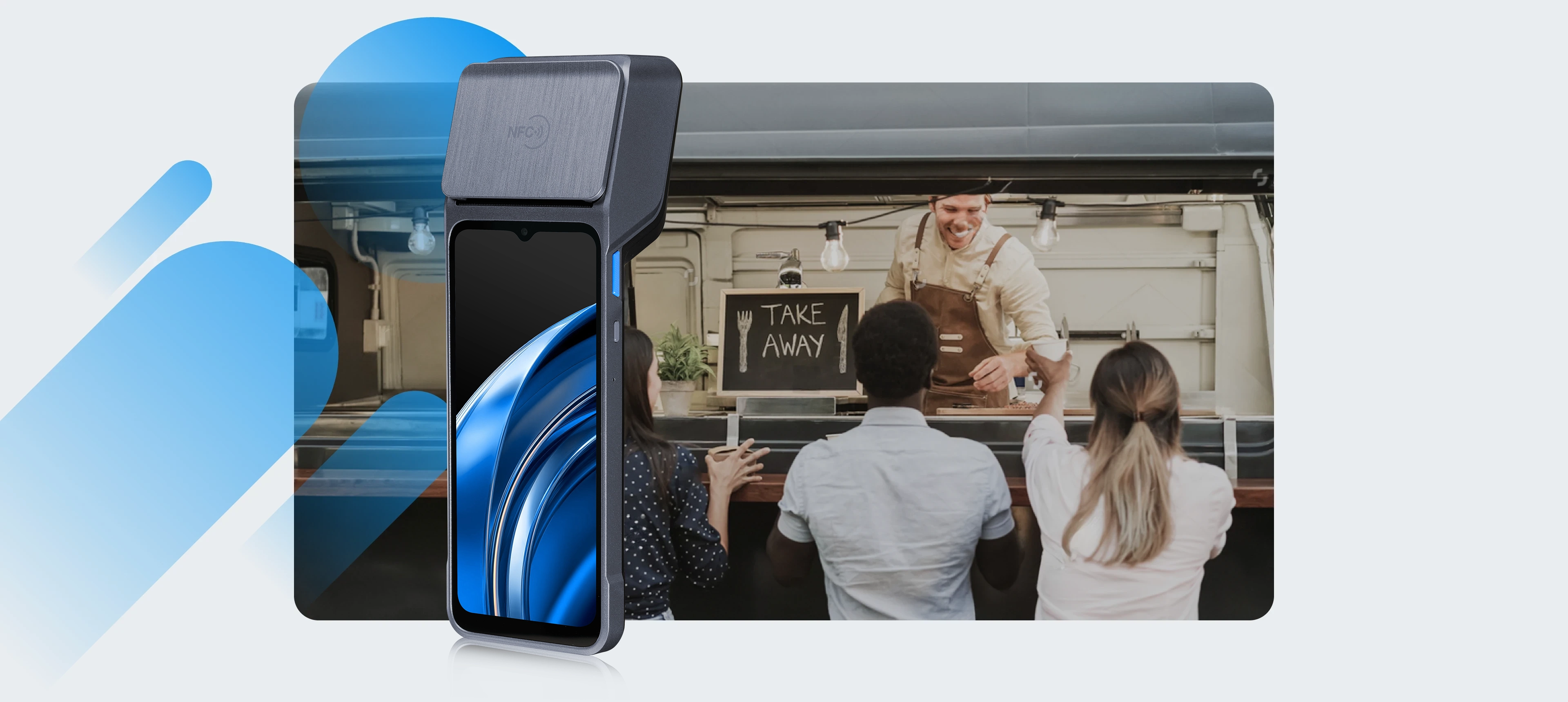

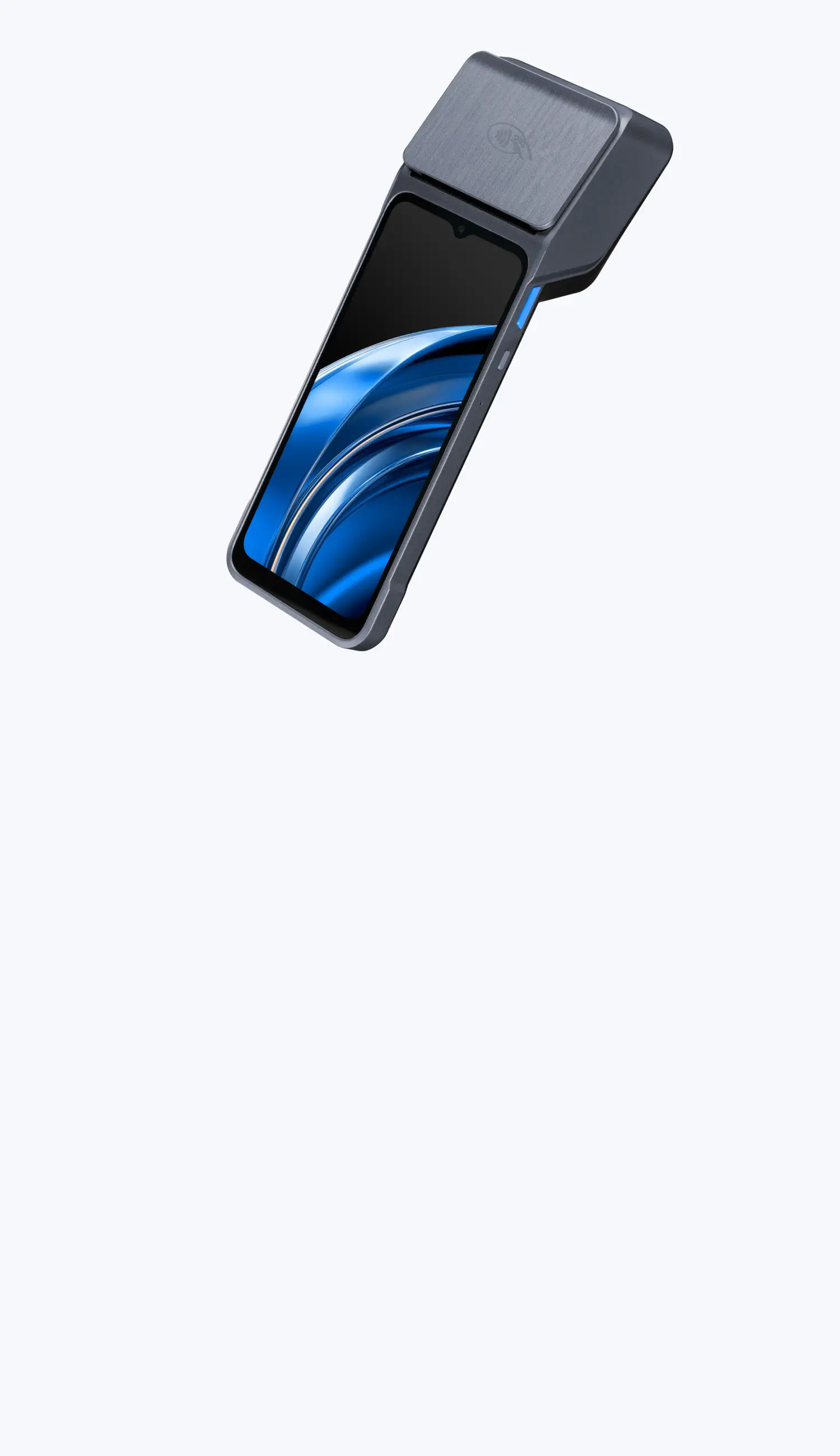

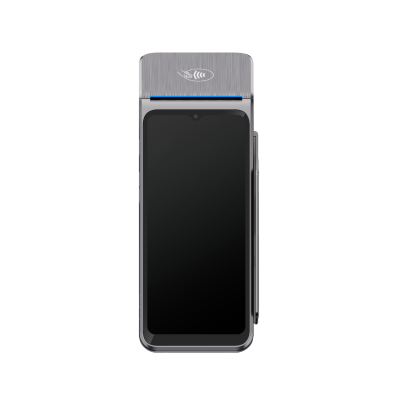

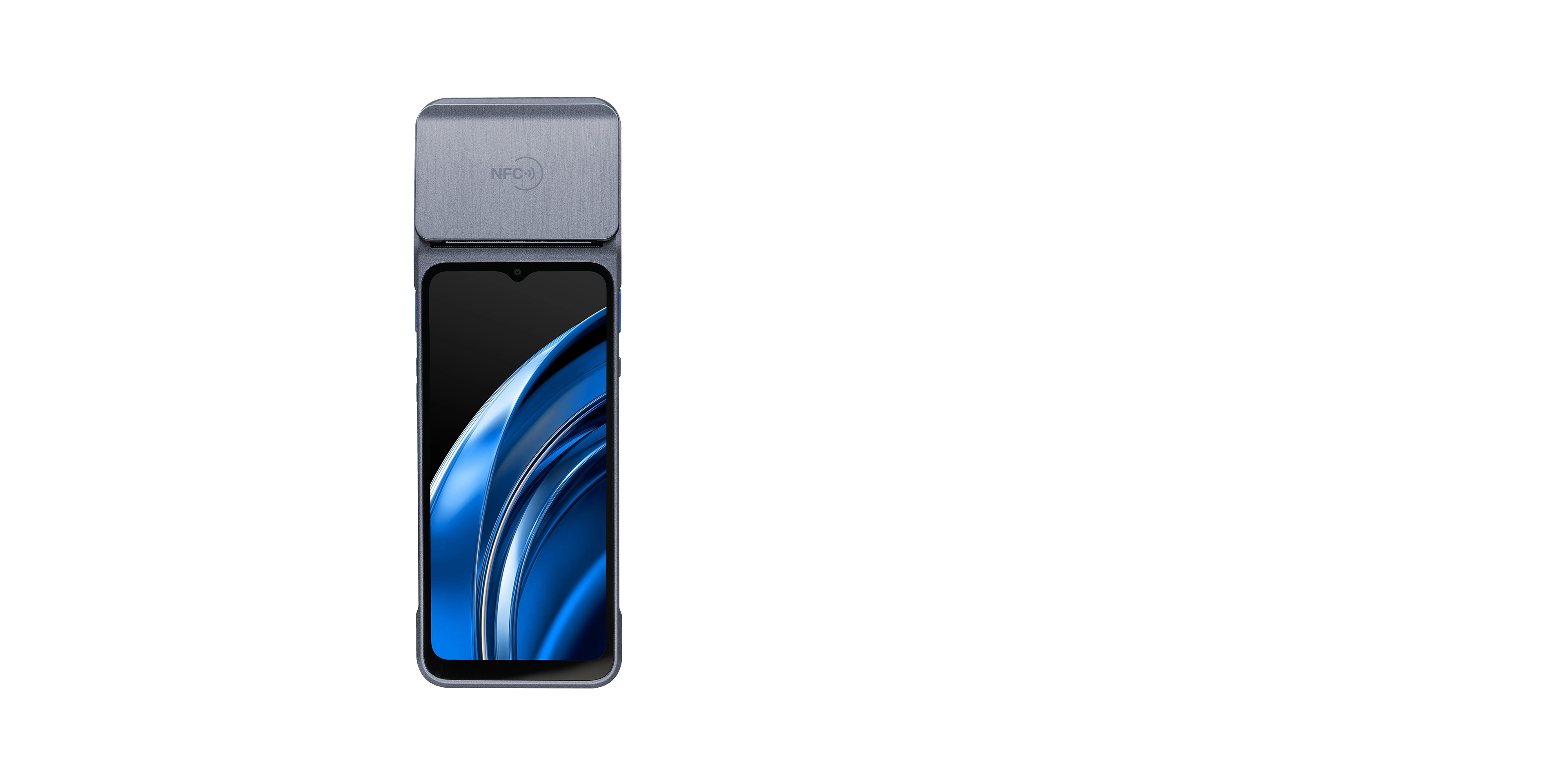

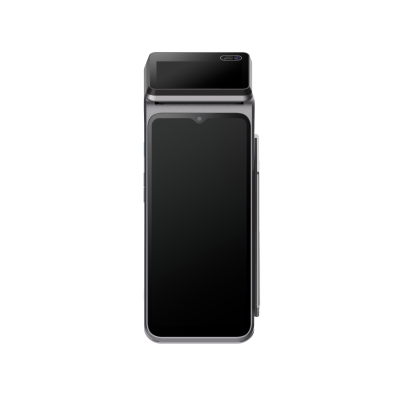

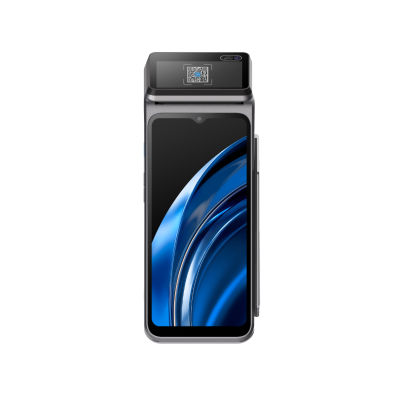

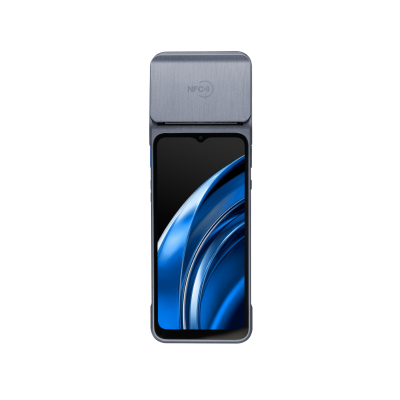

M20

Android Mobile Terminal
The all-in-one mobile solution featuring
an integrated thermal receipt printer.
Download brochure

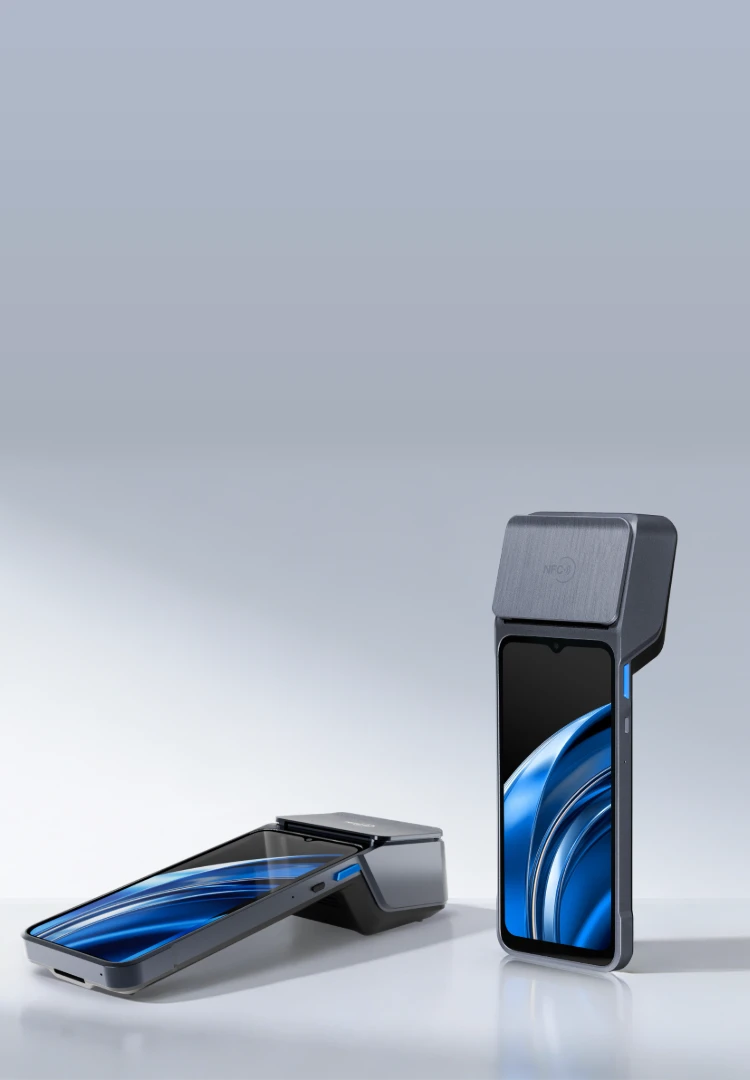

Work smarter with our all-in-one mobile terminal
This mobile terminal brings together essential features—printer, card reader, speaker, and scanner to streamline your operations and elevate your business to new heights.
Key features:

● Android 13 GMS, Qualcomm Quad-core 2.0GHz



● 6.5" HD touchscreen



● All-in-one design with printer, scanner, and NFC



● Stay connected with 4G, WiFi, and Bluetooth 5.0



● Certified for CE/CB/FCC/IC/RoHS/WEEE/GMS



Download brouchure

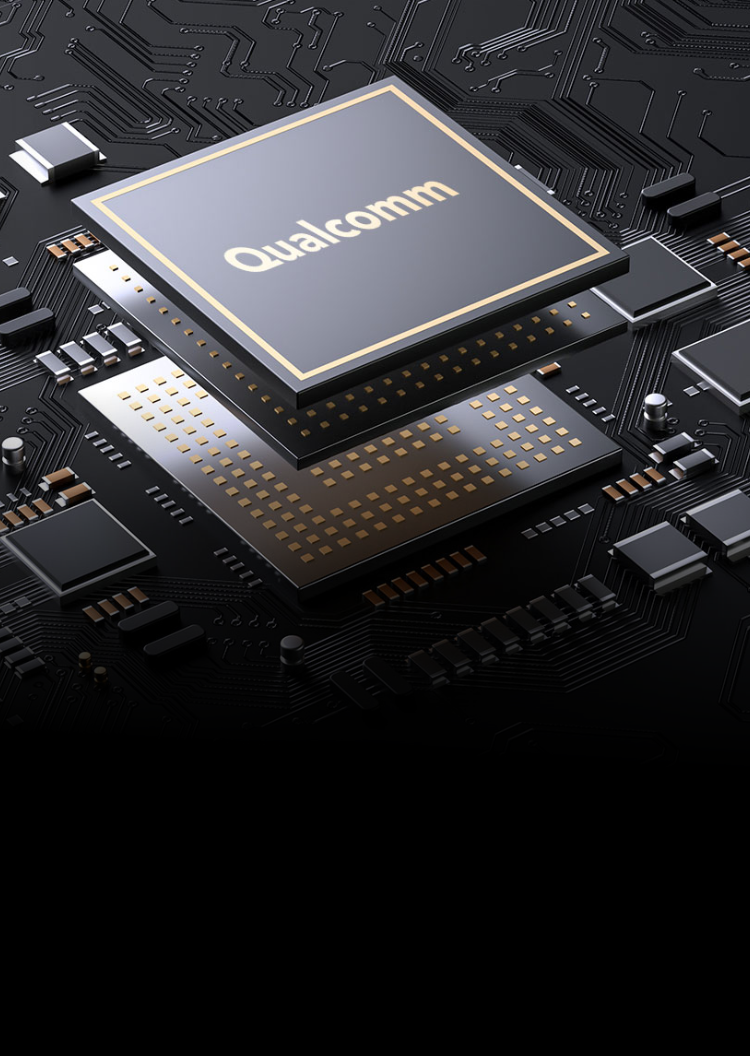

High performance
quad-core CPU
The M20 features a high-performance
quad-core processor, providing a fast
and seamless experience.

ARM Quad-core CPU, 2.0GHz
Powered by Android 13
SD Card 3.0 Support

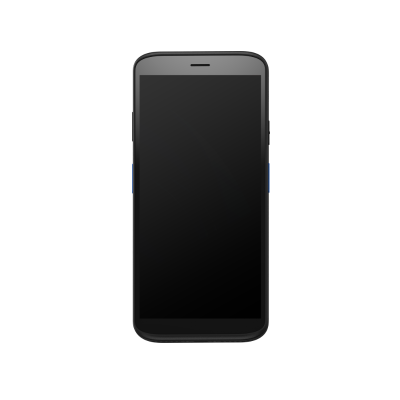

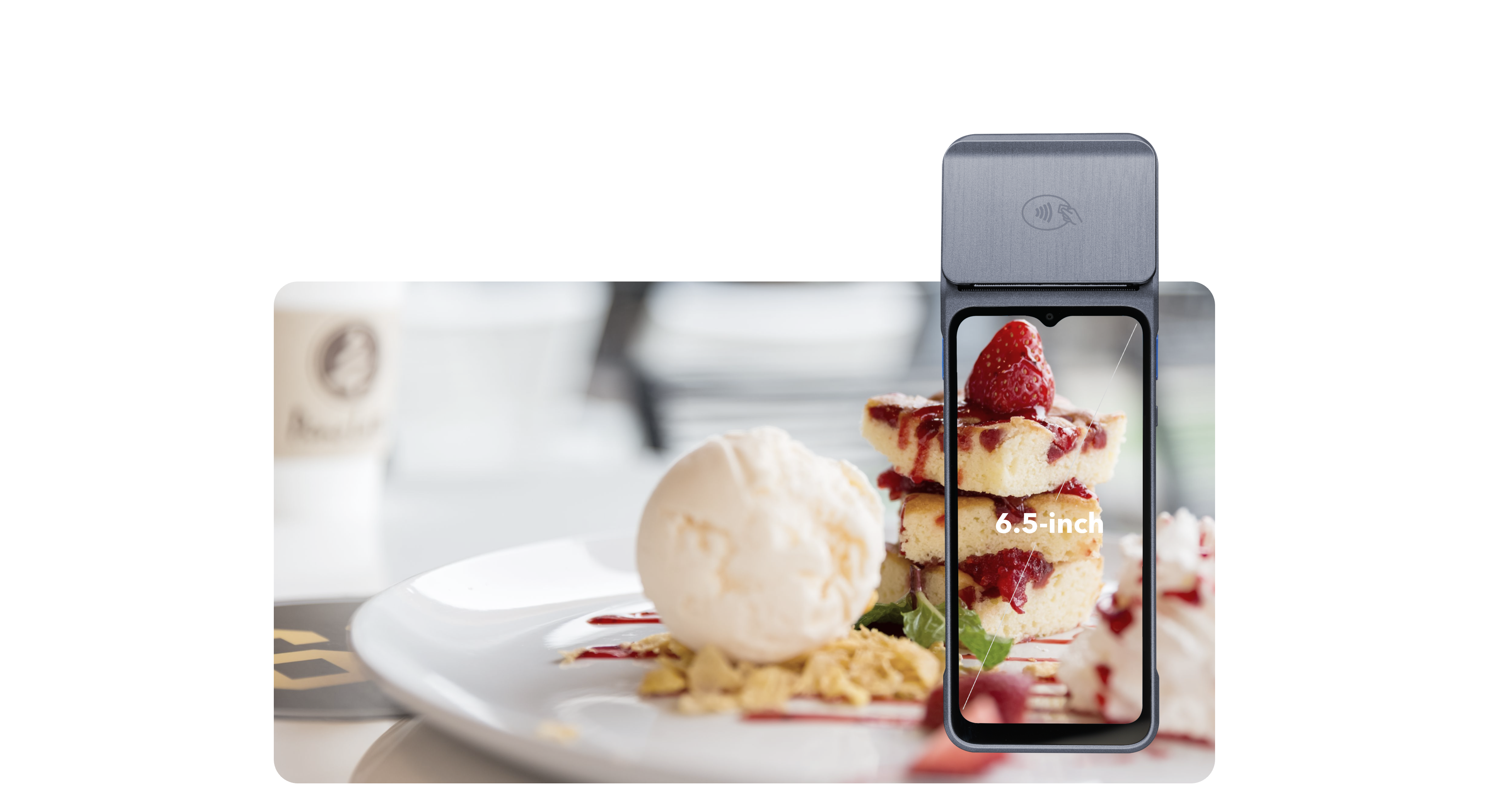

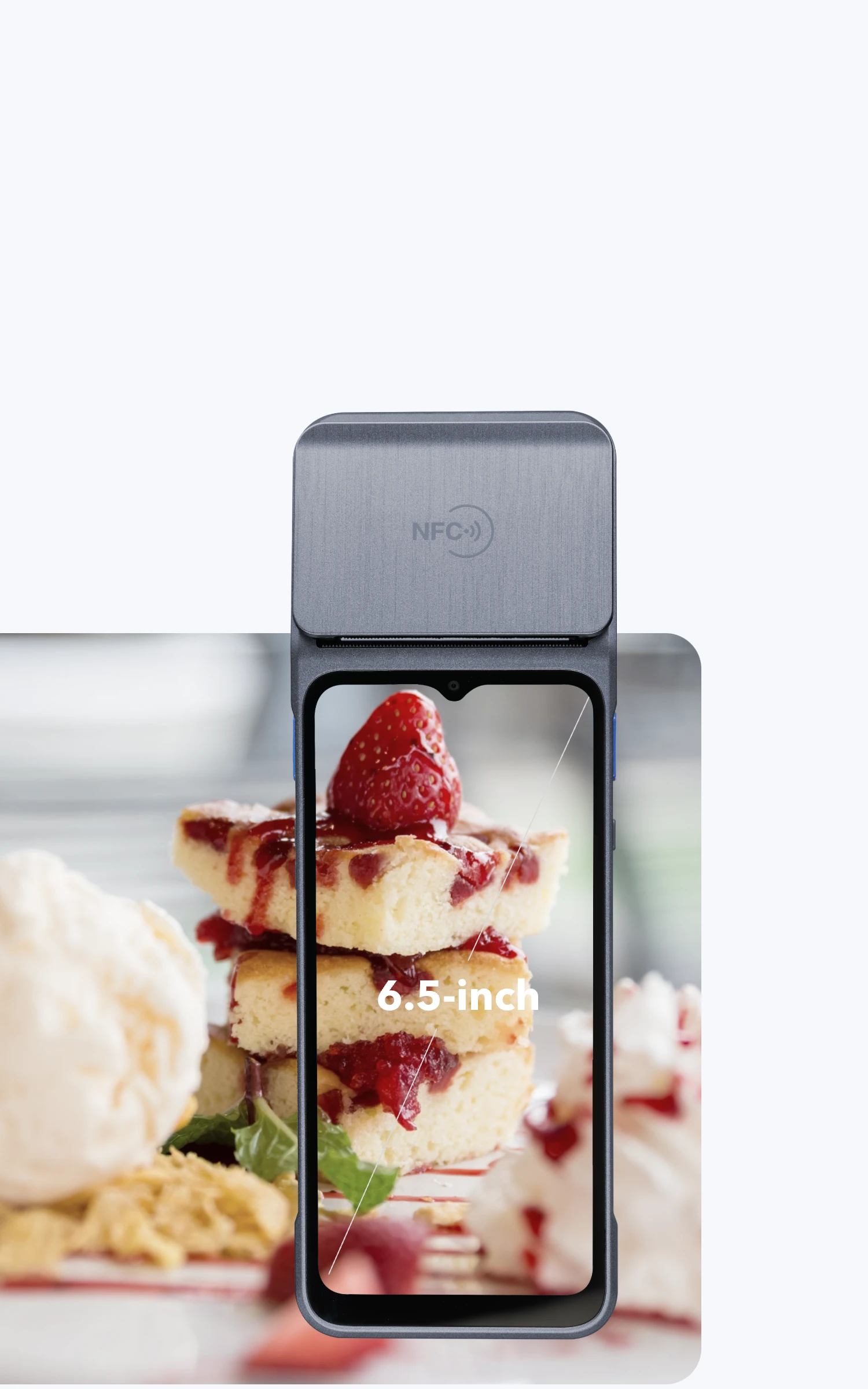

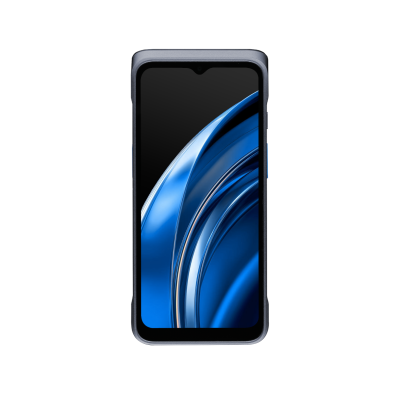

Immersive touch screen
The expansive 6.5" touch screen is designed for
single-hand operation and brings realistic images
and an immersive visual experience.

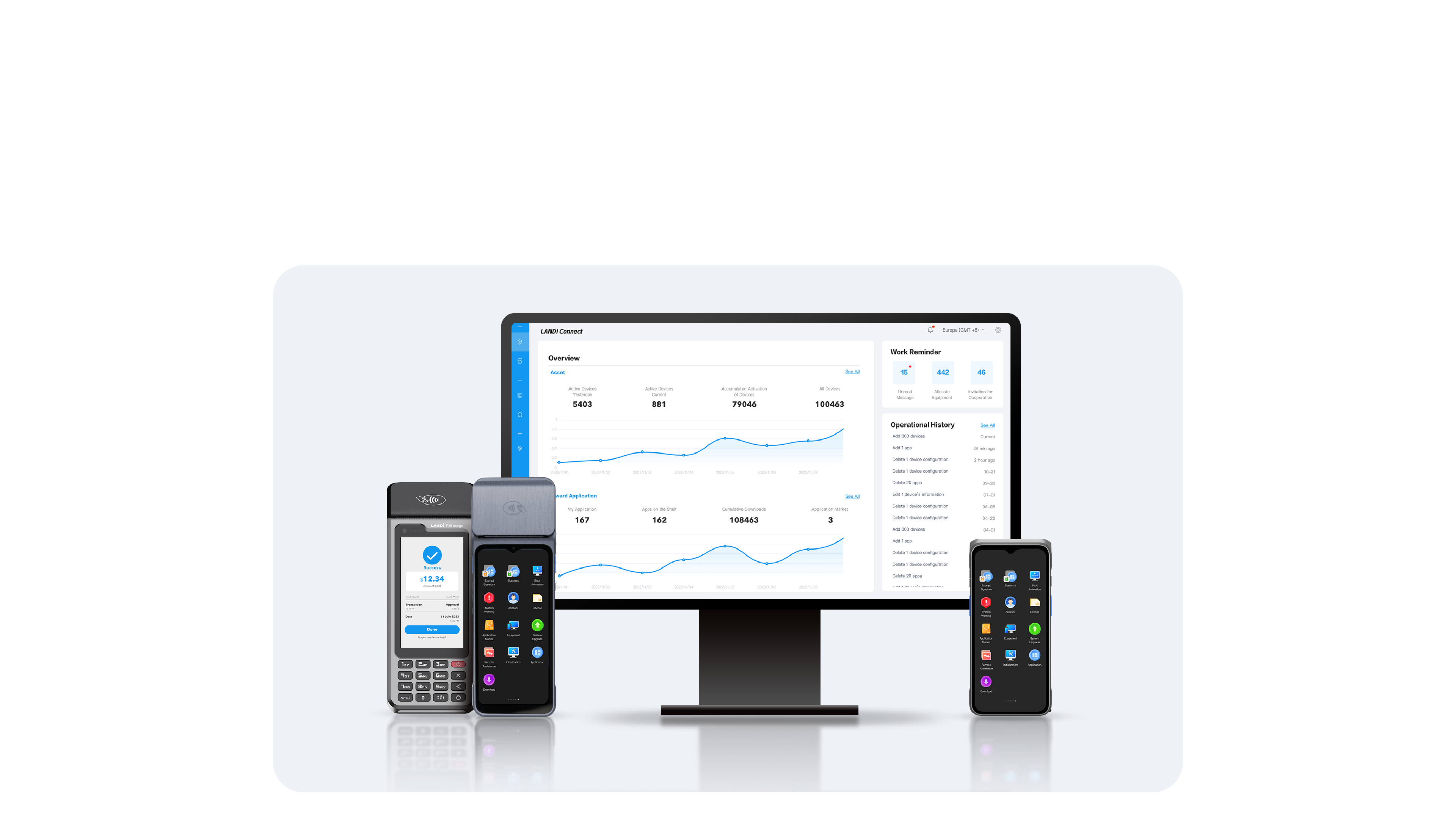

Easy deployment and operations

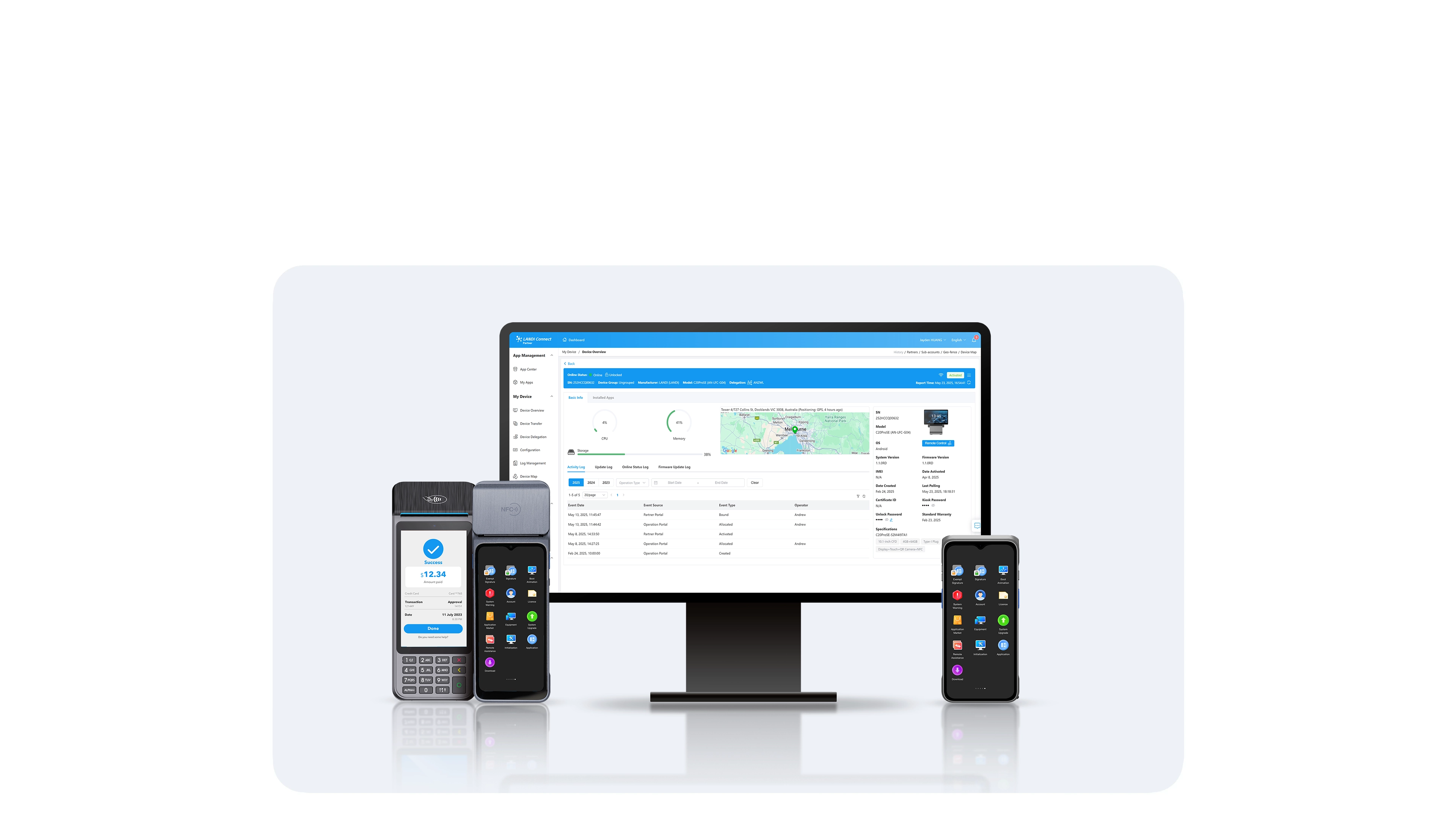

Transform your terminal management with our comprehensive online solution. Reduce manual intervention and enhance efficiency with LANDI Connect, which includs Terminal Managment, App store, remote assistance, and fault diagnosis functionalities, all at your fingertips.
Various accessories expand more possibilities

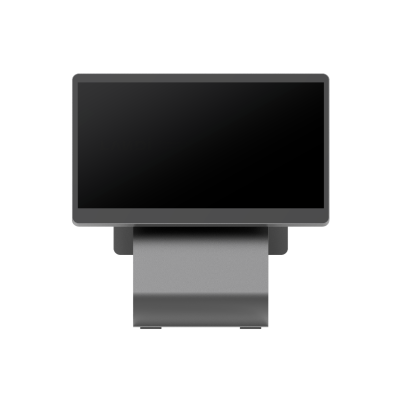

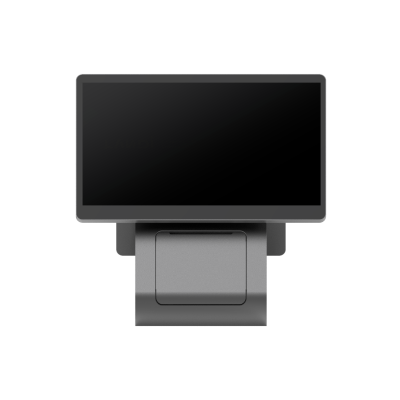

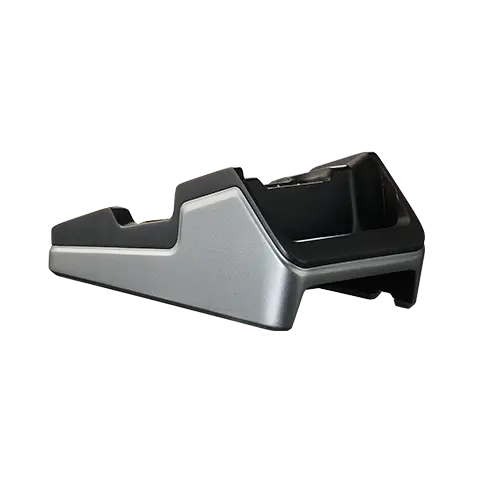

Charging Base

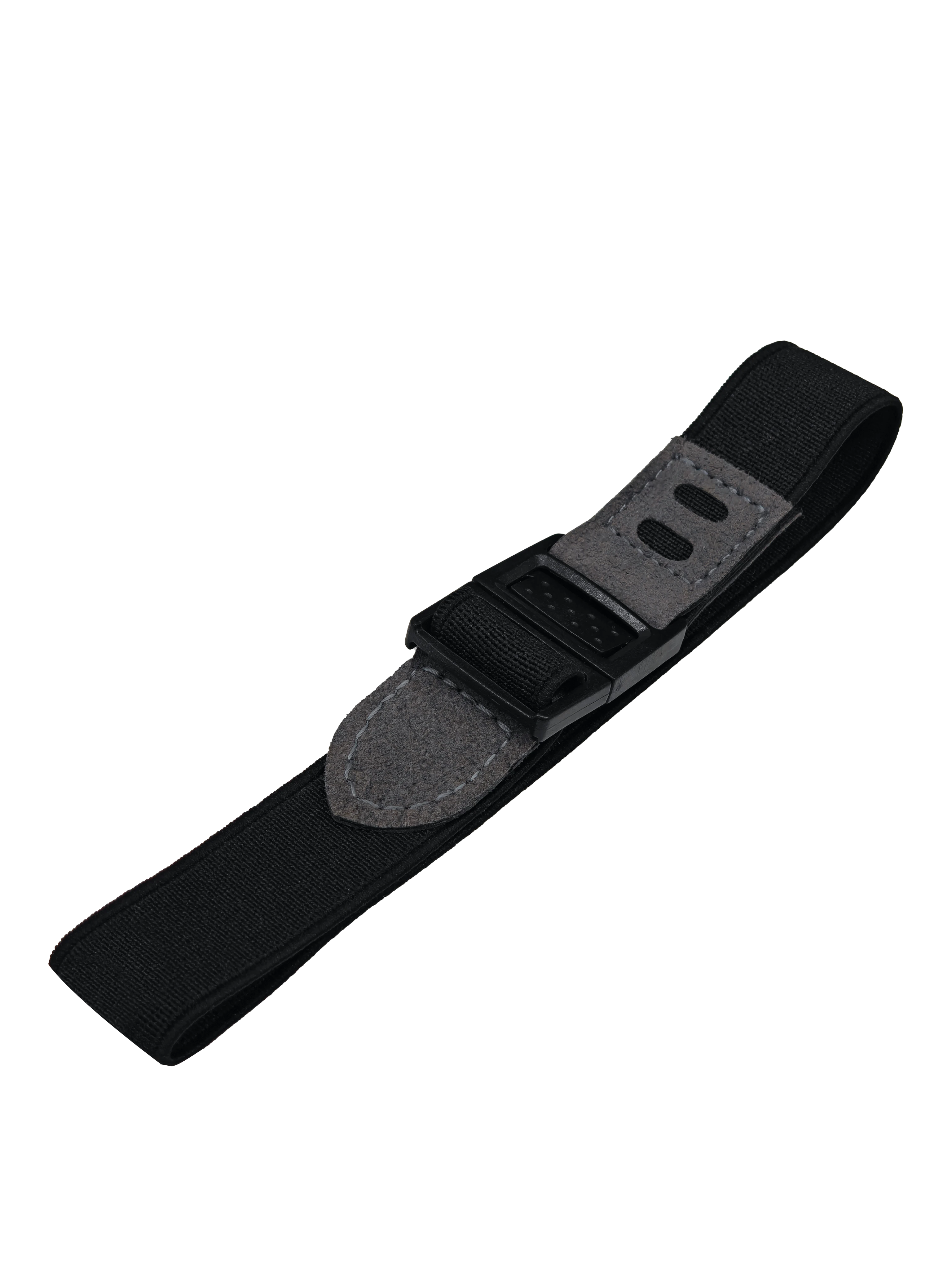

Strap

Specifications

CPU

64-bit quad-core ARM Cortex-A53, 2.0 GHz

OS

Android 13, 64 bits (GMS)
Android 13, 64 bits (Non-GMS) (Optional)

Display

6.517", 720×1600, 400/500 nits, capacitive multi-touch

Buttons

Power * 1
Volume * 2
Scan * 2 (Optional)

Memory

Internal:
3GB RAM + 32GB FLASH
2GB RAM + 16GB FLASH (Non-GMS) (Optional)
4GB RAM + 64GB FLASH (Optional)
Expansion:
MicroSD card, up to 2TB

Camera

Front:
2MP with fixed focus (for barcode scanning)
Rear:
5MP with autofocus & flash

Printer

Thermal printer
Paper width: 58 mm
Roll diameter: 40 mm
Print speed: 100 mm/s max

Scanner

None
LANDI scan engine (Optional)
Honeywell scan engine (Optional)

Audio

1W 90dB@0.1m, Single speaker
Headset via USB Type-C port
Microphone * 2

Connectivity

WAN: 4G/3G/2G fallback
Wi-Fi: IEEE 802.11 a/b/g/n/ac, 2.4Ghz/5Ghz
Bluetooth: Bluetooth 5.0, supports BLE

NFC

Android NFC, ISO/IEC 14443, ISO15693 compliant, Supports Type A/B Mifare, FeliCa, EMVCo PCD L1 Certified

Sensor

G-sensor with auto-rotation
Ambient light sensor
Proximity sensor

Ports

USB Type-C port * 1
Pogo pin * 2

Positioning

AGPS, GPS, GLONASS, BeiDou, Galileo

SIM/SAM Slots

2 SIM + 2 SAM
1 SIM + 2 SAM (Optional)

Power

Supply: 5V/2A
Battery:
7.7V 3500mAh / 26.95Wh li-ion, removable

Dimensions (Terminal only)

229 × 80 × 60 mm
(L × W × H)

Weight

429g (With battery)

Certification

Payment: EMVCo Contactless L1
Regulatory: CE, CB, FCC, IC, RoHS, WEEE, UN 38.3, DGM, GMS

Protection

Drop Resistance: 1.2m

Environment

Operating Temperature:
Discharging: -10°C to +50°C (14°F to 122°F)
Charging: 0°C to +40°C (32°F to 104°F)
Storage Temperature:
-20°C to +70°C (-4°F to 158°F)
Operating Humidity:
10% to 90% (Non-condensing)

Accessories (Sold separately)

Battery charger
Charging base
Functional base
Hand strap
Screen protector
Learn more

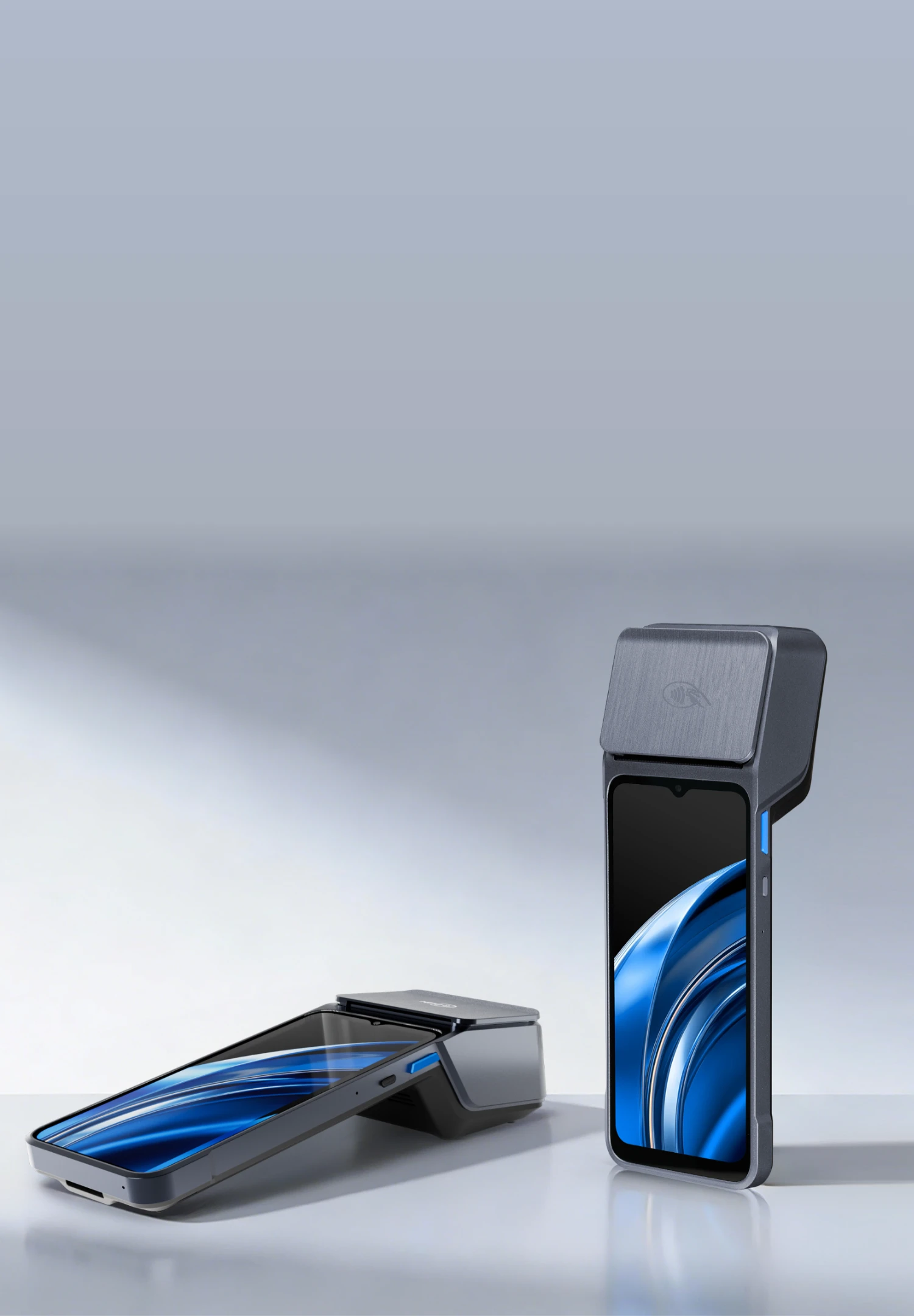

Elevate with our all-in-one mobile terminal.

The M20 combines cutting-edge technology with sleek aesthetics,empowering you to streamline operations and elevate your business to new heights.

Key features:

● Powered by Android 13



● Quad-core, 2.0GHz



● 6.517" touch screen



● 2G/3G/4G, WiFi, GPS, Bluetooth 5.0,



   and optional eSIM

Download brochure
High performance
quad-core CPU

The M20 features a high-performance

quad-core processor, providing a fast

and seamless experience.



Quad-core CPU, 2.0GHz

Powered by Android 13

SD Card 3.0 Suppor



Immersive touch screen

The expansive 6.5" touch screen is designed for

single-hand operation and brings realistic images

and an immersive visual experience.

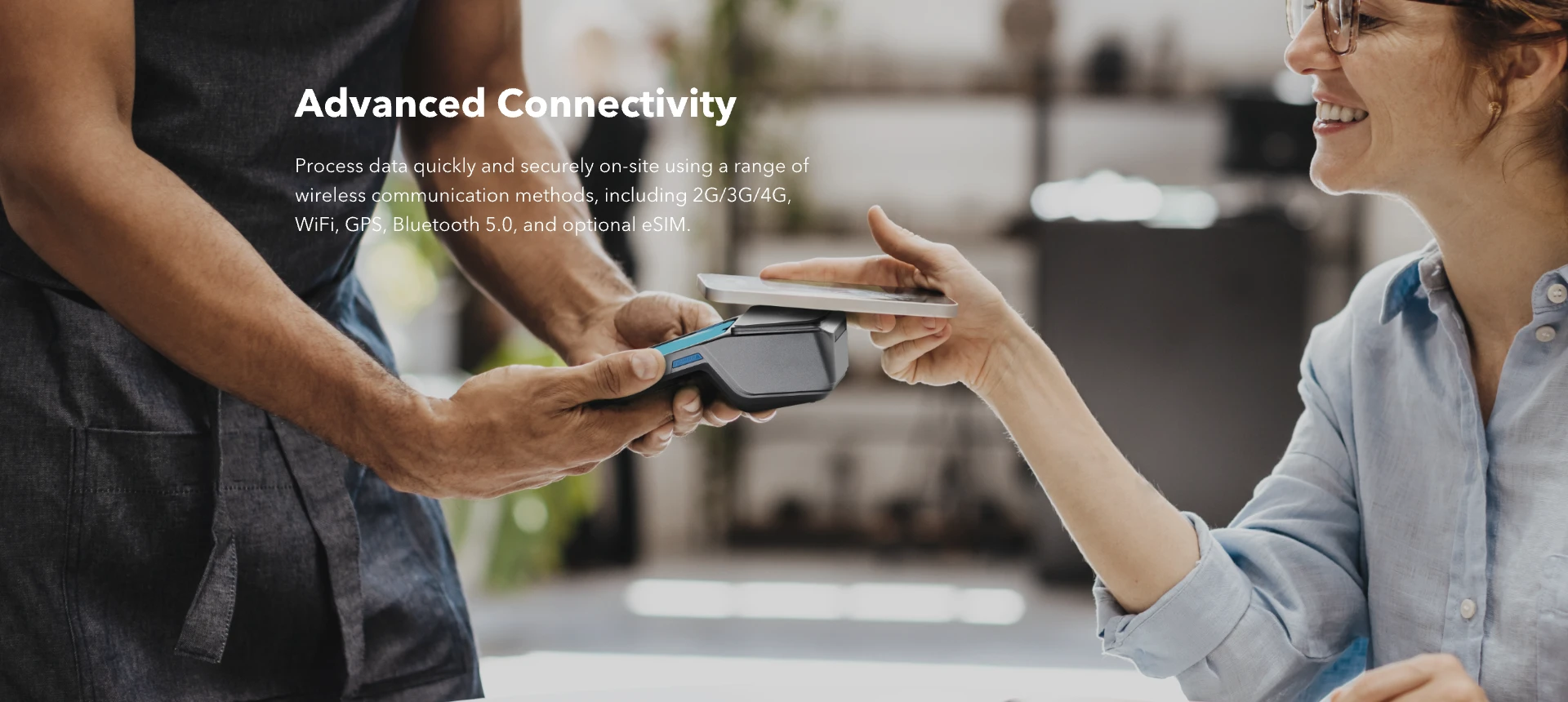

Advanced connectivity

Process data quickly and securely on-site using a range of wireless communication methods.

Various accessories expand more possibilities
Charging Base
Strap
Specifications
CPU 64-bit quad-core ARM Cortex-A53, 2.0 GHz
OS Android 13, 64 bits (GMS)
Android 13, 64 bits (Non-GMS) (Optional)
Display 6.517", 720×1600, 400/500 nits, capacitive multi-touch
Buttons Power * 1
Volume * 2
Scan * 2 (Optional)
Memory Internal:
3GB RAM + 32GB FLASH
2GB RAM + 16GB FLASH (Non-GMS) (Optional)
4GB RAM + 64GB FLASH (Optional)
Expansion:
MicroSD card, up to 2TB
Camera Front:
2MP with fixed focus (for barcode scanning)
Rear:
5MP with autofocus & flash
Printer Thermal printer
Paper width: 58 mm
Roll diameter: 40 mm
Print speed: 100 mm/s max
Scanner None
LANDI scan engine (Optional)
Honeywell scan engine (Optional)
Audio 1W 90dB@0.1m, Single speaker
Headset via USB Type-C port
Microphone * 2
Connectivity WAN: 4G/3G/2G fallback
Wi-Fi: IEEE 802.11 a/b/g/n/ac, 2.4Ghz/5Ghz
Bluetooth: Bluetooth 5.0, supports BLE
NFC Android NFC, ISO/IEC 14443, ISO15693 compliant, Supports Type A/B Mifare, FeliCa, EMVCo PCD L1 Certified
Sensor G-sensor with auto-rotation
Ambient light sensor
Proximity sensor
Ports USB Type-C port * 1
Pogo pin * 2
Positioning AGPS, GPS, GLONASS, BeiDou, Galileo
SIM/SAM Slots 2 SIM + 2 SAM
1 SIM + 2 SAM (Optional)
Power Supply: 5V/2A
Battery:
7.7V 3500mAh / 26.95Wh li-ion, removable
Dimensions (Terminal only) 229 × 80 × 60 mm
(L × W × H)
Weight 429g (With battery)
Certification Payment: EMVCo Contactless L1
Regulatory: CE, CB, FCC, IC, RoHS, WEEE, UN 38.3, DGM, GMS
Protection Drop Resistance: 1.2m
Environment Operating Temperature:
Discharging: -10°C to +50°C (14°F to 122°F)
Charging: 0°C to +40°C (32°F to 104°F)
Storage Temperature:
-20°C to +70°C (-4°F to 158°F)
Operating Humidity:
10% to 90% (Non-condensing)
Accessories (Sold separately) Battery charger
Charging base
Functional base
Hand strap
Screen protector
