Fast & Frictionless Payments
Keep your lines moving and your customers satisfied.
With a 5” display, a dedicated keypad and a visible contactless area, every Tap, Swipe or PIN is streamlined for speed.
With a 5” display, a dedicated keypad and a visible contactless area, every Tap, Swipe or PIN is streamlined for speed.

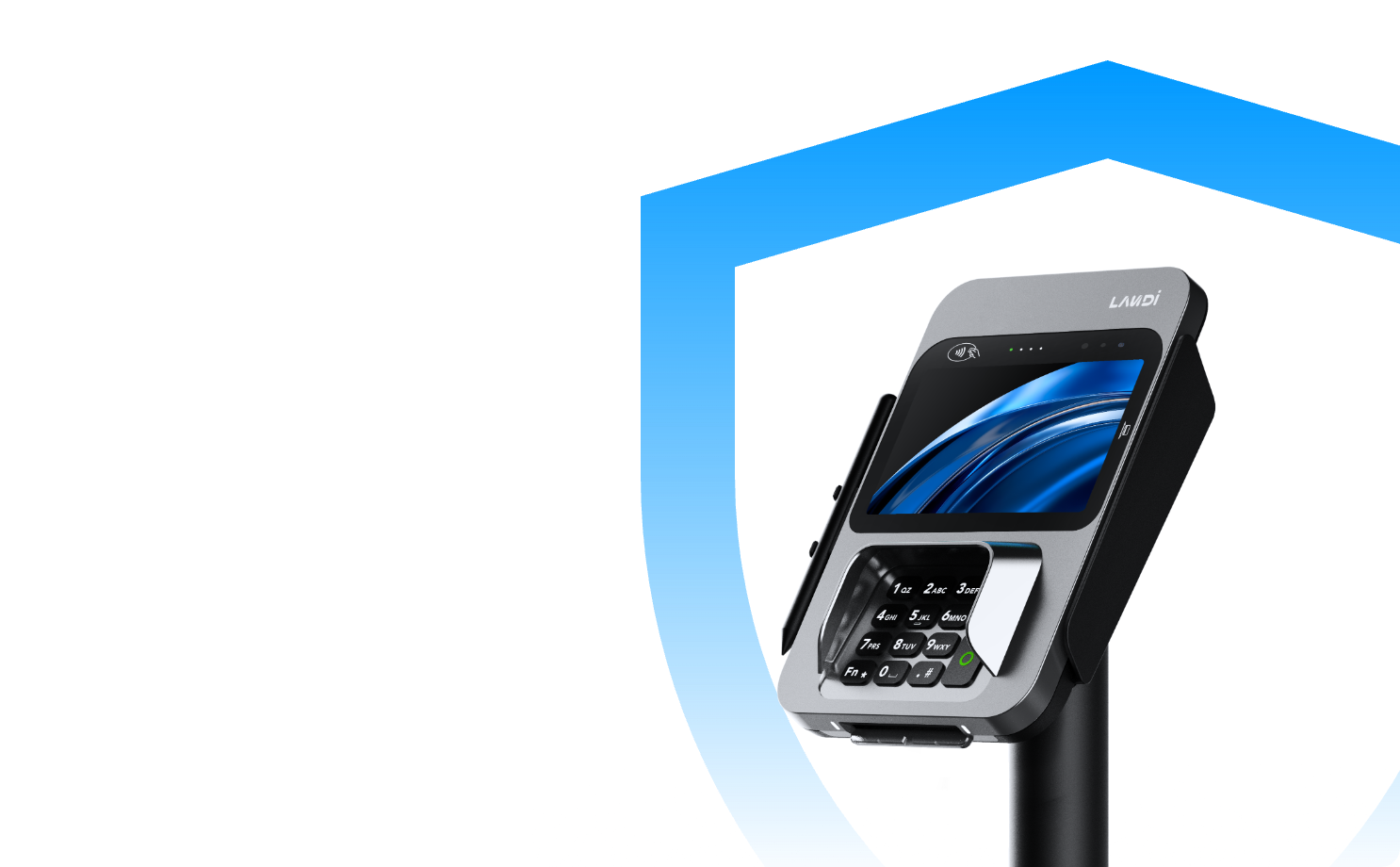

Secure & Future-Proof Technology
One device that grows with your business. PCI v7 certified and powered by Android 14
PCI PTS 7.x
Certified
Powered by
Android 14
Compact & Retail-Ready Design
Smart, sleek, and built to fit your store.
Modern, ergonomic design with powerful functionality.

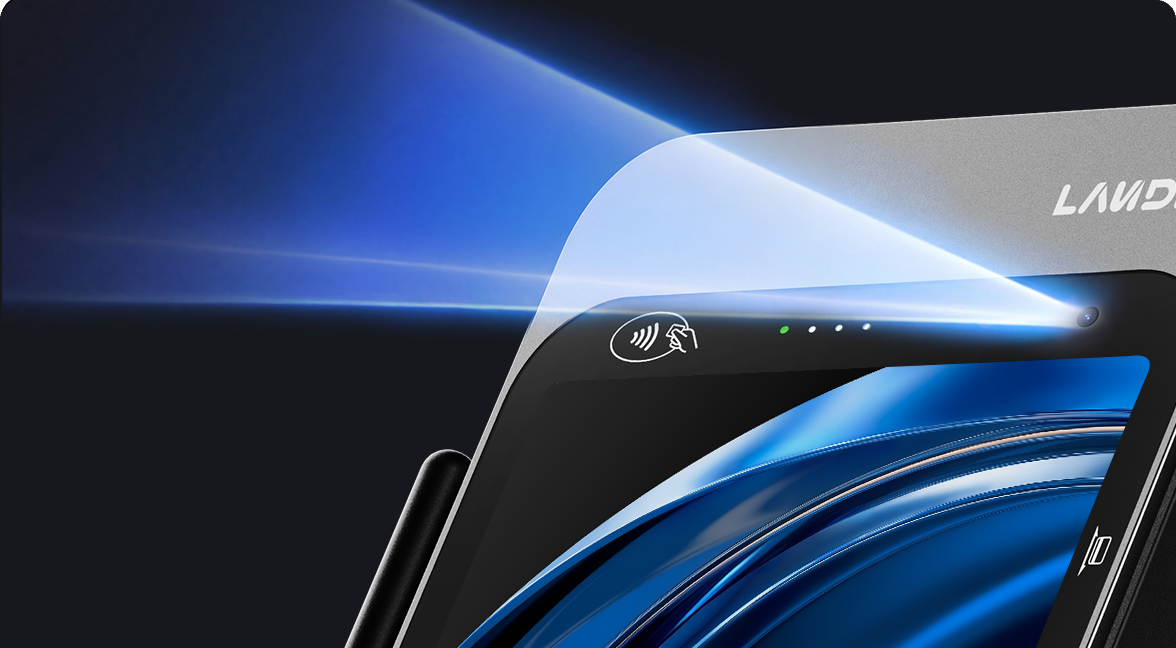

Integrated front cameras for loyalty, payment, and future customer engagement.

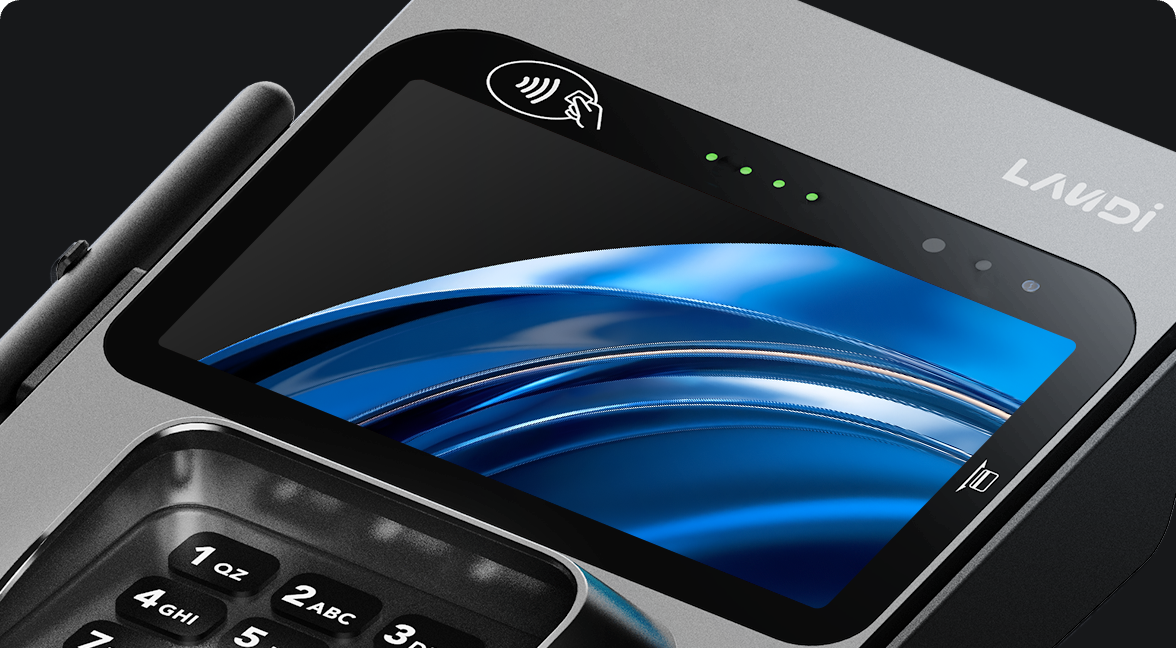

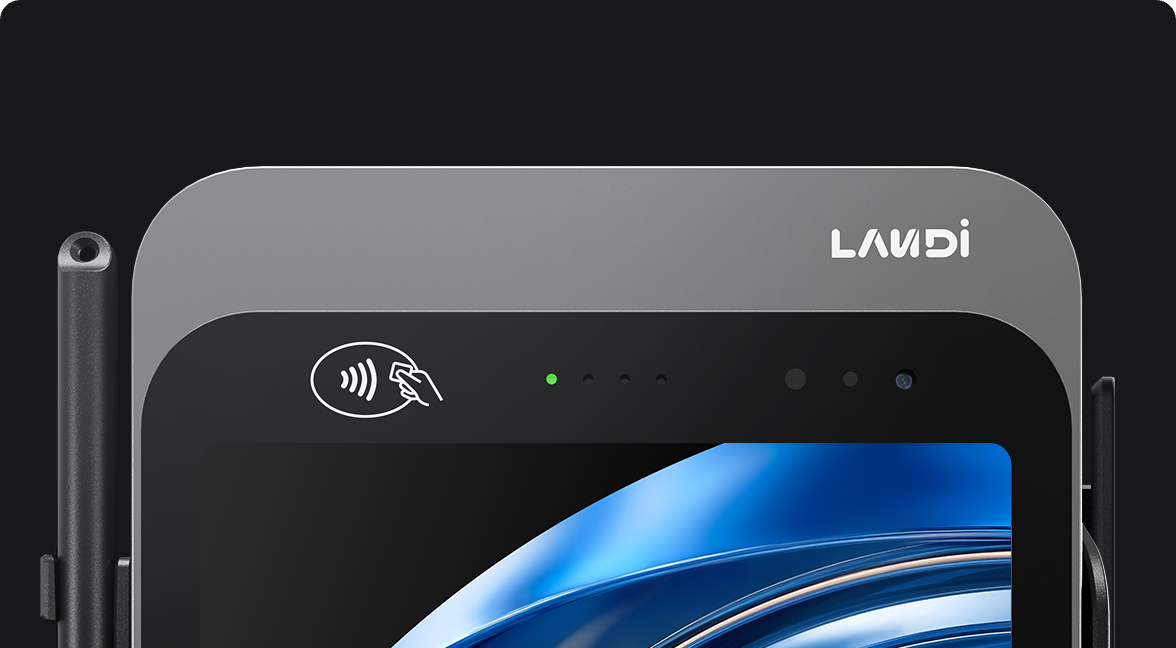

Dedicated contactless area – clearly recognizable for fast, seamless transactions.
5” display for improved visibility and user experience.
Specifications
P20 R
Processor
Qualcomm 64-bit quad-core ARM Cortex-A53, 2.0 GHz
OS
Android 14
32 bits
32 bits
Memory
Internal:
2GB RAM + 32GB FLASH
4GB RAM + 64GB FLASH (Optional)
External:
MicroSD card, up to 2TB
2GB RAM + 32GB FLASH
4GB RAM + 64GB FLASH (Optional)
External:
MicroSD card, up to 2TB
Main Display
5", 854×480, 350 nits,
Capacitive multi-touch
Capacitive multi-touch
Keys
Buttons:
Physical: Power, Volume Up/Down
Virtual: Menu, Home, Back
Keypad:
Numeric key * 10,
Function key * 5
Keypad backlight (Optional)
Physical: Power, Volume Up/Down
Virtual: Menu, Home, Back
Keypad:
Numeric key * 10,
Function key * 5
Keypad backlight (Optional)
Audio
Speaker * 1
Headset via 3.5 mm audio jack
Microphone * 2
Headset via 3.5 mm audio jack
Microphone * 2
Connectivity
WAN:
4G/3G/2G fallback (Optional)
Wi-Fi:
IEEE 802.11 a/b/g/n/ac, 2.4Ghz/5Ghz
Bluetooth:
Bluetooth 5.0, supports BLE
4G/3G/2G fallback (Optional)
Wi-Fi:
IEEE 802.11 a/b/g/n/ac, 2.4Ghz/5Ghz
Bluetooth:
Bluetooth 5.0, supports BLE
Positionning
GPS, GLONASS, BeiDou, Galileo (Optional)
Camera
Front camera:
0.3MP with fixed focus
(For barcode scanning)
5MP with autofocus
(For photo/video capture)
White LED guide light * 1 (Optional)
0.3MP with fixed focus
(For barcode scanning)
5MP with autofocus
(For photo/video capture)
White LED guide light * 1 (Optional)
Card reader
Magnetic Stripe Reader:
ISO 1/2/3 track,
Bi-directional
White LED guide light * 1
Smart Card Reader:
EMV Contact L1 & L2,
ISO 7816
White LED guide light * 2
Contactless Reader:
EMV Contactless L1 & L2
ISO/IEC 14443 Type A/B,
MIFARE, FeliCa
LED status indicator * 4
ISO 1/2/3 track,
Bi-directional
White LED guide light * 1
Smart Card Reader:
EMV Contact L1 & L2,
ISO 7816
White LED guide light * 2
Contactless Reader:
EMV Contactless L1 & L2
ISO/IEC 14443 Type A/B,
MIFARE, FeliCa
LED status indicator * 4
SAM/SIM slots
2 SAM
2 SIM + 2 SAM (Optional)
1 SIM + 1 eSIM + 2 SAM (Optional)
2 SIM + 2 SAM (Optional)
1 SIM + 1 eSIM + 2 SAM (Optional)
Connection
USB Type-C port * 1
Power
Non-Battery Version:
Supply: 5V/2A
Supply: 5V/2A
Dimensions (Terminal only)
184.6 x 133.7 x 20.4 mm
(L × W × H)
(L × W × H)
Weight
440g
(Terminal only)
(Terminal only)
Environment
Operating temperature:
without PSU: -10°to +50°C (14°F to 122°F)
with PSU: 0°to +40°C
(32°F to 104°F)
Storage temperature:
Without PSU: -20°C to +70°C (-4°F to 158°F)
With PSU: -20°C to +60°C (-4°F to 140°F)
Operating humidity:
10% to 90%
(Non-condensing)
without PSU: -10°to +50°C (14°F to 122°F)
with PSU: 0°to +40°C
(32°F to 104°F)
Storage temperature:
Without PSU: -20°C to +70°C (-4°F to 158°F)
With PSU: -20°C to +60°C (-4°F to 140°F)
Operating humidity:
10% to 90%
(Non-condensing)
Accessories (Sold separately)
Magic Hub
Passive stylus
Passive stylus
Certification
PCI: PCI PTS 7.x
Payment:
EMVCo Contact L1 & L2,
EMVCo Contactless L1 & L2
Mastercard PayPass,
Visa payWave, JCB,
UPI qUICS,
Amex ExpressPay,
Discover D-PAS, TQM,
PURE, EFTPOS
Regulatory:
CE, CB, FCC, IC, RoHS,
WEEE, UN 38.3, RCM
Payment:
EMVCo Contact L1 & L2,
EMVCo Contactless L1 & L2
Mastercard PayPass,
Visa payWave, JCB,
UPI qUICS,
Amex ExpressPay,
Discover D-PAS, TQM,
PURE, EFTPOS
Regulatory:
CE, CB, FCC, IC, RoHS,
WEEE, UN 38.3, RCM
Reliability
IK: IK04
Drop Resistance: 0.8m
Drop Resistance: 0.8m
Fast & Frictionless
Payments
Keep your lines moving and your customers satisfied.
With a 5” display, a dedicated keypad and a visible
contactless area, every Tap, Swipe or PIN is streamlined for speed.
With a 5” display, a dedicated keypad and a visible
contactless area, every Tap, Swipe or PIN is streamlined for speed.
Secure & Future-Proof
Technology
One device that grows with your business. PCI v7
certified and powered by Android 14
certified and powered by Android 14
PCI PTS 7.x
Certified
Powered by
Android 14
Compact &
Retail-Ready Design
Smart, sleek, and built to fit your store.
Modern, ergonomic design with powerful functionality.
Integrated front cameras for loyalty, payment, and future customer engagement.
Dedicated contactless area – clearly recognizable for fast, seamless transactions.
5” display for improved visibility and user experience.
Specifications
| Processor | Qualcomm 64-bit quad-core ARM Cortex-A53, 2.0 GHz |
| OS | Android 14
32 bits |
| Memory | Internal:
2GB RAM + 32GB FLASH 4GB RAM + 64GB FLASH (Optional) External: MicroSD card, up to 2TB |
| Main Display | 5", 854×480, 350 nits,
Capacitive multi-touch |
| Keys | Buttons:
Physical: Power, Volume Up/Down Virtual: Menu, Home, Back Keypad: Numeric key * 10, Function key * 5 Keypad backlight (Optional) |
| Audio | Speaker * 1
Headset via 3.5 mm audio jack Microphone * 2 |
| Connectivity | WAN:
4G/3G/2G fallback (Optional) Wi-Fi: IEEE 802.11 a/b/g/n/ac, 2.4Ghz/5Ghz Bluetooth: Bluetooth 5.0, supports BLE |
| Positionning | GPS, GLONASS, BeiDou, Galileo (Optional) |
| Camera | Front camera:
0.3MP with fixed focus (For barcode scanning) 5MP with autofocus (For photo/video capture) White LED guide light * 1 (Optional) |
| Card reader | Magnetic Stripe Reader:
ISO 1/2/3 track, Bi-directional White LED guide light * 1 Smart Card Reader: EMV Contact L1 & L2, ISO 7816 White LED guide light * 2 Contactless Reader: EMV Contactless L1 & L2 ISO/IEC 14443 Type A/B, MIFARE, FeliCa LED status indicator * 4 |
| SAM/SIM slots | 2 SAM
2 SIM + 2 SAM (Optional) 1 SIM + 1 eSIM + 2 SAM (Optional) |
| Connection | USB Type-C port * 1 |
| Power | Non-Battery Version:
Supply: 5V/2A |
| Dimensions (Terminal only) | 184.6 x 133.7 x 20.4 mm
(L × W × H) |
| Weight | 440g
(Terminal only) |
| Environment | Operating temperature:
without PSU: -10°to +50°C (14°F to 122°F) with PSU: 0°to +40°C (32°F to 104°F) Storage temperature: Without PSU: -20°C to +70°C (-4°F to 158°F) With PSU: -20°C to +60°C (-4°F to 140°F) Operating humidity: 10% to 90% (Non-condensing) |
| Accessories (Sold separately) | Magic Hub
Passive stylus |
| Certification | PCI: PCI PTS 7.x
Payment: EMVCo Contact L1 & L2, EMVCo Contactless L1 & L2 Mastercard PayPass, Visa payWave, JCB, UPI qUICS, Amex ExpressPay, Discover D-PAS, TQM, PURE, EFTPOS Regulatory: CE, CB, FCC, IC, RoHS, WEEE, UN 38.3, RCM |
| Reliability | IK: IK04
Drop Resistance: 0.8m |
